wiring assemblies for medical analytical instruments

wiring assemblies for medical analytical instruments
T/T 30% Prepayment, balance before delivery
Delivery Time:
Start Port:
HK, Shenzhen
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?


Product Description

This complicated wire assemblies special customized with MAS-CON connectors from TYCO and PANCON. ETOP support customers to the innovation in the electro-medical sector industry, beginning with pediatrics, by proposing alternative equipment with competitive solutions.  With the aim of constantly enhancing the performances and the quality of product, but also to facilitate the use and maintenance of its instruments, guaranteeing better analytical results and higher reliability, we produced with proposed solution based on customer requirements.


Product Specifications

Product Namewiring assemblies for medical analytical instruments
ApplicationMEDICAL analytical equipment
wire spec & Materialstinned copper,PVC jacket, etc.
Cable LengthPer customer requirements
Number of positionscustom
Operating Temperature Range-30~85℃
AssemblingXLPE Insulation Jacket(Black)
Contact PlatingTin over Nickel
Connectors typeIDC Socket: CE100F22,CE156F18,EC156F,EC100F
Pin out connectionAs per customers' requirement
ServiceOEM and ODM products are acceptable
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details

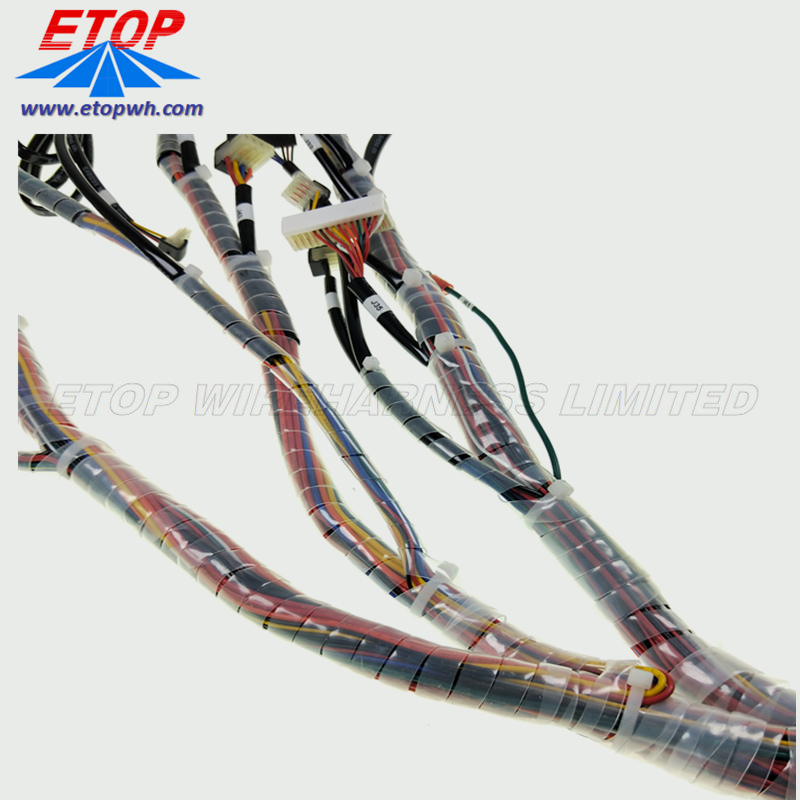

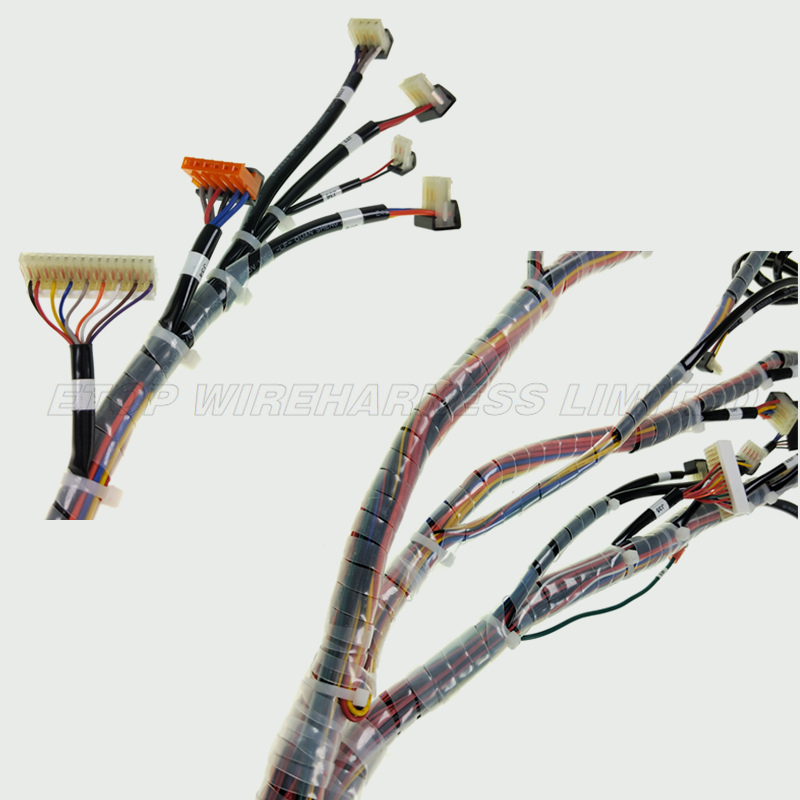

01 The complete loom covered by spiral banding sleeve for protection, also together with PVC tube and heat-shrink tube,spiral tube guarantee the cable flexible enough. Each connector and pin layout marked with heat-shrink tube.

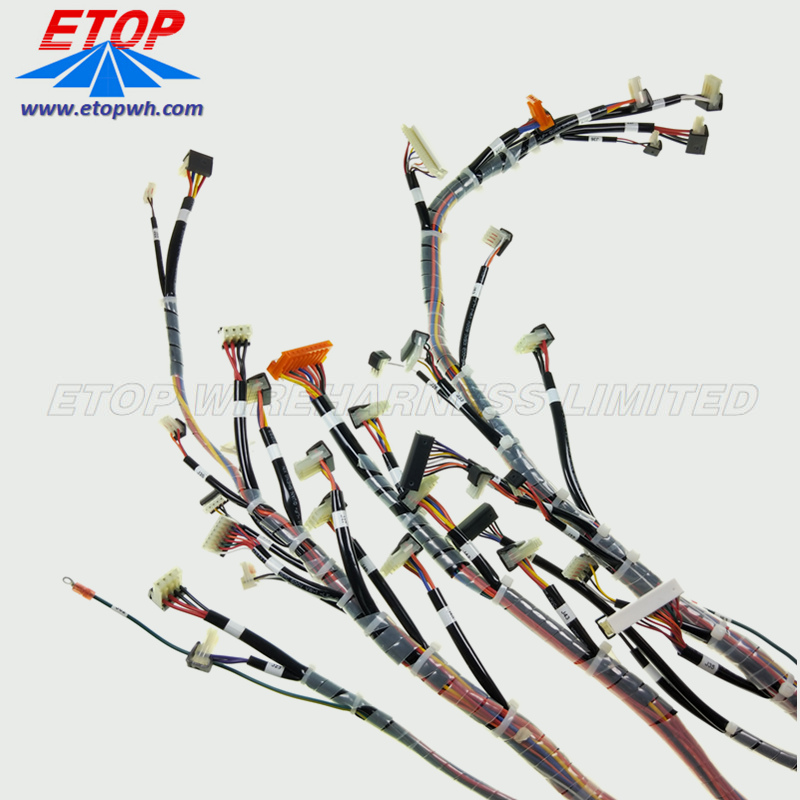

This complicated cable assemblies is special assembled with PANCON terminal block connectors, each branch marked with label for distinguish. The complete loom assembled on fixture by covering with PVC tube, spiral tube and tape. which purpose to make sure the loom is flexible enough.  These block connectors are MAS-CON® .100" IDC Wire to Board Connector System, available in various type, straight and right angle.


02 For sampling, we make fixture on wooden board to fix size for sampling. During MASS production, we would make formal fixture by metal type, more reliable for quality and testing, also the size. such complicated wire assembly product, assembling them can be a daunting task. With numerous sizes, lengths and colors of wire, cable, connectors, terminal blocks and other components to choose from, it’s similar to putting together a giant jigsaw puzzle.

Harness boards, fixtures and workbenches can make the job easier and less stressful. They all play a critical role in error-free assembly, quick response and continuous improvement.

The front-end of most wire processing applications is highly automated. Indeed, automatic wire cutters, markers, splicers, strippers, wrappers and other production equipment is commonly used by manufacturers to boost throughput and ensure consistent quality.


03 We supported customer to tranfer their simple drawing to production type formal drawaing. More content and details would be difined and confirmed. Now harness assemblers face several challenges today, such as:

    Being cost-competitive and profitable.
    Being flexible to accommodate high-mix, low-volume applications.
    Moving quickly from one job to another with minimal downtime.
    Dealing with short lead times from customers and just-in-time delivery requirements, without holding too much inventory because of costs or the risk of engineering changes.
    Improving ergonomics to reduce repetitive motion disorders and healthcare claims.
    Finding qualified workers and retaining them.
With raw material prices and labor variables increasing, finding more efficient and cost-effective methods of assembly are critical. so our engineer try to d prototype to find out the best workable solution to move on mass production. Take all raw materials and assembling skill into consideration.

Product Applications

We specialize in custom harnesses for the widest diversity of cable and connector types, across the whole spectrum of industries. We built your unique Cable Assemblies according to your specified shapes, sizes, pin configuration and cable materials to suit Ethernet, Automation, Marine, Transportation Applications…etc. Now, we produced much complex cable assemblies for medical industry customers. We introduced X-RAY machine to double confirm stable and reliable quality for these cables.
