OEM complex wire assemblies for electro-medical sector

这里可以自定义设置
OEM complex wire assemblies for electro-medical sector
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-WH1211
MOQ:
100
Payment:
T/T 30% Prepayment,balance before delivery
Delivery Time:
4~6WKS
Start Port:
Shenzhen, Hongkong
Service:
OEM/ODM, Customization
Packing:
customized box, label and pallet
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

ETOP support customers to the innovation in the electro-medical sector industry, beginning with pediatrics, by proposing alternative equipment with competitive solutions.  With the aim of constantly enhancing the performances and the quality of product, but also to facilitate the use and maintenance of its instruments, guaranteeing better analytical results and higher reliability, we produced with proposed solution based on customer requirements.

Product Specifications

Product NameOEM complex wire assemblies for electro-medical sector
ApplicationMEDICAL equipment
wire spec & Materialstinned copper,PVC jacket, etc.
Cable LengthPer customer requirements
Number of positionscustom
Operating Temperature Range-30~85℃
AssemblingXLPE Insulation Jacket(Black)
Contact PlatingTin over Nickel
Connectors typeIDC Socket: CE100F22,CE156F18,EC156F,EC100F
Pin out connectionAs per customers' requirement
ServiceOEM and ODM products are acceptable
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65
这里可以自定义设置

Product Details

这里可以自定义设置

01

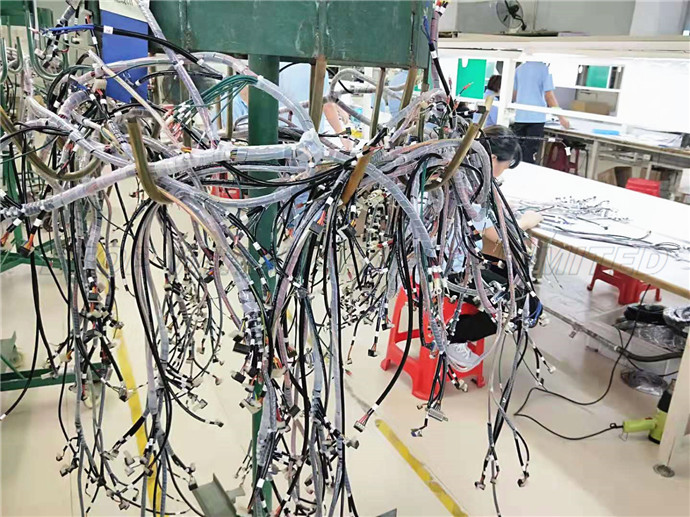

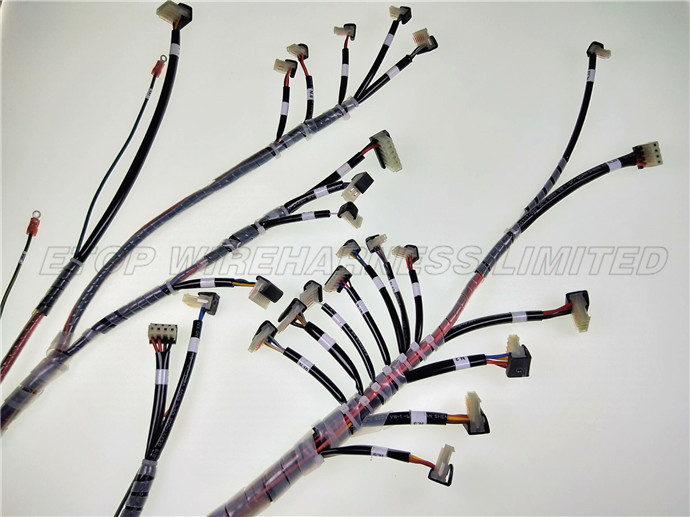

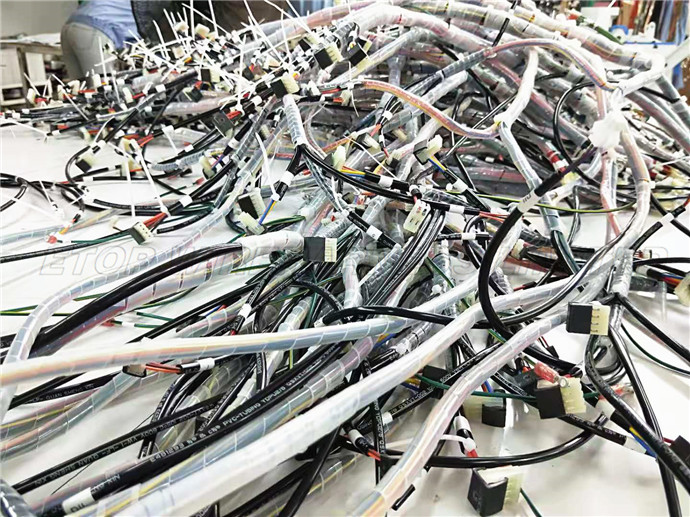

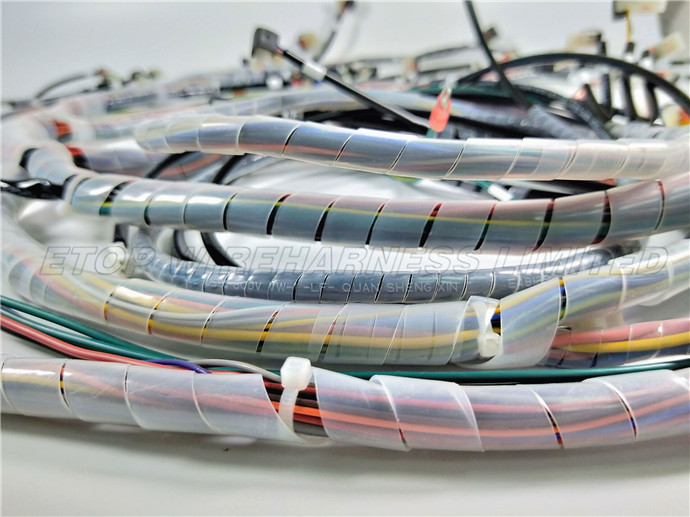

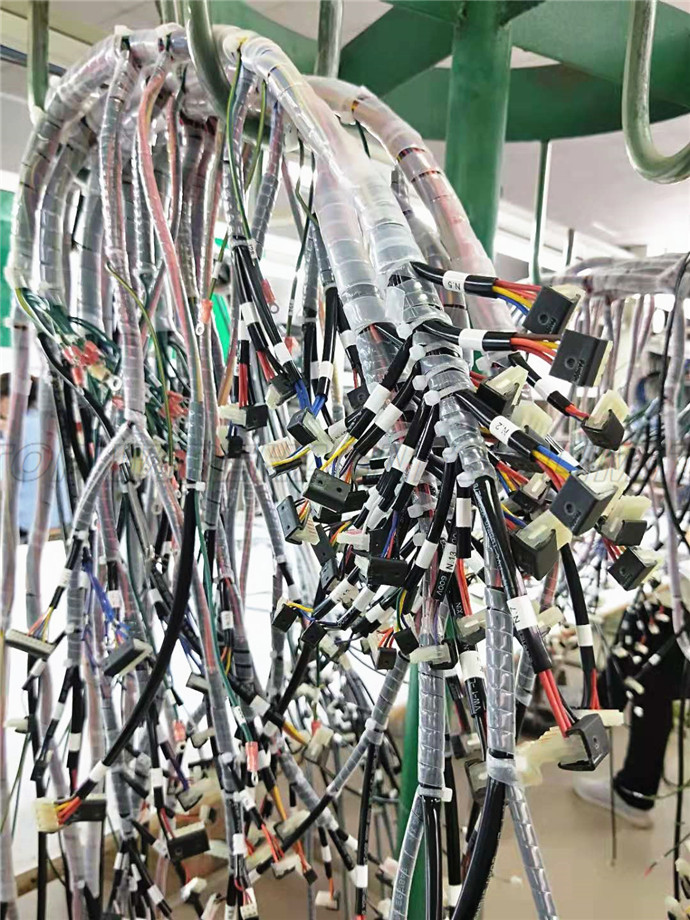

This complicated cable assemblies is special assembled with PANCON terminal block connectors, each branch marked with label for distinguish. The complete loom assembled on fixture by covering with PVC tube, spiral tube and tape. which purpose to make sure the loom is flexible enough.  These block connectors are MAS-CON® .100" IDC Wire to Board Connector System, available in various type, straight and right angle.

这里可以自定义设置

02

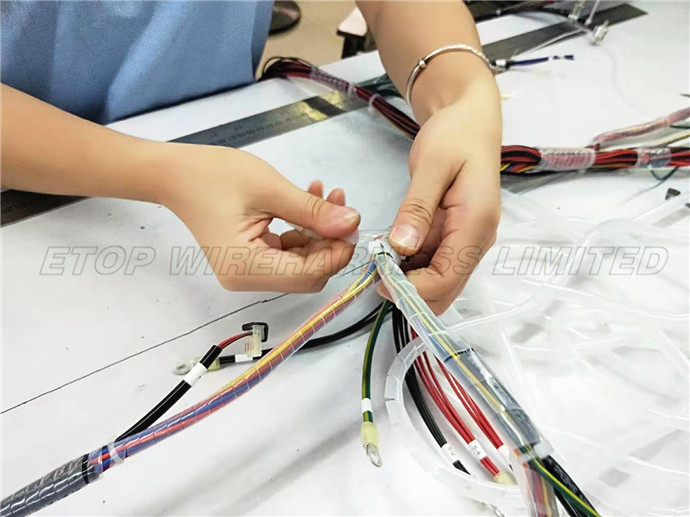

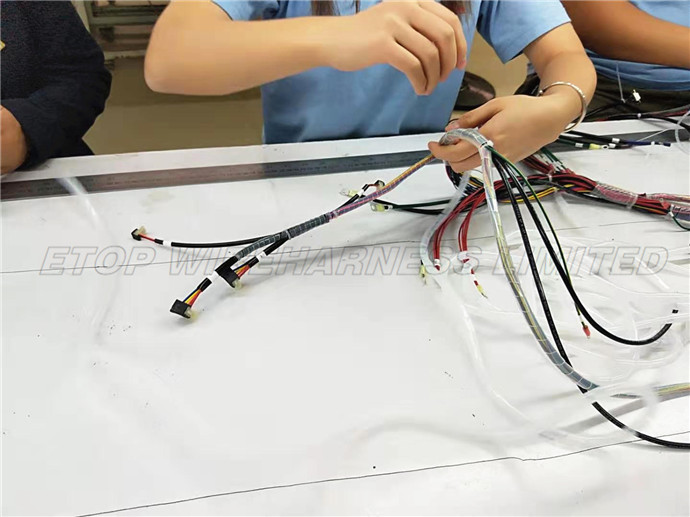

For such complicated wire assembly product, assembling them can be a daunting task. With numerous sizes, lengths and colors of wire, cable, connectors, terminal blocks and other components to choose from, it’s similar to putting together a giant jigsaw puzzle.

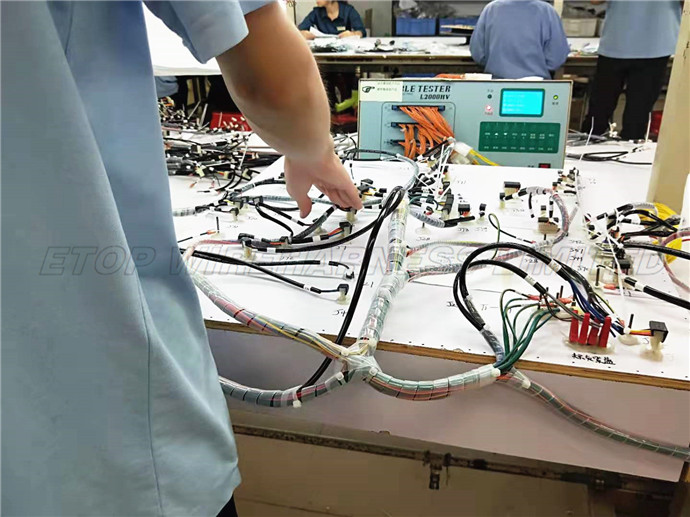

Harness boards, fixtures and workbenches can make the job easier and less stressful. They all play a critical role in error-free assembly, quick response and continuous improvement.

The front-end of most wire processing applications is highly automated. Indeed, automatic wire cutters, markers, splicers, strippers, wrappers and other production equipment is commonly used by manufacturers to boost throughput and ensure consistent quality.

这里可以自定义设置

03

Now harness assemblers face several challenges today, such as:

    Being cost-competitive and profitable.
    Being flexible to accommodate high-mix, low-volume applications.
    Moving quickly from one job to another with minimal downtime.
    Dealing with short lead times from customers and just-in-time delivery requirements, without holding too much inventory because of costs or the risk of engineering changes.
    Improving ergonomics to reduce repetitive motion disorders and healthcare claims.
    Finding qualified workers and retaining them.
With raw material prices and labor variables increasing, finding more efficient and cost-effective methods of assembly are critical. so our engineer try to d prototype to find out the best workable solution to move on mass production. Take all raw materials and assembling skill into consideration.

Product Applications

We specialize in custom harnesses for the widest diversity of cable and connector types, across the whole spectrum of industries. We built your unique Cable Assemblies according to your specified shapes, sizes, pin configuration and cable materials to suit Ethernet, Automation, Marine, Transportation Applications…etc. Now, we produced much complex cable assemblies for medical industry customers. We introduced X-RAY machine to double confirm stable and reliable quality for these cables.
