SAE J1939 OBD diagnostic connectors

这里可以自定义设置
SAE J1939 OBD diagnostic connectors
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-OBD1026
MOQ:
100
Payment:
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
Service:
OEM/ODM, Customizaion
Packing:
customized box, label and pallet
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置
Product NameSAE J1939 OBD diagnostic connectors
Applicationvehicle(car and truck) diagnostic system all OBD2 interface cars.
Cable colorPer customer requirements
Cable LengthPer customer requirements
MaterialABS, PA66
ColorGreen, black,Grey or customized
Operating temperature -40℃ to +125℃( no Cracking, Chipping or leaking after 20 test cycles from -40℃~+125℃)

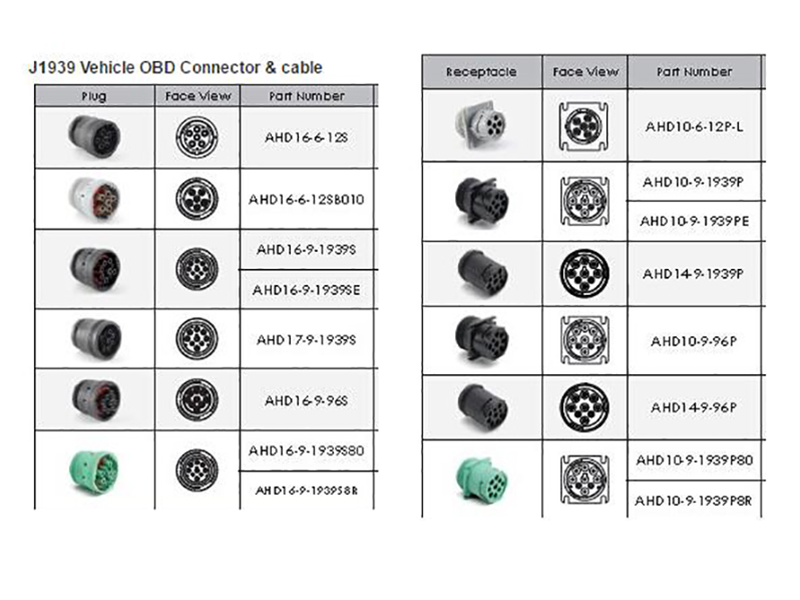

Connectors typeJ1939 9pin female and male connector, available in gound and square shape, in green and black color.   10pin micro-fit connector
Number of Contacts9 pins
Pin out connectionAs per customer’s request
Inner Coppercopper, nickel-plated or gold-plated
Warranty1 year
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65
这里可以自定义设置
这里可以自定义设置
这里可以自定义设置
这里可以自定义设置

03  The J1939 to OBD2 Adapter Cable Type1 9 pin to 16 pin can prevent the original shunting line from the original vehicle. It is more reliable and safe to use the extension line. The plug meets the standard and RoHS requirements. It has integrated the basic diagnostic functions of J1939 heavy duty truck standard communication protocols. It has flame-retardant, precision molding, stable safety and anti-interference, tracking extension cable, perfect compatibility, new environmental protection plastic material.  J1939 to OBD2 9 pin male to female and 16 pin cable for all OBD2 interface vehicles.

这里可以自定义设置

04   We made the plastic mold of this 9-Pin J1939 female connector by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 female connectors according to the mold. The 9-Pin J1939 male receptacle is threaded jamnut mount style common on Paccar trucks. The 9-Pin J1939 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.

Product Applications

This adapter is usually used to connect a vehicle GPS Tracker that is meant for an OBD2 vehicle to a commercial vehicle that has the 9-pin J1939 round Deutsch connector. The power lines are appropriately connected to provide power to the GPS tracker.

Today, SAE J1939 is used throughout for heavy-duty commercial vehicles such as trucks, busses and construction equipment. For agricultural machinery ISOBUS is mandatory which is based on J1939, and based on the OBD2 Controller Area Network, CAN, protocol used in all new vehicles.


A few of the myriad uses are:

J1939 Heavy-Duty-Truck-Data-Convert
J1939 CAN BUS diagnostic unit (for trucks)
J1939 body builder CAN bus monitor (for trucks)
J1939 interface industrial engine display unit
ISOBUS-control devices
CAN bus Universal Controller
CAN gateway and bus simulator
