electrical wiring harness assemblies

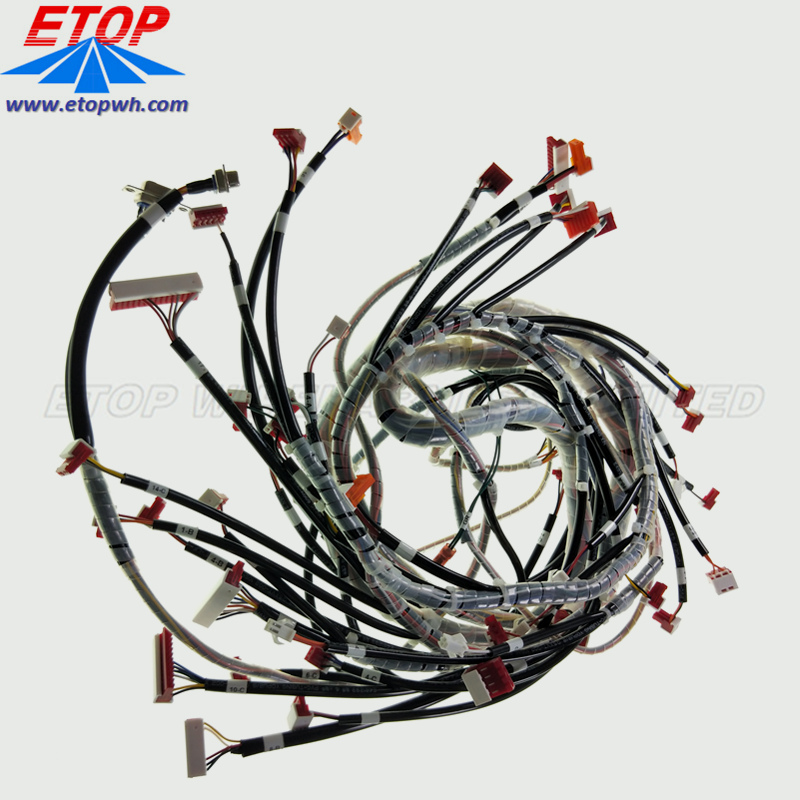

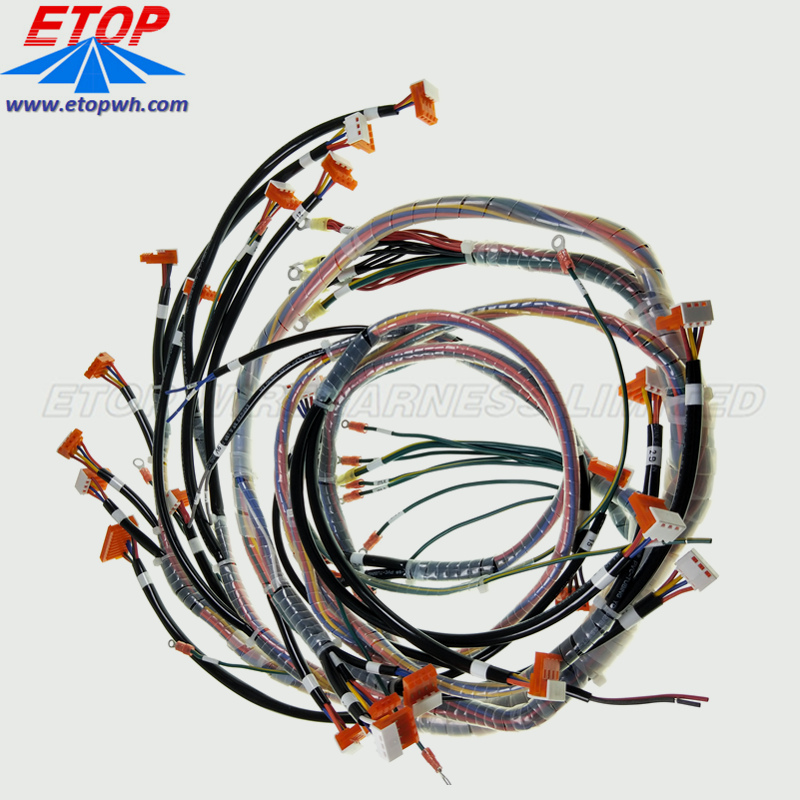

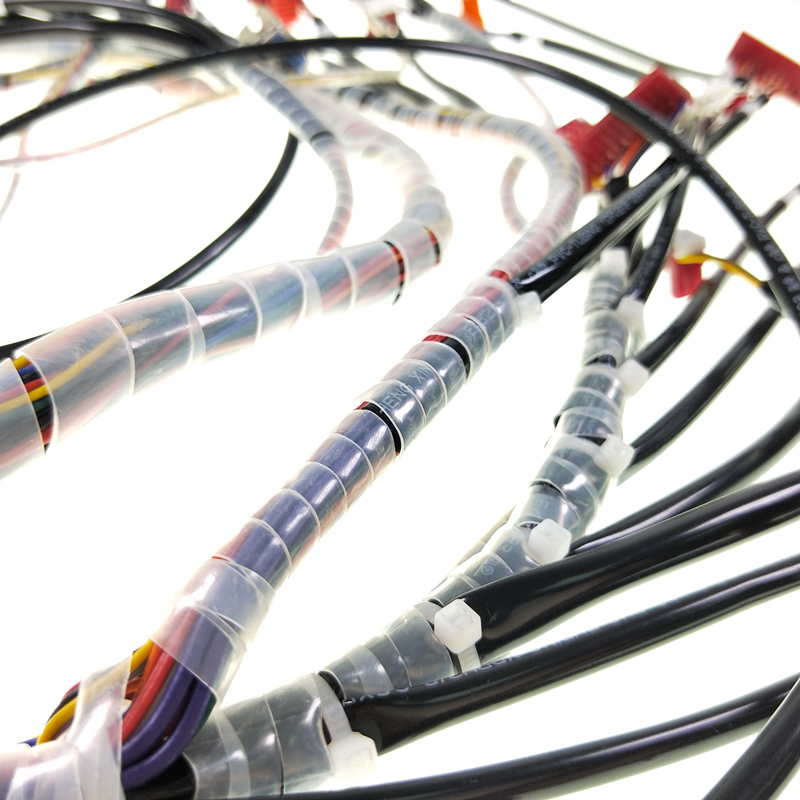

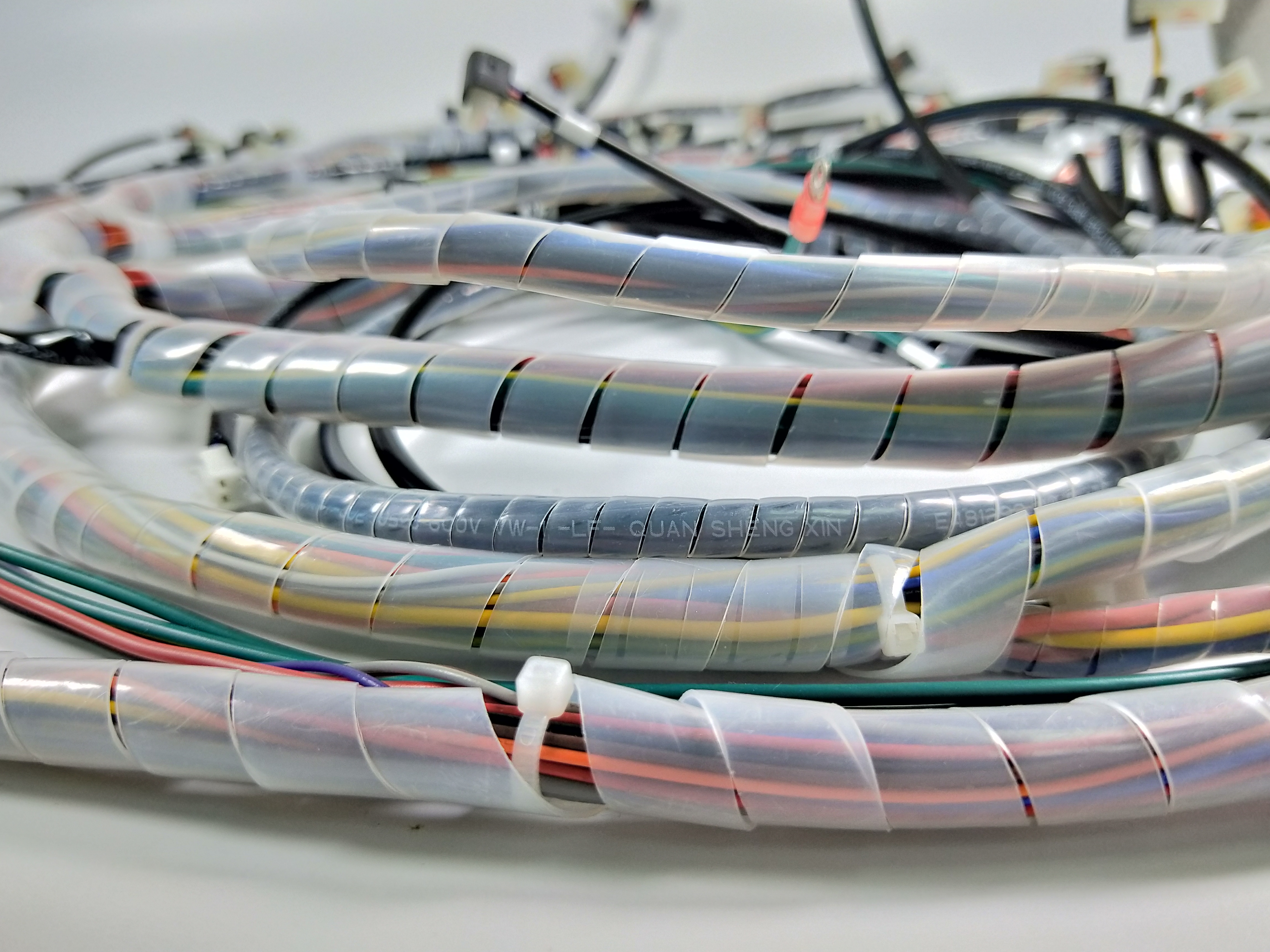

01 The complete loom covered by spiral banding sleeve for protection, also together with PVC tube and heat-shrink tube,spiral tube guarantee the cable flexible enough. Each connector and pin layout marked with heat-shrink tube.

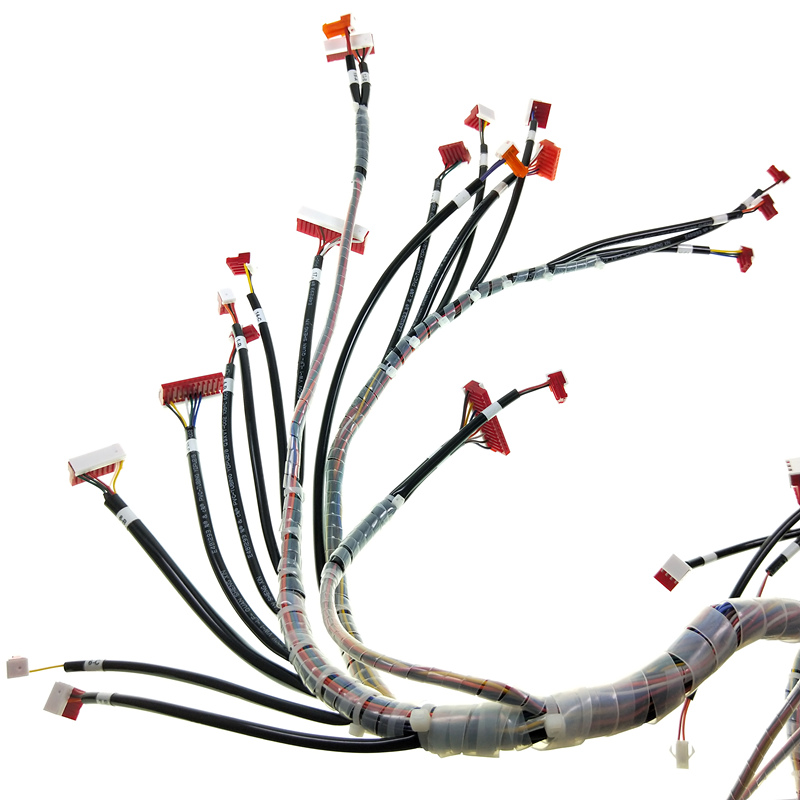

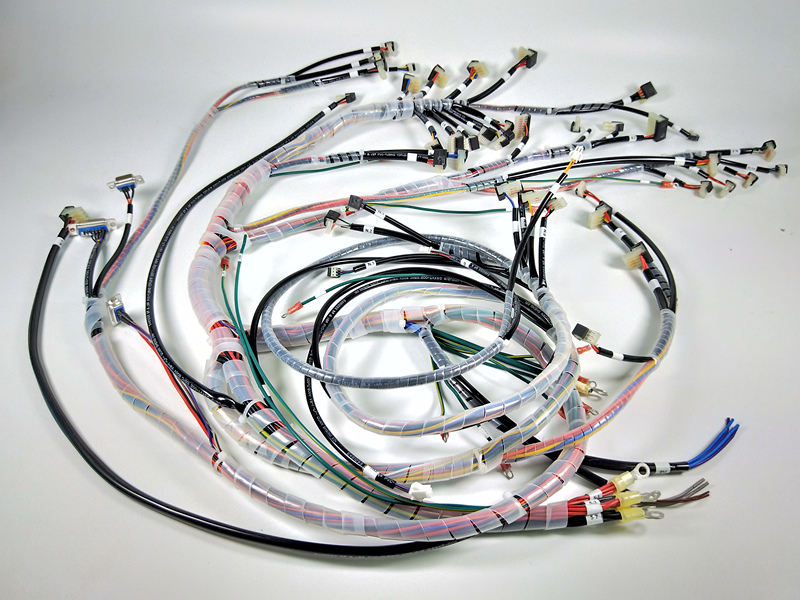

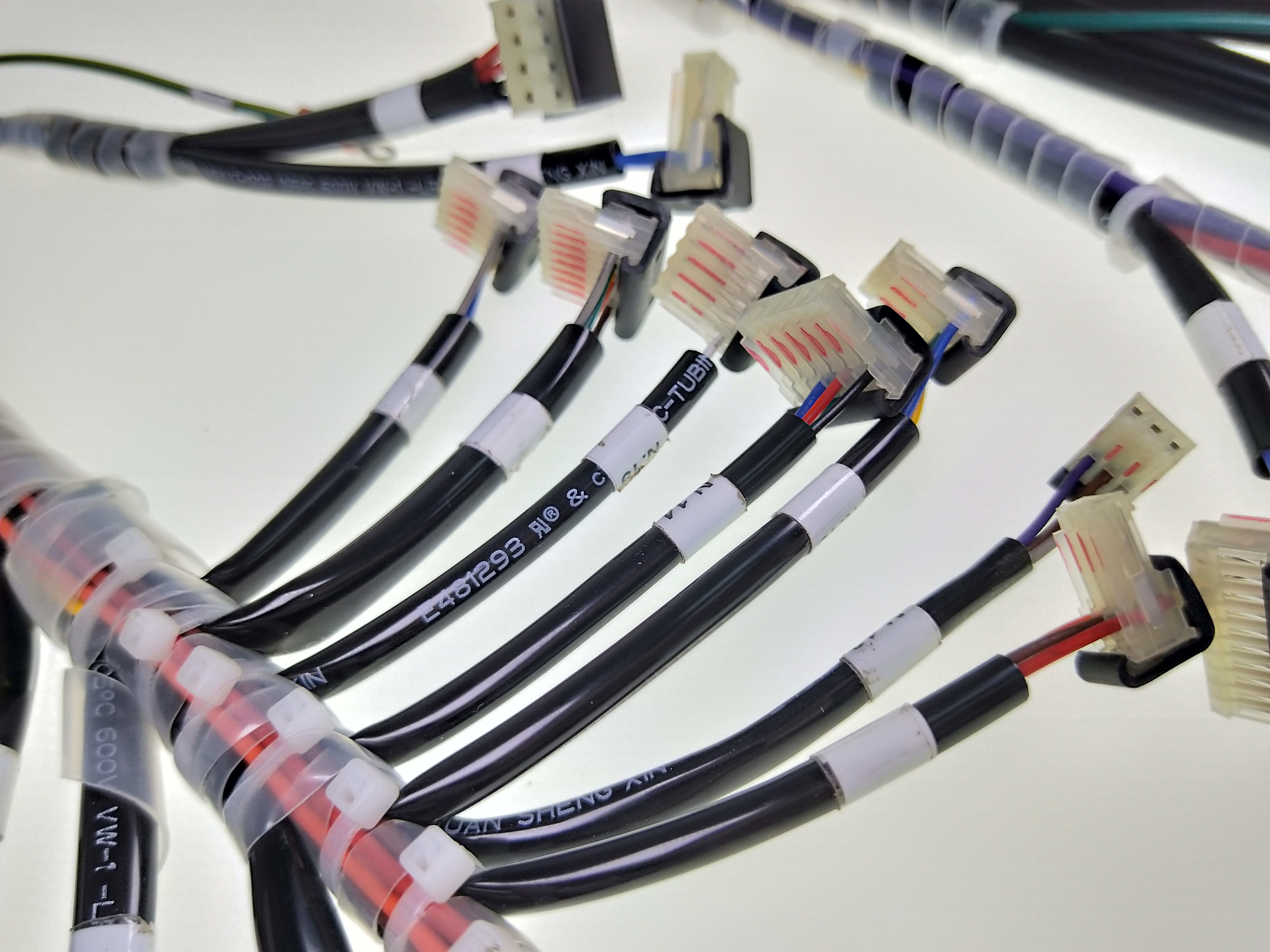

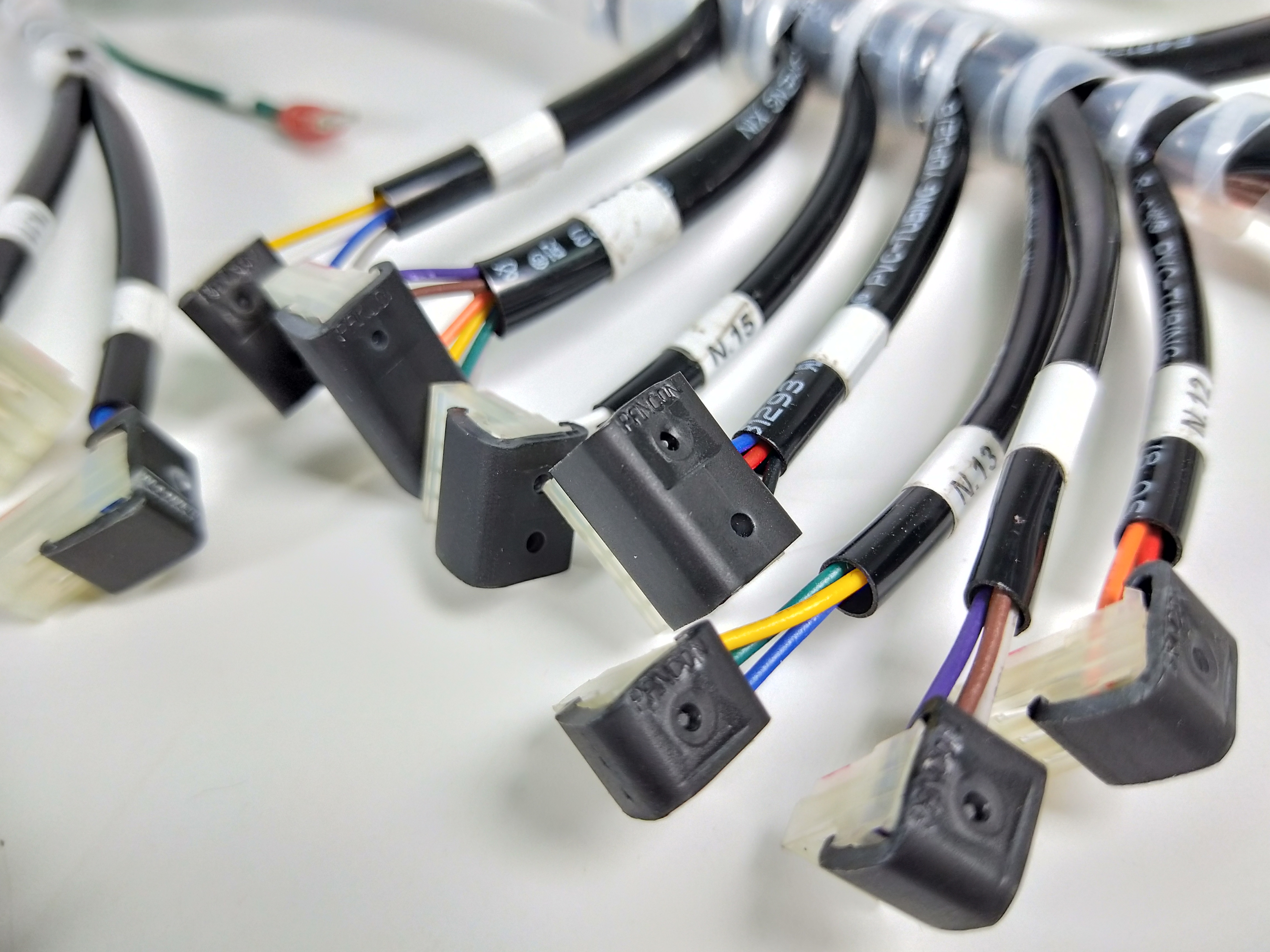

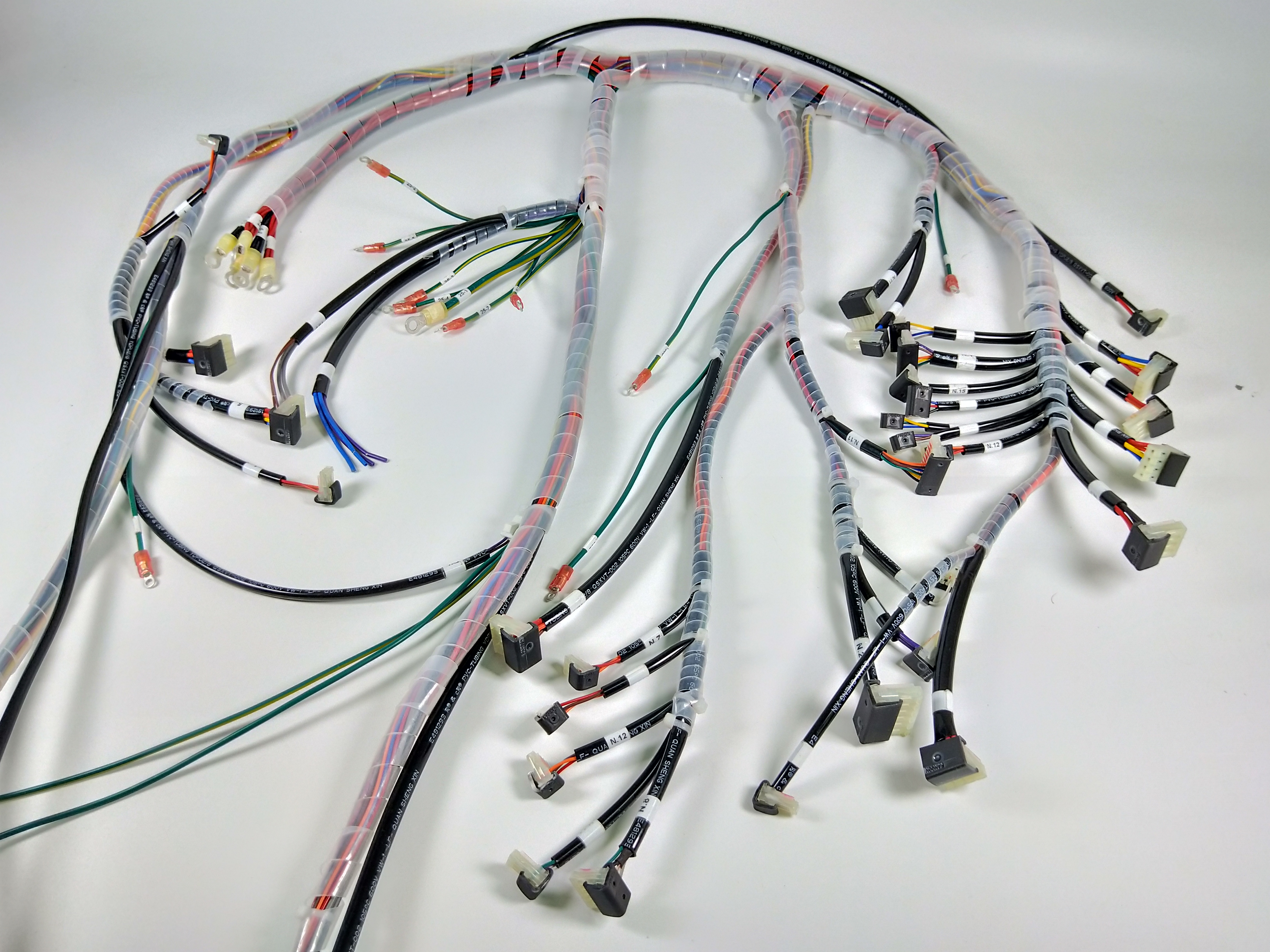

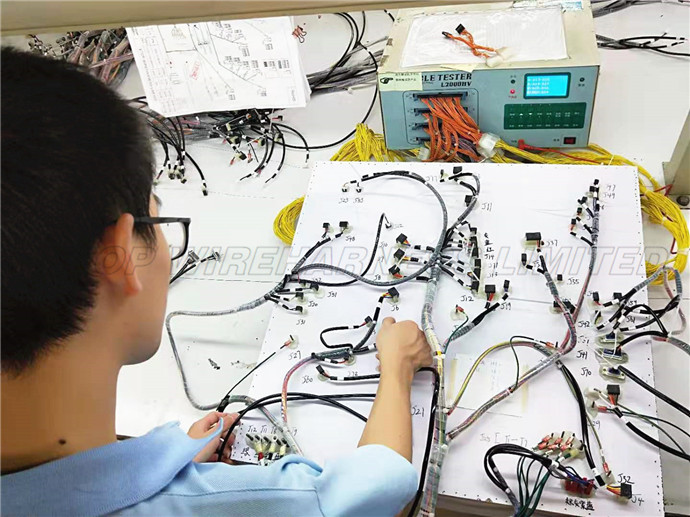

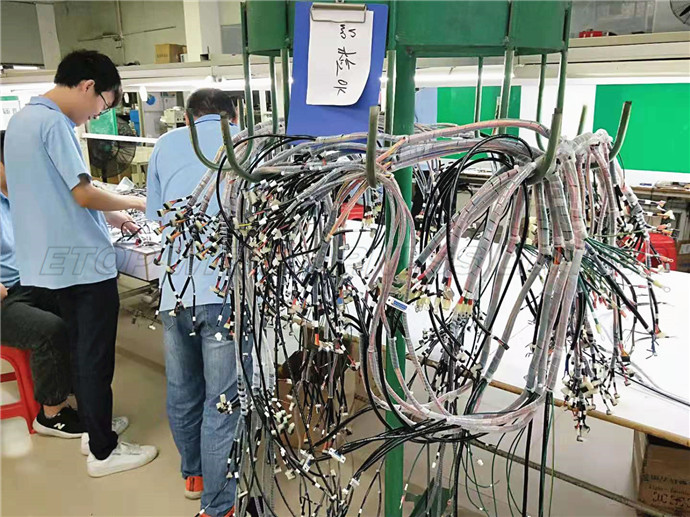

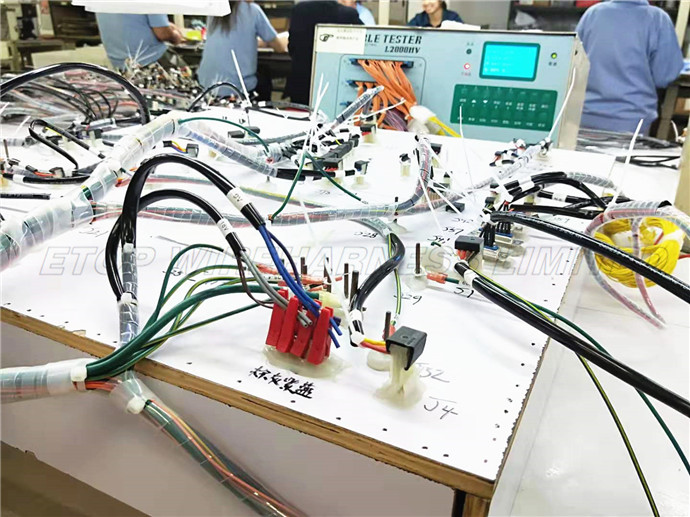

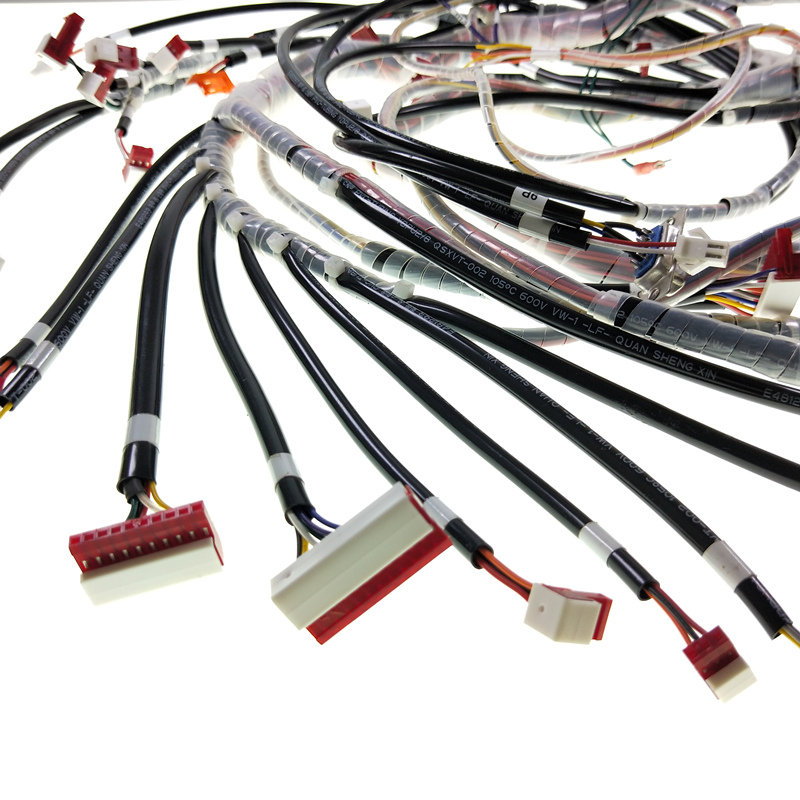

This complicated cable assemblies is special assembled with PANCON terminal block connectors, each branch marked with label for distinguish. The complete loom assembled on fixture by covering with PVC tube, spiral tube and tape. which purpose to make sure the loom is flexible enough.  These block connectors are MAS-CON® .100" IDC Wire to Board Connector System, available in various type, straight and right angle.

03 We supported customer to tranfer their simple drawing to production type formal drawaing. More content and details would be difined and confirmed. Now harness assemblers face several challenges today, such as:

    Being cost-competitive and profitable.
    Being flexible to accommodate high-mix, low-volume applications.
    Moving quickly from one job to another with minimal downtime.
    Dealing with short lead times from customers and just-in-time delivery requirements, without holding too much inventory because of costs or the risk of engineering changes.
    Improving ergonomics to reduce repetitive motion disorders and healthcare claims.
    Finding qualified workers and retaining them.
With raw material prices and labor variables increasing, finding more efficient and cost-effective methods of assembly are critical. so our engineer try to d prototype to find out the best workable solution to move on mass production. Take all raw materials and assembling skill into consideration.
