Product Description

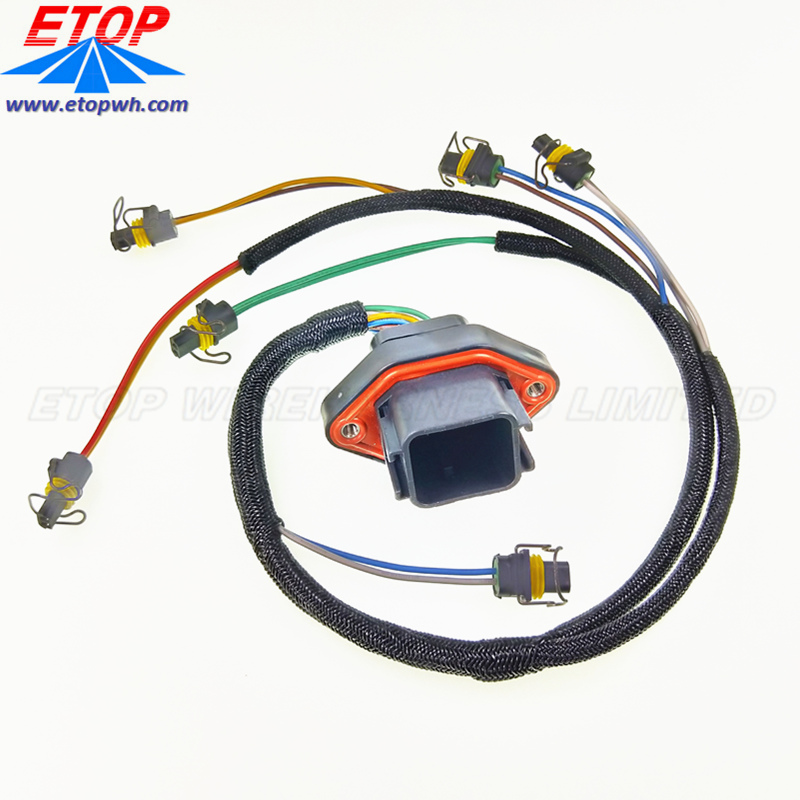

Custom Diesel Engine Fuel Injection Wire Harness with DTV02-18 Connectors
DTV connectors wire harness Customization
DTV connectors Wire Assembly is applied for Diesel Engine Fuel C9 diesel engine parts 215-3249 419-0841 injector wiring harness for caterpillar parts

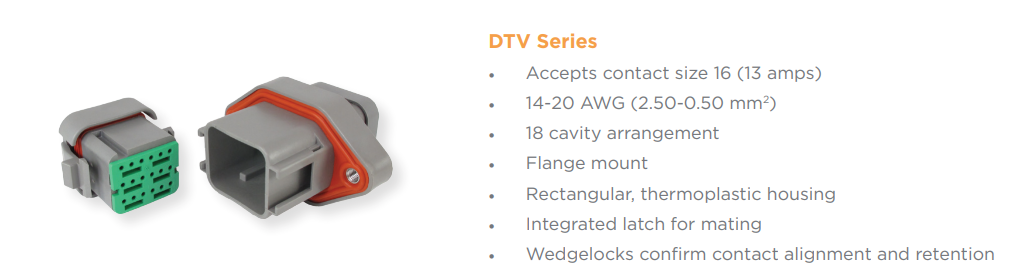

DTV Connectors Series
• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.50-0.50 mm2)

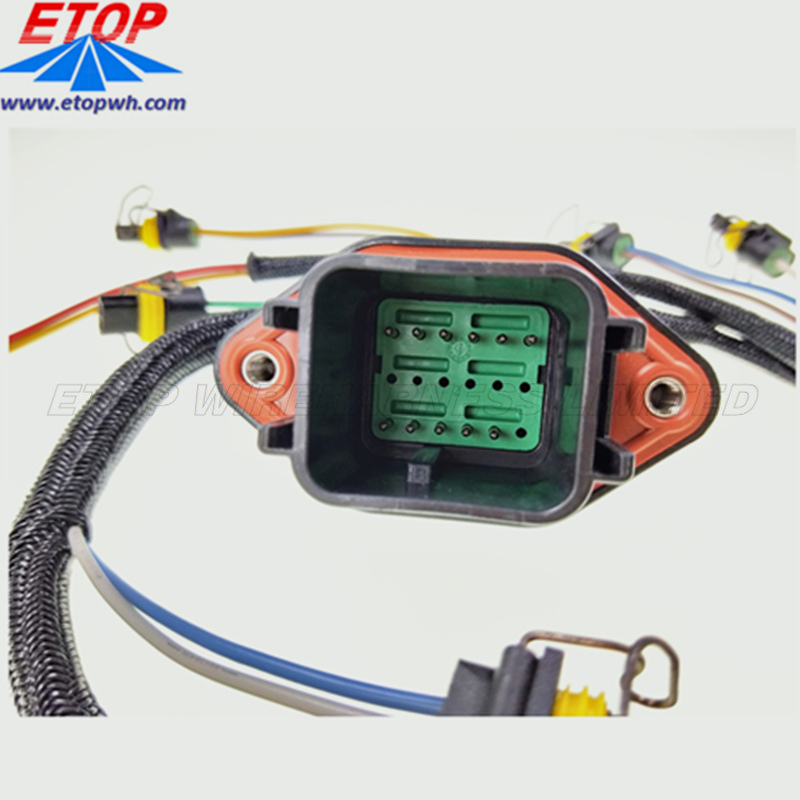

• 18 cavity arrangement
• Flange mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
| Product Name | custom Diesel Engine Fuel Injection Wire Harness with DTV02-18 connectors | ||
| Keywords | Diesel Engine Fuel Injection Wire Harness C9 Waterproof connector DTV02-18PA-C032 or DTV02-18PB-C032 Pekins 1300 Fuel Injector Wiring Harness DTV02-18PA-C032 or DTV02-18PB-C032 Diesel Engine Fuel Injection Wire Harness C9 Diesel Engine Fuel C9 diesel engine parts 215-3249 419-0841 injector wiring harness for caterpillar parts | ||
| Application | automotive, vehicles diesel engine fule injection | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||

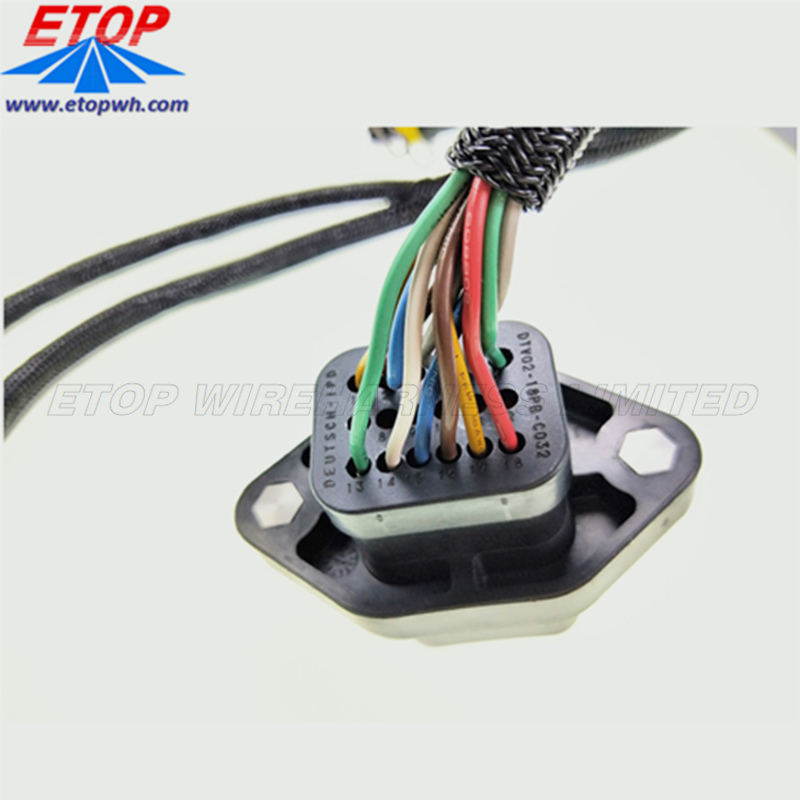

| Connector type | DTV 18 cavities (key A, B, C, D) DTV02-18PB-C032-L DTV02-18PB-C032-LD DTV02-18PB-C032-LS | ||
| Color | black, grey, green, brown | ||

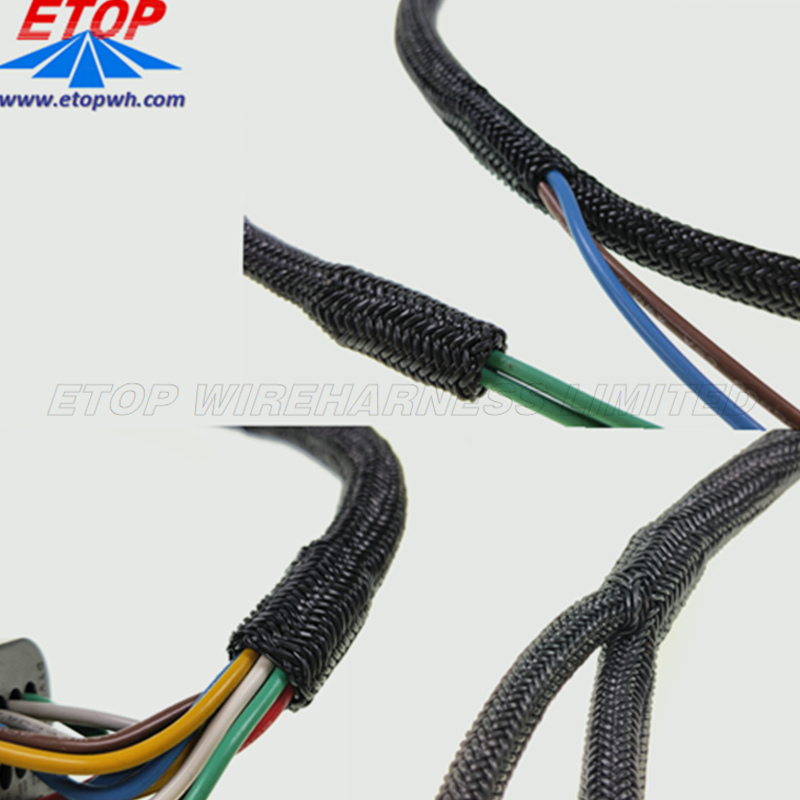

| Protection | braiding shield | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 auto wire harness Customization
Custom DTV connectors can be designed to meet most applications, typical designs allow the following features to be specified:
Material Compounds (PVC, Thermoplastic Elastomers (Santoprene, Uniprene, etc.);
Material Durometer and color;
IP Rating against Dust/Dirt/Moisture;
Ergonomic and Style Factors;
Mating Force of terminals and Molded Connectors;
Keying Features to control Mating;
Temperature Requirements;
Terminals and Terminal Plating;
Amperage Rating and Allowable Gage Ranges of Wires in the Connector
02 DTV connectors
DTV series
contact size Description P/N
16 Recept., DTV, 18 way, A key, gray, sealed flange, gasket, end cap DTV02-18PA
16 Recept., DTV, 18 way, B key, black, sealed flange, gasket, end cap DTV02-18PB
16 Recept., DTV, 18 way, C key, green, sealed flange, gasket, end cap DTV02-18PC
16 Recept., DTV, 18 way, D key, brown, sealed flange, gasket, end cap DTV02-18PD
