Product Description
This automotive wire harness assembled with original TE DEUTSCH DT series connectors, also ok to use original AMPHENOL. These durable connectors provide high-performance and reliability in harsh environments also. At ETOP Electronics, Inc. we are dedicated to delivering defect-free, competitive applications on time to fulfill our promise of complete satisfaction according to your unique needs and requirements.
Furthermore, ETOP Electronics’ manufacturing facilities have been certified to meet the standards of ISO 9001 and we also have been registered by UL and CSA to manufacture products meeting the UL/CSA safety requirements. To ensure that a high standard of workmanship and quality is maintained, we are careful to abide by all modern electronics certifications and standards.
| Product Name | Custom Automotive Deutsch Wire Harnesses | ||
| Application | Automotive | ||
| Voltage Range | 300V/500V | ||
| Connector series | Deutsch DT Serie | ||
| Housing material | Polyamide(PA) | ||
| Screen/Shield | Unshielded | ||
| Conductor material | Bare copper | ||
| Conductor type | Flexible | ||
| Wire type | LAPP 1119212(18AWG/12C, JACKET: GREY) | ||
| Conductor | 12 conductor | ||
| Service | OEM and ODM products are acceptable | ||
| Samples | Samples confirmed first before mass production | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH | ||
| Performance Test | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||

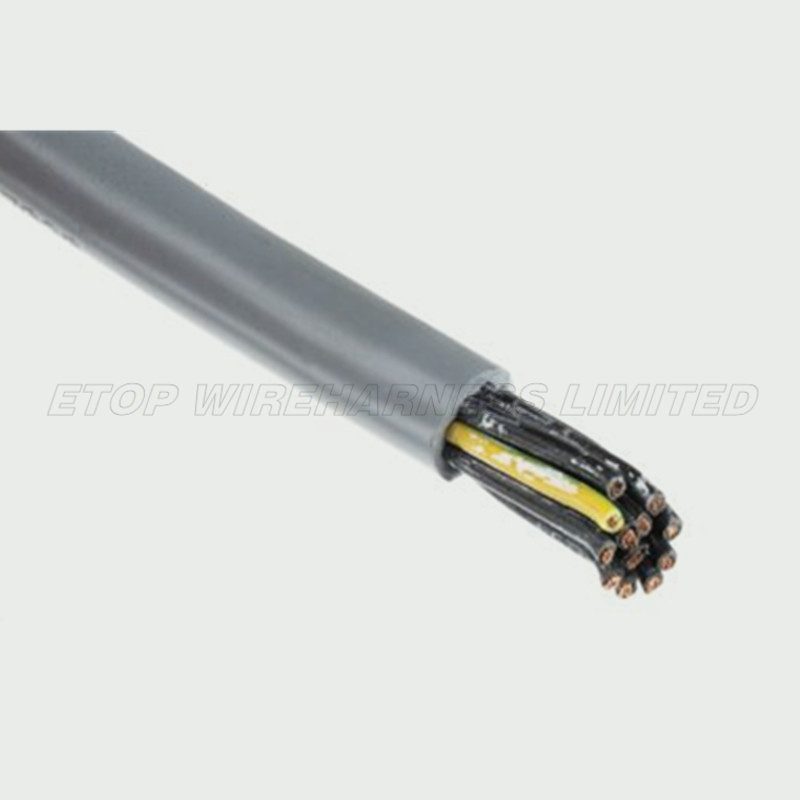

01 For this auotomotive wire harness, we used special raw cables LAPP 1119212 12conductors,1mm2, belongs to OLFLEX CLASSIC 110 series,unscreened, with oil resistance, common European control cable, Conforms to CE/VDE standards, Available with inner jacket and tinned copper braid for EMI & RFI protection, Pressure extruded jacket for improved flexibility, applied for control systems, Assembly lines, Control panels, Data processing e quipment and other European influenced machinery specifications.
advantages:
• Fine copper wire strands
• Conductors insulated with special PVC, black with white numbers + green/yellow earth wire
• Special PVC external sleeve, silver-grey RAL 7001, flame retardant
• Generally resistant to some oils and chemical products at room temperature
• Suitable for dry and humid applications
• Strong and resistant to bending
• Suitable for control and connection cables in the machine tools, plant engineering and refrigeration plant sectors

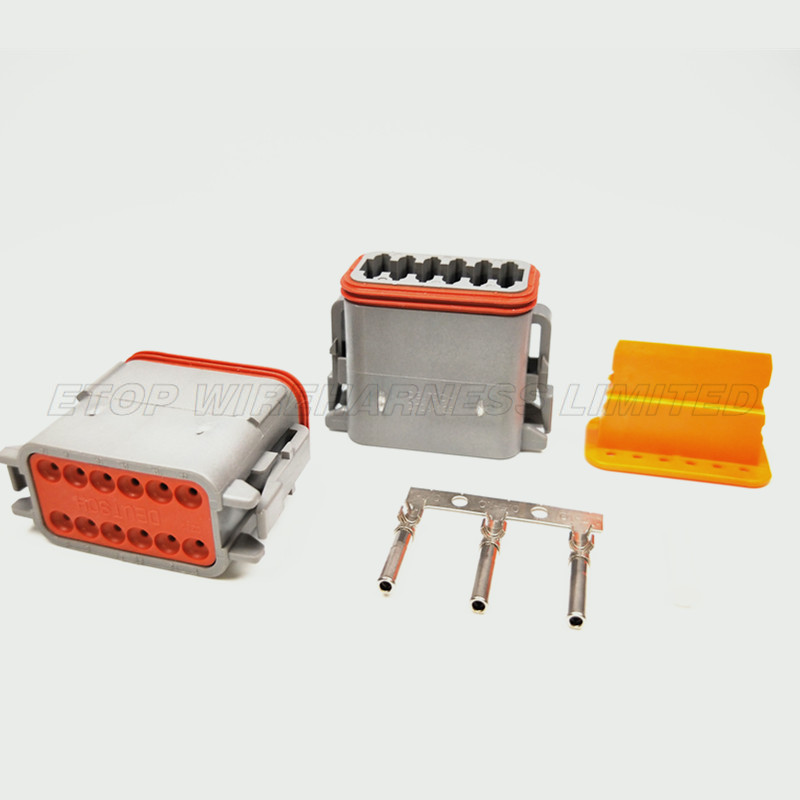

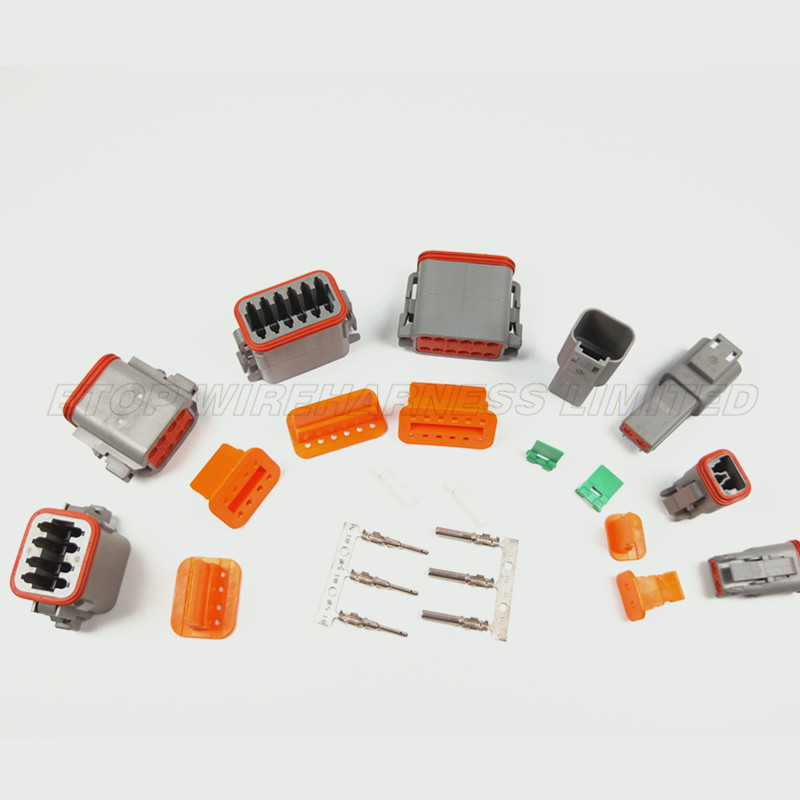

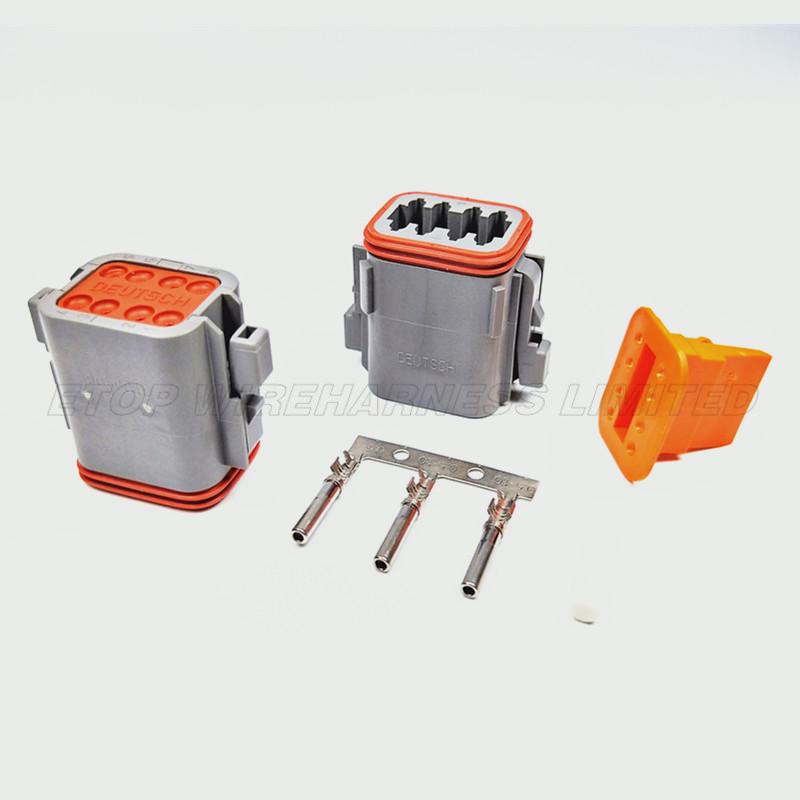

02 DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating. This specification covers the requirements for application of DEUTSCH DT series connector system. In this automovive wire harness, DT Series connector DT06-12SA, DT06-08SA, DT04-2P also mated wedge, W12S orange, W2-S orange, WS-P Green. The plug and receptacle each consist of a housing and secondary wedge lock, dummy pin, cover, The secondary wedge
lock is used to ensure that the contact is fully seated and secure in the connector. The connector and
the secondary wedge lock are fitted separately. These connectors feature integral latch-style

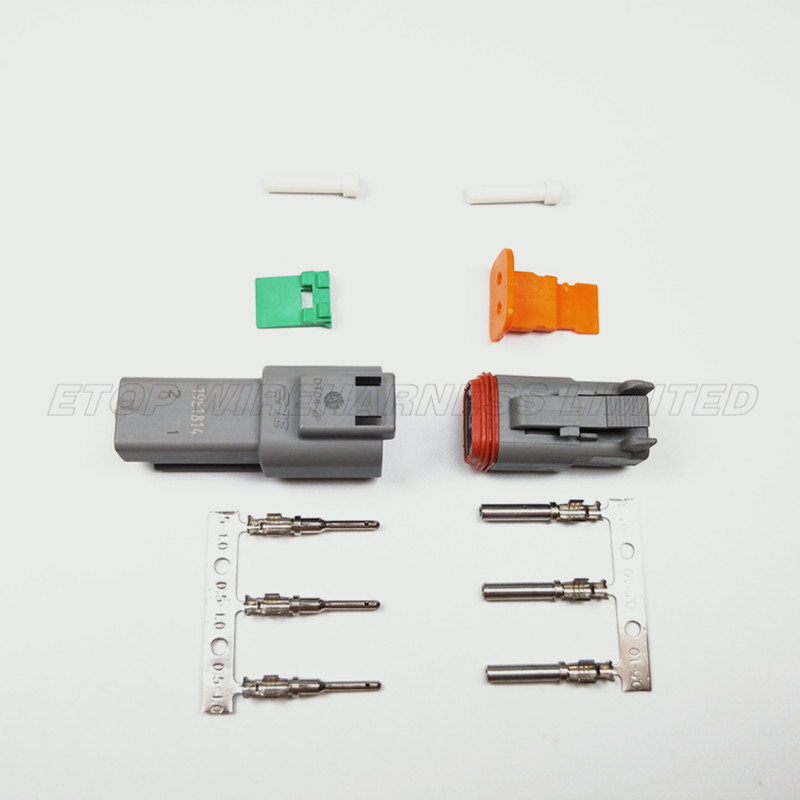

mating. The 8 & 12 pin arrangements feature integral keying and are color-coded. The Deutsch DT Series offers one of the most secure and water-tight connections on the market. A complete male-to-female connection requires: Pin Housing Pin Wedgelock Pin Terminals Socket Housing Socket Wedgelock Socket Terminals
DEUTSCH DT wedgelocks help confirm proper contact alignment within each connector. They are assembled at the mating interface and press into place. Wedgelocks are required components for all DEUTSCH DT housings.
03 A custom auto cable assembly from ETOP doesn’t just help to improve quality and speed installation. Our custom cable assemblies are cost-effective and promote the manufacturability of your end-product. So whether you need high flex cables, a molded cable assembly, or other cable assemblies, ETOP can provide a cost savings that strengthens your project.
ETOP uses automated wire cutting, wire stripping, and wire terminating equipment to perform routine wire processing tasks. Then, by building your wire harnesses on custom-made harness boards, we match your part number and revision level. Also all realted components can be original AVL or equivalent from local different suppliers with different price level, just as customer requirement.
Etop Wireharness Limited offers cable assemblies for specific applications based on customer design and printing requirement, our enginneering team can assist with the selection of cables and connectors, using state of the art technology and solutions. In addition, we offer short-term manufacturing before mass production, we offer cable assemblies ranging from simple to complex, from standard to custom specifications, with more than 20 years of experience in this field, our cable assemblies are used in a wide range of applications in the electronics wire harness industry.
