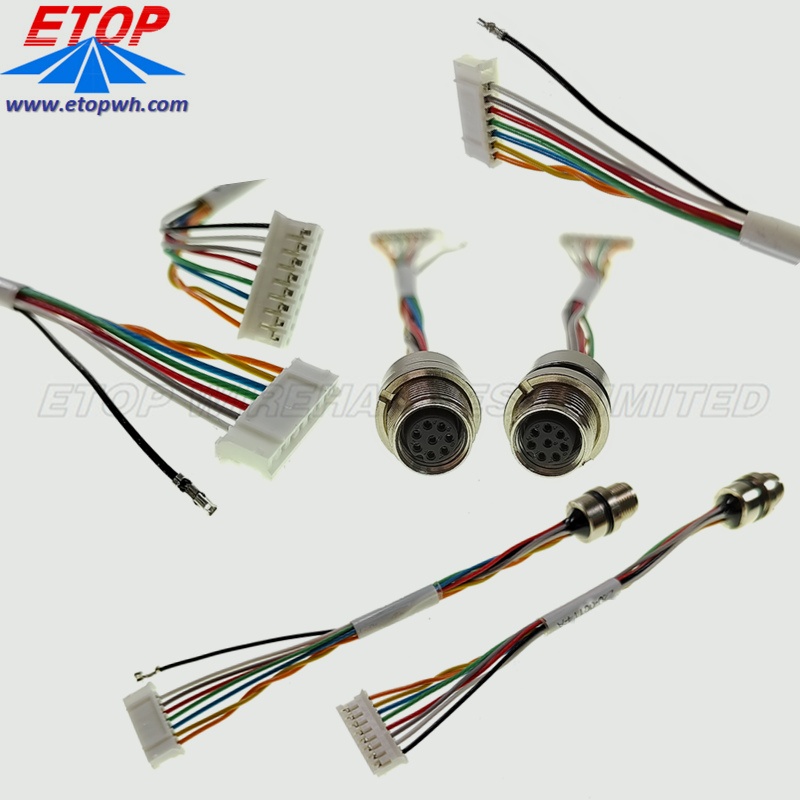

Waterproof Panel Mount Boarding Connector Cable

这里可以自定义设置

Superior Material Advantages

We take pride in using only the highest - quality materials. For connector contacts, we select premium metals that guarantee excellent conductivity and wear resistance, significantly extending product lifespan. The housings are made from high - strength, aging - resistant plastics, providing excellent insulation and protection against environmental elements. The cables feature high - purity copper cores, reducing resistance and enhancing signal transmission efficiency. Their outer sheaths offer excellent flexibility and bend resistance, facilitating easy wiring in diverse installation scenarios.

Product Specifications

Product Name	Panel Mount Waterproof Boarding Connector Cable
Application	Automobile, Industry
Cable color	Per customer requirements
Cable Length	Per customer requirements
Category	M9, M12
Type	Receptacles, socket
Voltage rating	Tin
Applicable wire	13-15AWG-20-200AWG
Features	panel mount, boarding
Cable Material	PVC, PU or customized
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:	100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

Product Details

这里可以自定义设置

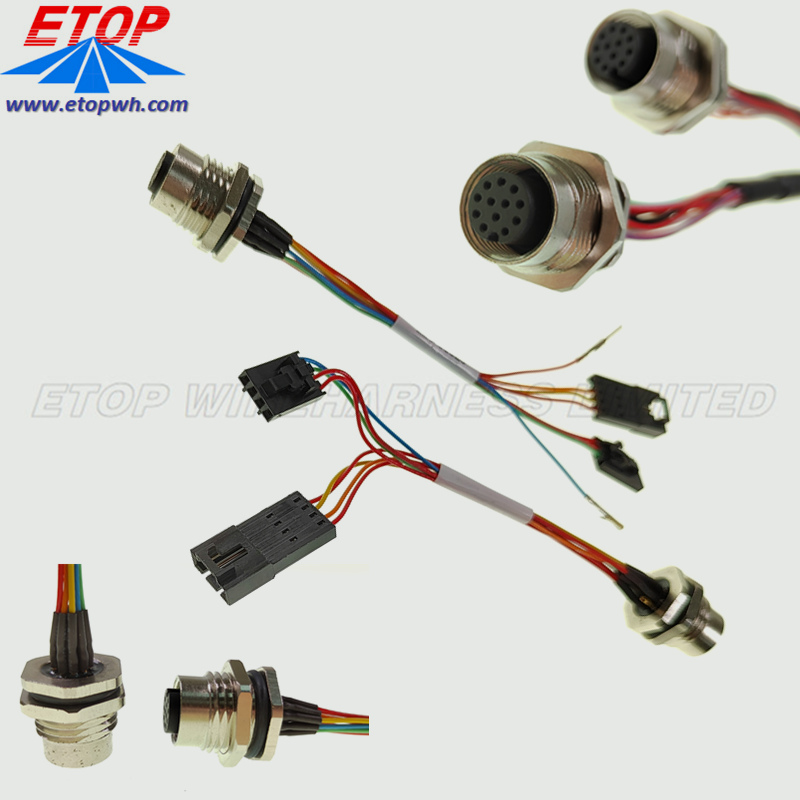

M12 A Coding 12P female boarding connector cable

Engineered with precision, this cable offers exceptional signal transmission capabilities, making it ideal for complex data transfer scenarios. The 12 - position design provides a solid foundation for more efficient and diverse data interactions. It ensures stable and rapid data transmission, minimizing signal interference and latency. This makes it a perfect fit for the stringent requirements of modern industrial automation and intelligent devices that demand high - speed, accurate data transfer.

这里可以自定义设置

Binder connector 09 - 0428 - 00 - 08

Renowned for its reliability, the Binder connector 09 - 0428 - 00 - 08 features a female panel mount design. This design allows for easy and secure installation on panels, providing strong stability. In various panel - connection applications, it effectively prevents loosening, ensuring long - lasting and stable connections for your equipment.

Superior Material Advantages

这里可以自定义设置

03 Our technologies withstand harsh environments and tolerate high temperature, vibration, shock, pressure and long-life in electronic control systems.
OUr advantages is to make compact system minimizes packaging requirements n Sealing reliability proven under harsh conditions n Designed for ease of manual harness assembly, engine mounting and under hood environments.

这里可以自定义设置

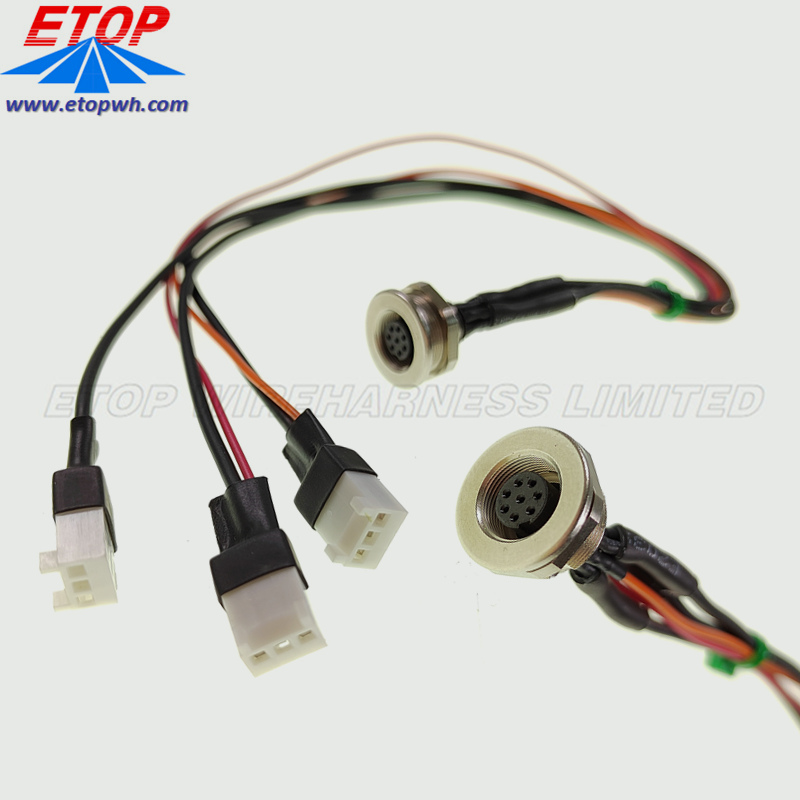

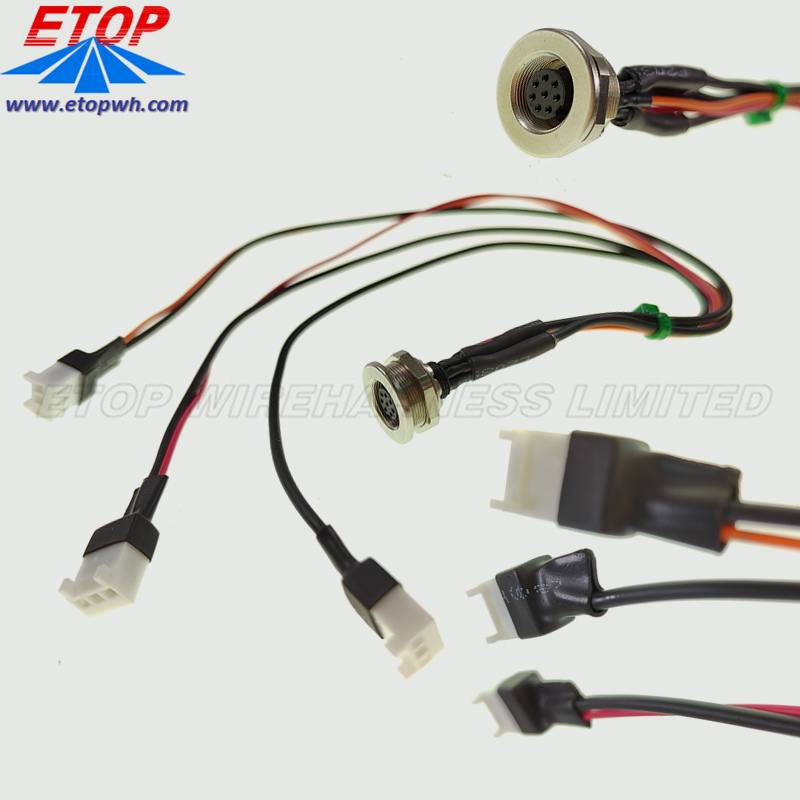

M9 Female panel mount connector

The M9 Female panel mount connector, part of the M9 IP67 series 712 subminiature connectors, is a true workhorse. With 8 contacts, an unshielded design, and solder - compatible connection, it offers remarkable versatility. Its IP67 protection rating means it is completely dust - tight and provides full protection against contact and temporary immersion. Operating within a wide temperature range of - 40°C to 85°C, it performs flawlessly in both extreme cold and heat. With a rated voltage of 125 V and a rated current of 1.0 A, it integrates seamlessly with numerous industrial and electrical devices, especially excelling in space - constrained setups where its compact design shines.

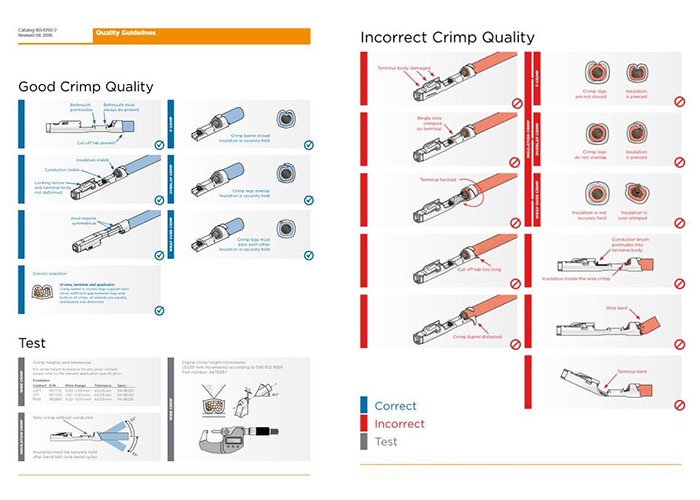

05 Here are the crimping quality standard. ETOP fulfill 100% inspection for all crimped terminal before assembling.

Product Applications

Diverse Application Areas

These new products are specifically developed for plant engineering, control, and electrical equipment construction. In factory automation lines, the M12 A Coding 12P female boarding connector cable enables precise data communication and control command transmission between various automated devices. The M9 Female panel mount connector, with its IP67 protection, ensures reliable connections for sensors and actuators in harsh industrial environments. For electrical control cabinets, the Binder connector 09 - 0428 - 00 - 08 and Tyco series connectors are crucial for internal circuit connections, maintaining stable power and signal transmission and ensuring the smooth operation of the cabinets.

These seperseal 1.5 connectors special applied for automotive, agriculture and industrial machinery, also some sensor application. Like powertrain systems, safety & security systems, convenience, driver info., body & chassis systems. Wire-to-Wire (1.5 mm) and ECU applications, under hood or any location where sealing is required n Suitable for automotive, truck, bus, or off-road vehicles.
