Right-angle HDMI to J1962 OBD2 Cable

Right-angle HDMI to J1962 OBD2 Cable
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?


Product Description

This cable designed from 2.0V HDMI male connector to 16Pin J1962 OBD2 female connector, which applied to diagnostic system to check any problems for your car.This type can be designed by overmolding type. The cable also designed with ferrite core to control shield interference. HDMI and OBD connector both can be molded by right angle or straight type as customer requirement.

Product Specifications

Product NameRight-angle HDMI to J1962 OBD2 Cable
Over molded color(OBD Connector)Black&Customized
Core Color(OBD Connector)Black
Terminals material(OBD Connector)Phosphor Bronze Pre-Matt Tin
Terminals Applied Cables26awg-18awg
Cable lengthAs per customer's requirements and do customized
Cable JacketPVC, PUR and customized
Cable Pin OutCustomized
Cable cross-sectionAWG 26-20 available
Number of Rows1
ServiceOEM and ODM products are acceptable
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details


01 Cars contain more and more electronics and the systems are becoming increasingly complicated, which is why it has become essential to be able to access this information. The OBD2 port has therefore been adopted by car makers and is available in all vehicles.

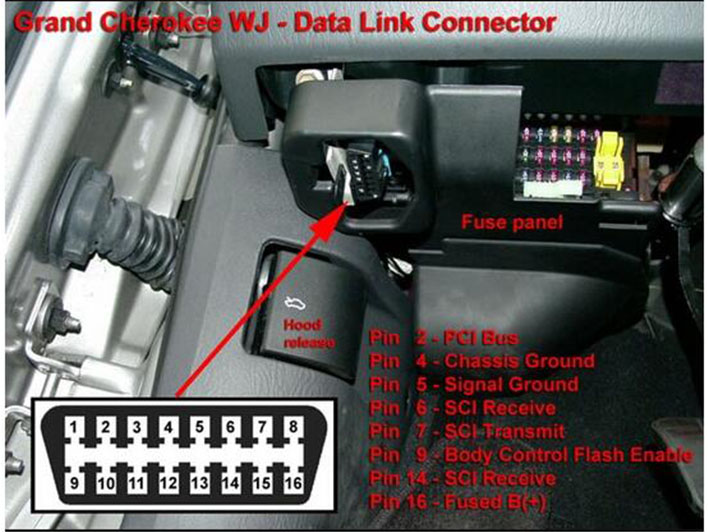

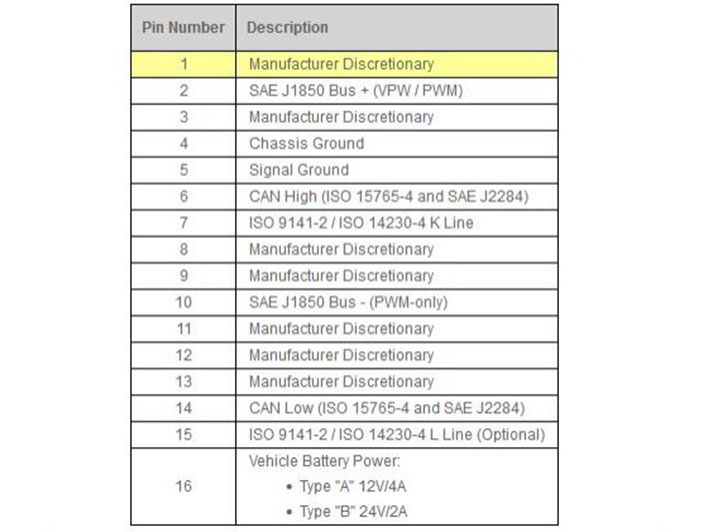

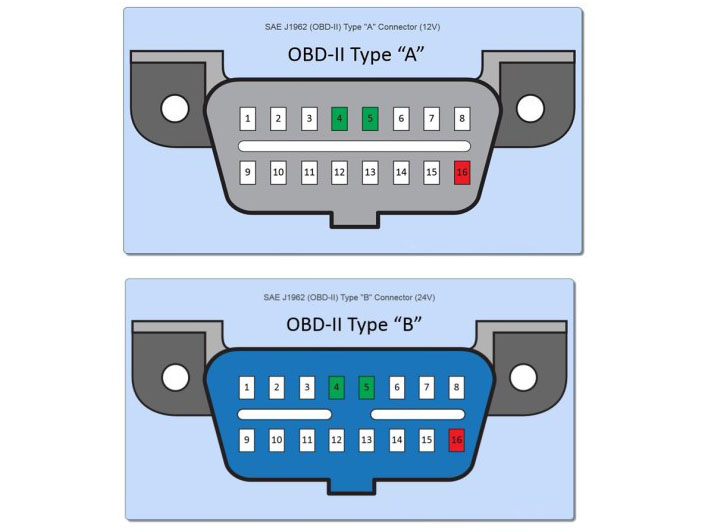

02 SAE J1962 (OBD-II) including Type "A" Connector (12V) SAE J1962 (OBD-II) Type "B" Connector (24V) OBD-II, there are also several OBD standards:
OBD or OBDI standardises the connector so that it is identical on all vehicles.
OBDII arrived in the United States in 1996 to specify common protocols.
EOBD for European OBD based on OBDII is specific to European vehicles.

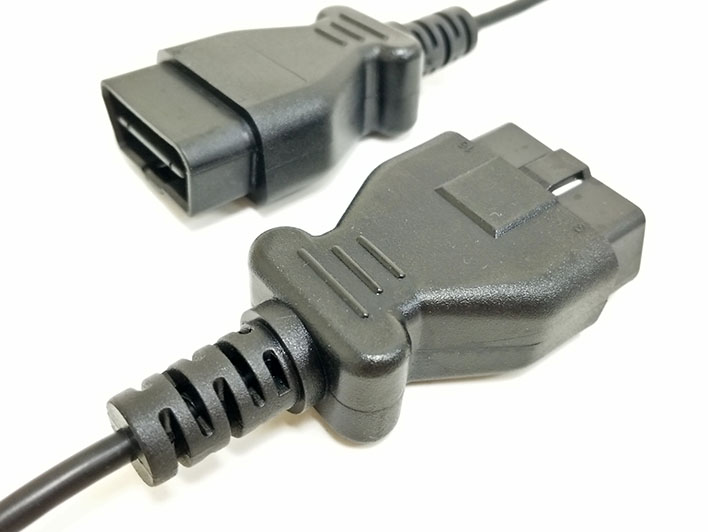

03 We made plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge.

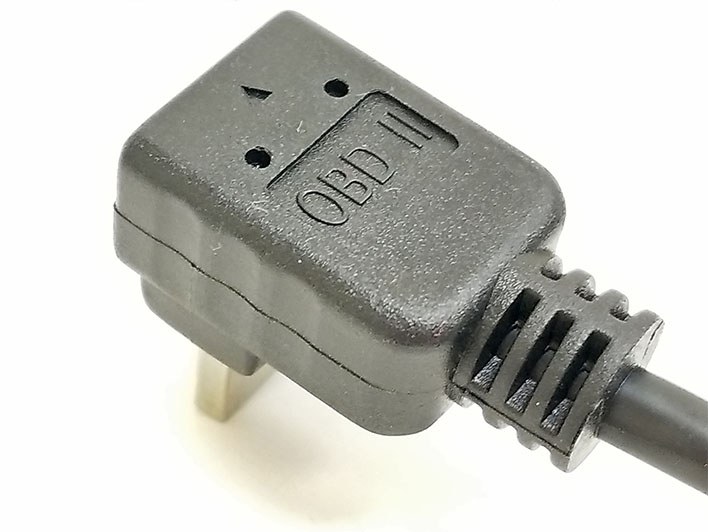

04 We  make OBD connector with terminal by ourselves, soldering type and crimping type are both available. Also molded by different type, straight type or right-angle type.
The OBD conenctor cables used for Audi, Honda, Toyota, BWM, etc.

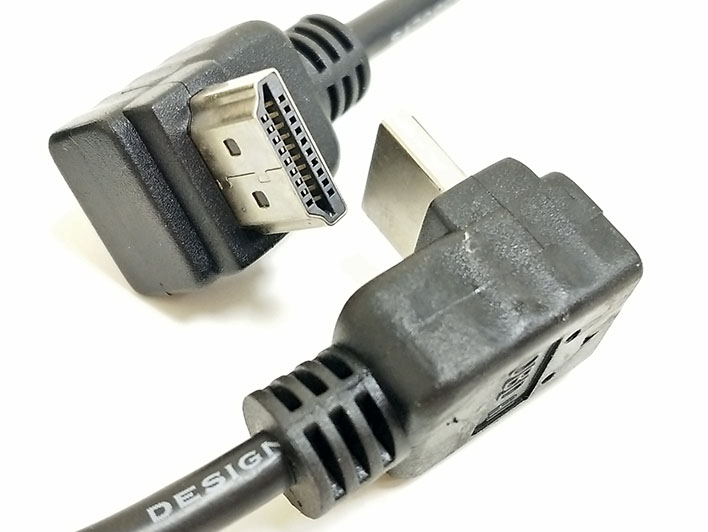

05 Except OBD, There also have automotive HDMI right angle connectors,we can make straight angel also as per your request. This HDMI cable is designed to meet the unique signal requirements in automotive vehicles. These wires do not feature Ethernet functionality, but do handle audio and video transmission.

HDMI ports are pretty commonplace in the world of consumer electronics, but less so in the automotive realm.Though,that's starting to change now. They’ve even found their way into relatively inexpensive cars.The HDMI port is included on EX and EX-L trim levels, which also come with a 7-inch touch-screen multimedia system, and it lets you play audio and video through your car stereo from any device that outputs those signals through an HDMI cable.

Connecting an HDMI source is straightforward. First, I plugged a Type A HDMI connector into the Fit’s HDMI port, which is at the base of the dashboard next to the standard USB connection. I connected the other end of the cable to a Lightning connector adapter so I could plug it into my iPhone.

Product Applications

J1962 OBD2 Cable to HDMI connector, such as diagnostic tool/scanner/instrument, diagnostic (scanner) kit, multi diagnostic scanner, fault code reader, diagnostic code reader, code reading tester, break-out box, VAG Diagnostic tool, Automotive Digital Diagnostic Tools, car maintenance tools, obdii meter correction bit, electrical connectors and cables in entertainment,communication, navigation, and telematics modules, as well as engine control, sensors, actuators, and auxiliary motors. Airbag system, Lighting,Steering Wheel plane interconnect systems, networking equipment, switches, media display systems.
