Relay Wire Harnesses for Automative Battery

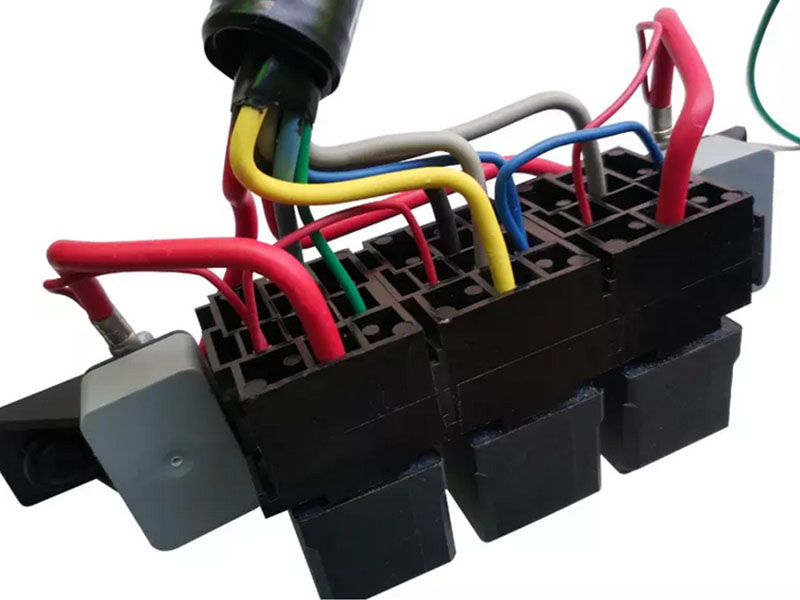

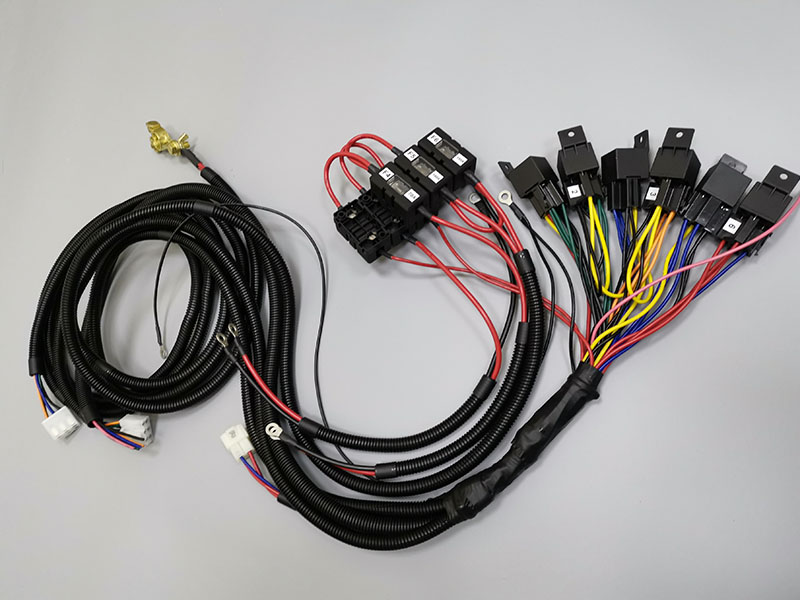

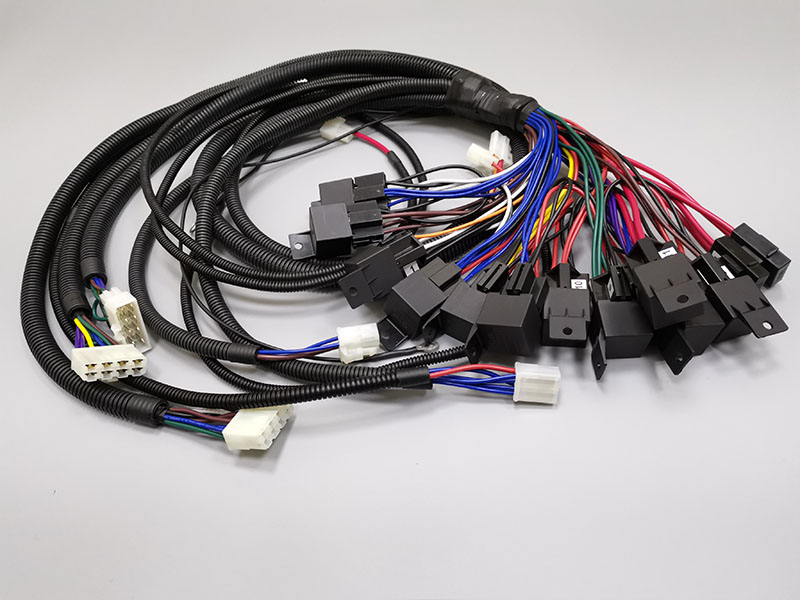

01 Relay harnesses, connector blocks, and accessories allow for an installation that is quick and easy, saving you time and hassle. Etop offers a variety of relay harness options to match up to your specific applications relay installation. Most relay harness setups allow you to splice the harness directly into your vehicle. The harnesses are available for standard 5-pin relays and come with the relay or just the prewired socket. The relay harness connectors are available for a waterproof connection with prewired leads for your mini relays. Relay kits are offered to provide the relay and terminals needed to complete your install. 5 pin or 9 pin options, with matching terminal accessories, are available.

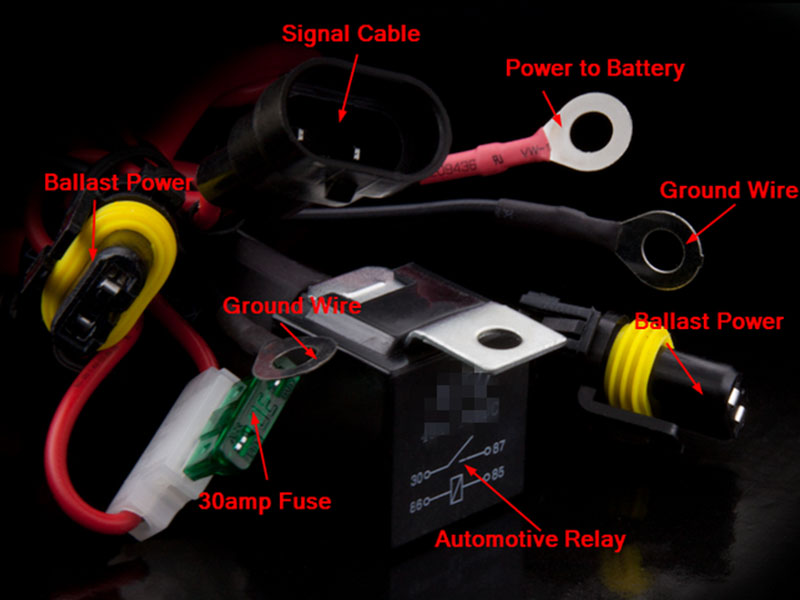

03 A lighting relay harness is most commonly used in aftermarket HID conversion kits to bypass the factory wiring in order to get around complicated electronic control systems or to allow a higher rate of current to be delivered to the bulbs. A Relay Wiring Harness utilizes a 30amp fuse protected power wire that directly connects to your positive terminal on the battery.  An Automotive Relay is used to pull signal from a source (Headlight connector) that triggers power to be drawn from the battery.  There are two sets of cables meant to provide power to an HID ballast.  There are also two separate ground wire terminals that need to be connected to the chassis to complete the electrical circuit.
