Red OBDII Male to OBDII Female with Bracket

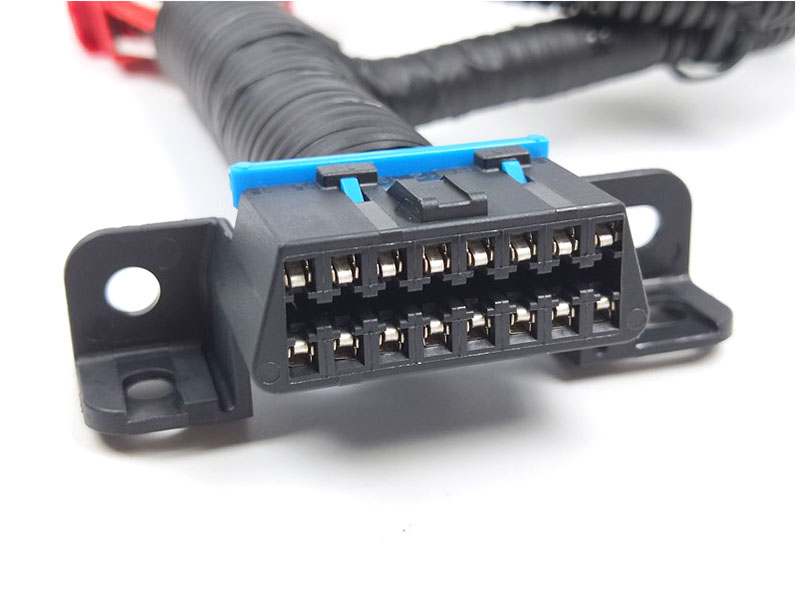

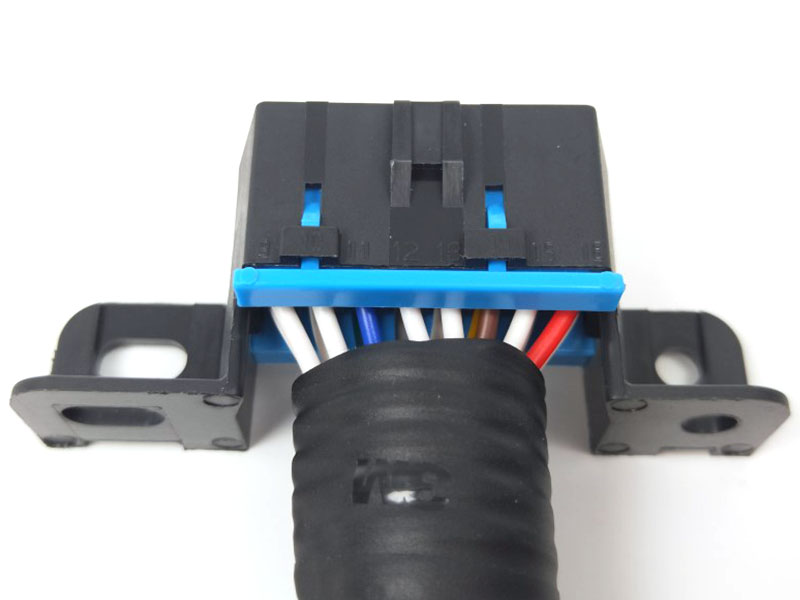

01 One connector using on this products is, OBD2 female connector by crimping type with bracket, see the clear pictures attached.

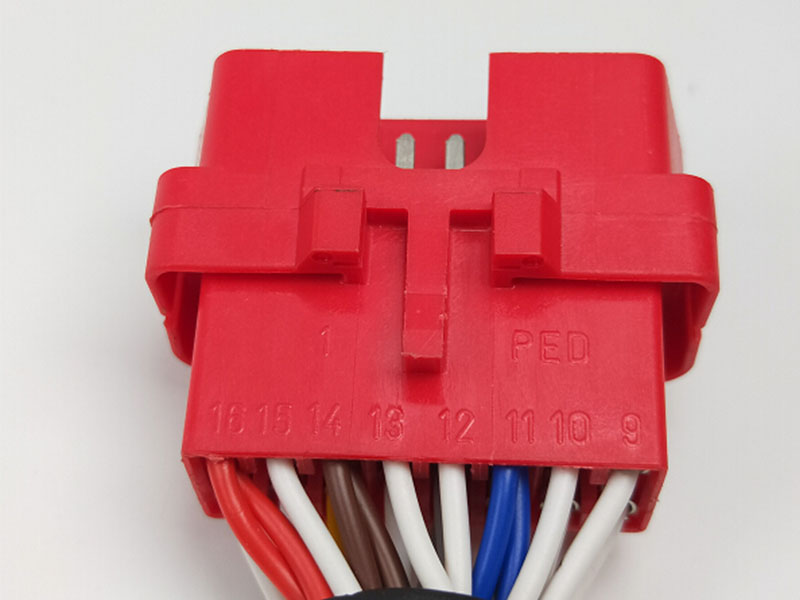

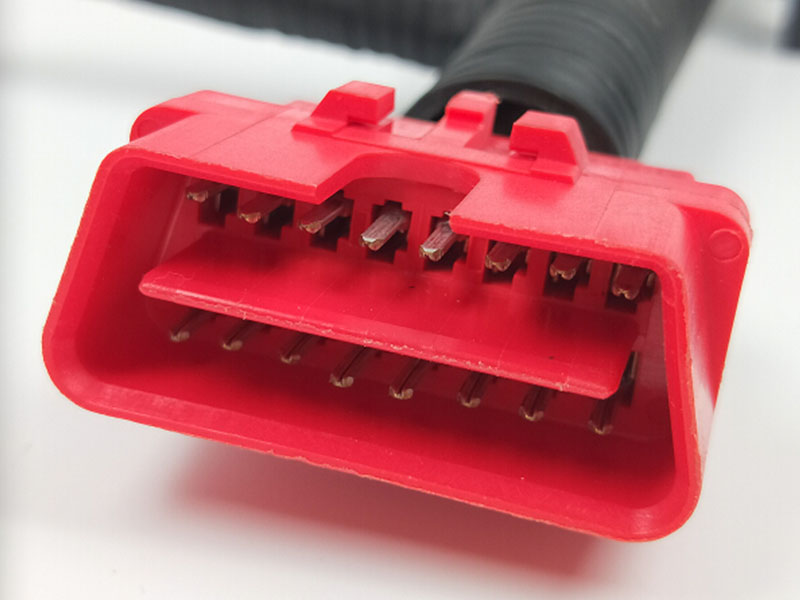

Another is 12V OBD2 male connector by crimping type.  OBD2 16Pin male to female extension cable.

The features for both male and female diagnostic connectors  including:
● High-quality materials give the cable superior flexibility and durability.
● Multiple cables can be daisy-chained together to achieve longer length.
● Compatible diagnostic tools with a 16 pin socket

03 OBD Key things to note:

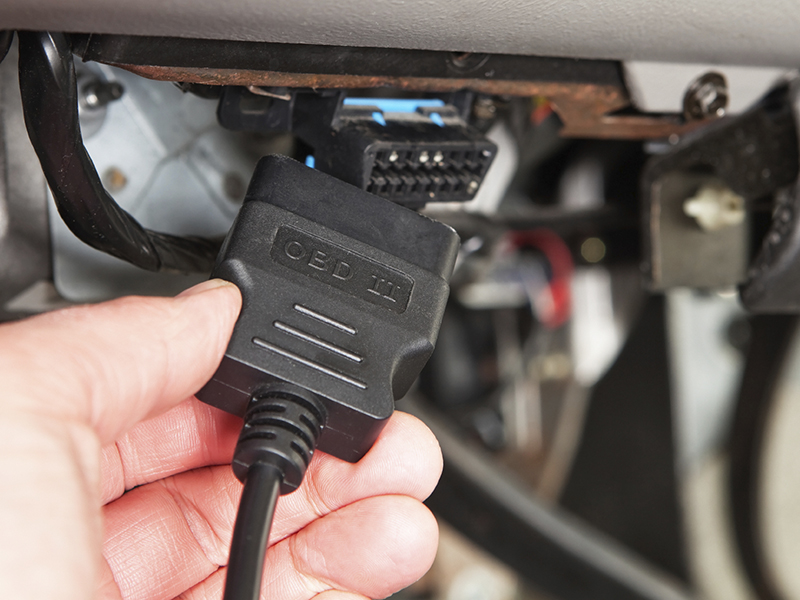

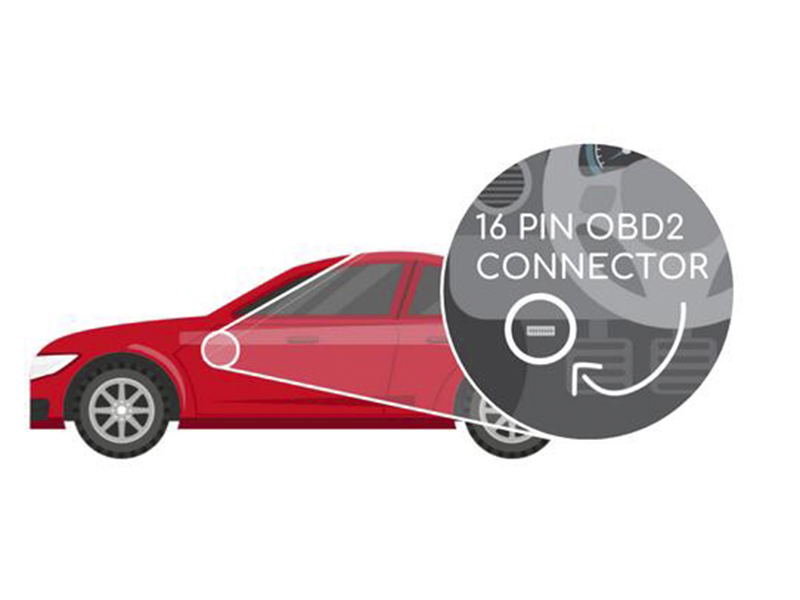

The OBD2 connector is near your steering wheel, but may be hidden behind covers/panels

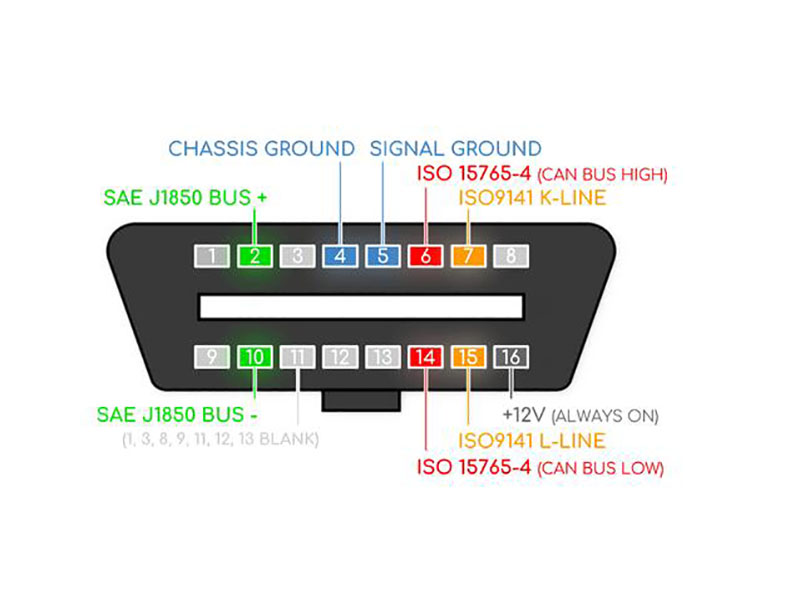

● Not all male connectors fit all OBD2 female sockets - check the type and OBD pin-outs
● Pin 16 supplies power via the car's battery - often also while the ignition is off
● Pins 6 (CAN-H) & 14 (CAN-L) are most relevant as CAN (ISO 15765-4) is standard in most modern cars (incl. EVs)

04 The OBD2 standard was recommended by the Society of Automotive Engineers (SAE) and standardized DTCs and the OBD connector across manufacturers (SAE j1962). (产品细节图16pin OBD2 Connector)

From there, the OBD2 standard was rolled out step-by-step:

● 1996: OBD2 was made mandatory across USA for cars and light trucks
● 2001: Required in EU for gasoline cars
● 2003: Required in EU also for diesel cars (EOBD)
● 2005: OBD2 was required in US for medium duty vehicles
● 2008: US cars were required to use ISO 15765-4 (a variant of CAN) as basis for OBD2
● 2010: Finally, OBD2 was required in US heavy duty vehicles

Today, the OBD2 standard is vital in facilitating easy error resolution.
