Product Description
custom waterproof connector enclosure and junction box
ETOP offers Customized waterproof junction box for power or signal, Outdoor weatherproof enclosure with pre-installed waterproof connectors series.
Final assembly of the enclosure will generally include assembling a PCB into an enclosure, wiring the PCB to external connectors and power, final assembly testingand packaging.

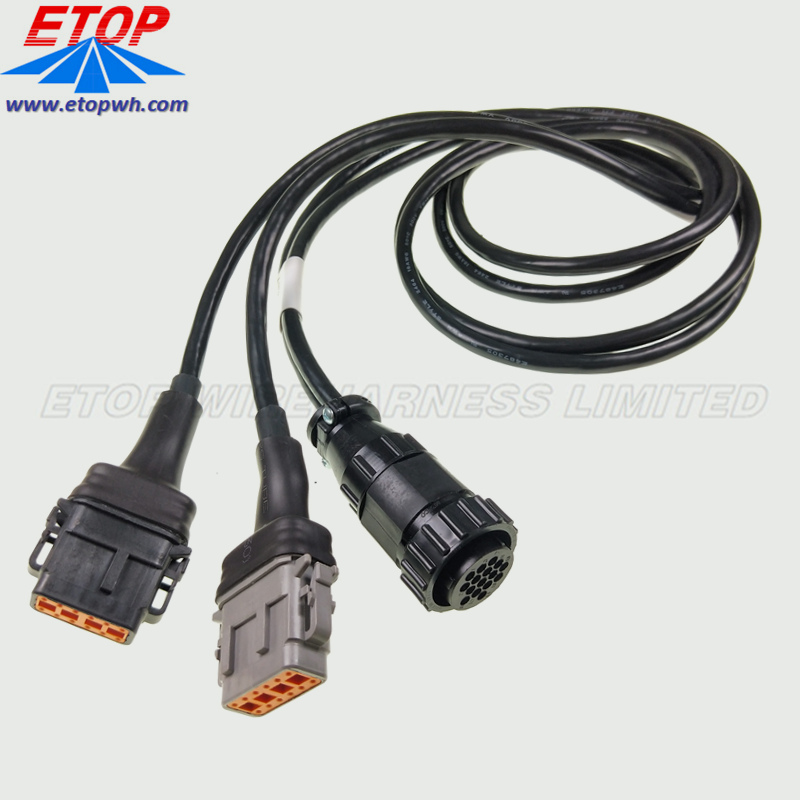

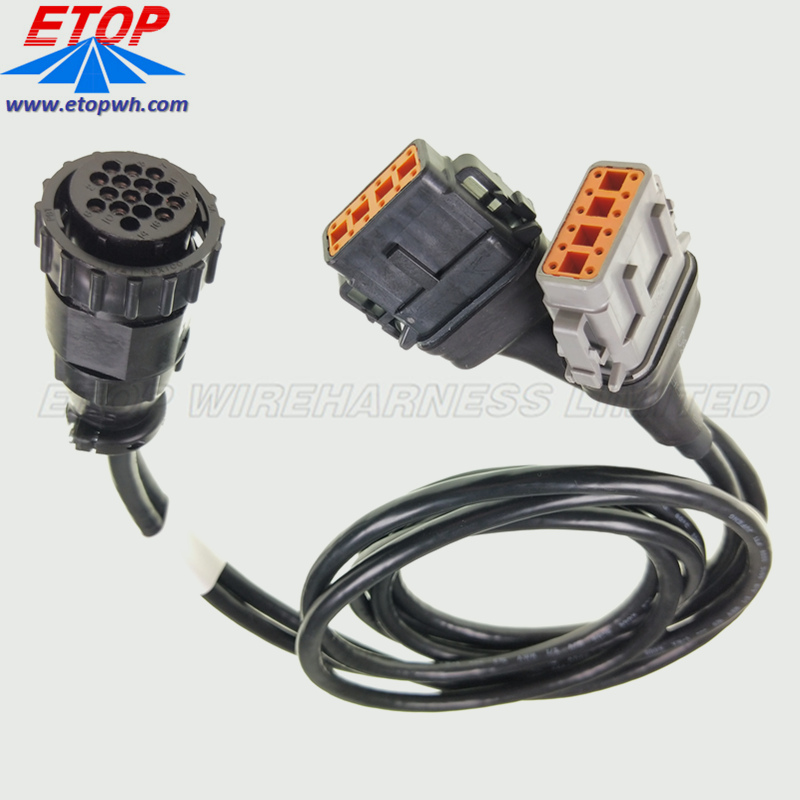

Power Sealed Circular Connectors to DTM Connector Cable
DTM06-12S
DTM Series
• Accepts contact size 20 (7.5 amps)
• 14-22 AWG (2.50-0.35 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
• Product specification document: 108-151010
| Product Name | Power Sealed Circular Connectors to DTM Connector Cable | ||
| Application | Commercial Signal & Power Applications | ||
| Gender | Male and Female Connectors | ||
| Pins | 12Pins~16PIN | ||
| Wire Core Material | Copper | ||
| Color | Black | ||
| Working Temperature | -40℃~ + 85℃ | ||
| Storage Temperature | 25℃~85℃ | ||
| Atmospheric pressure | Atmospheric pressure | ||
| Relative humidity | ≤90% | ||
| Materials | a black thermoplastic insert in a nickel-plated, zinc alloy shell. | ||
| Protection degree | IP65 | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH | ||
| Performance Test: | 100% electrical and electricity performance test before shipment | ||
01 custom commercial signal and power cabling
796274-1
Circular Connectors for Commercial Signal & Power Applications
Circular Power Connectors, Housing, Operating Voltage 600 VDC,
Wire-to-Wire, 16 Position, Sealable, Wire & Cable, Plug, Socket, Signal
Metal-Shell, Circular Plastic Connectors
Metal-Shell CPC connectors consist of a black thermoplastic insert in a nickel-plated, zinc alloy
shell. These connectors are currently available in
shell sizes 14, 22 and 28, and in two basic configurations consisting of plugs and square flange receptacles.
One-Piece Sealed Circular Plastic Connectors
02 Custom Assembling type sealed circular Connectors
With our broad engineering expertise, we design and build custom electro-mechanical connecting devices to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost.
Due to our unique manufacturing and tooling methods, custom work is less expensive than one might imagine. Whether it’s a light-duty circuit board application or a heavy-duty hard-wiring problem, send Custom waterproof Connector your requirements and we’ll design the product to fit your need.
03 Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.
There are 2pin, 3pins, 4pins, 5pins, 6pins male and female waterproof connector cable for M6 series, to see the details descriptions in the photos.
Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.
M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. To strengthen the waterpoofing function, we add glue potting as below, to make sure all soldering point covered with glue by 360 degree.
