Power Cable for Casino Single Display

这里可以自定义设置
Power Cable for Casino Single Display
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-WH1088
MOQ:
100
Payment:
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
Service:
OEM/ODM, Customizaion
Packing:
customized box, label and pallet
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置
Product NamePower Cable for Casino Single Display
ApplicationVideo Cables, Computer and etc
Connector StyleD-SUB
Connector typePlug, male pins
Number of positions9
Number of rows2
Contact typeSignal
Mounting typePanel Mount, through hole
TerminationSolder
Shell MaterialSteel, Nickel Plated
Ingress ProtectionIP66-Dust tight, water resistant
Material Flammability RatingUL94 V-0
SampleConfirm sample before production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment
这里可以自定义设置

Product Details

这里可以自定义设置

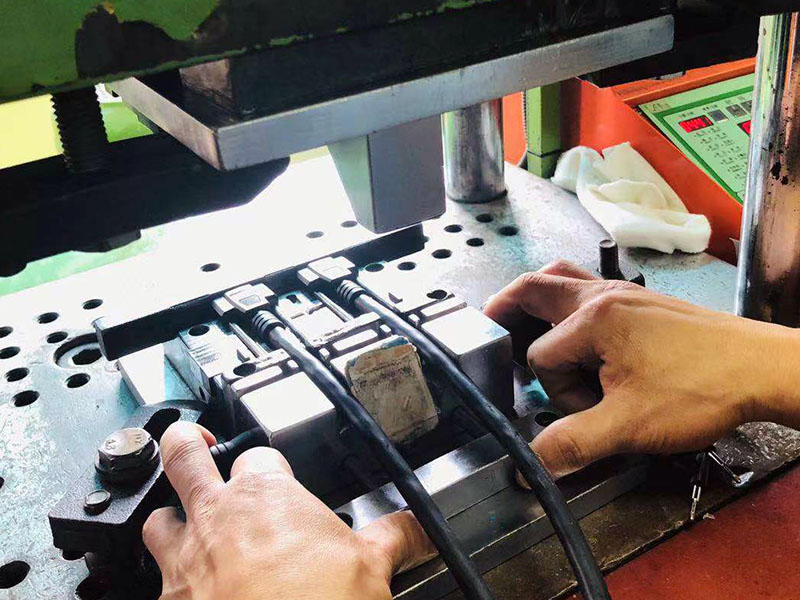

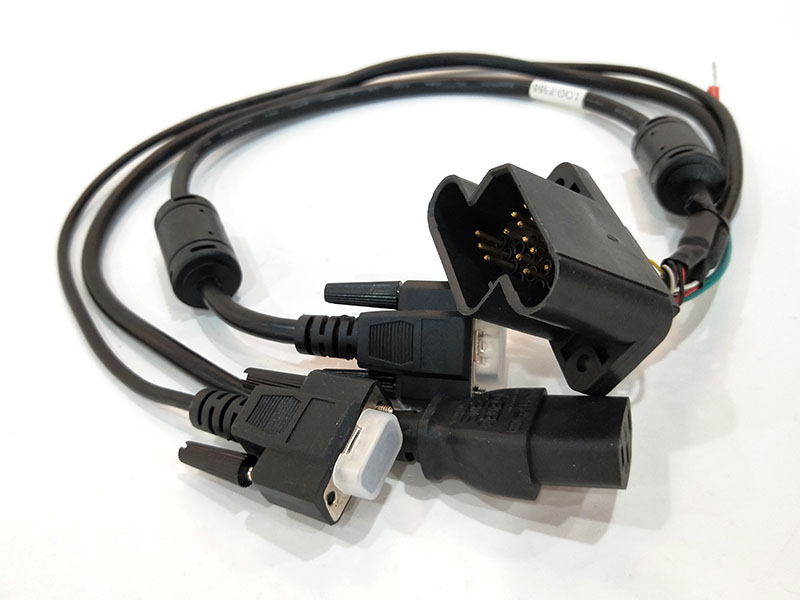

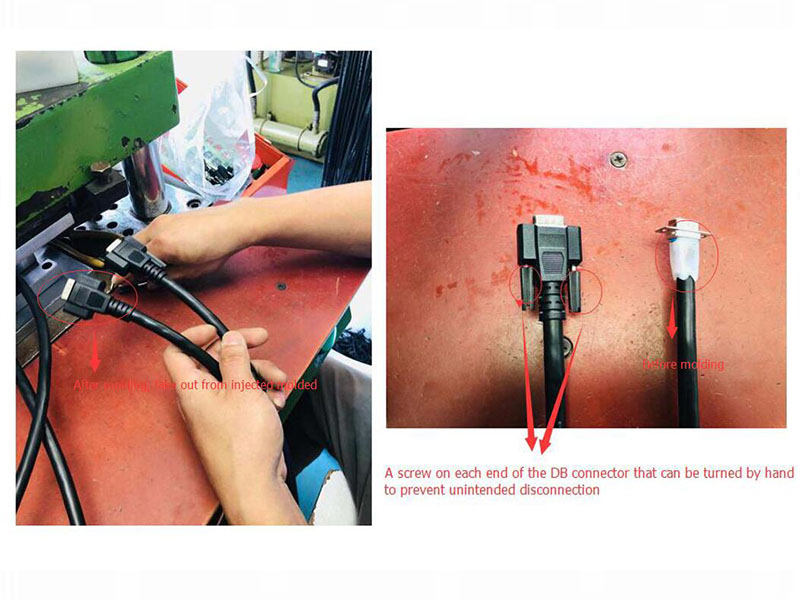

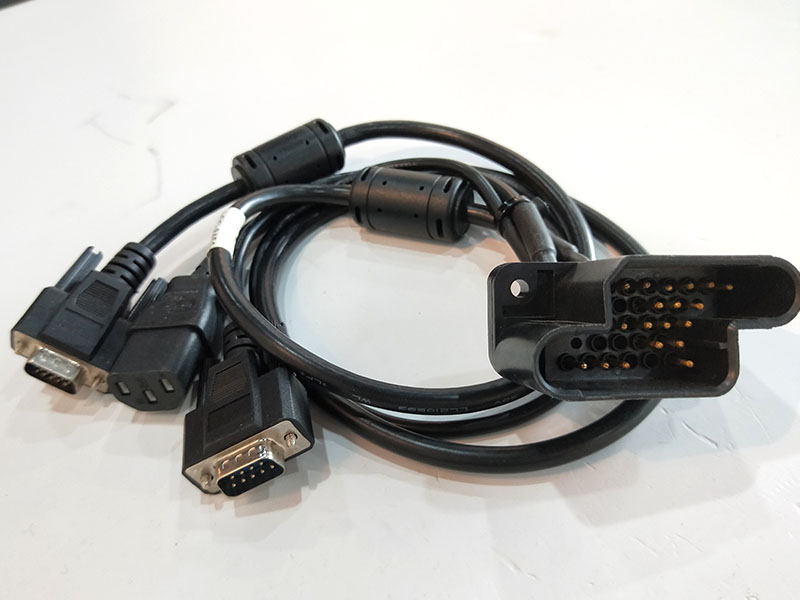

01 This custom molded cable assembliesis designed for video display connections. There are two D-Sub connectors in the products with injection outer molding, we purchased DB Connector for out-sourcing, and injection the inner and outer molding with black PVC materials. We have our own toolings for DB connectors but with only single cables.  If you have other more special requirements, we have the ability to open new toolings or modify toolings on our current one, such as if you need double cable to be injected, see the attached pictures for overmolding DB connectors. D-Sub Backshells are designed to maximize EMI/RFI shielding for optimal protection and performance. The comprehensive d-sub backshell product offering features a variety of options that improve the connection stability while maximizing cable strain relief in order to prevent damage to wires and contacts.

这里可以自定义设置

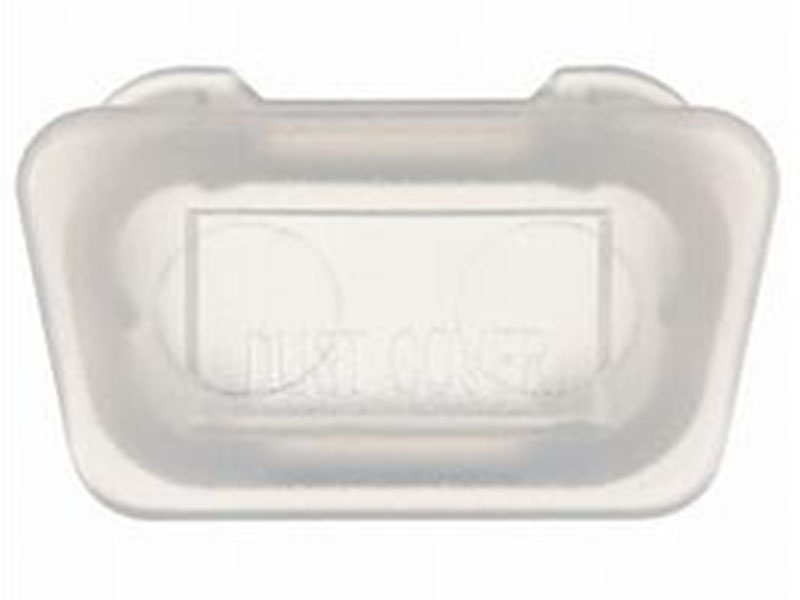

02   D-sub connector is a type of electrical connector that is used mainly in computing and video cable. It is most commonly used for video connections, such as those between a monitor and computer. D-sub monitor inputs include a female port on the computer for graphic display output, a cable, and a corresponding male port on the monitor. Commercial cables have a molded connector on each end, one male and one female, each with a D-shaped metal shield and three rows with five pins each, called DB-15, and two rows with 5/pins in one side, 4/pins in another rows, called DB-9. DB (or D-sub) connectors such as DB9, HD15 and DB25 can be used for many types of devices including monitors, videos, keyboards and mice. Here it is using DB-9 connectors, which is applied by one cover for dustproofing, you can see the pictures for dustcover.

这里可以自定义设置

03  When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that's been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a "mini-D-Sub 15-pin" or "D-Sub 15-pin" connector. (Some connectors omit unused pins.) D-Sub is currently the most widely used monitor interface, compatible with very large numbers of PCs and LCD monitors.

这里可以自定义设置

04  Connectors are available in vertical and right angle board mount types as well as solder cup for panel mount cable applications. Standard D-Subs are available in 9, 15, and 25 position male versions only, and high density D-Subs are available in 15, 26, and 44 position male versions only. A D-Sub female connector installed on the monitor side and a D-Sub male connector on the cable side. A D-Sub cable features a screw on each end of the connector that can be turned by hand to prevent unintended disconnection.

Product Applications

This molded power cable connectors are designed for demanding applications where a single connector is required for both power & signal. The solid machined contacts offer extremely reliable transfer of signal in a condensed footprint solution, also it is widely using on various applications, such as game machine, casion disply power system, video cables, computers and etc.
