Product Description

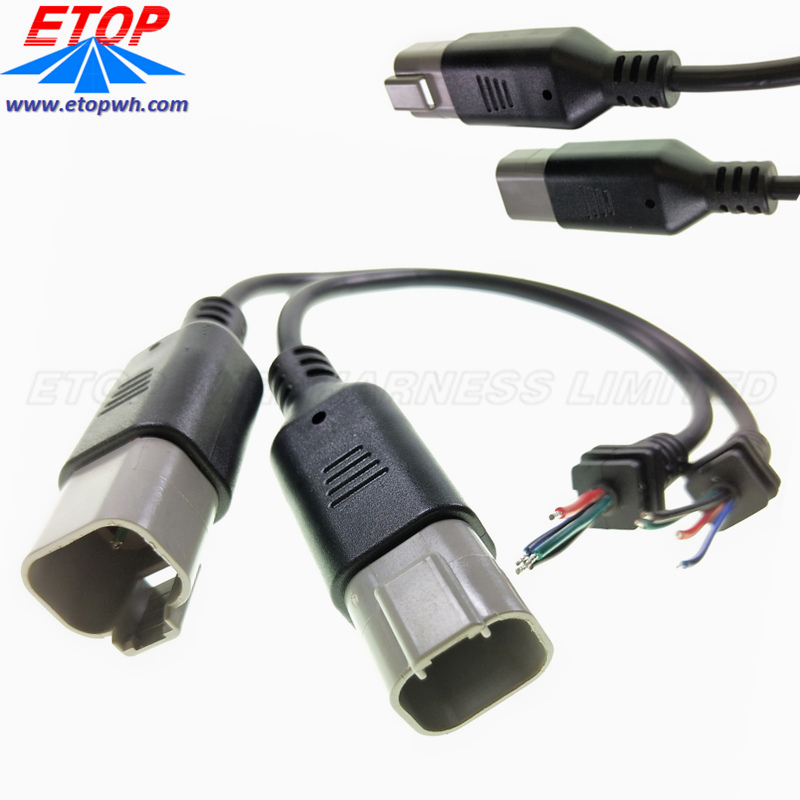

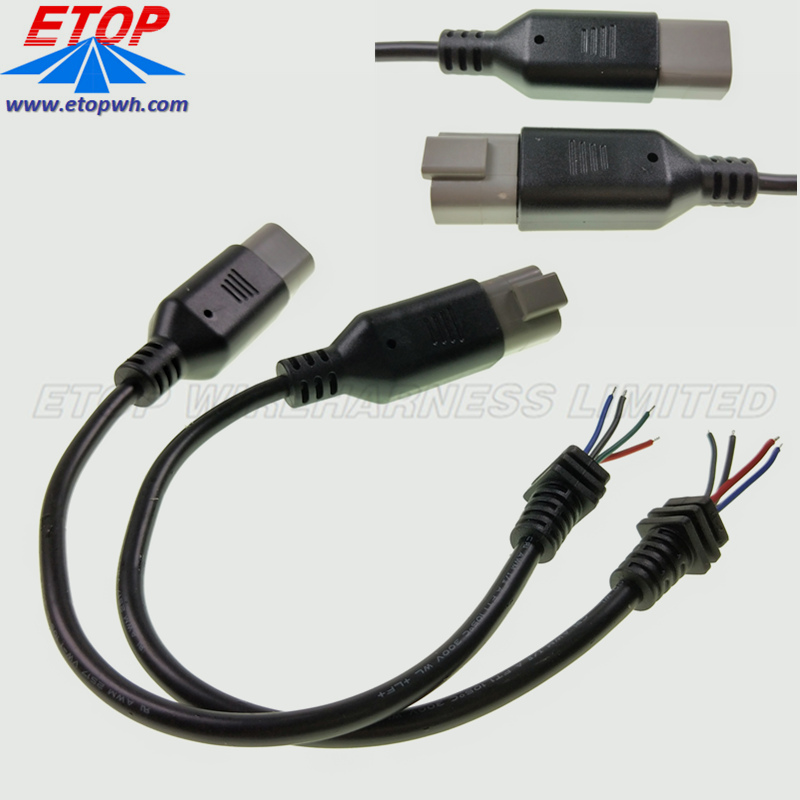

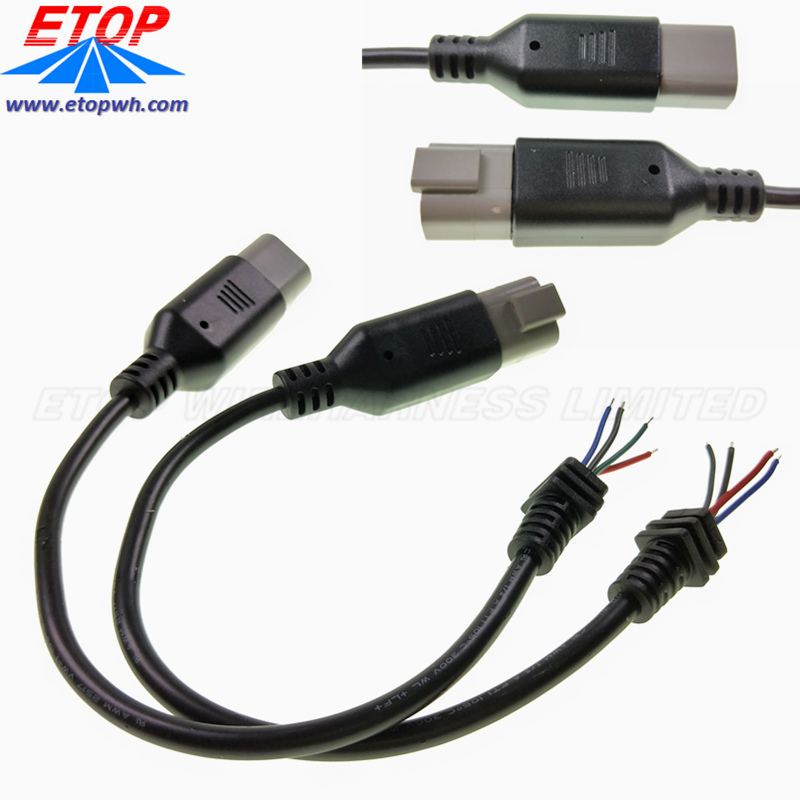

Molded DT cable harness Customization
We provide assistance every step of the way from setting up evaluation systems to review board designs. We are there shoulder-to-shoulder to get you through any problems into production as easy as possible.
Whether you are looking to weatherize an existing industry-common connector, protect a splice in your harness or simply need a full custom design, ETOP has the knowledge and capability to deliver what you need. Combined with our years of harness assembly experience, tried-and-true production methods and industry standard connections, and you can bet you’ll have a reliable assembly that ETOP can bring.
Whether you are looking to weatherize an existing industry-common connector, protect a splice in your harness or simply need a full custom design, ETOP has the knowledge and capability to deliver what you need. Combined with our years of harness assembly experience, tried-and-true production methods and industry standard connections, and you can bet you’ll have a reliable assembly that ETOP can bring.
DT connectors of WIRE SEALING RANGE
The wire sealing range is the recommended outside diameter of the wire insulation required to maintain an environmental seal in the rear connector cavities.
Contact Size | Standard Seal | Extra Thin Seal E-Seal |
20 14-22 AWG (2.5-0.35mm2) | .053-.120 (1.35-3.05) | -- |
16 14-20 AWG (2.0-0.5mm2) | .088-.145 (2.23-3.68) | .053-.120 (1.35-3.05) |
12 10-14 AWG (6.0-2.0mm2) | .134-.170 (3.40-4.32) | .097-.158 (2.46-4.01) |

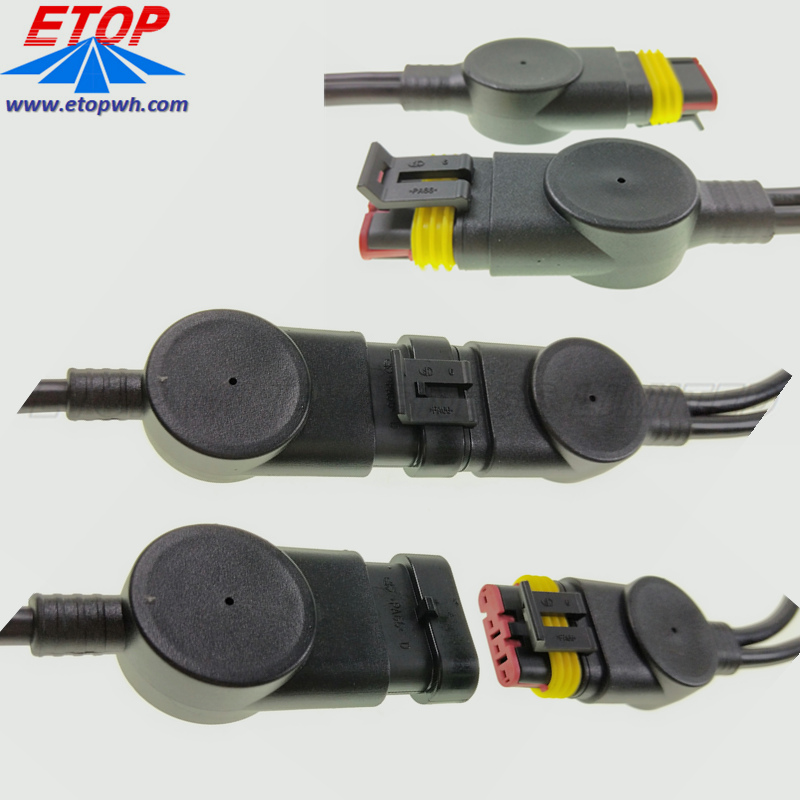

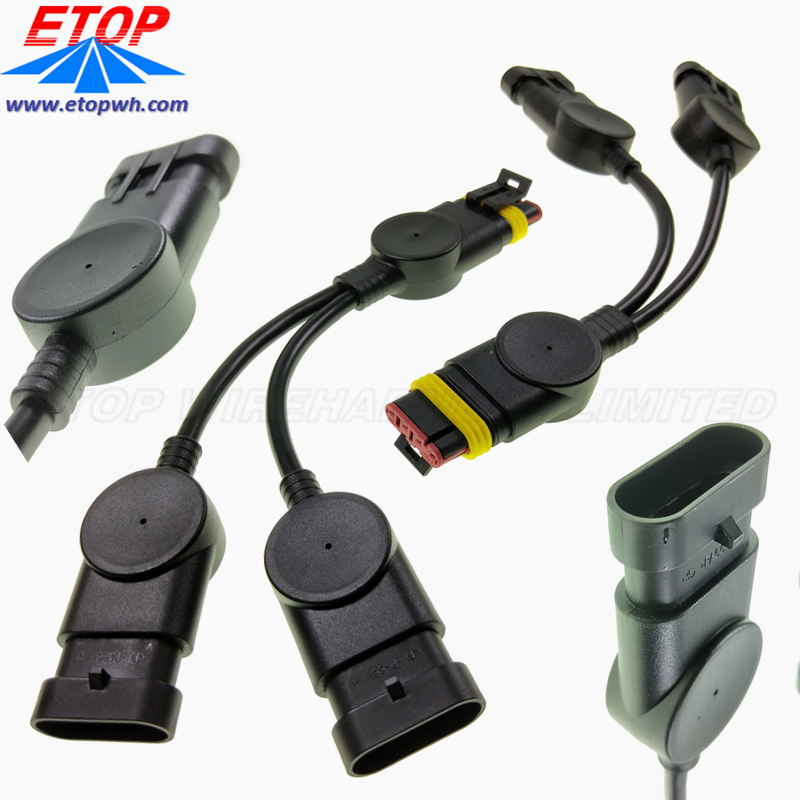

Product Name | custom overmolded DT connector and waterproofing SUPERSEALwire harness | ||
Keywords | custom overmolded DT connector, molded superseal connector, waterproofing wire harness | ||
Application | automotive, vehicles | ||
Cable color | Per customer requirements | ||
Cable Length | Per customer requirements | ||
Connector type | automotive connectors | ||
Suitable Wire Gauge(terminals) | #14~20 | ||
Protection | overmolding | ||
Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 |
01 Custom cable assemblies Engineering Services & Support
DT Series
• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.00-0.50 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
02 Overmold Customization
Custom overmolded DT connectors can be designed to meet most applications, typical designs allow the following features to be specified:
Material Compounds (PVC, Thermoplastic Elastomers (Santoprene, Uniprene, etc.);
Material Durometer and color;
IP Rating against Dust/Dirt/Moisture;
Ergonomic and Style Factors;
Mating Force of terminals and molded connectors;
Keying Features to control Mating;
Temperature Requirements;
Terminals and Terminal Plating;
Amperage Rating and Allowable Gage Ranges of Wires in the Connector
03 cable assemblies Engineering Services & Support
Custom cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
