OEM ODM Universal Top Quality Custom Electrical Wire Loom

OEM ODM Universal Top Quality Custom Electrical Wire Loom
electrical wire loom, custom electrical wire loom,top quality custom electrical wire loom
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~5wks
Start Port:
ShenZhen, HongKong
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?


Product Description

Etop offers custom cable assemblies for specific applications based on customer design and printing requirements. Our engineering team can assist with the selection of cables and connectors, using state of the art technology and solutions. In addition, we offer short-term manufacturing before mass production. We offer cable assemblies ranging from simple to complex, from standard to custom specifications. With more than 20 years of experience in this field, our cable assemblies are used in a wide range of applications in the electronics industry.

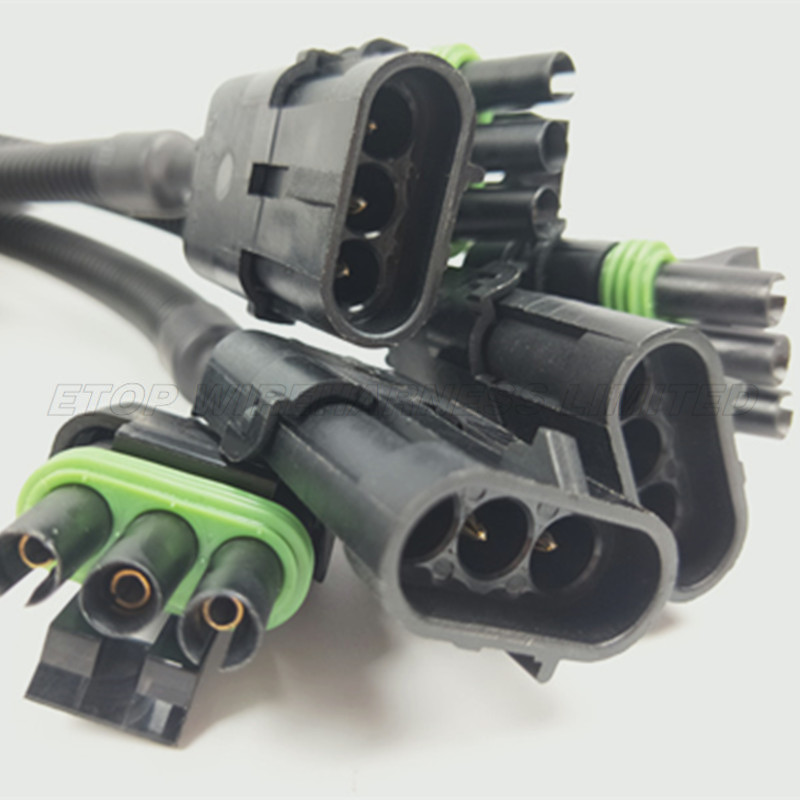

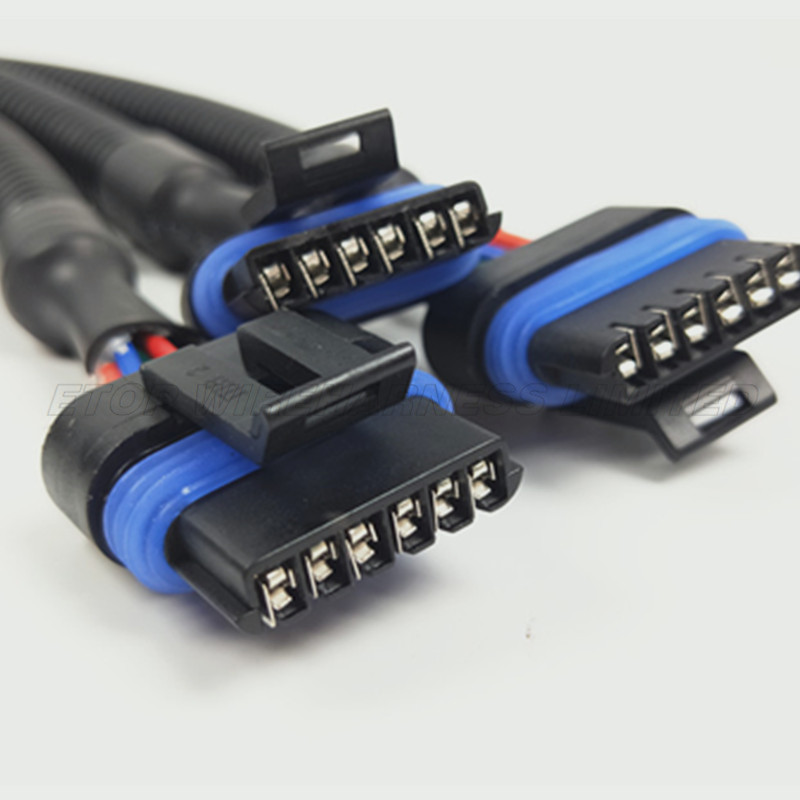

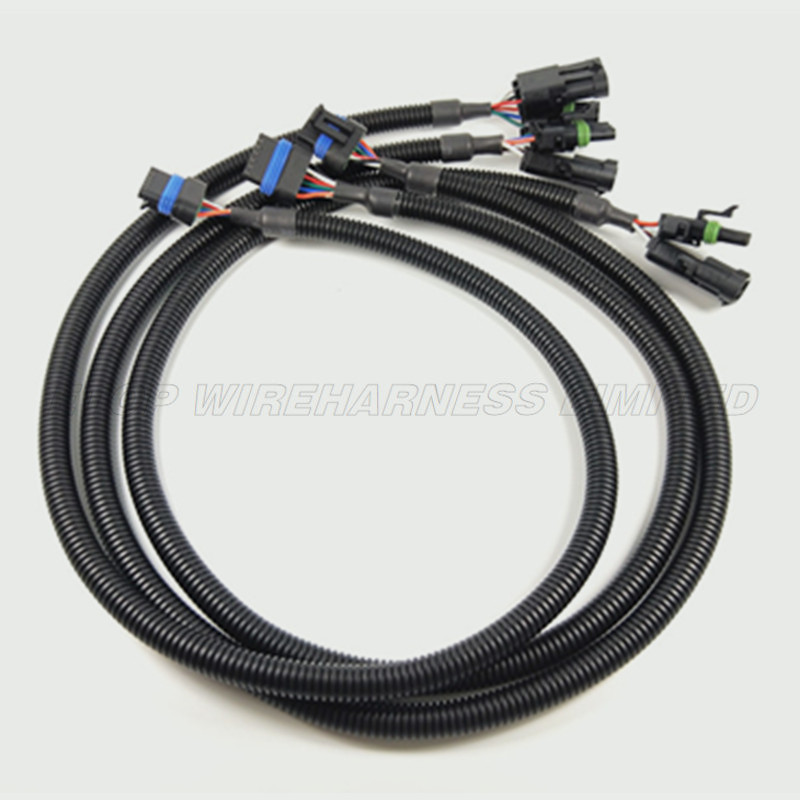

Product NameOEM ODM Universal Top Quality Custom Electrical Wire Loom
Connector type
TE, Deutsch
ConductorTinned copper
Connector typeDeutsch series
Connector pin2,3,4,6,8 and 12 cavity arrangements
Plastic PinCopper Nickel Plated
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details


01 A Cable Harness, also known as a Wire Harness, Cable Assembly, wiring assembly or wiring loom, is an assembly of cables or wires which transmit signals or electrical power. The cables are bound together by straps,cable ties, cable lacing, sleeves,electrical tape, corrugated tube, a weave of extruded string, or a combination thereof.  Commonly used in automobiles, as well as construction machinery,  cable harnesses provide several advantages over loose wires and cables. For example, many aircraft, automobiles and spacecraft contain many masses of wires which would stretch over several kilometers if fully extended. By binding the many wires and cables into a cable harness, the wires and cables can be better secured against the adverse effects of vibrations, abrasions, and moisture. By constricting the wires into a non-flexing bundle, usage of space is optimized, and the risk of a short is decreased. Since the installer has only one harness to install (as opposed to multiple wires), installation time is decreased and the process can be easily standardized. Binding the wires into a flame-retardant sleeve also lowers the risk of electrical fires.


02    ETOP has professional lab and testing equipment, our quality monitored by our own testing machine, such as 2D-measure machine, tensile tester, terminal sectional measure analysis,metallographic analyzer, X-RAY perspective instrument, cable electric tester,bending tester, swing tester, static test machine, aging oven testing machine etc. Which can support engineers to discover the potential issues. All controlled byMSA, SPC, process flow chart and control plan, P-FEMA, etc. Besides, we cooperate with the third-party testing organization for some special test like salt spray test, thermal cycle test, and vibration measurement, IP68 waterproofing, or some authority test etc.

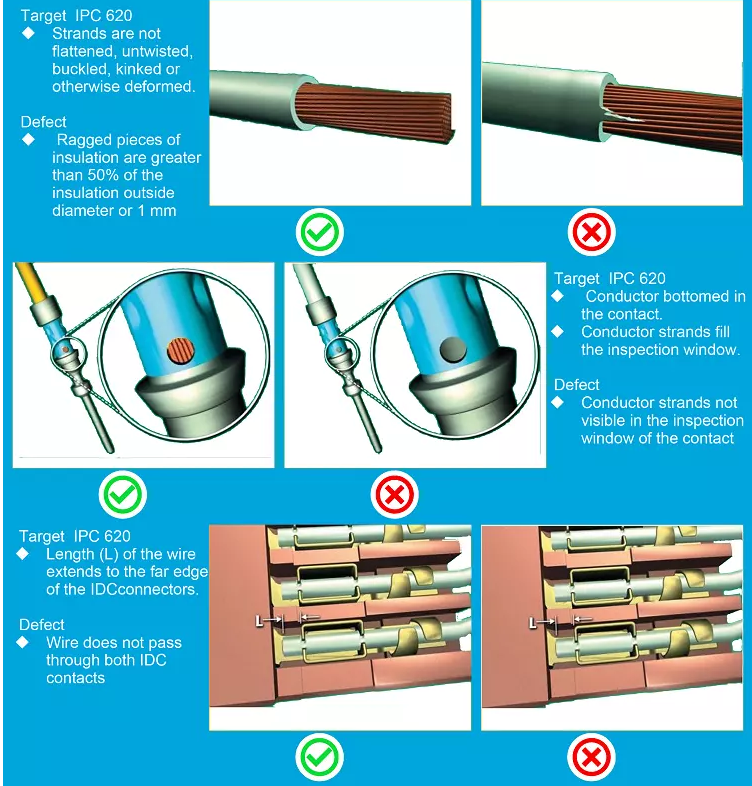

03  For automotive wiring harnesses, the reliablility and safety is always the top first, our engineers focus on the customers concern.  All process standardized by IPC 620 and quality ensured by IATF16949(TS16949). (APQP,PPAP, IPC620 standard,  Milt-process, Special test) . All terminal crimping followed IPC620, and here is our crimping standard and defect. All the terminal pulling force is ok to meet the IPC620 requirement. Strict quality control, Passed TS 16949 Quality control system, All the products are 100% test before delivery.

This Customized  Electrical Wiring Cable Assembly for home appliance assembled with molex Connectors. The cables processed following by IPC620 standard, and the dedicated team can support customers with much more suggestions and techniques for developing new products efficiently. All these can help customers shorten the L/T a lot with most competitive cost and stable quality. ETOP has the Flexibility and Capacity to accommodate a product's life cycle, design through production. ETOP can work with Customer from a product's inception to ensure maximum performance at the lowest possible manufactured cost.


Product Applications

Etop Wireharness Limited provide wire harness manufacturing services for cable harnesses and built-to-print cables used in many industries, such as computer, game machine, POS machine, ATM , audio/video, electro-mechanical, data communications, telecommunications, medical, etc.
