Molding Braided DT cable assemblies

Molding Braided DT cable assemblies
30% prepaid when placing order, balance paid before shipment
Delivery Time:
Start Port:
OEM, ODM, customization
customization 45*35*25cm, 40*30*23cm, 30*25*25cm

Add success, do you want to check your shopping cart?


Product Description

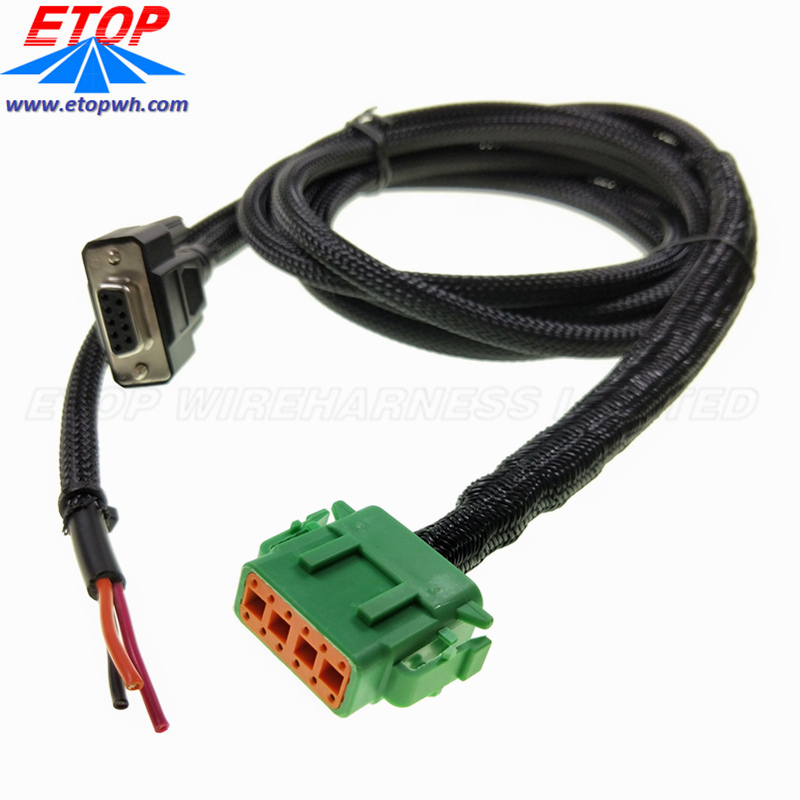

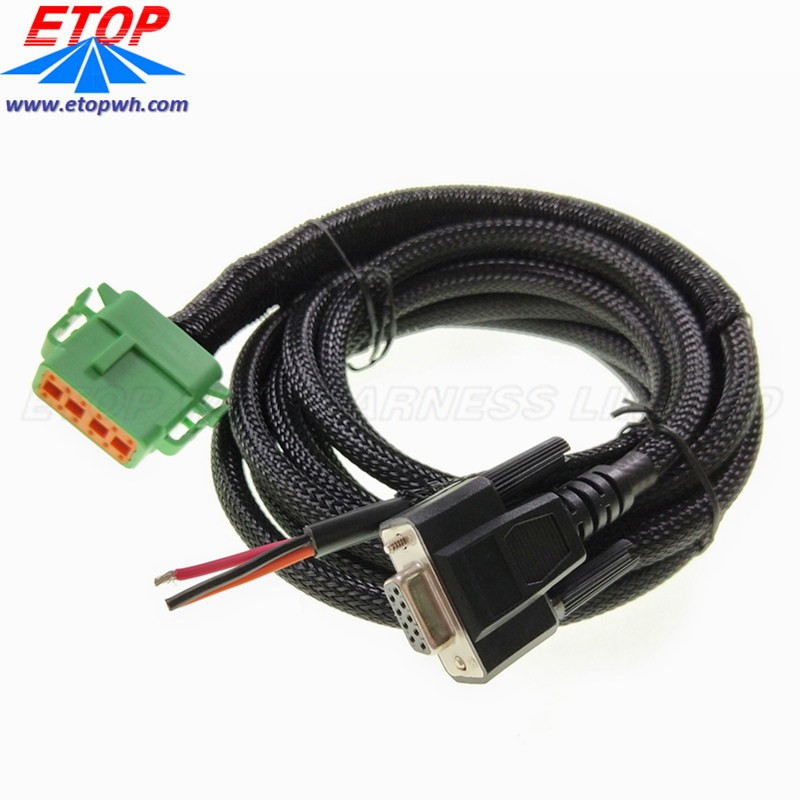

custom waterproof wiring harness with auto DT plug DT06-4S-CE06

DT plug wire harness Customization

we are a reliable wire assembling manufacturer, we can show the quality just as per the contract and deliver the quantity. we deliver the material in the quantity we see in the delivery range no matter plus mius 10 on plus minus 5 . and also we control the delivery date and always we ship the material on time slightly ahead of the schedule. and we always perform the contract as we promised. and we have done tis for so many years. that's why we are famous in the market.

DT, DTM, and DTP series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical.

The wire sealing range is the recommended outside diameter of the wire insulation required to maintain an environmental seal in the rear connector cavities.


Contact Size Standard Seal Extra Thin Seal E-Seal
20 14-22 AWG (2.5-0.35mm2)  .053-.120 (1.35-3.05)  --
16 14-20 AWG (2.0-0.5mm2)  .088-.145 (2.23-3.68) .053-.120 (1.35-3.05)
12 10-14 AWG (6.0-2.0mm2)  .134-.170 (3.40-4.32) .097-.158 (2.46-4.01)

Product Specifications

Product Name

Custom braided shielding DT plug cable assemblies


braided auto DT wiring harness, DT plug housing wiring, auto wiring harness

ApplicationCar, Truck, Bus, & Off-Road
Cable colorPer customer requirements
Cable LengthPer customer requirements
Connector typeautomotive connectors
Suitable Wire Gauge(terminals)#14~20
Protectionplastic grommet
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

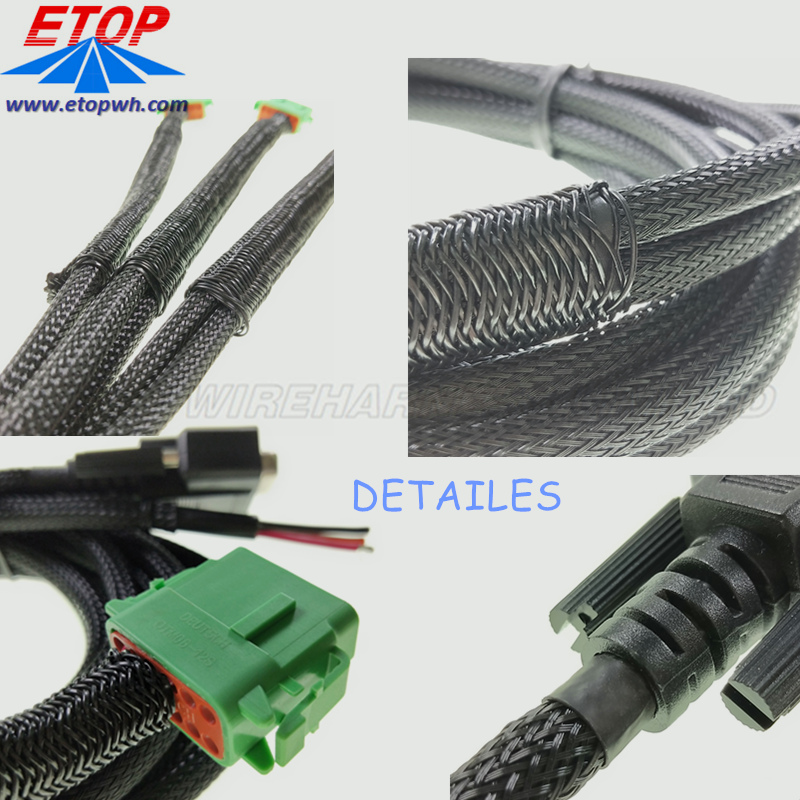

Product Details


01  Custom cable assemblies Engineering Services & Support

DT Series

• Accepts contact size 16 (13 amps)

• 14-20 AWG (2.00-0.50 mm2)

• 2, 3, 4, 6, 8, and 12 cavity arrangements

• In-line, flange, or PCB mount

• Rectangular, thermoplastic housing

• Integrated latch for mating

• Wedgelocks confirm contact alignment and retention

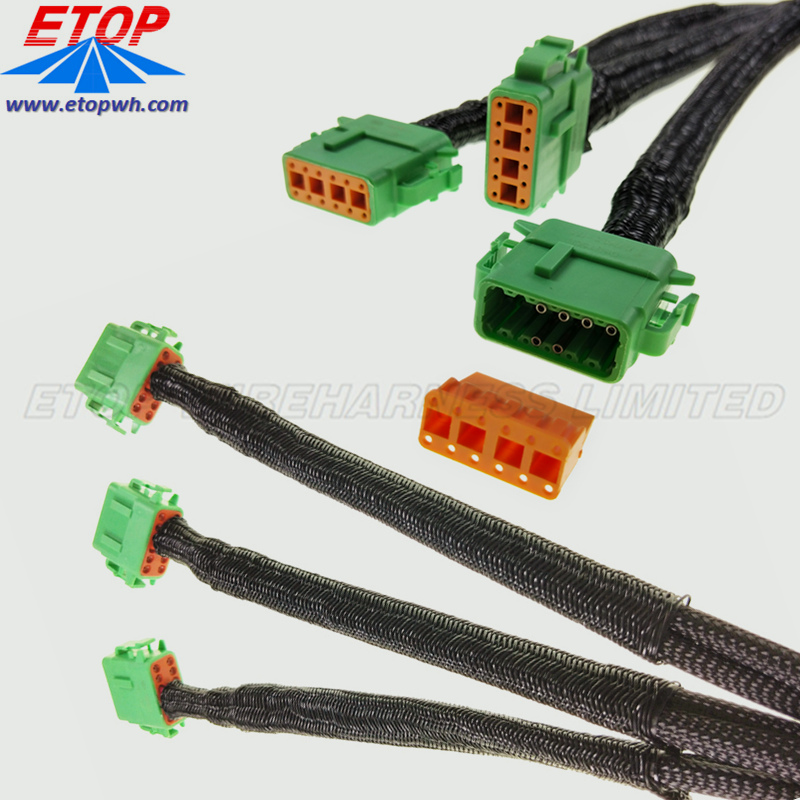

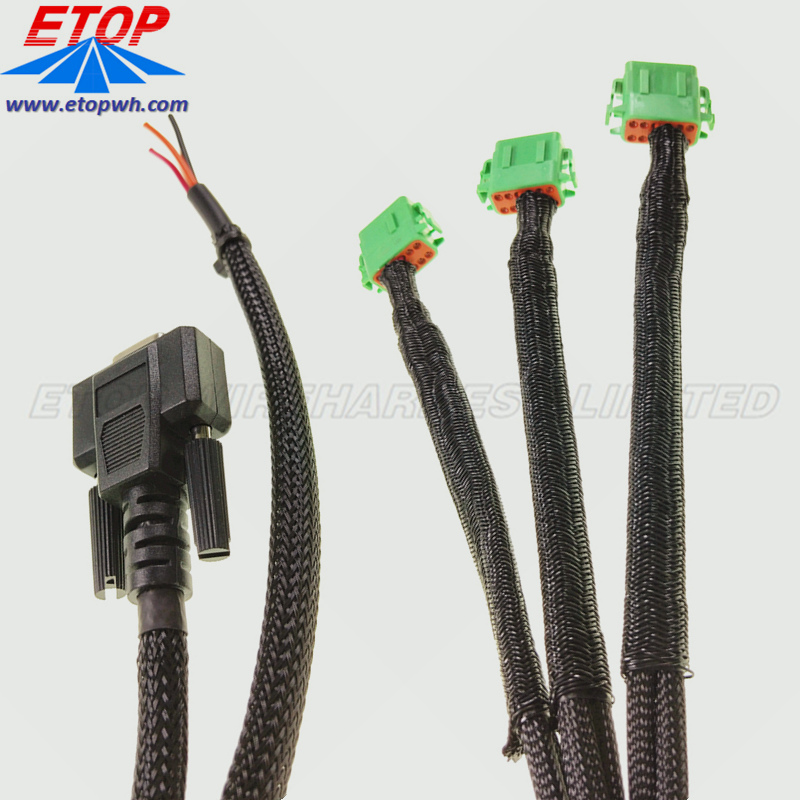

02    Custom Braided shielding AUTO DT connectors cabling

DT series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility. The DT series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.


03   cable assemblies Engineering Services & Support

Custom cable assemblies Engineering Services & Support

We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.

Product Applications

ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
