Product Description

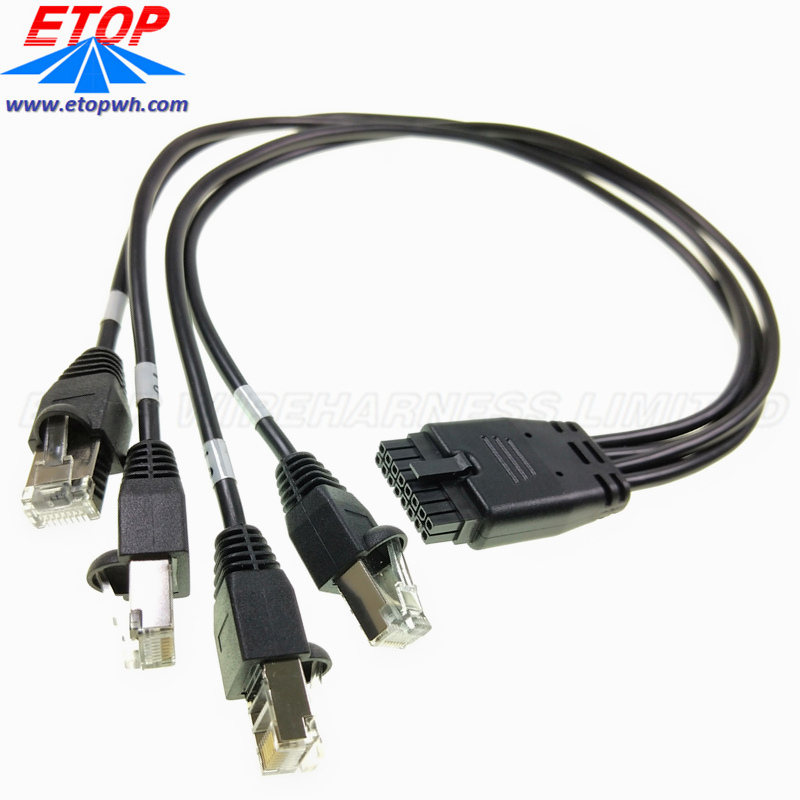

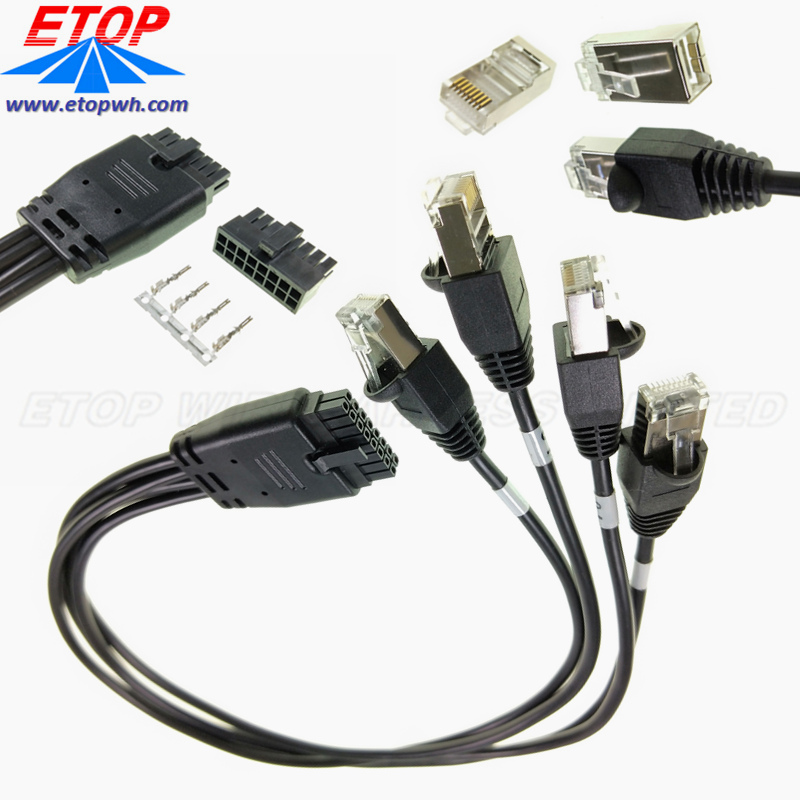

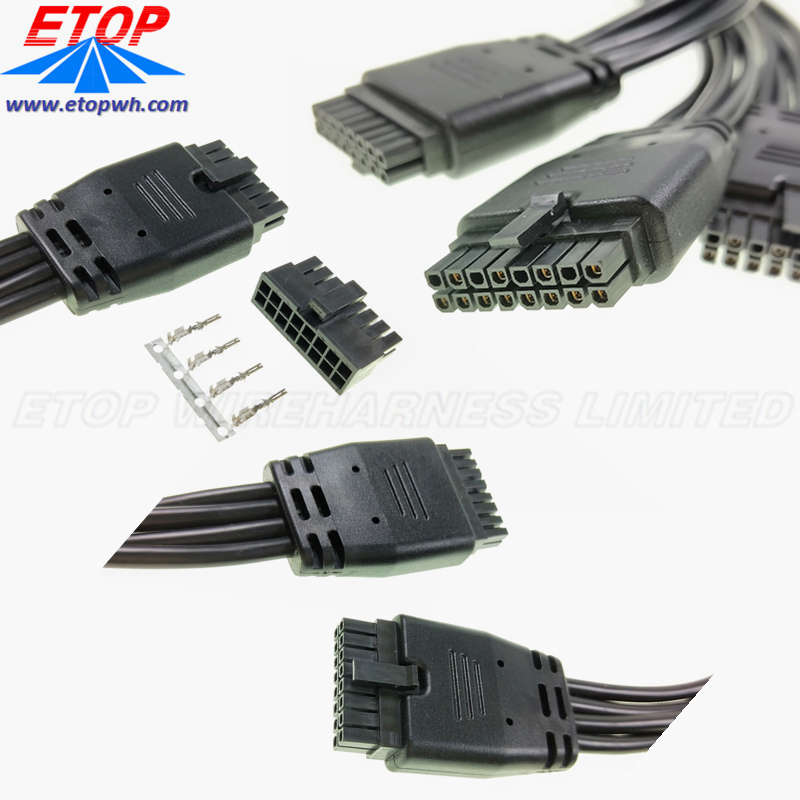

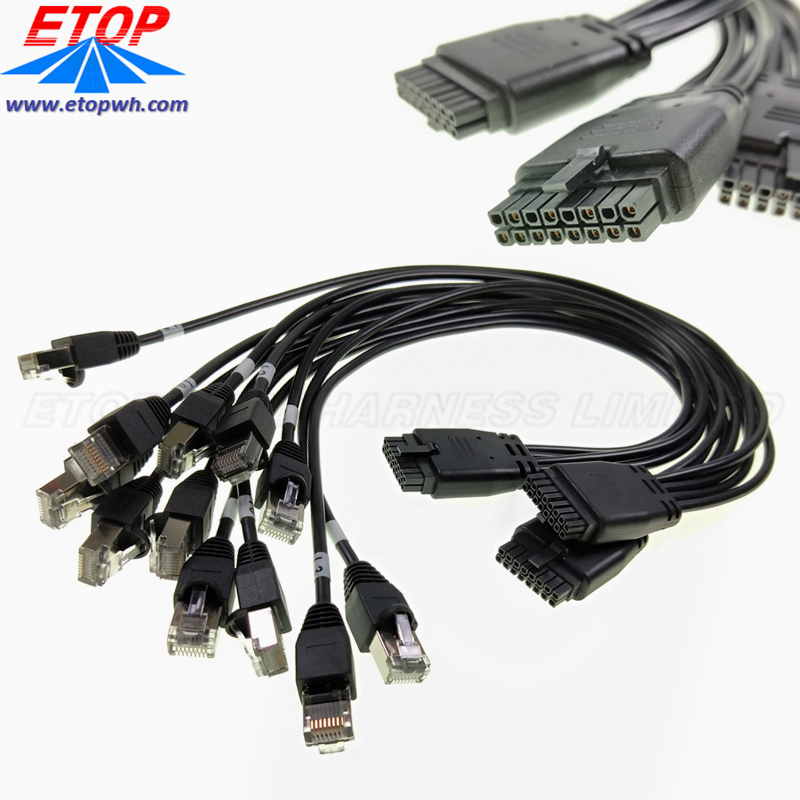

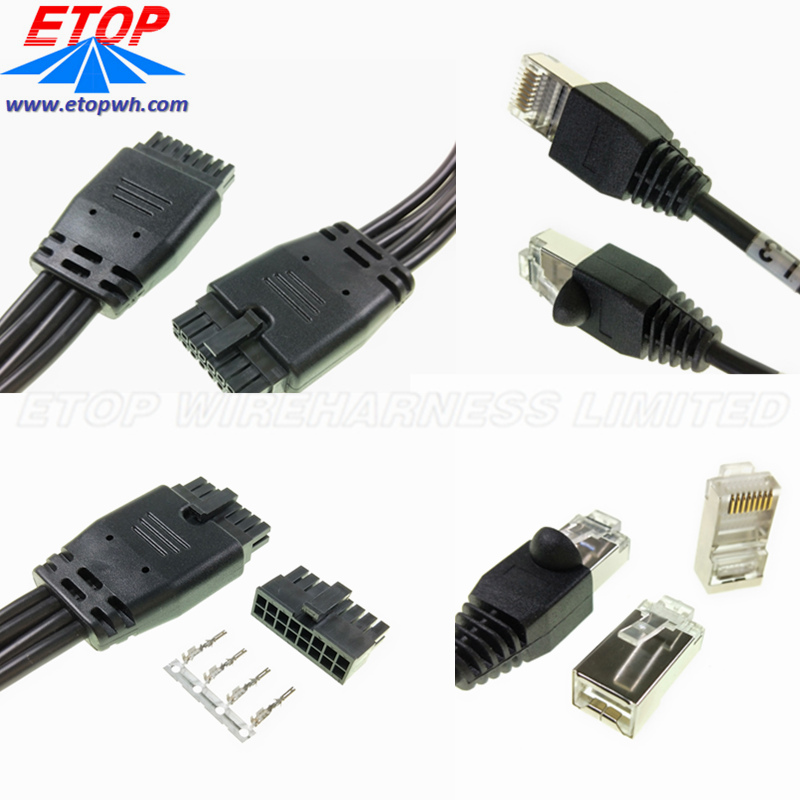

Over-molded 16pin micro-fit connector wiring assemblies
Overmolded connectors can be custom designed with different features in cable, molding model, molding materials and color, we are able to accommodate almost any special specifications or requirements. Connectors over-molding design can be fully protected to ensure reliable connections for more longevity and durability. Also improved the quality, look and functionality of many electrical cables. We experienced in building molded cables with over-molded power connectors such as MINI FIT., MICRO FIT, MATE-N-LOCK, AMPSEAL, SUPERSEAL, etc. Also the main advantages of EDGAR is to provide rapid In-house engineering, and tooling, prototyping support service including design and development, CAD and 3D documentation.
We offer our services for various types of power connectors, such as MINI FIT JR., MICRO FIT, MINI-FIT SR.,MATE-N-LOCK, both in standard and custom designs.
| Product Name | Custom overmolded power micro-fit connectors to 4in RJ45 Jack | ||
| Keywords | micro-fit connector, power connector, RJ45 jack cable assemblies | ||
| Application | Electronics | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | power micro-fit connector | ||
| Protection | HST tube and 3M tape, 94V-0 Braiding sleeve | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 Over-molded Cable Assembly Process
These compatible power connectors are available for a range of applications, including data center, industrial, energy, and medical.
Custom Configuration: Expandable and modular mold
Touch-Safe: Fully shrouded power contacts
Higher Connectivity and Lower Mating Forces: Uses the new POWER ARCH contact design
Flexible Design: Each configuration can use up to 10 modules in a 2x1 to a 2x5 layout.
Easy Handling: With existing hand tools, you can easily terminate the contact and remove it from the housing
Variety: Offered in three mating sequence levels for power and signal contacts
02 Custom cable assemblies Engineering Services & Support
Connectors over-molding design can be fully protected to ensure reliable connections for more longevity and durability. The unit is sealed against moisture, dirt and dust.
Resistor across the relay coil for voltage spike protection.
Rating of contacts dependent upon how the relay is wired
Normally open or normally closed contacts are rated differently.
Contacts not rated or tested above 16vdc
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
03 Braided cable assemblies Engineering Services & Support
Custom Buzzer cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
