Product Description

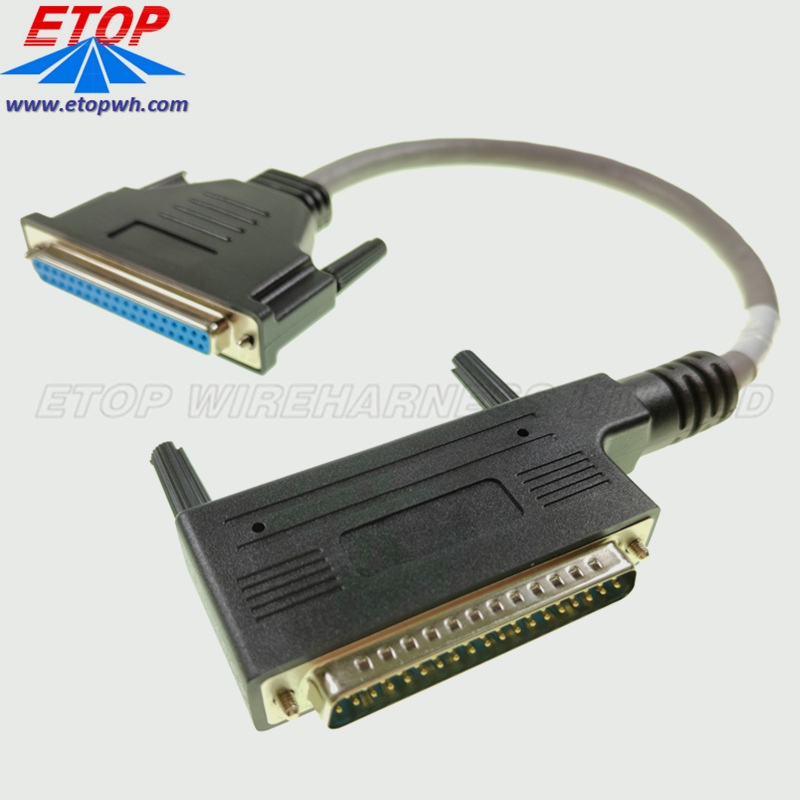

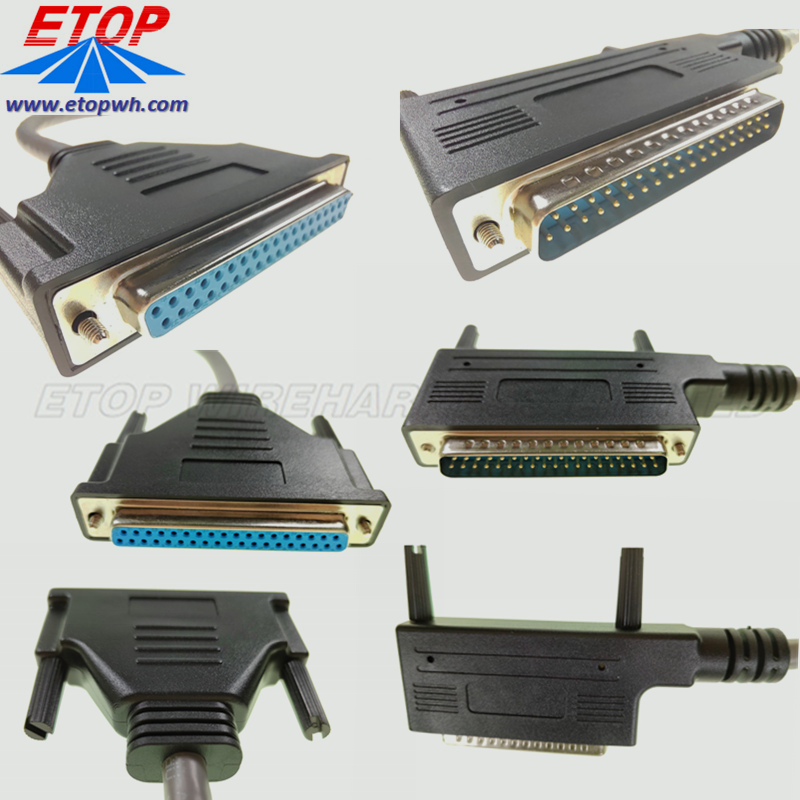

Custom overmolded 37pin D-sub cable harness
Designed overmolding process to protect RJ45 and D-sub connectors from moisture, air, water, etc for waterproofing function. With our broad engineering expertise, we design and build custom wire harness to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost.
Our commitment to customer satisfaction and building long-term relationships based on trust is our top priority. We are dedicated to ensuring that the quality of our products and service remain the highest in the industry. From product performance through the order process to delivery, you can expect quality in everything we do.
Our success is only defined by our customers’ success!
All products are available for sale through our trusted network of factory authorized distributors. A complete list of the distributors in each market area may be obtained from the factory. We look forward to meeting the challenges of our constantly changing world and helping you solve your toughest application problems!
Product Name | Molded 37pin D-sub Connector Converter Cable to RJ45 Jack | ||
Keywords | custom molded D-sub cable assemblies, overmolded RJ45 connectors, molded spliter cable assembly | ||
Application | electronic equipments | ||
Cable color | Per customer requirements | ||
Cable Length | Per customer requirements | ||
Connector type | D-SUB, RJ45 | ||
Suitable Wire Gauge(terminals) | 24# 26# 28# | ||
Protection | overmolded splitter strain relief with PCB | ||
Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH | ||
Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 |
01 Overmold Customization
Custom overmolded connectors can be designed to meet most applications, typical designs allow the following features to be specified:
Material Compounds (PVC, Thermoplastic Elastomers (Santoprene, Uniprene, etc.);
Material Durometer and color;
IP Rating against Dust/Dirt/Moisture;
Ergonomic and Style Factors;
Mating Force of terminals and molded connectors;
Keying Features to control Mating;
Temperature Requirements;
Terminals and Terminal Plating;
Amperage Rating and Allowable Gage Ranges of Wires in the Connector
02 Wire harness Production & Manufacturing
Our full array of services covers manufacturing, finishing, and assembly, allowing us to offer a high quality single source solution for your volume production needs. We also offer an array of Value Added Services.
Toolings
Mold design
Fixtures
Inspection equipment
Quality control
All in-house
03 Molded cable assemblies Engineering Services & Support
Our customer-focused project management is designed to ensure your satisfaction at every step of the process. From development support to quality assurance, we can assist as much or as little as you need to make your project a reality.
Explore initial concepts
Establish requirements and constraints
Evaluate and improve existing designs
Solve design problems
Finite element analysis optimization
Source components and materials
Project management
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
