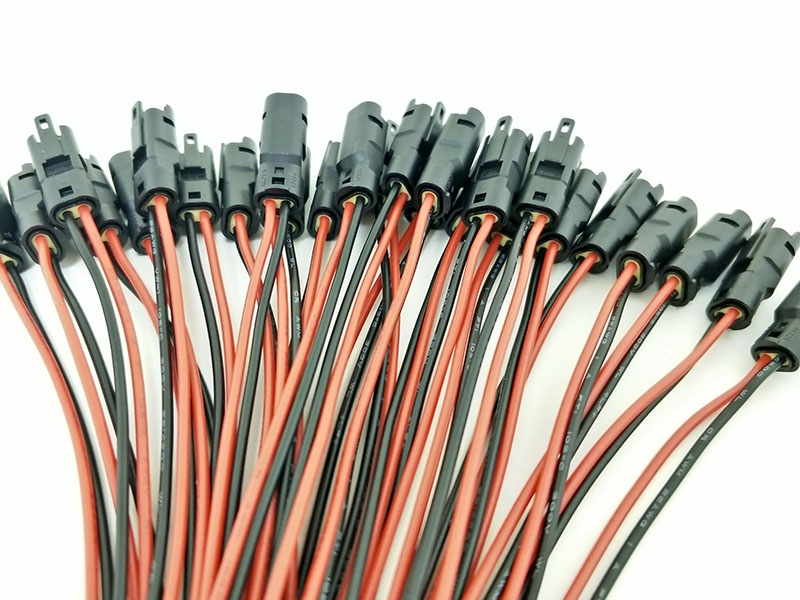

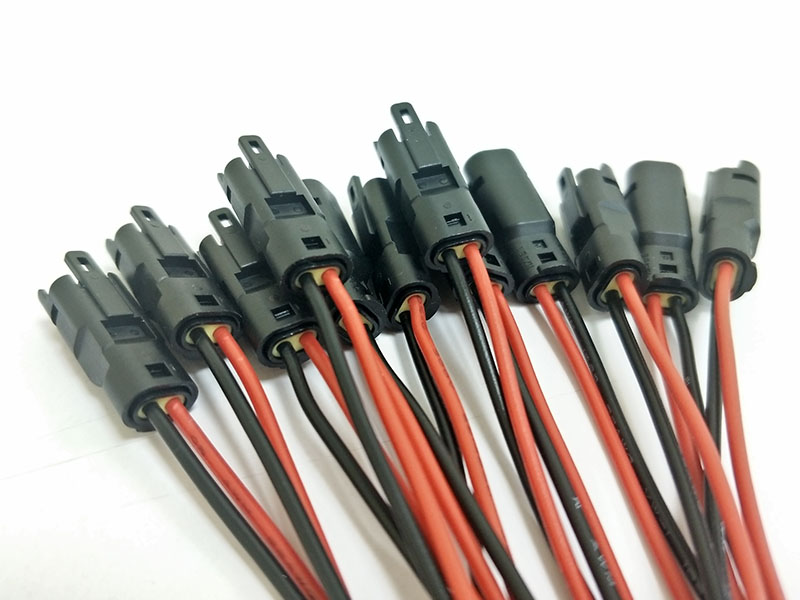

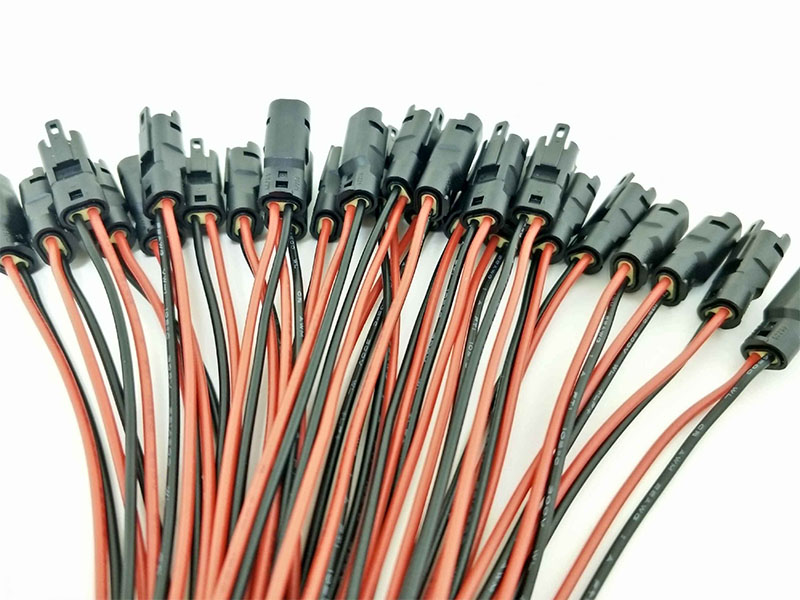

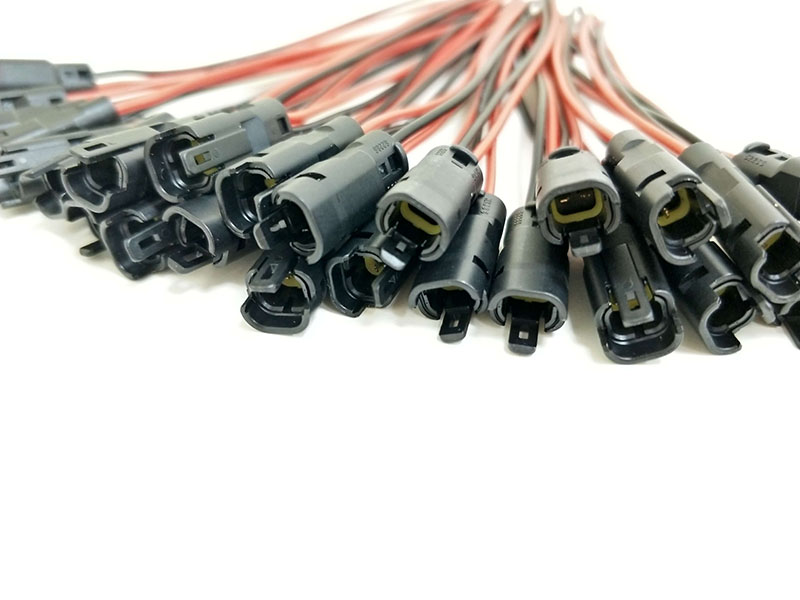

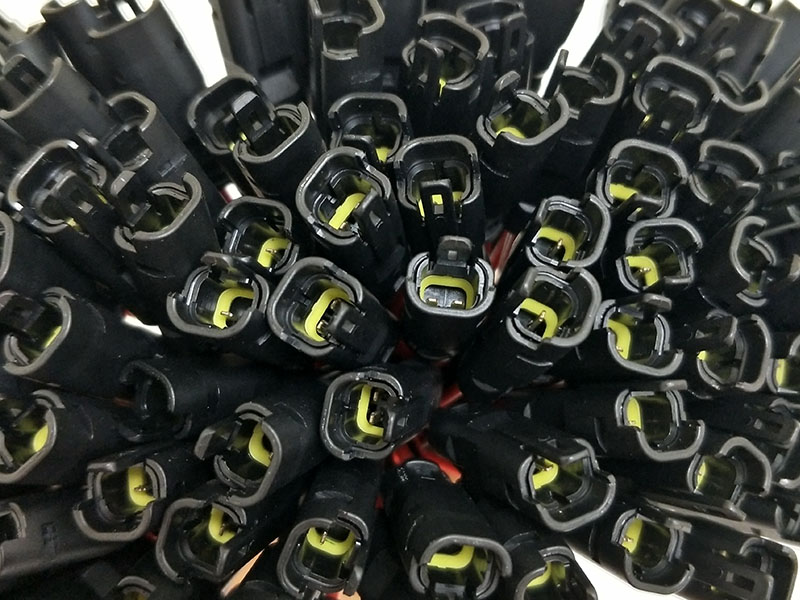

Mizu-P25 Waterproof Connector Assembly

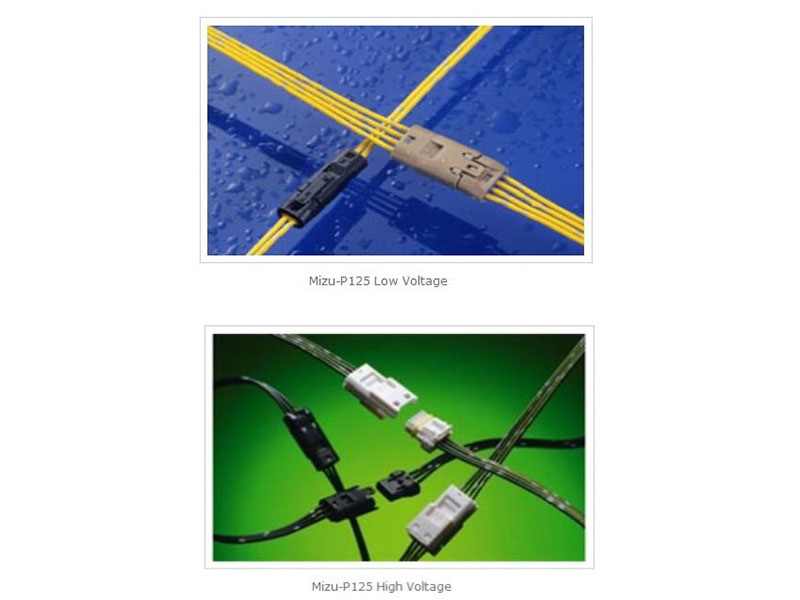

02 Mizu-P25 Miniature Waterproof Connectors.  The Mizu-P25 family includes two sub-families: the low-voltage system, which is rated up to 125 volts; and the high-voltage system, rated up to 250 volts. Both versions of the Mizu-P25 family provide some of the smallest mated diameters of any similar system.This helps to meet the needs of makers in various industries to fit wire-to-wire solutions through smaller spaces, holes and hinges.

04 The Mizu-P25 family also includes features to make assembly easier for operators. This includes color coding of housings, low-insertion terminal design, easy-to-use positive-locks and polarization features to ensure correct mating. The features is positive locks ensure mating retention, integral seal stopper feature provides waterproof protection, spring-beam terminal desgin provides high pressure and small deflection for high-vibration applications, raised-body male terminal design provides polarization to prevent mismating.
