Product Description
The customized automotive cable assembly designed with MX150 6pin sealed connector to mini-thermocoubple connector, which supporting both signal and power applications for on-engine automotive to off-road construction equipment applications. Molex MX150 cavity plug sealed would be assembled to the empty pin of connector, to make sure waterproof. The automotive wire harness customized MX150 family consists of 2 types of connection system's: matte-sealed and cable sealed designs, the matte-sealed design eliminates the need to purchase, handle and crimp individual wire seals to lower applied cost. It incorporates a single silicone-based seal with individual wire openings allowing for a tighter overall pitch and smaller package size.
| Product Name | Manufacturing Wire Harness Automotive Molex MX150 Cable Assembly | ||
| Application | engine, automotive | ||
| Materials | PVC, metal | ||
| Wire standard | UL, ROHS, REACH, or customized | ||
| Conductor | Tinned copper | ||
| Insulation | PVC | ||
| Connector brand | Local equivalent with UL certifi | ||
| Contact type | Signal | ||
| Samples | Samples confirmed first before mass production | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH | ||

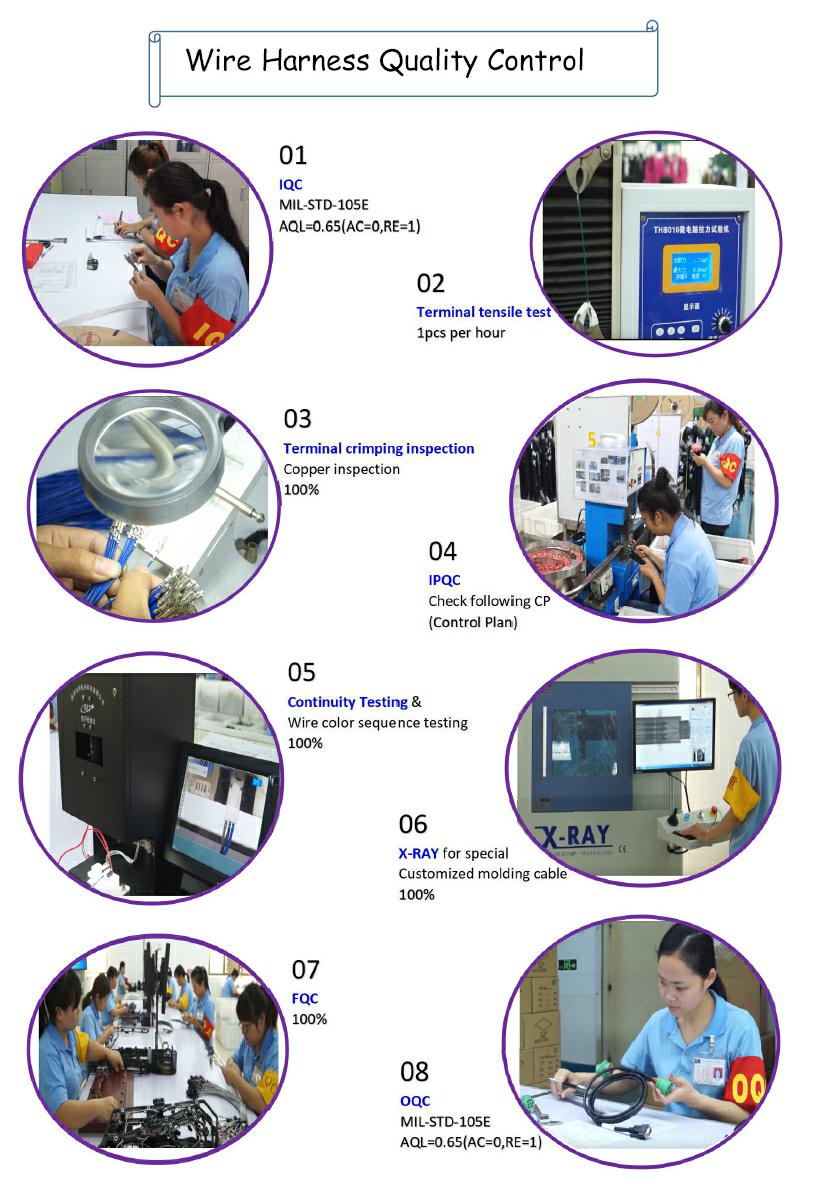

| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||

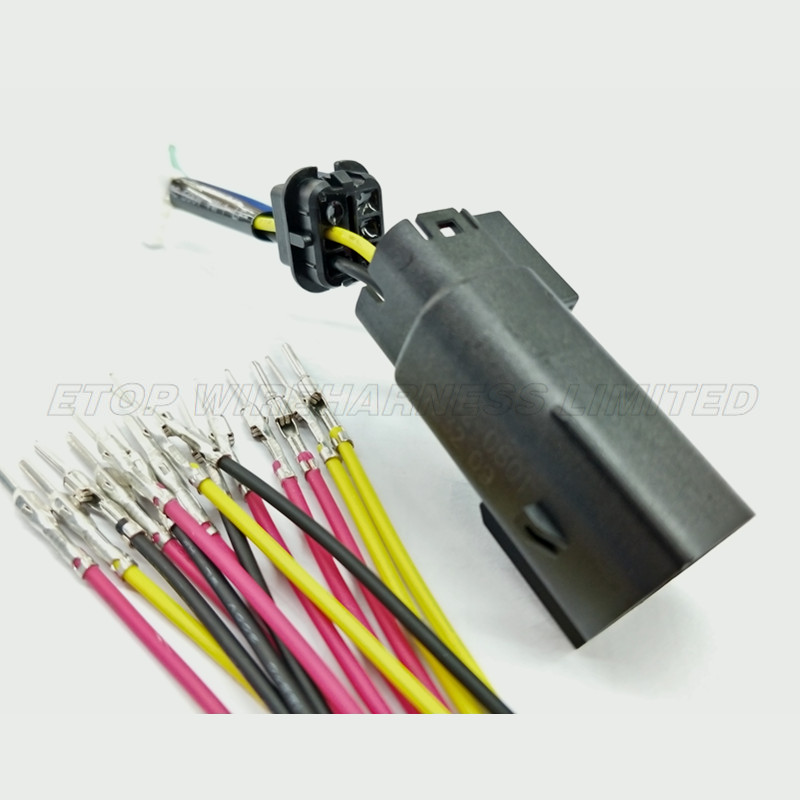

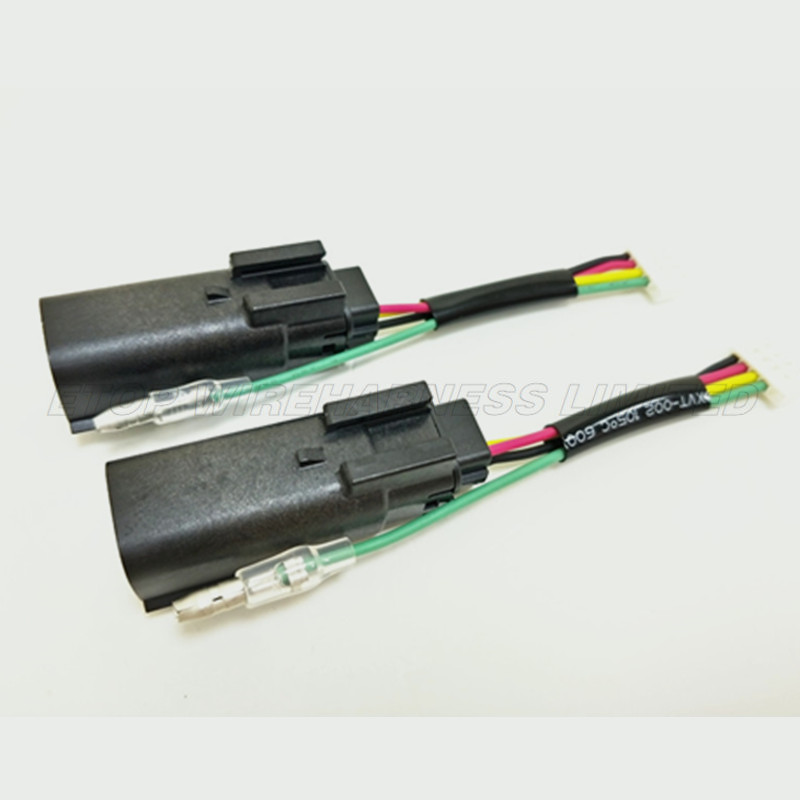

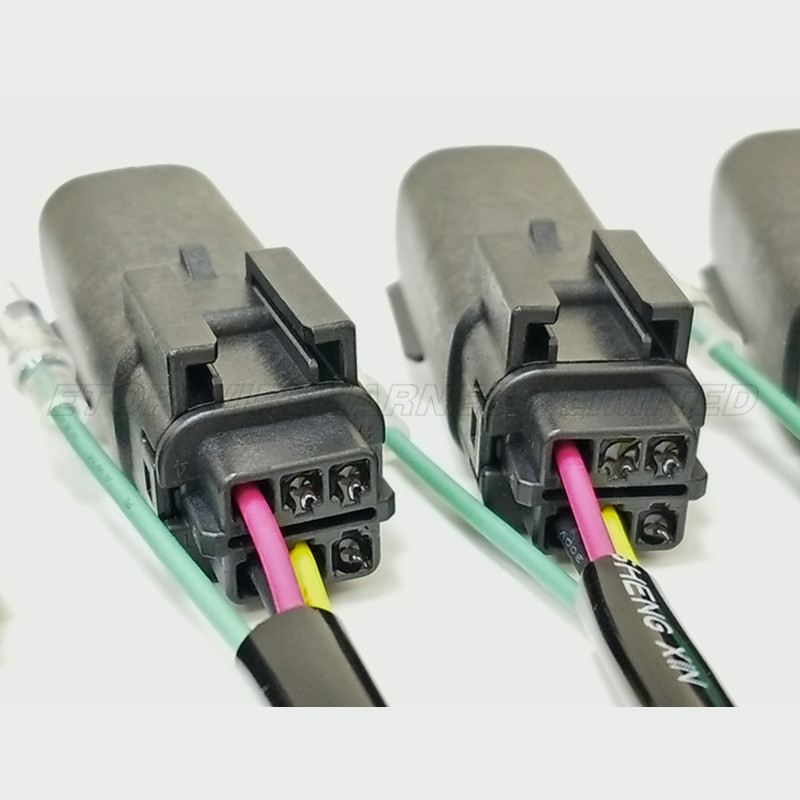

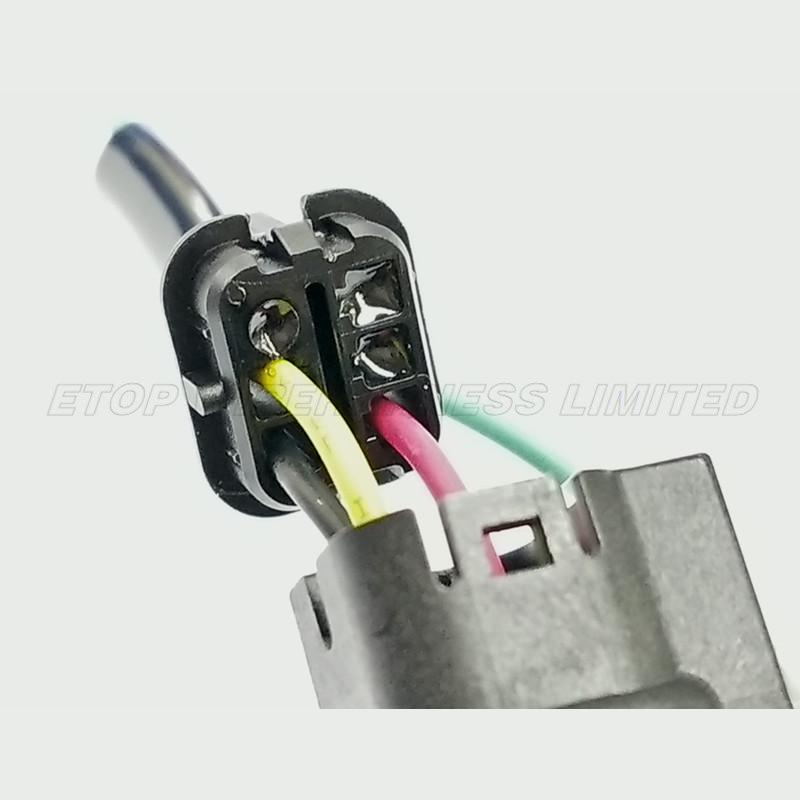

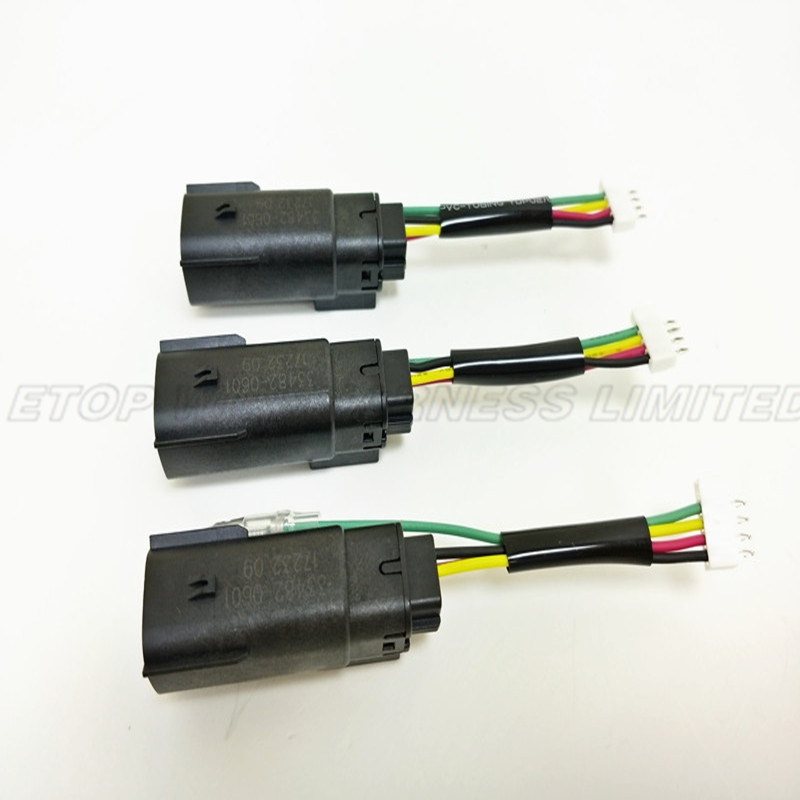

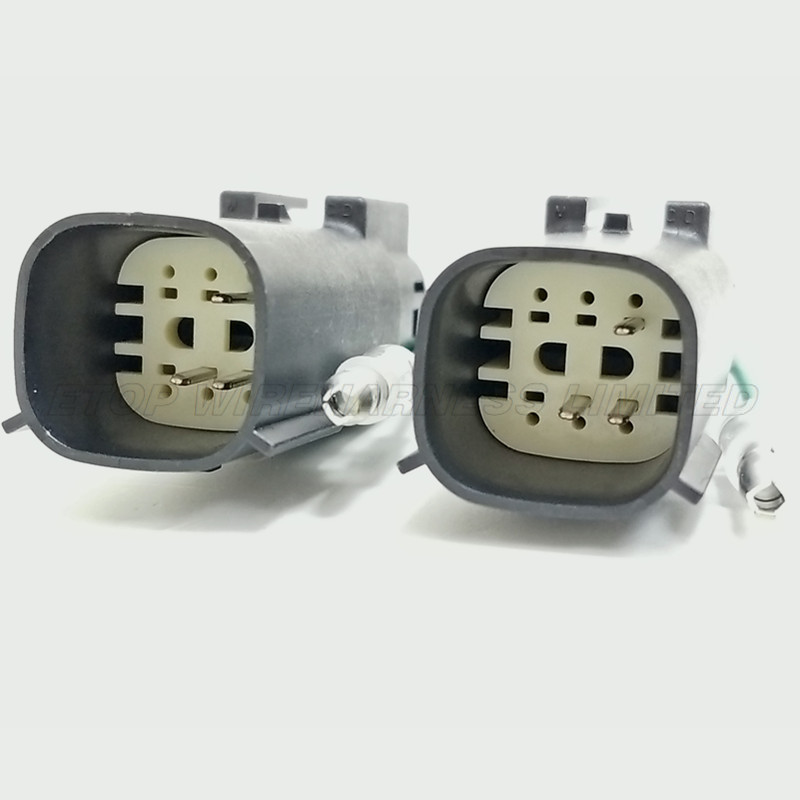

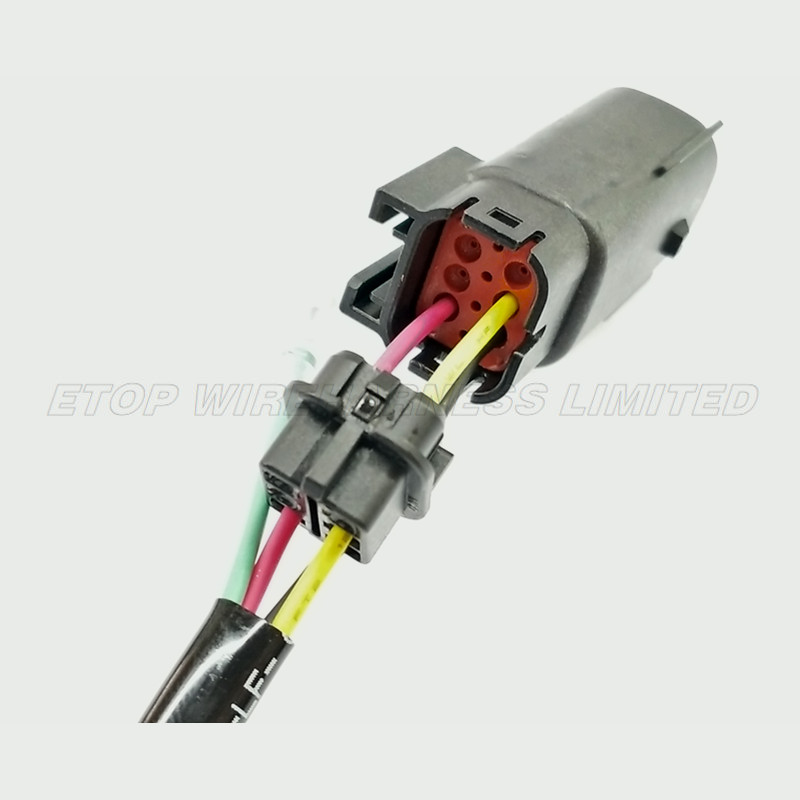

01 This custom cable assembly desgined with 6pin molex connector, P/N 33482-0601, which is MX150 Sealed Male connector system, dual row, the empty pin sealed with dummy plug for waterproofing fuction. All materials are original JST components, All the terminal pulling force is ok to meet the IPC620 requirement. Strict quality control, Passed TS 16949 Quality control system, All the products are 100% test before delivery.
02 Makers of automotive and commercial vehicles are continually challenged to provide more electronics in the same space accommodating faster assembly times to reduce production costs. The MX150 Sealed Connector System offers a reduced package size over traditional USCAR connectors and is designed for simple and secure assembly. Designed for commercial-vehicle, marine and other harsh environments, the pre-assembled, submersible MX150L Industrial Sealed Connector System exceeds IEC IP67 requirements while providing economical advantages.

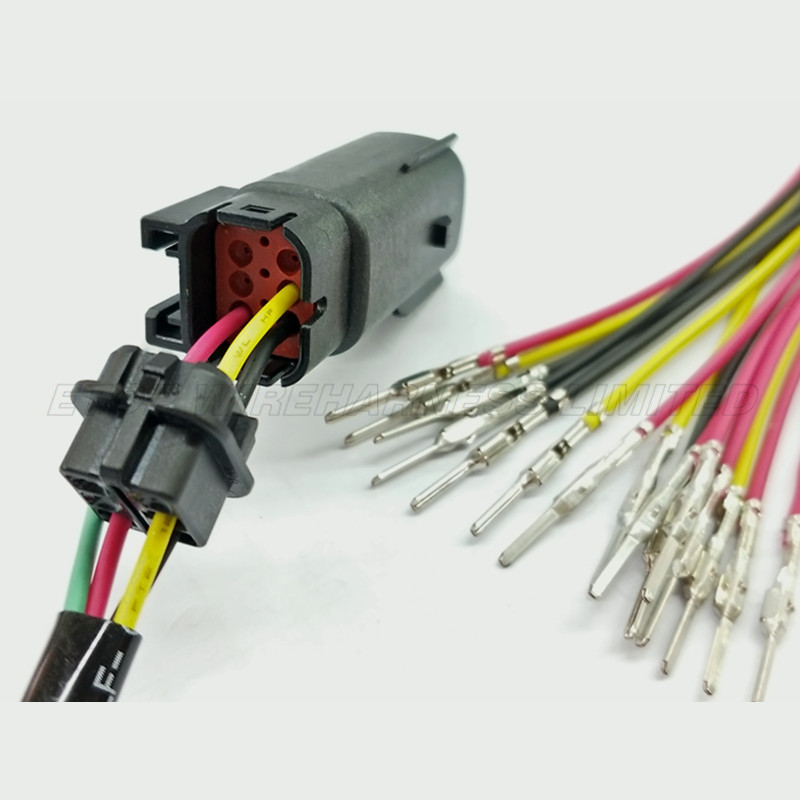

This MX150 sealed male connector system, mated with molex 33000 MX150 Tin(Sn) Male termrinal, 33011 Gold(Au) Male terminal, 343450001 MX150 Sealed Blade cavity plug, 349500610, 349500620 MX150 Backshell.
03 This Customized Electrical Wiring Cable Assembly for home appliance assembled with molex Connectors. The cables processed following by IPC620 standard, and the dedicated team can support customers with much more suggestions and techniques for developing new products efficiently. All these can help customers shorten the L/T a lot with most competitive cost and stable quality. ETOP has the Flexibility and Capacity to accommodate a product's life cycle, design through production. ETOP can work with Customer from a product's inception to ensure maximum performance at the lowest possible manufactured cost.
Our advantage:
1. Special sampling production line, also with fully-equipped internal tooling department for SR, connector, plastic part, or any other tooling parts
2. Provide harness design assistance, rapid in-house prototyping(CAD, SOLIDWORK), also accept flexible Qty, even including working round-the-clock to meet tight turning-round time requirements.
3. Save customer cost, produce with good quality and provide excellent service are what we are always doing.
4, We have wide range of materials source as below, also we can support customers to make a customized one to replace the original ones, with competitive price and short delivery time. This is our source and advantages.
Etop is a well-established supplier of wire harnesses, cable assemblies, electrical and mechanical sub-assemblies. We serve some of the world's foremost companies spanning a broad range of industries and business segments. These companies include respected leaders in the fields of medical diagnostics, aircraft, industrial marking, vehicle systems, safety and security, aerospace, military and defense, among others.
