M6 mini 5pin waterproof plug

M6 mini 5pin waterproof plug
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?


Product Description

This mini 5pin waterproof connector designed based on customer drawing,  plastic shell with palstic nut. Even the space on connector is quite limited, We still try to show the arrow about the locak point for customer better assembling. The molded materials can be PVC or PUR. Related IP67, IP68 waterproof standard for M8, M12, M16 series all available.  Also the metal type connector meet 360° EMI shielding.

Product Specifications

Product NameM6 Mini 5pin Waterproof Plug
ApplicationE-Bikes Applications
GenderMale and Female Connectors
Wire Core MaterialCopper
Working Temperature-40℃~ + 85℃
Storage Temperature 25℃~85℃
Atmospheric pressureAtmospheric pressure
Relative humidity≤90%
Material of ContactBrass
Contact PlatingGold over nickel
Insulation WirePE
Mating Cycles200 times
Protection degreeIP68
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment

02 We used the original Higo connectors for this products, which is generally considered to be the standard within the E-bike industry because of its ability to supply a complete range of connector solutions for the entire E-bike system. What makes this kind of connectors stand out of the crowd is the flexibility that they offer in developing customized e-bike connectors and cable assemblies. More and more E-bike manufacturers are launching E-bikes with very powerful motors (500 Watt). As a result there is a growing need for connectors that can handle high currents (45A) as well. Higo connectors combine compact sizes with high currents (up to 25A) and provide the requested water resistance (IP66/IP67) for each e-bike.


03 Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

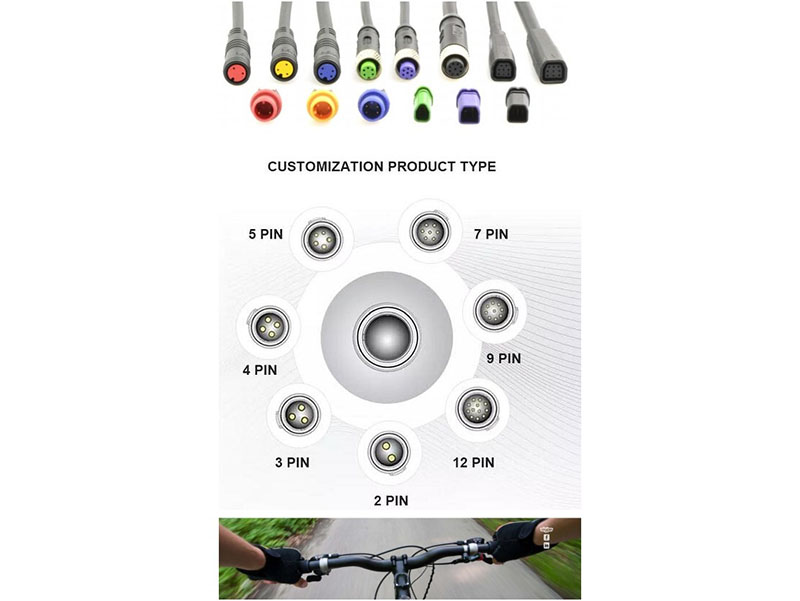

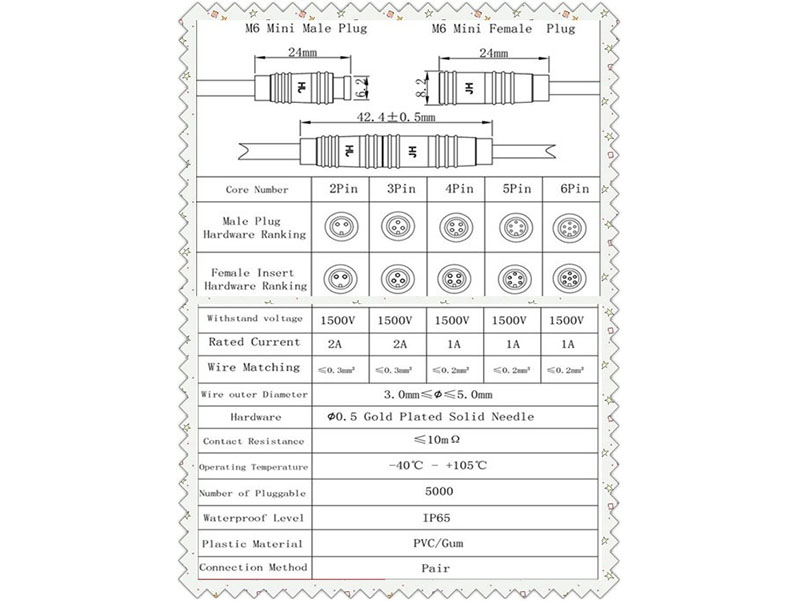

There are 2pin, 3pins, 4pins, 5pins, 6pins male and female waterproof connector cable for M6 series, to see the details descriptions in the photos.


04 This M6 Mini Connectors applied for E-bike industry, it is very popular in this emerging market, where the demand for customized connector solutions and the pace of new product development is very high. We help e-bike manufacturers and OEM companies to find their way into the world of battery, main cable, motor, and signal cable assembly and connectors and we specialize in designing customized cable harnesses, splitters and connectors, we customized all kinds of product types upon client's customization request.

Product Applications

All such small connectors are very popular for e-bikes manufacturers. Various such connectors designed for the complete e-bikes system, such as the battery, motor, main cable, signal, or splitters. etc systems.
