Product Description

This kind of 040 MX23A Series Sealed connectors system are special applied on cable assemblies for automobile, motorcycles. The connector by black PBT with orange lock and white latch. These connector original from KST and JAE, but we also have local one with better price and L/T, which can help us improve our cable assemblies cost and L/T to our customers a lot.

Product Specifications

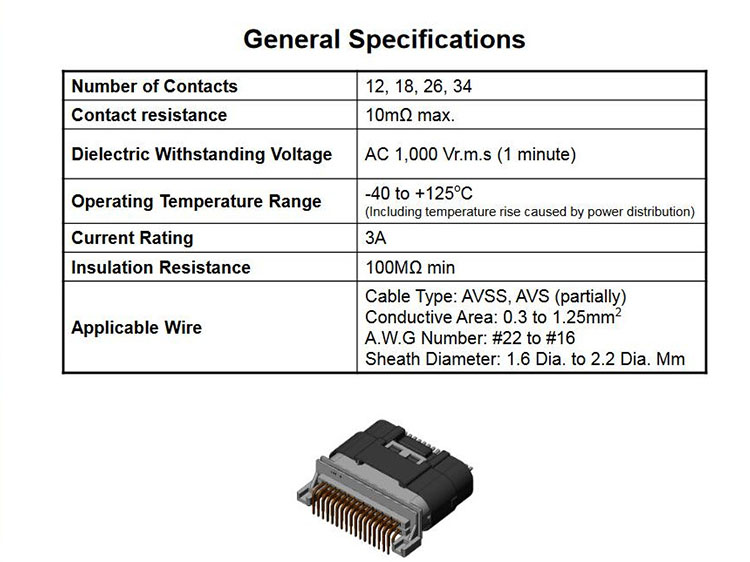

Product Name	Local Auto ECU Sealed Waterproof Connectors for Automobile / Motorcycles
Application	Automobile / Motorcycles
Cable color	Per customer requirements
Cable Length	Per customer requirements
Insulation Resistance	100mᾯmax
Current Rating	3A
Cable Jacket	PVC/TPU/XLPE etc
Number of Contacts	12,18,26,34
Contact resistance	10mᾯmax
Applicable Wire	Cable type: AVSS, AVS(Partially) Conductive area: 0.3 to 1.25mm2 A.W.G number: #22 to #16 Sheath diameter: 1.6 dia to 2.2 dia. mm
Inner Copper	Tin-plated / Bare Copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:	100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

Product Details

这里可以自定义设置

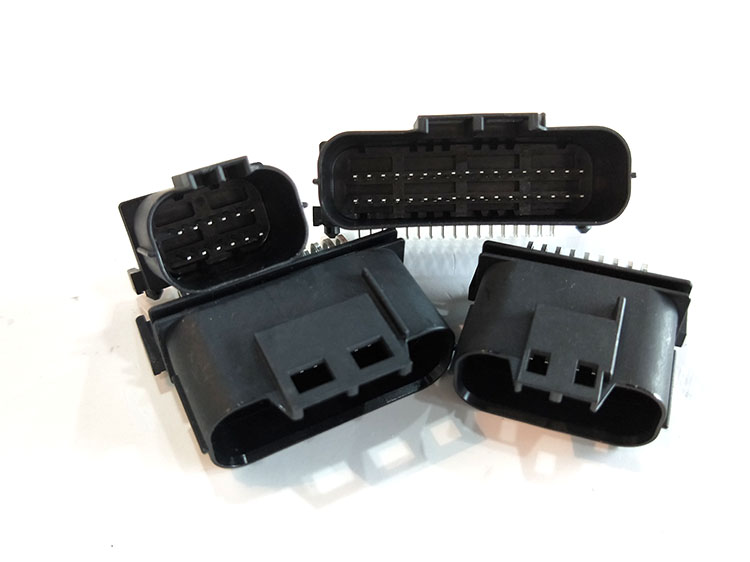

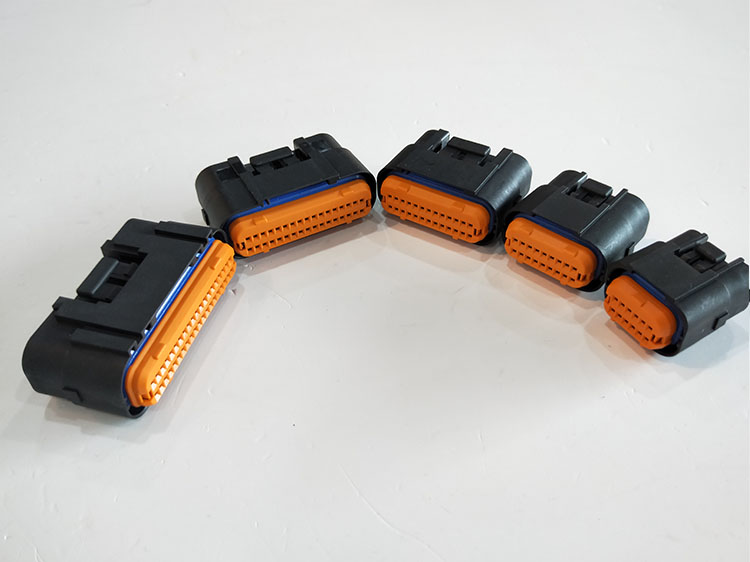

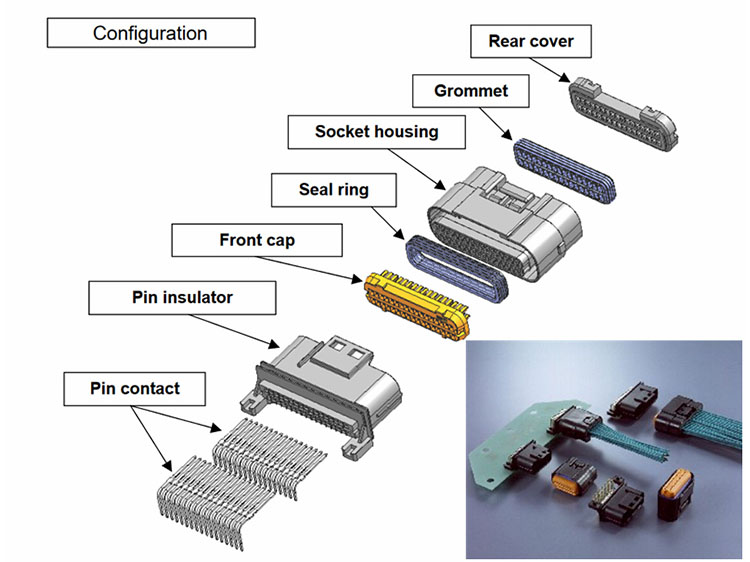

01 For the MX23A connectors, the No. of contacts: 12 ,18, 26, 34, 40 pos. It could be choosed according to customer requirement. All with local tooling available here, our equivalent PBT latch can be black or white color. Terminal by 7K/roll. Water protection seal ring is used in connectors's mating area. It realizes full protection from hands touching on insulator wall.

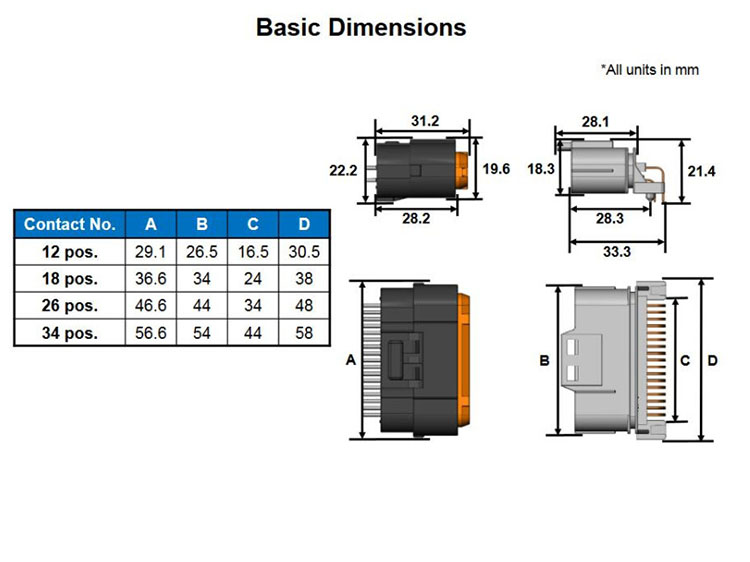

Low profied type with board mounting height of 18.3mm and socket connector height of 22.2mm max.

Full water poof grommet is used for socket contact crimping area in order to reduce size.

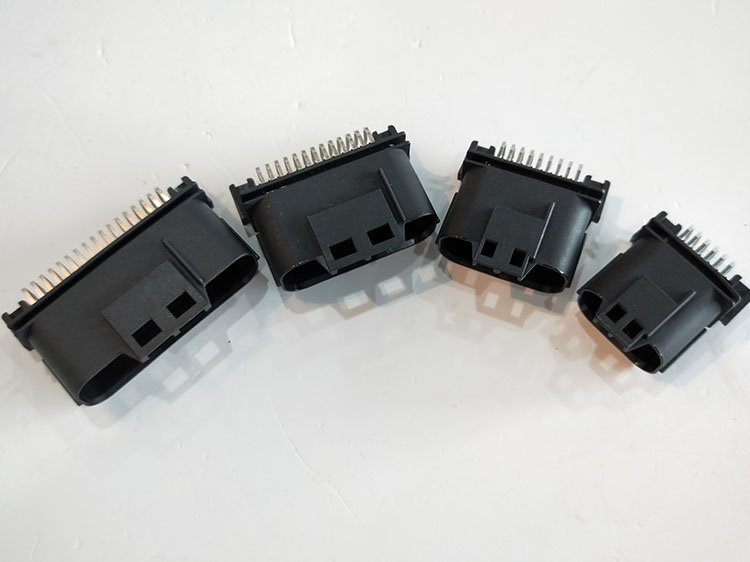

Reverse type pin connector (with pins facing up) is also available.

这里可以自定义设置

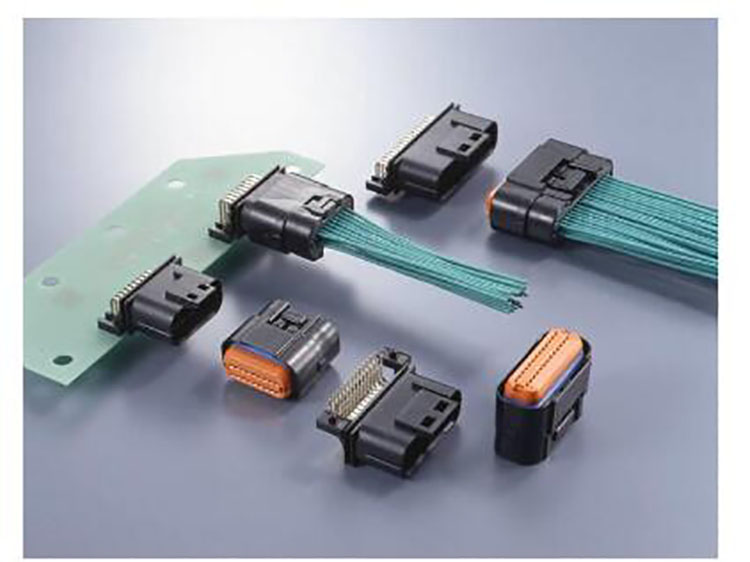

02 Nice selection of the most common JAE MX23A series sealed connectors, commonly found on Some Yamaha Road Star, Suzuki-Kawasaki ZX6-ZX10, and Performance Electronics CM-ECM-ECU - Programmed Fuel Injection Control units.

The advantages for MX23A connectors be verifed as below:
• Low profile type with board mounting height of 18.3mm and socket connector height of 22.2mm max.
• Double fin structure makes the socket contact highly reliable and large chamfer in the front is used to prevent grommet from damage.
• Incomplete insertion be detected with the front cap mounting process.
• Full waterproof grommet is used for socket contact crimping area in order to reduce size.
• Water protection seal ring is used in connector’s mating area.

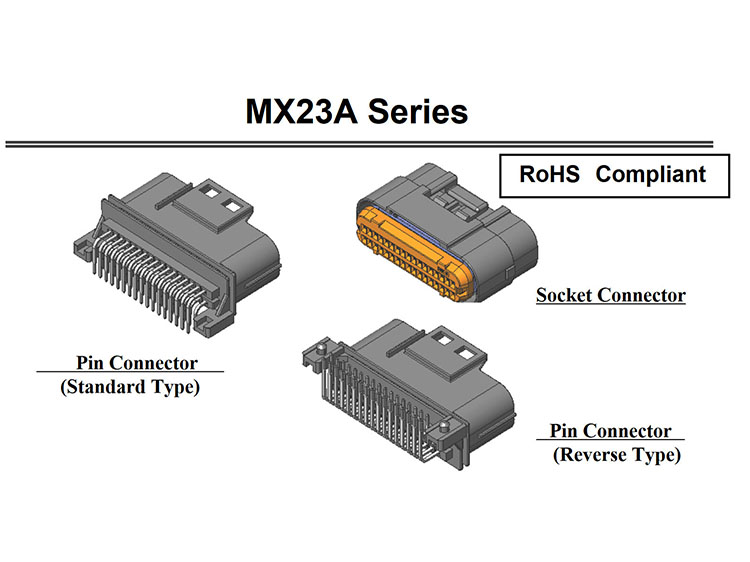

• Reverse type pin connector also available

Product Applications

040 ECU connector can be used for wide range water proof equipment including automobiles, motorcycles and so on. This connector has high environmental capability with waterproof structure by sealing in its mating area and by grommet in its wire crimping area for full protection against water. Reverse type pin connector (with pins facing up) is also available in consideration of mounting space.
