Product Description

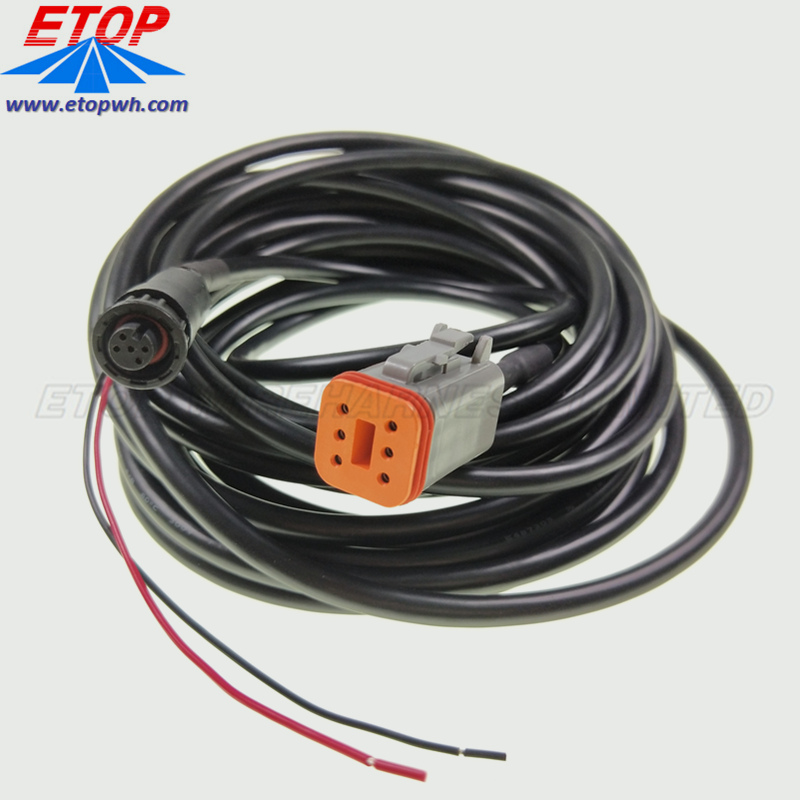

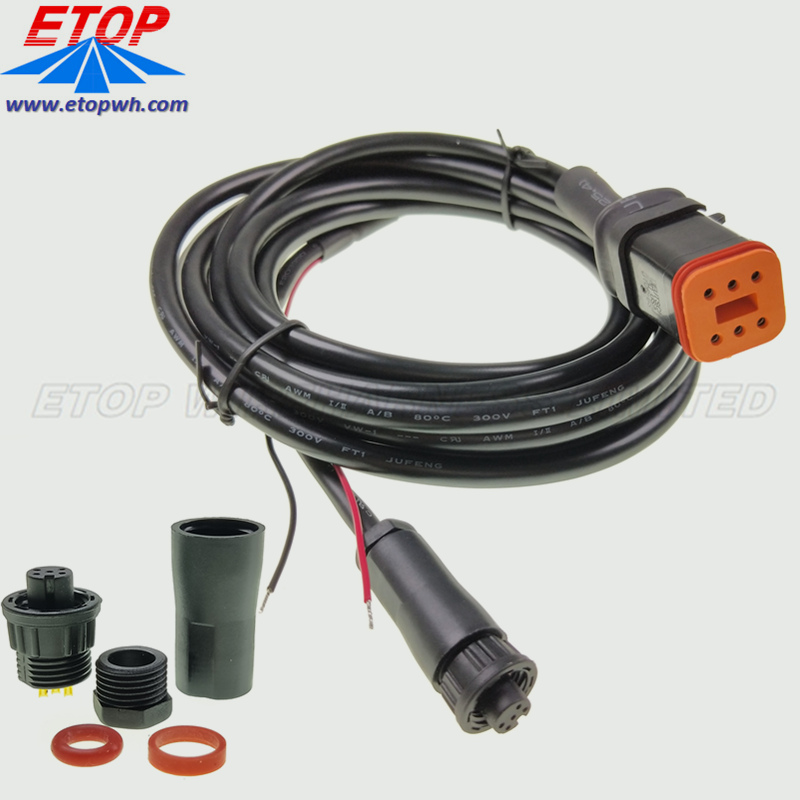

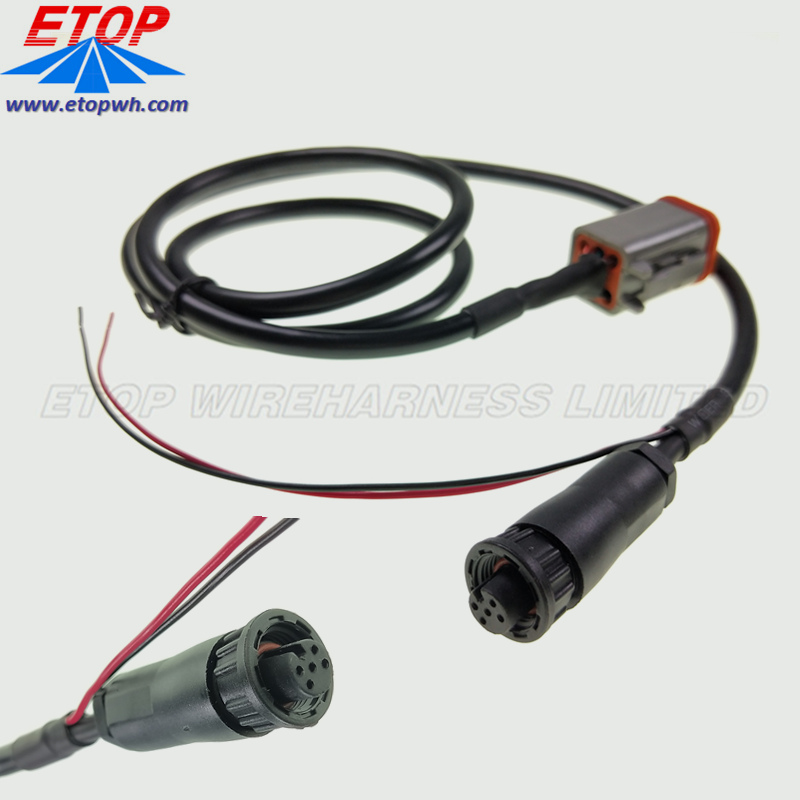

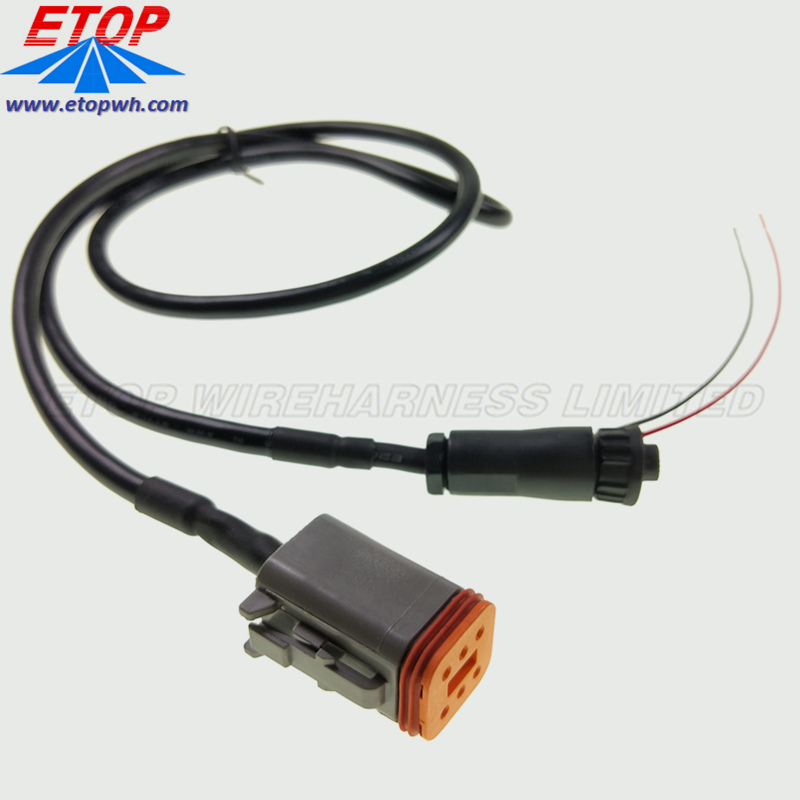

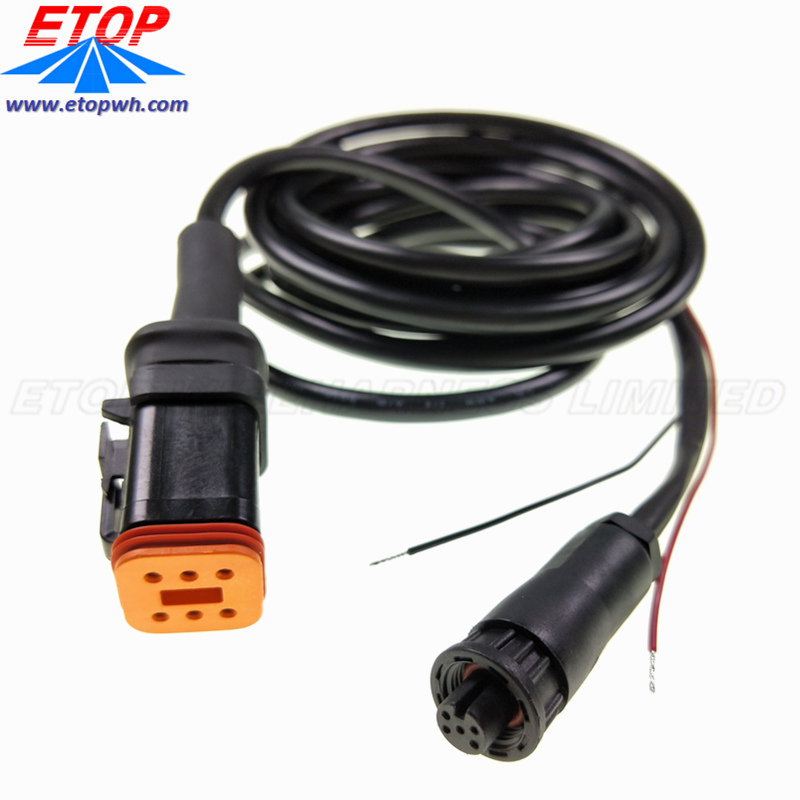

lighting detector cable assembly with waterproofing connector and DT06-6S connector
CAR WIRING HARNESS
DT06-6S WIRING ASSEMBLY
Lighting CABLE ASSEMBLY
high-quality playback by ordering a factory vehicle wiring harness that matches your make
and model. Vehicle Wiring Harness.
| Product Name | lighting detector cable assembly with waterproofing connector and DT06-6S connector | ||
| Keywords | automotive wiring harnesses, CHOGORI connector cable assembly,Lighting detector cable assembly | ||
| Application | lighting system | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | automotive connectors DT06-6S, CHOGORI | ||
| Wire branching | PVC TUBE, TAPE, CLIP | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 Wire Harness Assembly Process
These processes include but are not limited to the following:
Installing the wires and/or subassemblies on the assembly board.
Routing wires and/or subassemblies through any required sleeves.
Applying wraps, ties, or tapes, particularly on any branch-outs.
Crimping terminals onto wires, especially if more than one wire goes into one terminal.
It is difficult to automate the processes used in the building of a wire harness. Manual production remains more cost effective than automation, especially with small batch sizes. Pre-production or kitting of a harness can be somewhat automated.
02 Custom Lighting detector cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
03 Custom auto cable assemblies
The main advantages of ETOP is to provide full-time design and technical solutions(CAD, SOLIDWORK), rapid in-house prototyping, manufacturing engineering, tool making, accept flexible Qty, also offer production flexibility to meet customer special required hard deadlines. Customer satisfaction is always our top priority.
With experienced harness assembly experience, tried-and-true production methods and industry standard connections, ETOP has the knowledge and capability to be your qualified AVL and reliable manufacturing partner, to deliver what you need.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
