IP68 M8 Waterproofing Cable Assy Connectors Overmolding

这里可以自定义设置
IP68 M8 Waterproofing Cable Assy Connectors Overmolding
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-C1028
MOQ:
1000
Payment:
TT Before 30%, balance before delivery
Delivery Time:
Sample 15days, Mass Production 30days
Start Port:
ShenZhen, HongKong
Service:
OEM/ODM, Customizaion
Packing:
customized box, label and pallet
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

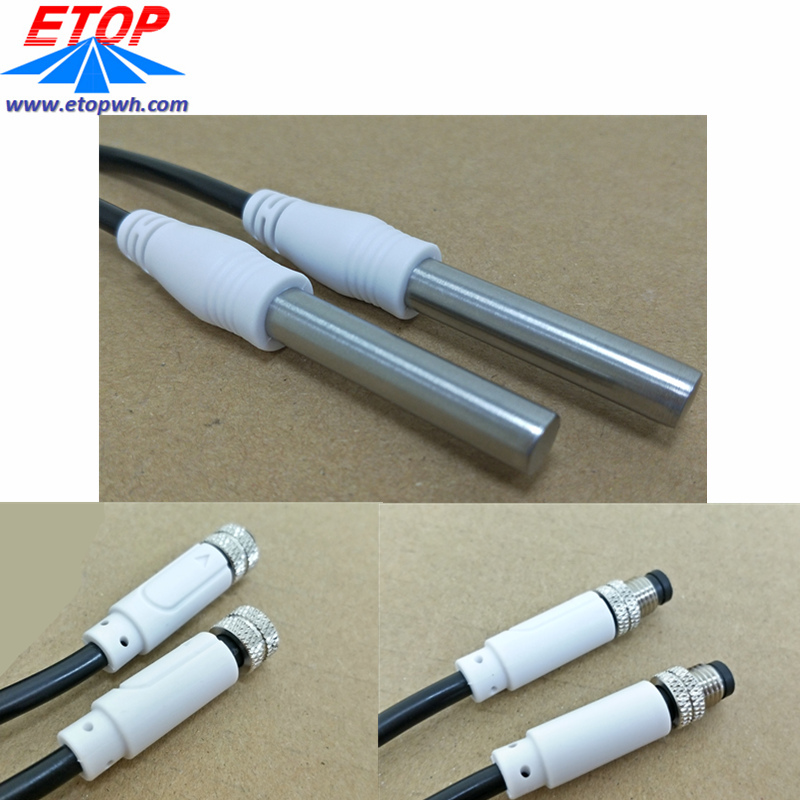

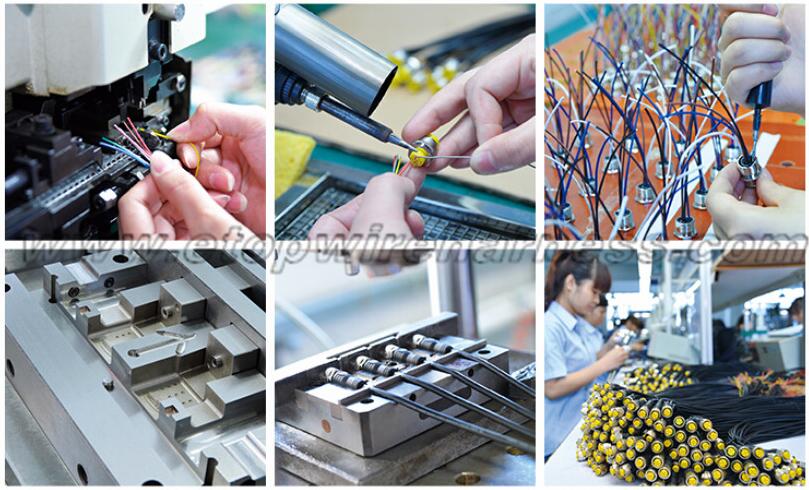

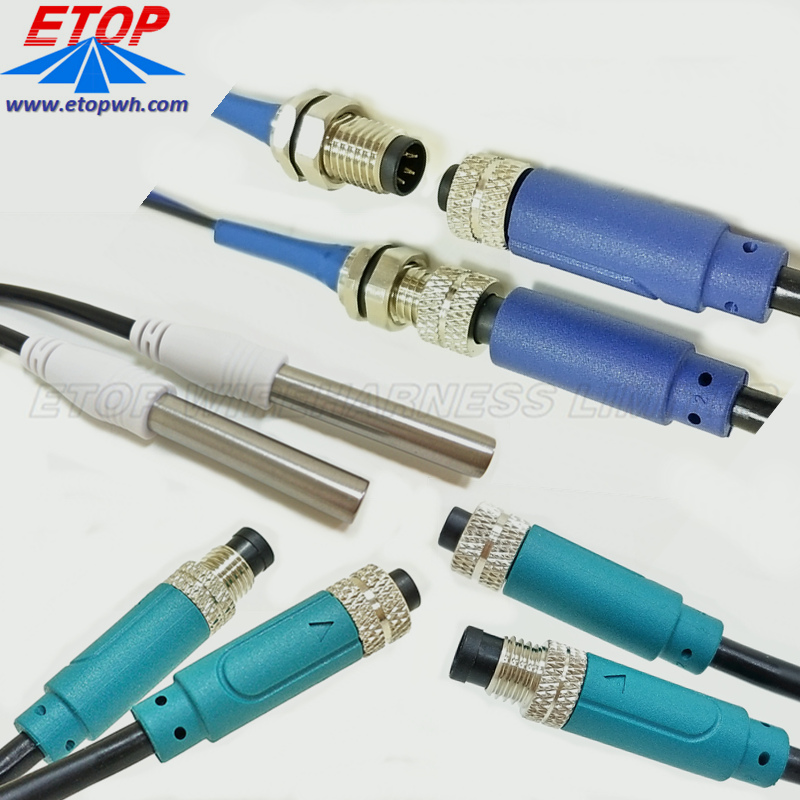

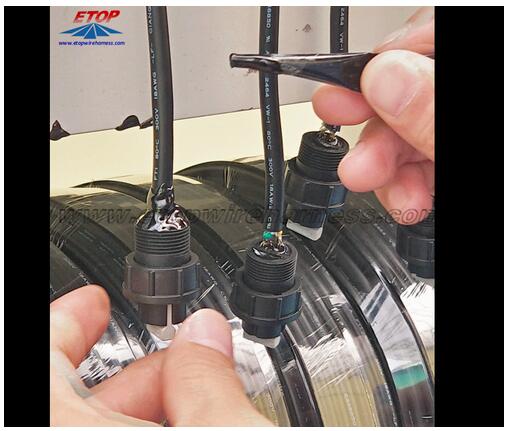

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. To strengthen the waterpoofing function, we add glue potting as below, to make sure all soldering point covered with glue by 360 degree.

Product Specifications

Environmental Protection
Product NameIP68 M8 waterproofing Cable Assy Connectors Overmolding
ApplicationAutomobile, Industry
ContactBrass, Gold Flash plating
NutBrass, Nickel Plated
M8 Cable26awg, 2.5 twisted paries with foil, drain, braid shield
Number of Contacts3,4,5PIN POSTTIONS
InsulatorPBT, Black UL94V-0
Environmental ProtectionClass IP67
Molding materialPVC,  or customized
OrinNBR / EPDM - Black
FeatureMale to Male, Female to Female,double ended,singel end to blunt cut
ServiceOEM and ODM products are acceptable
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65
这里可以自定义设置

Product Details

这里可以自定义设置

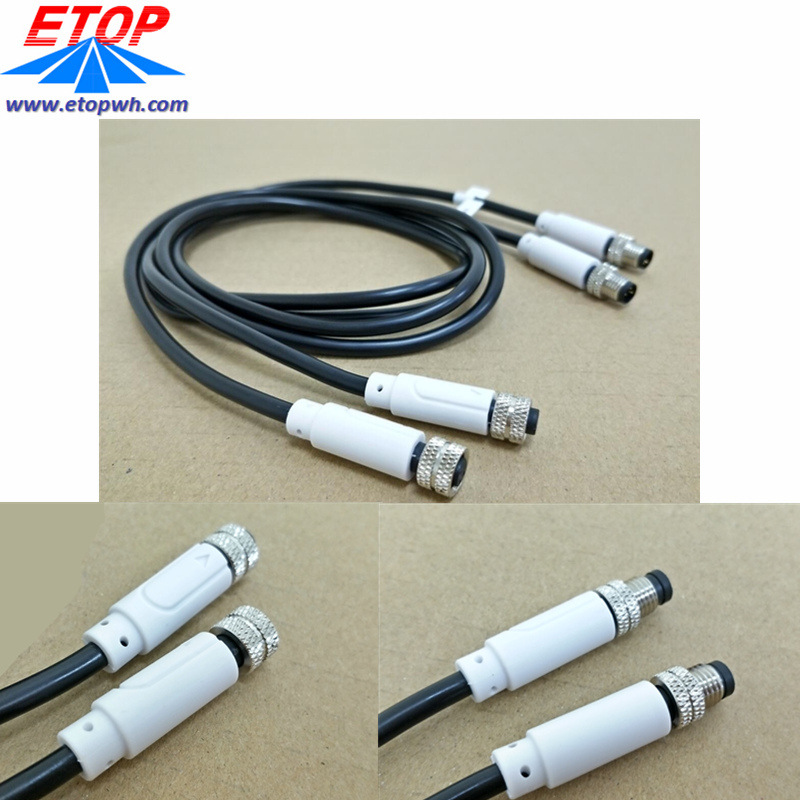

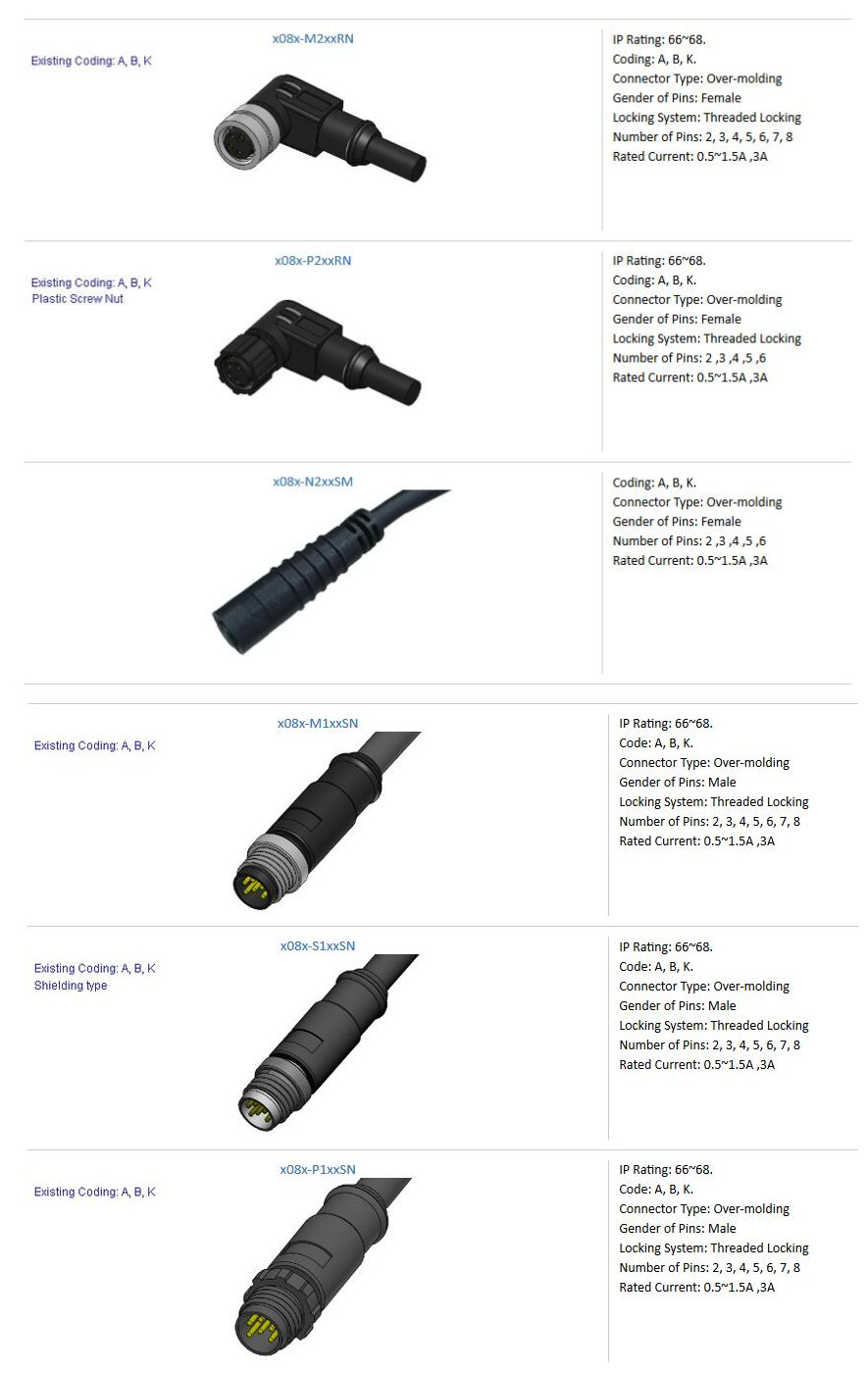

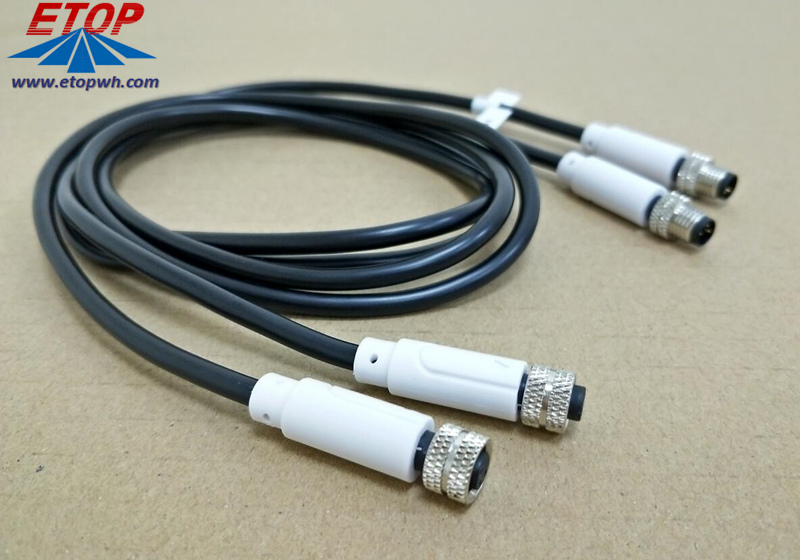

01 Molded Cable Shielded M8 Connector  :
M8 male molded cable shielded connector ,straight fix screw with self-locking threaded joint,electrical connector,and waterproof rating is IP67.
Protected from dust and water during immersion,resistant to many oils and chemical.
Professionally for inductive or capacitative proximity switches,sensor devices and actuator devices.
Design with M8*1.0 screw locking

Technical data:
Operation temperature: -20°C~+80°C (PVC cable Jacket)
Insulation resistance: ≥ 100M Ω
Electrical Connector specification:
Insert :   PA+GF
Contact:Brass with gold plating
Screw/Nut: Brass with nickel plating
Overmold:TPU

Cable specification of electrical connector:
Cable type:PVC or PUR
Cross section type:0.25mm2*XC
Wire insulation:PVC
Wire color:Brown,White,Blue,Black,etc
Cable length:Customzied



M8 connectors Used for processing measurement and control. These connectors consist of fixed and free connectors, either rewireable or non-rewireable, with screw-locking.

这里可以自定义设置

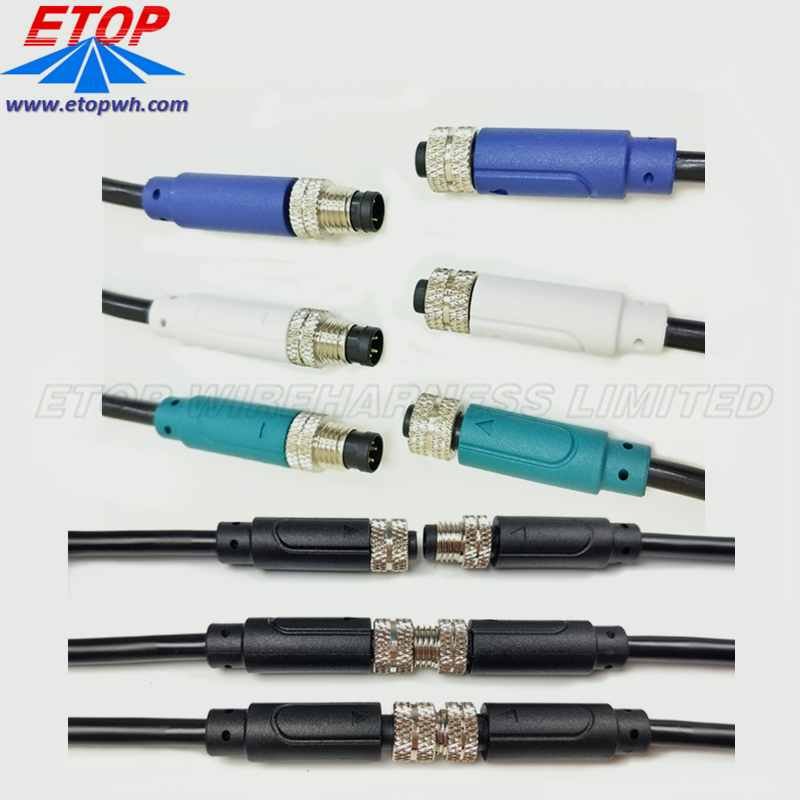

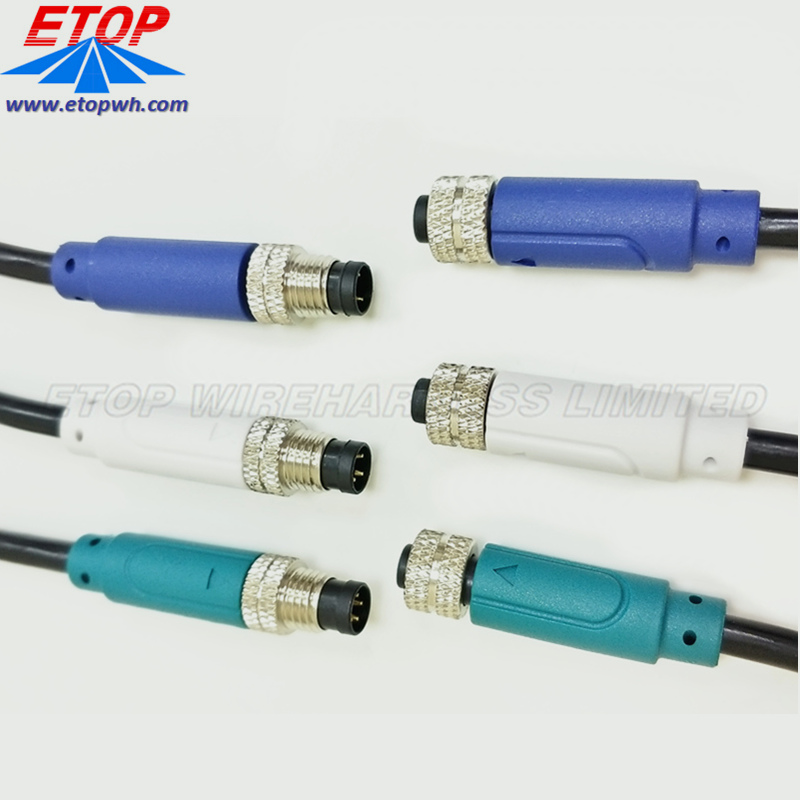

02    M8 automotive electrical connectors is available in 3pin, 4pin, 5pin, 6pin, with Non-removable Contacts, which meet IP67 waterproof requirements, on   -40°C to +85C Temperature Range. Available as loose piece or as pre-made M8 cables
  The Materials for M8 connector shel is brass-nickel plated. Insulator: Male: PBT-Black, UL94V-0, female: PBT-Black UL94-0



这里可以自定义设置

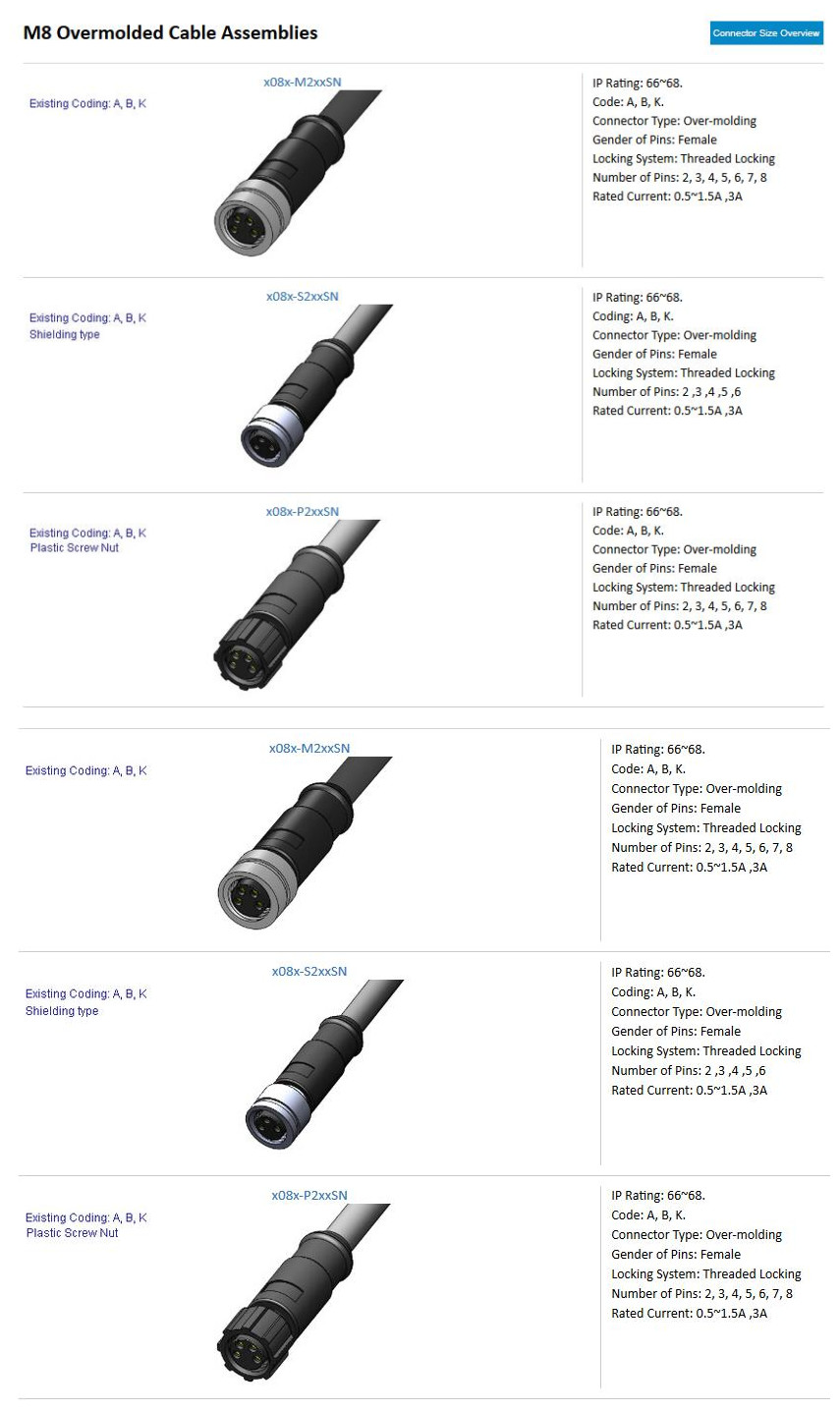

03  There are many types of M8 overmolding connectors, the M8 connector systerm provides a solution that safely and reliably ensures the communication in industrial environments. Designed to IEC-61076-2-101, this connector system also finds applications outside of its traditional industries where a compact, reliable connection system with environmental protection is required. Our M8 circular connectors and cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications.

These compact sensor and overmolded cable connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency. Rated to the IP67 standard, our M8 Series ensure safe, secure and reliable protection from liquids, dust, moisture and dirt whilst also providing great resistance against vibrations to ensure that connections are not disrupted.



这里可以自定义设置

Product Applications

M8 circular connectors and overmolded cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications.
M8 connectors are used in a variety of applications requiring a rugged and robust fully shielded metal shell able to withstand shock and high vibration. Many industry applications include medical devices, ruggedized data loggers & sensors, electronic gauges & metering, as well as avionics and marine electronics.
