IP67 Waterproof 2+4pins Circular Battery with Signal Connector

IP67 Waterproof 2+4pins Circular Battery with Signal Connector
30% prepaid when placing order, balance paid before shipment
Delivery Time:
Start Port:
OEM, ODM, customization

Add success, do you want to check your shopping cart?


Product Description


custom colored waterproofing ebike connector cable

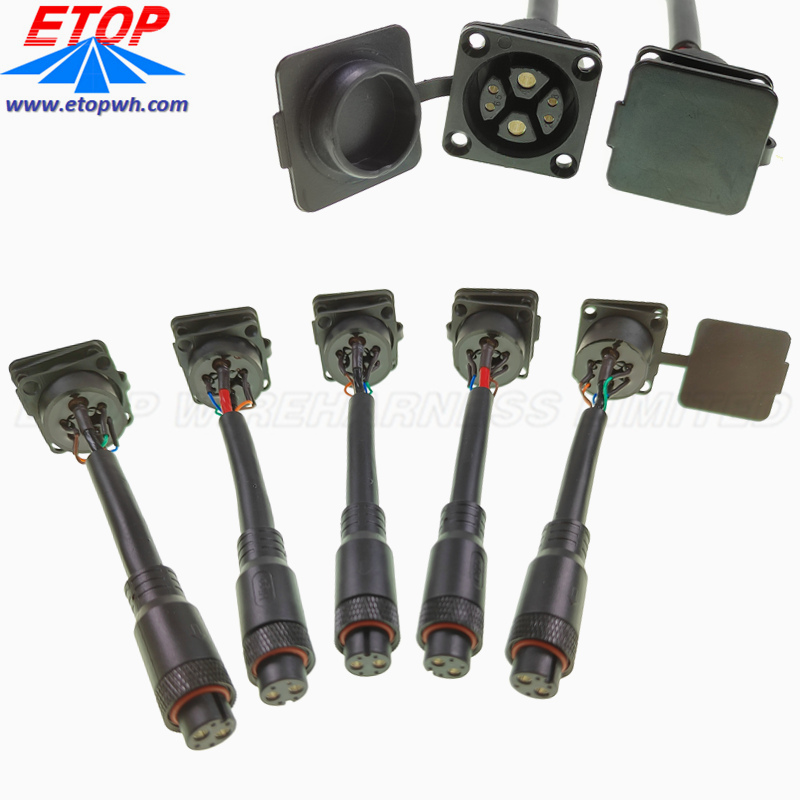

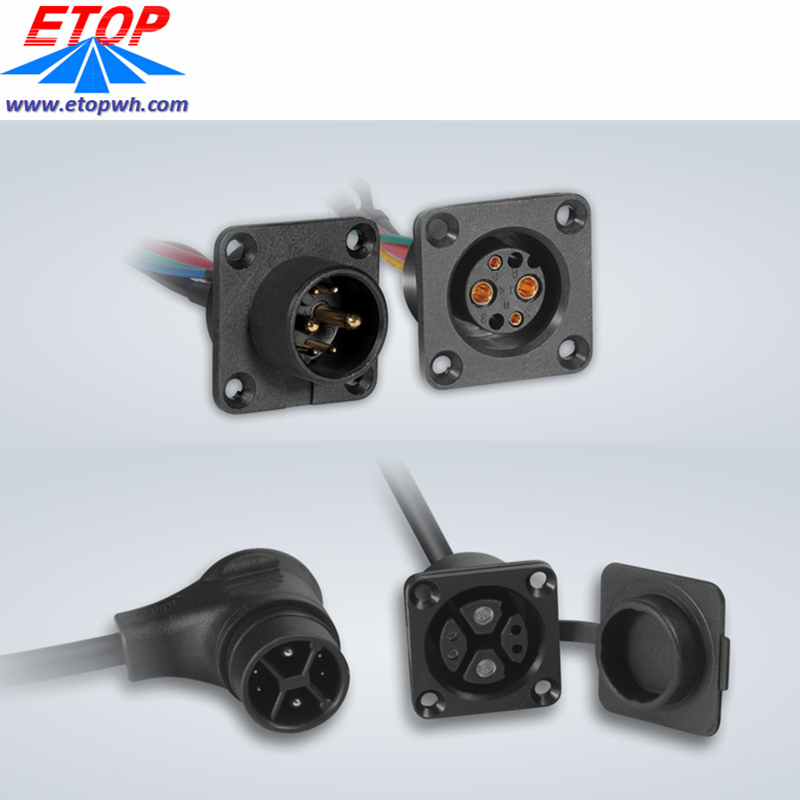

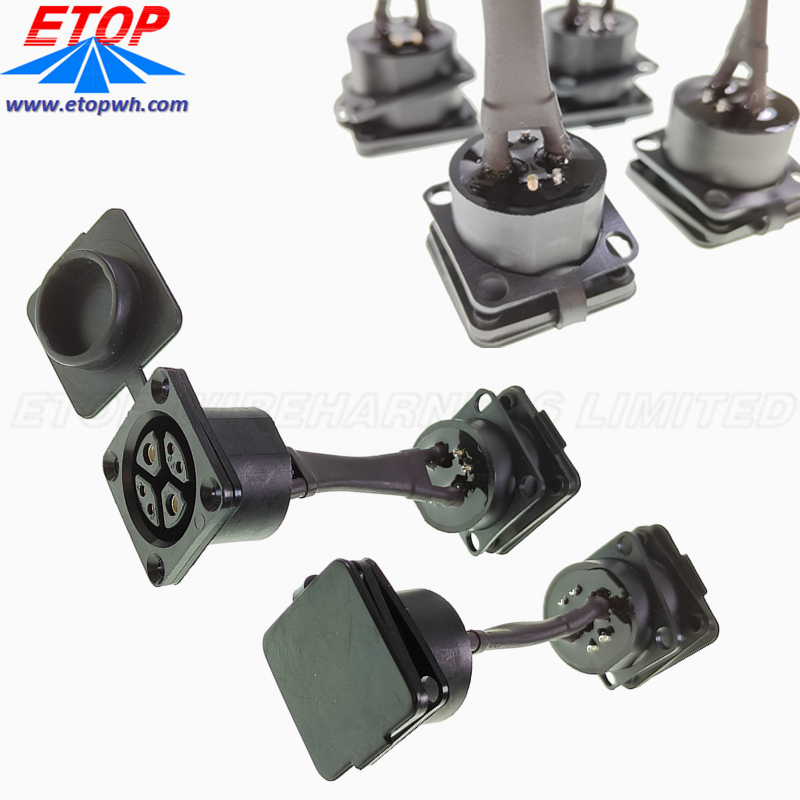

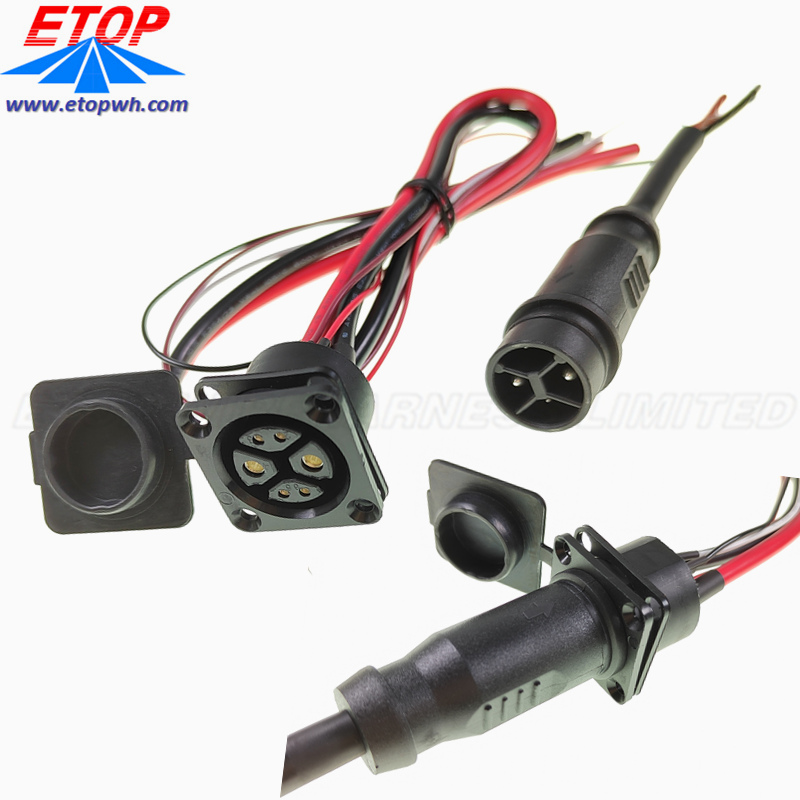

Battery with Signal connector

The battery connector including 2 power pins and 4 signal pins.
Screw interlocking structure can make sure the fasten connection during the vibration.
The rated current for the power cable is 40A. The protect level of this connector reaches IP67.

The 2+4pins circular battery connector, widely used in E-bike battery connection, with its rated current 40A,IP67 protection level.
The fool-proofing interface avoid incorrect plugging of anode and cathode.

The 2+4pins circular battery connector, widely used in E-bike battery connection, with its rated current 40A,IP67 protection level.
The mechanical fool-proofing structure to ensure conveniently plugging.



Product Specifications

Product Name
custom mini waterproofing power and signal connector cable
Applicationebikes connecting devices
GenderMale and Female Connectors
Wire Core MaterialCopper
Working Temperature-40℃~ + 85℃
Storage Temperature 25℃~85℃
Atmospheric pressureAtmospheric pressure
Relative humidity≤90%
Material of ContactBrass
Contact PlatingGold over nickel
Protection degreeIP68, IP67,IP65
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment

Product Details


01 custom colored waterproofing M6 signal connector
This M6, M8, M10, M12 waterproof connector. We have various tool for original or local equivalent waterproof Connectors from AMPHENOL, TTI, Higo connectors. IP65/IP67/ IP68 waterproof standard for M8, M12, M16 series and etc. We can design the overmolding mold as by customermized service, like molded by 90 or 180 degree. Or conversion by T type. The o-ring and nut all designed perfectly to meet the waterproof standard.

Looking for ideal IP68 waterproof Molded Connector Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Molded Waterproof Connectors are quality guaranteed. We are China Origin Factory of such waterproof Connector.


02 Custom Electro-Mechanical Connectors

With our broad engineering expertise, we design and build custom electro-mechanical connecting devices to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost.

Due to our unique manufacturing and tooling methods, custom work is less expensive than one might imagine. Whether it’s a light-duty circuit board application or a heavy-duty hard-wiring problem, send Custom waterproof Connector your requirements and we’ll design the product to fit your need.


Technical data:

Operation temperature: -20°C~+80°C (PVC cable Jacket)

Insulation resistance: ≥ 100M Ω


Electrical Connector specification:

Insert : PA+GF

Contact:Brass with gold plating

Screw/Nut: Brass with nickel plating



Cable specification of electrical connector:

Cable type:PVC or PUR

Cross section type:0.25mm2*XC

Wire insulation:PVC

Wire color:Brown,White,Blue,Black,etc

Cable length:Customzied



03 Waterproof ebike connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

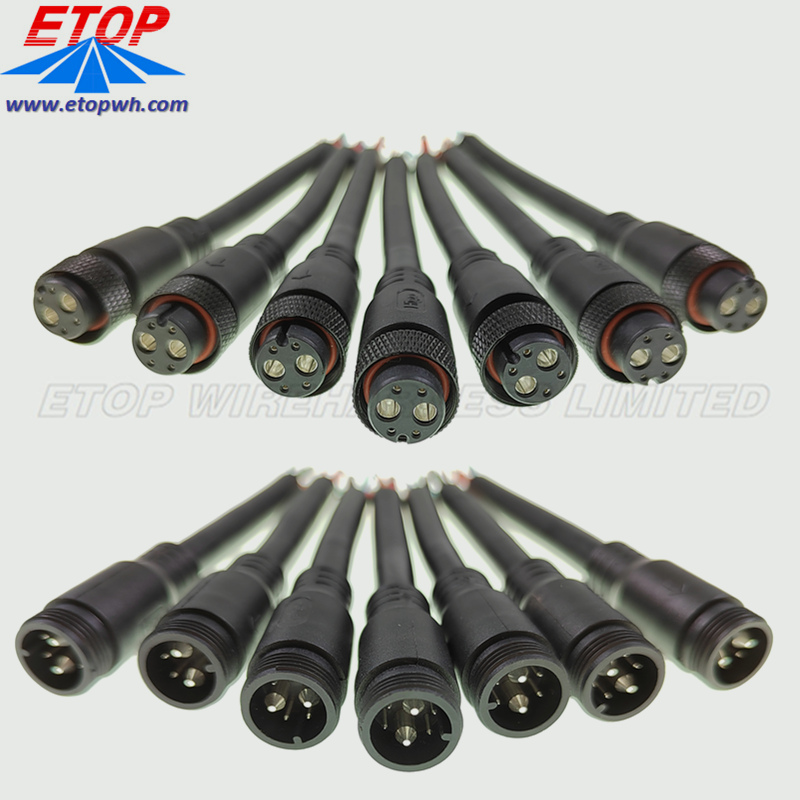

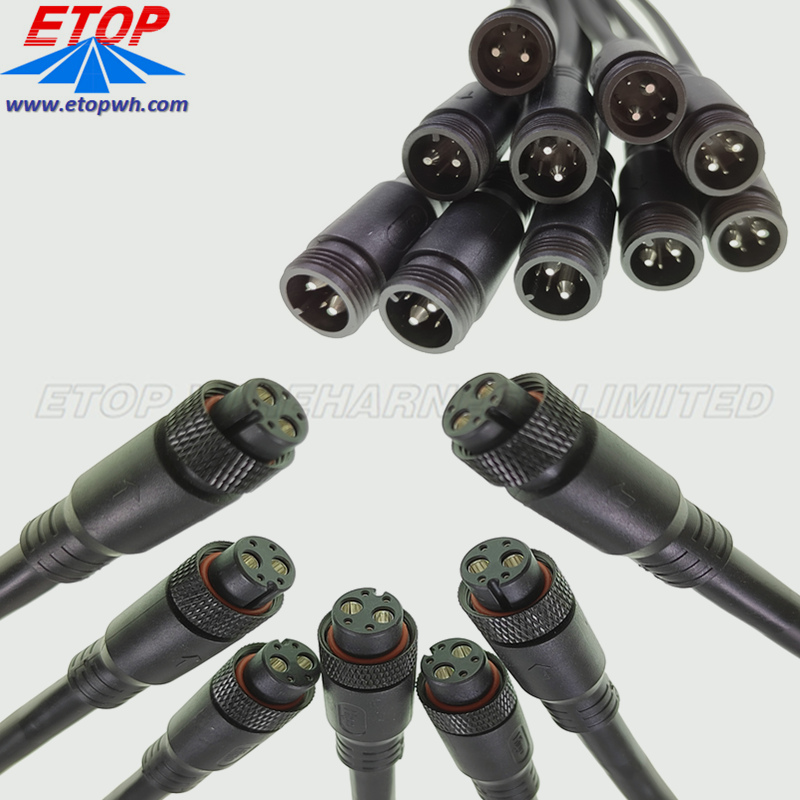

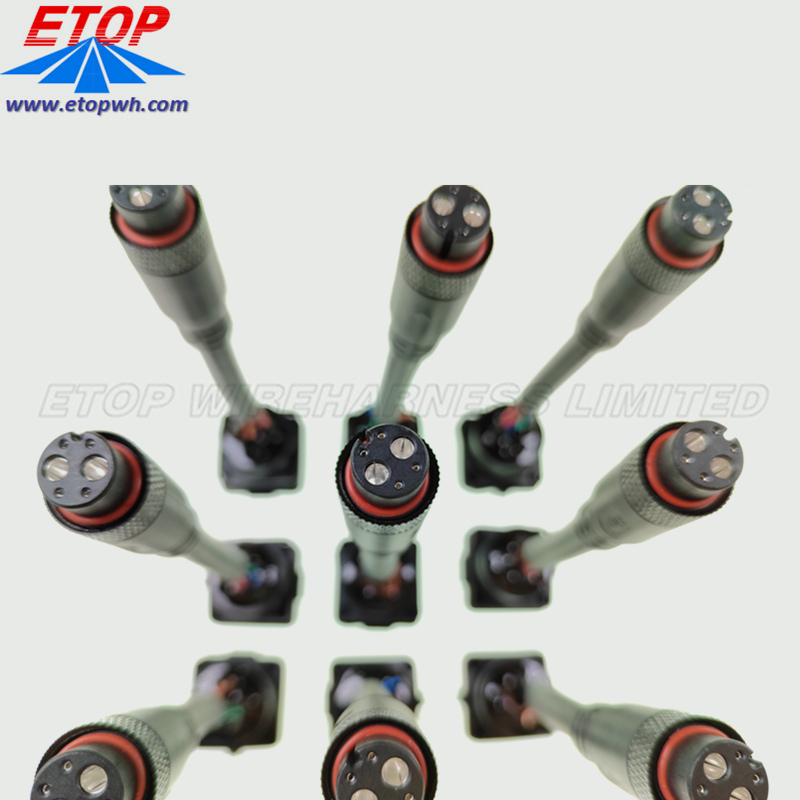

There are 2pin, 3pins, 4pins, 5pins, 6pins male and female waterproof connector cable for M6 series, to see the details descriptions in the photos.

Product Applications

Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.

M8 series provides a wide range of metric M6 connectors for small sensors and actuators. Shielded is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. To strengthen the waterpoofing function, we add glue potting as below, to make sure all soldering point covered with glue by 360 degree.
