IP67 Sealing Rugged D-SUB Panel Mount Connector

IP67 Sealing Rugged D-SUB Panel Mount Connector
30% prepaid when placing order, balance paid before shipment
Delivery Time:
Start Port:
OEM, ODM, customization
customization 45*35*25cm, 40*30*23cm, 30*25*25cm

Add success, do you want to check your shopping cart?


Product Description

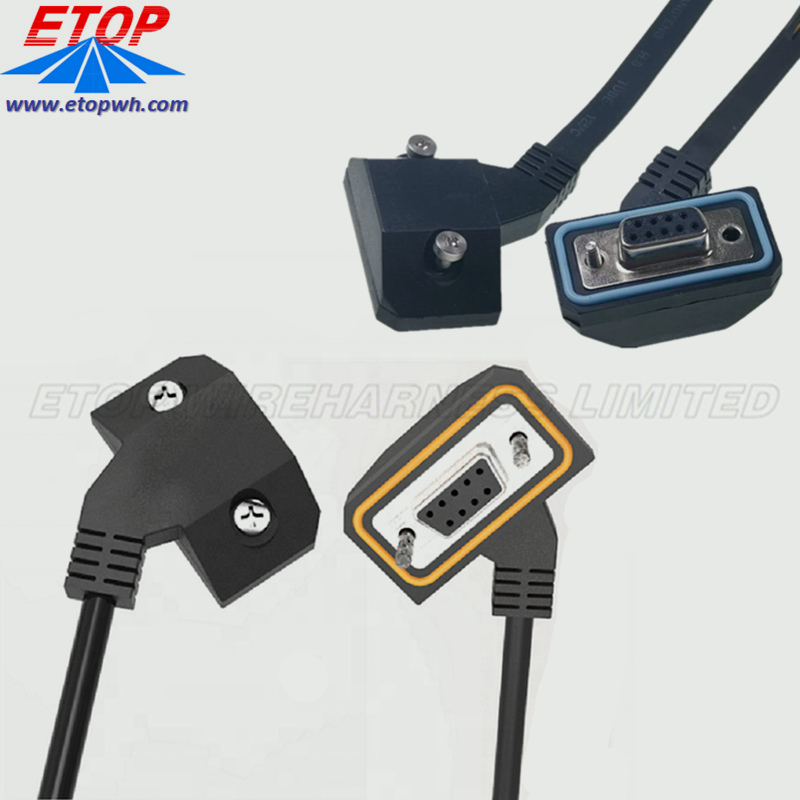

Ruggedized D-sub connectors with die cast housings and IP67 sealing for Harsh Environment applications, provide reliable performance in extreme conditions for the most demanding applications, and mate with standard connectors.

  • IP67 sealing protects against water, dust
  • Die cast metal housings protect against mechanical damage
  • Standard Density 9 pins to High Density 15 & 26 pins replace standard equivalents
  • Operating temperature range from -44°C to +105°C for extreme conditions
  • RoHS for environmental compliance

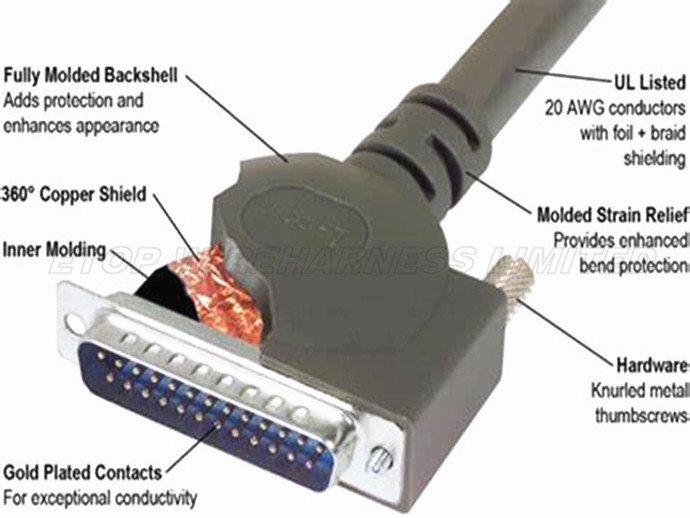

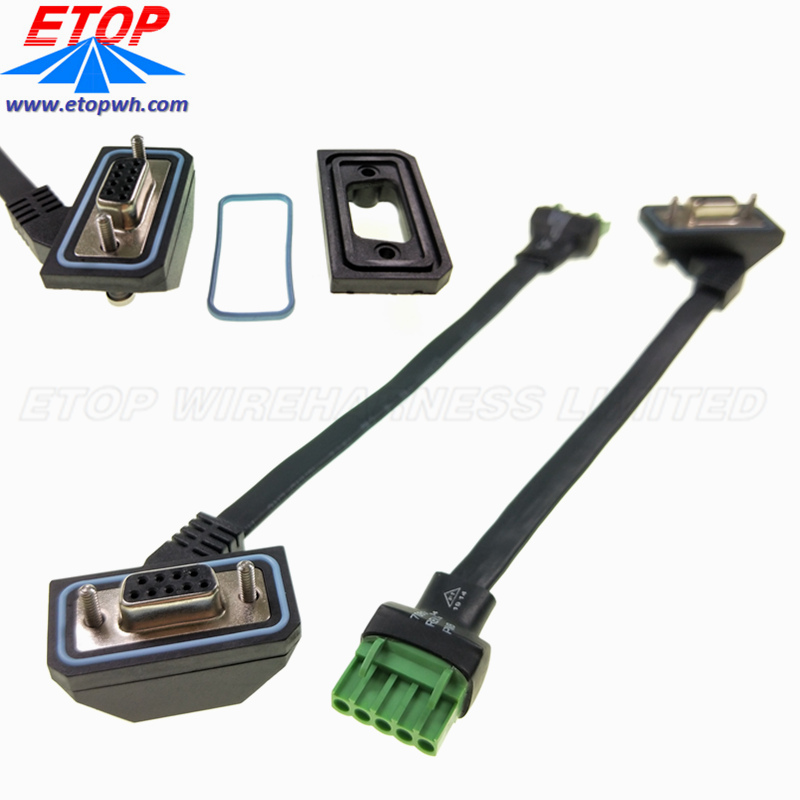

The D-SUB cable assemblies designed from 2.54pitch connector to D-sub and RCA connectors. D-SUB connectors assembled with cap for dust-proofing. The complete wire assembly covered with braiding sleeve for protection.

Product Specifications

Product NameIP67 Sealing Rugged D-SUB Panel Mount Connector
ApplicationElectronic, Audio equipment
MaterialsTPU Cable, gold plated pin
Wire StandardUL, CUL, or customized
Connectors type
Receptacle for Female Contact
Connector styleD-Sub, High Densit IP67
Number of positions(Connector)9pos
Number of rows(Connector)2 rows
Contact typeSignal
Plastic PinCopper Nickel Plated
FeaturesBackshell, Shielde
Shell materialsSteel, Tin Plated
Dielectric Material (Connectors)Polyamide (PA), Nylon, Glass Filled
SampleConfirm sample before production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH

Performance Test100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details



Custom molded connectors and terminal block, IP68, IP67 for swimming pool system.

This cable assemblies used for audio equipment. Replace virtually any existing standard connector using standard footprints and mounting hardware.

  • Mates with existing standard connectors




  • Mechanically rugged and stable protects against shock, vibration and impact and prevents distortion.
  • In many cases can replace existing standard parts with little to no changes or additional space required.

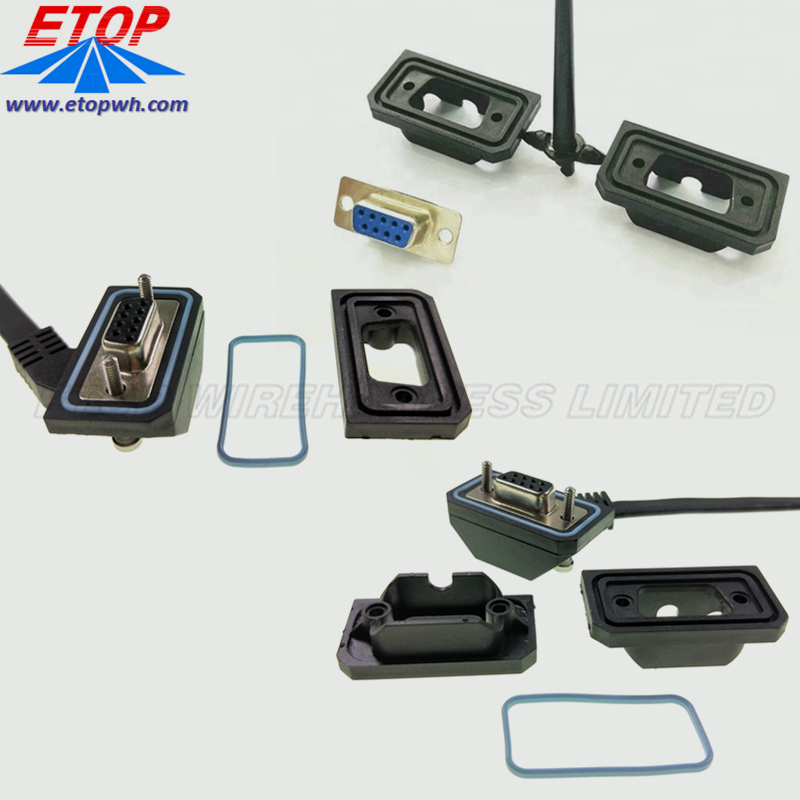

  • D-sub Die Cast metal housing with silicone seal for IP67 waterproofing

03  Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

  • Internal and external seals made with flexible silicone rubber


Electronic connectors for use in automotive have to be tough and reliable. As they are often placed in parts of an automotive that are open to the elements, they are typical very well sealed against dust ingress and moisture, and usually have a good degree of heat resistance. Also, due to the vibration factors of being installed in a vehicle, the connectors will often have secure locking systems built into the plug and socket to prevent unwanted disconnect.

Features and Benefits
• Environmentally Sealed
• Secure Mating
• Heat Resistant Properties
• Easy to Assemble Connector Kits Available


04   Excellent sealing to IP67 and higher over wide temperature range, protects equipment from water and dust incursion. A D-sub connector is a type of electrical connector that is used mainly in computing. It is most commonly used for video connections, such as those between a monitor and computer. The D-sub connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.


The most common use of the D-sub connector is as a video connector.

Product Applications

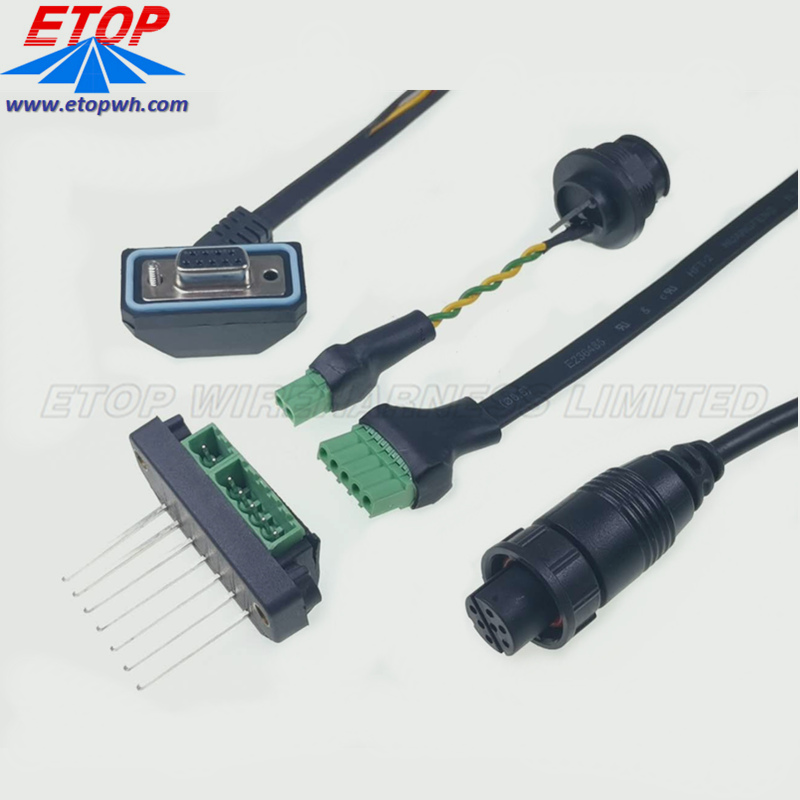

This range of cables assemblies for automotive connectors contains various connector kits to suit the requirements of those in the automotive industry, as well as relevant accessories such as insertion and extraction tools. This rugged range of automotive connectors can be used with most automotive wire harnesses, whether bike, car or caravan, with some especially suited to motocross and boating.
