Hopper power cable ASSY for gaming machine

B站不支持收货地址

B站不支持库存规格

Model：: ETOP-WH1159

MOQ：: 100

Payment：: T/T 30% Prepayment, balance before delivery

Delivery Time：: Sample 3~15days, Mass Production 2~6wks

Start Port：: ShenZhen, HongKong

Service：: OEM/ODM, Customizaion

Packing：: customized box, label and pallet

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

这里可以自定义设置

Product Description

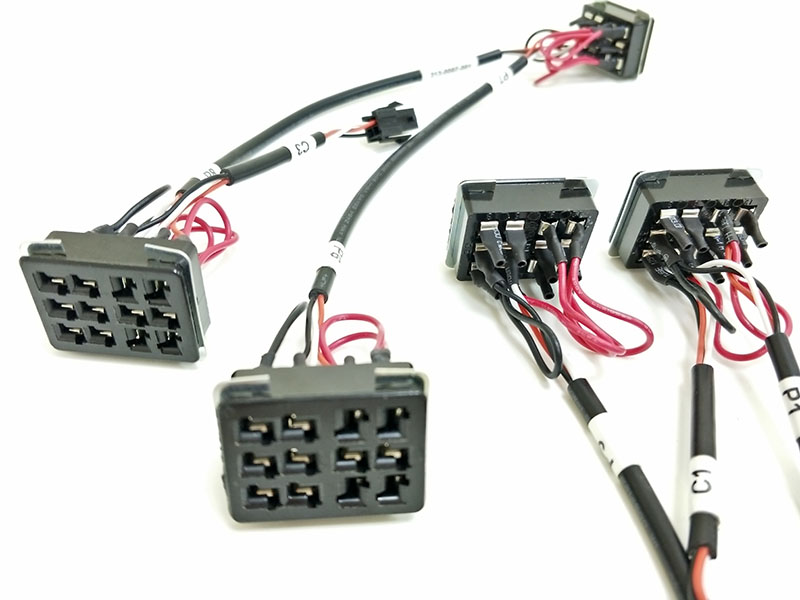

This Hopper power cable assemblies designed with power connector, original connector from Molex supplier for big amp and current, which applied for game machine casion display power system. We also can make tooling for this connector, the plastic socket by bakelite materials, and terminal by stainless steel.

Product Specifications

Product Name	Hopper power cable ASSY for gaming machine
Application	Game machines
Pins	12Pins
Wire Standard	UL, CUL, or customized
Connector	Molex, JST, Hirose, AMP… Can be Original or Equivalent
Wire Core Material	Copper
Wire Jacket	Black
Material of Contact	Brass
Contact Plating	Gold over nickel
Insulation Material	PVC
Sample	Confirm sample before production
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:	100% electrical and electricity performance test before shipment

这里可以自定义设置

Product Details

这里可以自定义设置

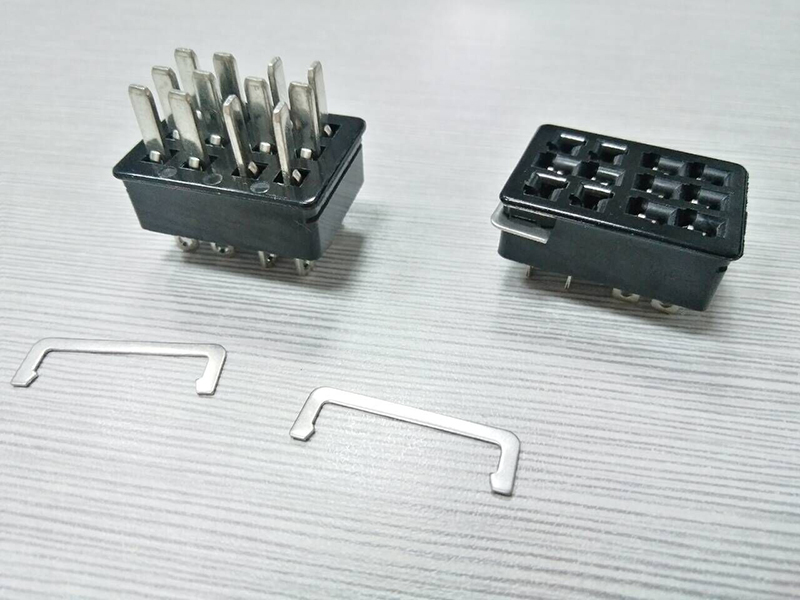

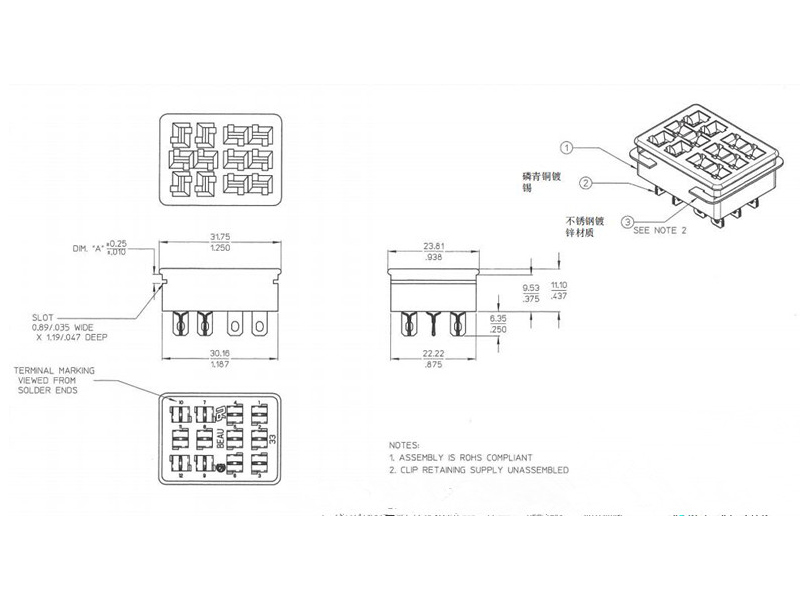

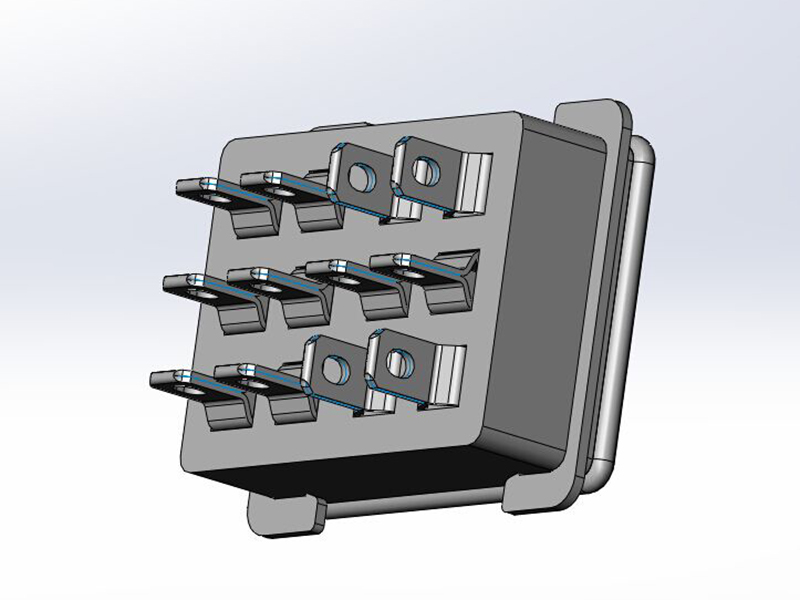

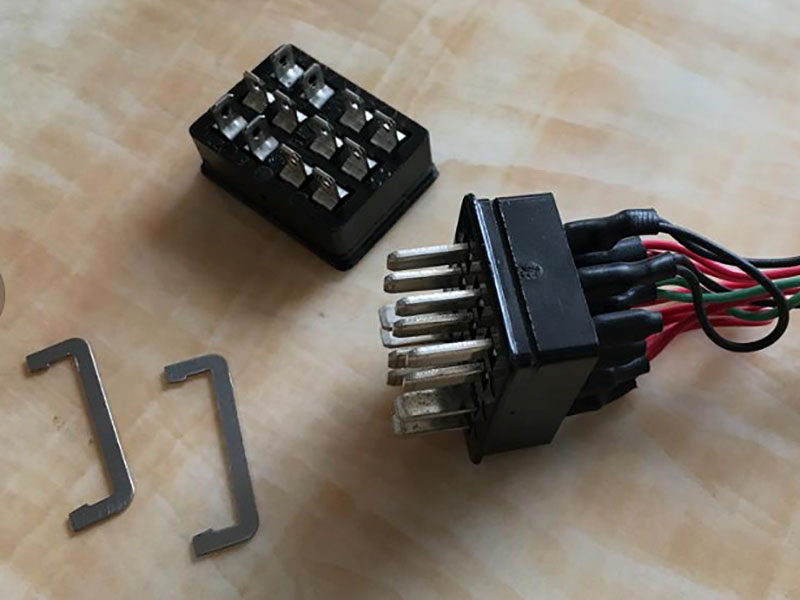

01 The mainly power connectors from original one Molex base socket SCC33132 assembly, with Phosphorus bronze tin plating, and stainless steel zinc plated material in black and phenolic material. For the contact socket in the connectors, 12pins with socket, for Phosphorus and Bronze tin, terminal marking viewed from solder ends. The slot is 0.89/0.035 wide*1.19*0.047 deep.

这里可以自定义设置

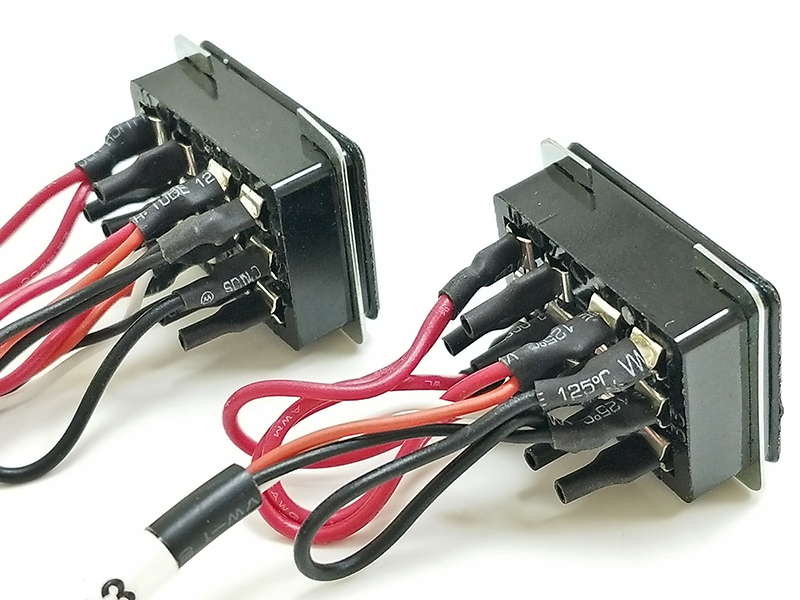

02 Edge connector includes -5Volts (as well as all other high voltages). Both ground connections are wired into the harness, All pins on edge connector can be protected by heat shrink, All end connectors are designed for quick connection and protected by plastic sleeves, Easy to follow plugs and connections for your monitor, speakers, power supply, and coin meter. Used for all game boards that uses the standard Jamma wiring standard.

Product Applications

All such connectors assembly are used for various gaming machine, Dolls Machine, applied for monitor, speakers, power supply, coin meter, main engine, counter system and etc, which designed for Japan SEGA, SONY, Nintendo-wii, DIGIKEY, bully and etc. Our dedicated team can support customers with much more suggestions and techniques for developing new products efficiently on game machine industry or other wide ranges of industries.

Wire harness for game machine

Game machine harness
