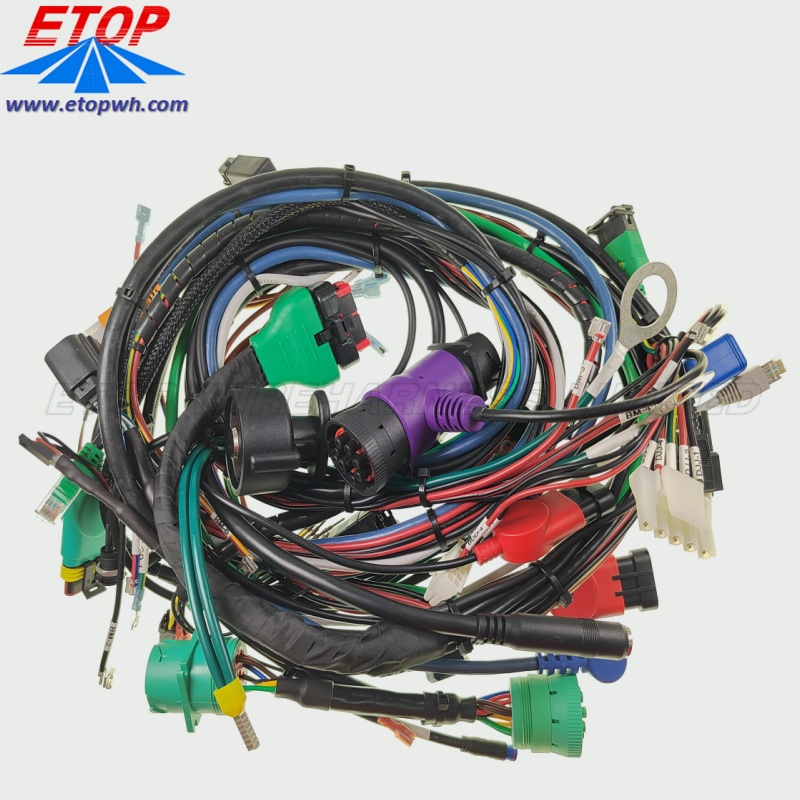

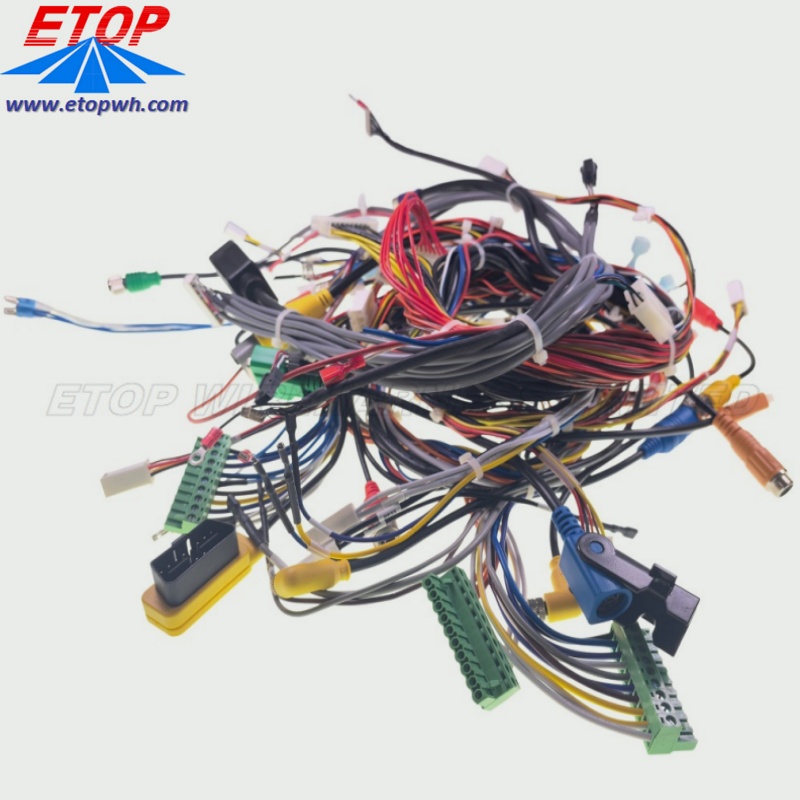

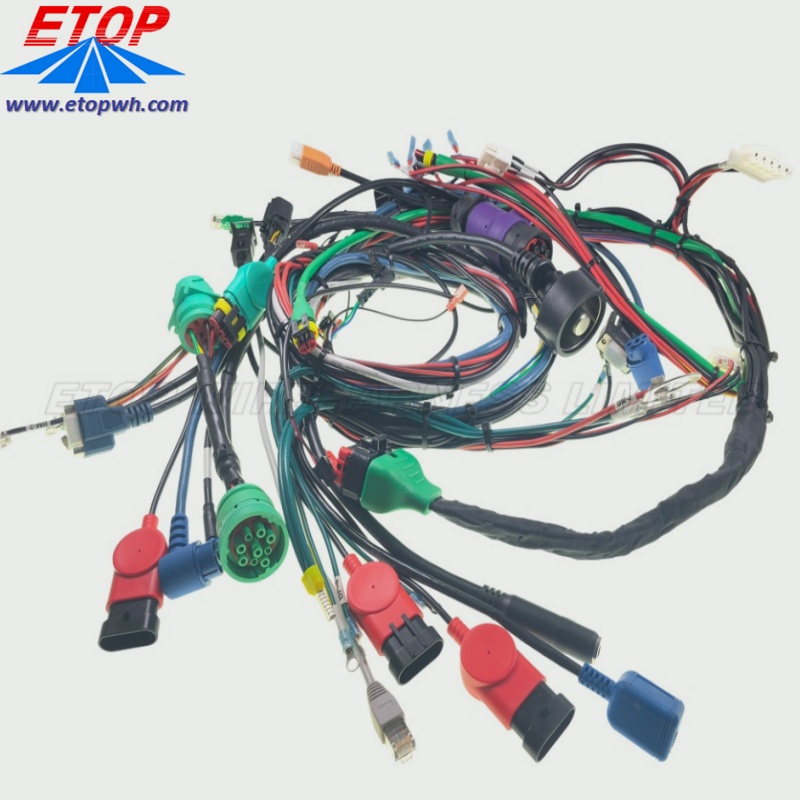

Engineering-driven Oem/odm Custom Wire Harnesses

这里可以自定义设置

Product Description

Automotive & Industrial Connectors: J1939, J1708, OBD2, Superseal waterproof connectors, Ampseal connectors, and more.

Common Interfaces: DC power connectors, RJ45 Ethernet ports, USB connectors, and sensor connectors.

Overmolding Technology: Our advanced overmolding process creates a seamless, durable bond between cables and connectors, providing superior strain relief, waterproof protection, and mechanical strength. This eliminates stress points, prevents wire pullout, and ensures long-term reliability even in harsh environments.

Product Overview

Introducing our premium automotive wire harness, designed to meet the stringent demands of modern vehicles, including EVs, trucks, and industrial machinery. Crafted with high-quality materials and certified to IATF16949, UL, and ISO9001 standards, this harness ensures durability, safety, and optimal electrical performance in extreme conditions.

Our Automotive Wiring Harness Key Applications:

Engine systems (valve cover gaskets, diesel gaskets for FORD)
Safety & ADAS (Intelligent Anti-collision Systems, headlamps)
Interior electronics (audio, power seats, GPS, rear-view mirrors)
Electric vehicles & e-bikes (complete cable assemblies)

Product Specifications

Product Name		Engineering-driven OEM/ODM Custom wire harness
Application		Vehicle System
Cable Length		Per customer requirements
Conductor		Bare Copper
Cable Jacket		PVC
Bandaging Materials		3M taping, spiral tube
Cable spec		*RYVP3.0.5mm²/16C + (1.25mm²/1P+AL)8** · Blue Nitrile PVC jacket · OD: 19.5±0.5mm
Backshell		776463-1 · Black · Robust mechanical protection
Connectors system		ampseal
Connector style		776164-1 · Black · High-temperature resistant
Cable protection		Covered with braiding sleeve 94V-0 & 3M taping
Quality Certificate		ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:		100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

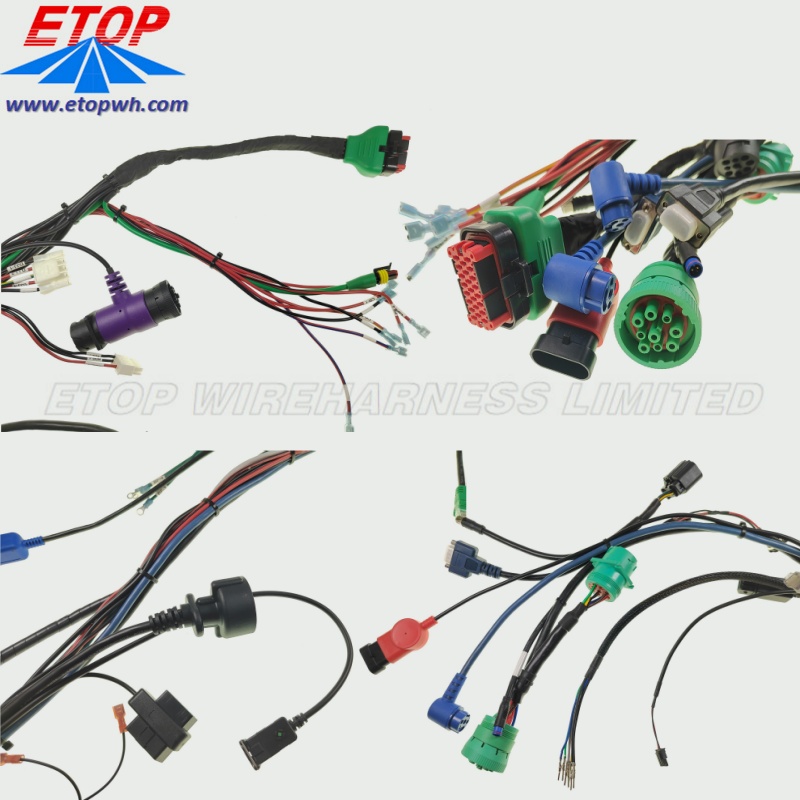

Product Details

这里可以自定义设置

Key Features & Benefits

✅ Comprehensive Capability Showcase: Demonstrates over 10+ connector types, 5+ protection methods, and multiple crimp/labeling processes in one harness.

✅ High-Quality Materials: Built with premium-grade copper conductors, durable PVC/TPU jackets, and industrial-grade connectors for reliable performance.

✅ Durable & Robust: Overmolded connectors, reinforced strain relief, and abrasion-resistant tubing ensure the harness withstands repeated handling during exhibitions.

✅ Customizable Reference: Use this harness as a reference for future projects—show your team or clients exactly how different components and processes come together.

✅ Trade Show Ready: Compact, neatly assembled, and visually impressive to highlight your manufacturing expertise at events.

✅ Flexible & Adaptable: While built as a demo piece, it can also be used for testing connector compatibility or verifying assembly workflows.

这里可以自定义设置

Why Choose Our Wire Harness?

✅ Ample Tooling & Professional Documentation

Boasting over 1,300 in-stock toolings, we can efficiently create DFM, PPAP, or FAIR documents as per your requirements, accelerating your project approval and production cycles.

✅ Flexible Order Capacity for All Needs

Whether you need Low Volume/High Mix batches for prototype development or High Volume/Low Mix orders for mass production, we have the capacity to fulfill your demands with consistent quality.

✅ Stringent Quality Control System

Backed by a rigorous Quality Management System (QMS), every wire harness is subjected to strict inspection throughout the production process, ensuring superior performance, waterproofing, and temperature resistance, and minimizing your after-sales maintenance costs.

✅ Dedicated & Responsive Customer Service

Our professional customer service team offers flexible support to align with your project timelines, ensuring on-time delivery and proactive solutions to any issues that may arise.

这里可以自定义设置

Quality Assurance

Double OQC inspection (AQL=0.65).
100% terminal crimping inspection and electrical testing.
Custom packaging (max. 16kg/CTN) with anti-static and moisture-proofing.

Ordering Information

Contact us for tailored wire harness solutions that meet your exact specifications. Fast turnaround, global shipping, and dedicated after-sales support guaranteed.

"Driving Innovation with Every Connection"

Product Applications

Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.
