Product Description

This OEM/ODM Wire Harness Assy With ECU Sealed Connector used for automobile industry. The type connector is original one by waterproof type with seal. The whole automotive cable assembly covered by corrugated tube for protection. Also fixed by 3M tape around the branching part. Related auto wires can be choosed as customer requirement, like AVSS, AVS, FLRY, TXL, GXL, etc.

This custom electric cable assemblies assembled with TE AMPSEAL connectors. The cables processed following by IPC620 standard strictly, and the dedicated team can support customers with much more suggestions and techniques for developing new products efficiently. All these can help customers shorten the L/T a lot with most competitive cost and stable quality. ETOP has the Flexibility and Capacity to accommodate a product's life cycle, design through production. ETOP can work with Customer from a product's inception to ensure maximum performance at the lowest possible manufactured cost.

Product Specifications

Product Name	OEM/ODM Dashboard Wiring Harness Assy With ECU Connectors
Application	Automobile Dashboard
Cable color	Per customer requirements
Cable Length	Per customer requirements
Conductor	Cu-ETP1 bare or tinned according to DIN EN13602
Outer Insulation Material	PVC (Polyvinyl Chloride)(thin wall)
Cable Jacket	PVC/TPE/Rubber/Silicone etc
Connectors type	Plug housing assembly for 1.0mm receptacle contacts, single locking with multi pins available
Main Connector pitch	ECU 35 Position Rectangular Housing Connector Plug Natural 0.157" (4.00mm)
Pin out connection	As per customer’s request
Inner Copper	Tin-plated / Bare Copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:	100% electrical and electricity performance test before shipment

这里可以自定义设置

Product Details

这里可以自定义设置

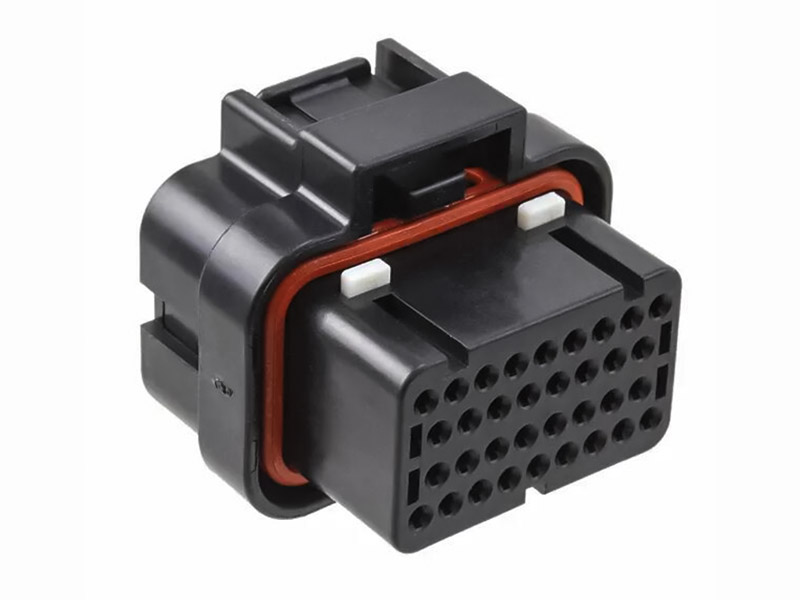

01 Various connectors and terminals using on this complicated wire harness, The connectors for Dashboard are TE original Superseal series, Part Ref 4-1437290-0 with 34 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm),Design for the automotive industry, AMP Superseal series connectors meet the sealing requirements outlined in IEC 529 and DIN 40050 IP 6.7 waterproof standard.

The cap and plug connector housings incorporate preassembled secondary locks to help insure correct and complete contact insertion into the housing and helps prevent the contacts from backing out during mating. The secondary lock cannot be closed if the contacts are not correctly inserted into the connector housing.

The double spring contact design (main spring and auxiliary anti-overstress spring) insure low insertion and high contact forces.Wire-to-Board (1.0 mm, 3.00mm) and ECU applications, under hood or any location where sealing is required, suitable for automotive, truck, bus, or off-road vehicles.

The advantages for the ECU connectors are compact system minimizes packaging requirements, sealing reliability proven under harsh conditions, designed for ease of manual harness assembly, engine mounting installed flexiably under hood environments for your vehicles.

这里可以自定义设置

02 This type of Ampseal automotive plug ASSEMBLIES came original from TYCO, which used for auto Powertrain systems, Safety and Security systems, or Body and Chassis systems. AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating. The connectory by 4.00 mm Centerline available for 8pins, 14pin, 23pin and 35pin. TE Ampseal Ref P/N 770680-1 connector overmolding mating details below:

Mating Terminal	770520-1/770520-3/770854-1/770854-3
8PIN RECEPTACLE HOUSING	776286-1/776286-2
8PIN wafer	776276-1/776280-1/776275-1/776276-1
14PIN RECEPTACLE HOUSING	776273-1/776273-2/776273-4/776273-5
14PIN WAFER	776266-1/776267-1/776261-1/776262-1
23PIN RECEPTACLE HOUSING	770680-1/770680-2/770680-4/770680-5
23PIN WAFER	770669-1/776087-1/776200-1/776228-1
35PIN RECEPTACLE HOUSING	776164-1/776164-2/776164-4/776164-5
35PIN WAFER	1-776180-1/1-776163-1/776230-1/776231-1

Product Applications

The wiring harness playing a critical role in " connecting" a variety of components on the automobile dashboard industry, with with ECU 35 Position Rectangular Housing Connector Plug Natural 0.157" (4.00mm). An automotive wiring harness is an assembly of electrical wires, terminals and connectors or an electrical wiring system, that run throughout the entire vehicle and relay information and electric power, used to convey information and energy in automobiles.
