Product Description

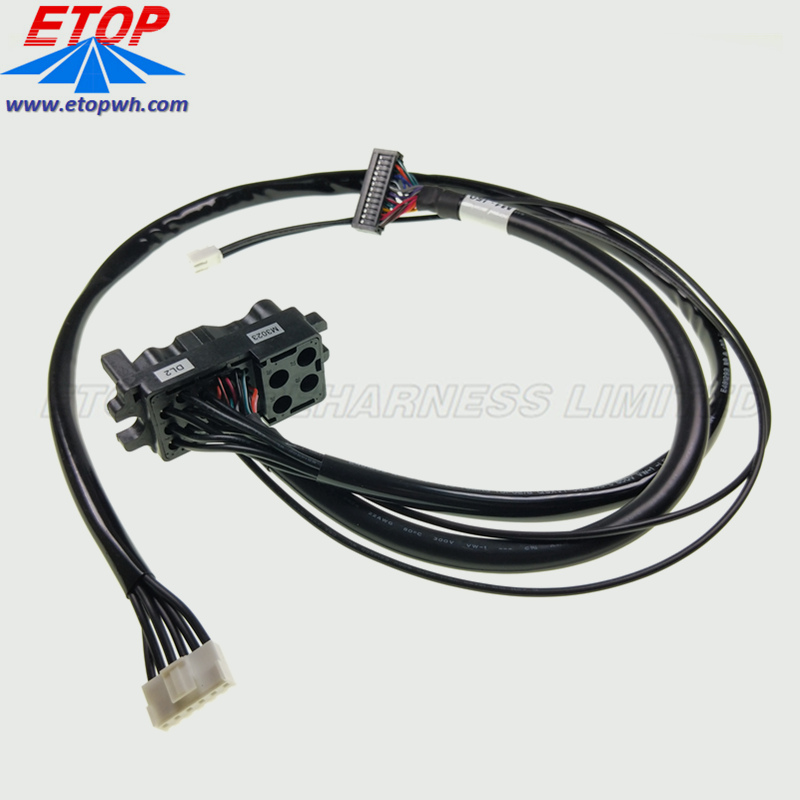

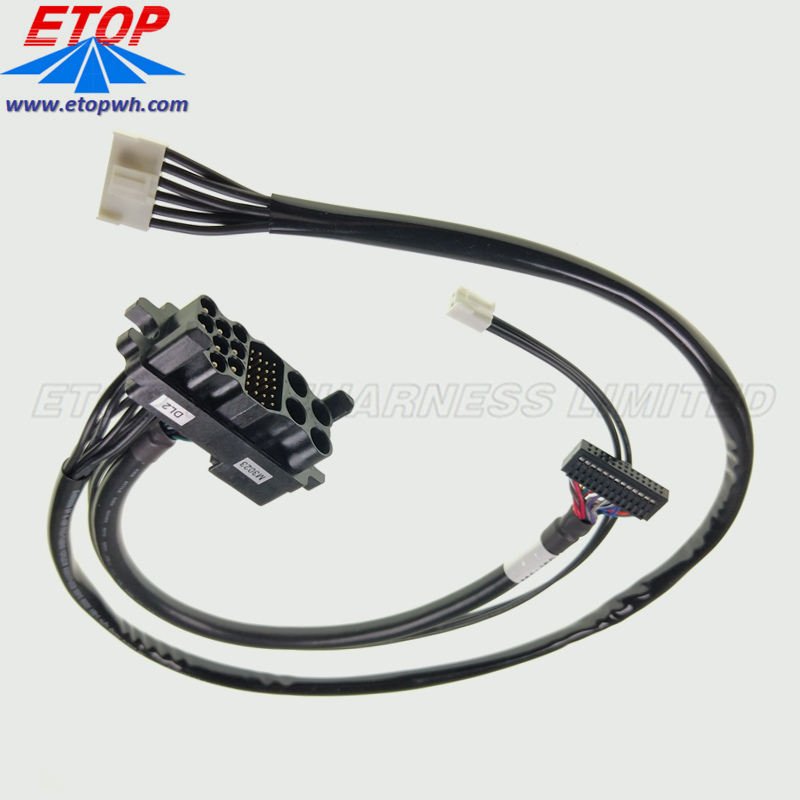

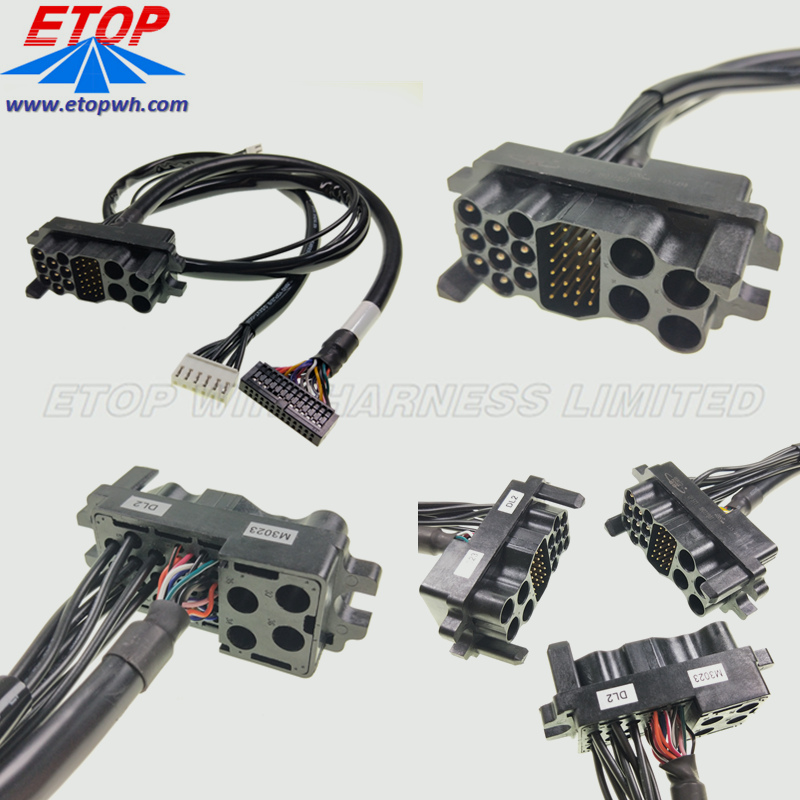

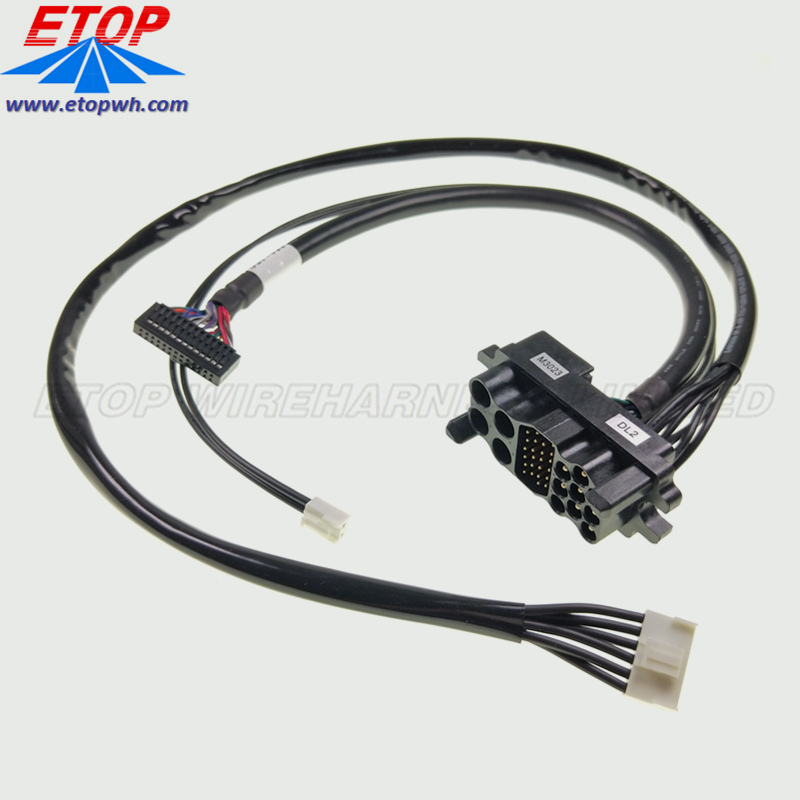

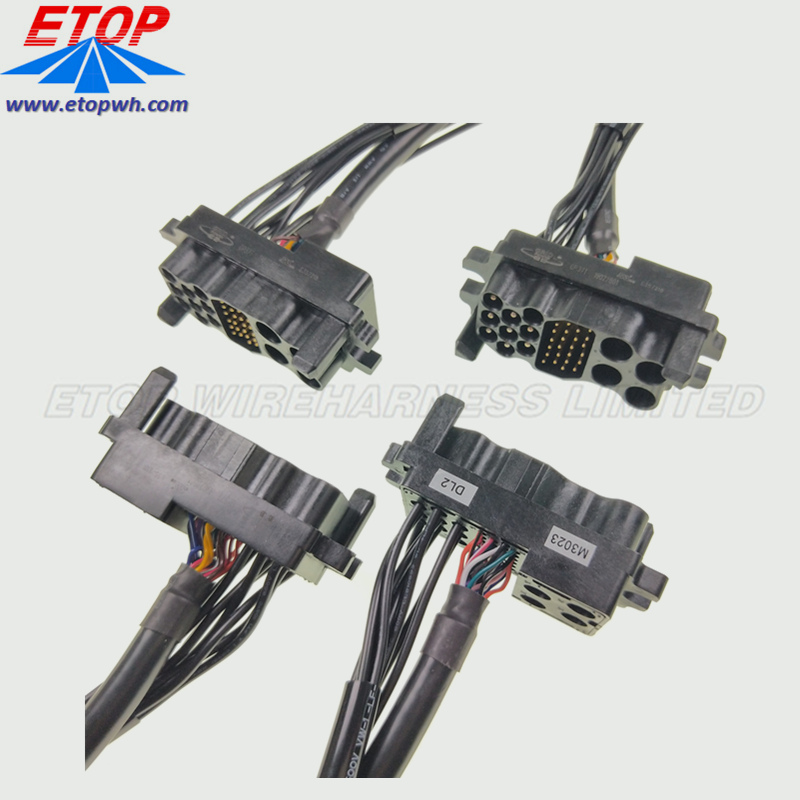

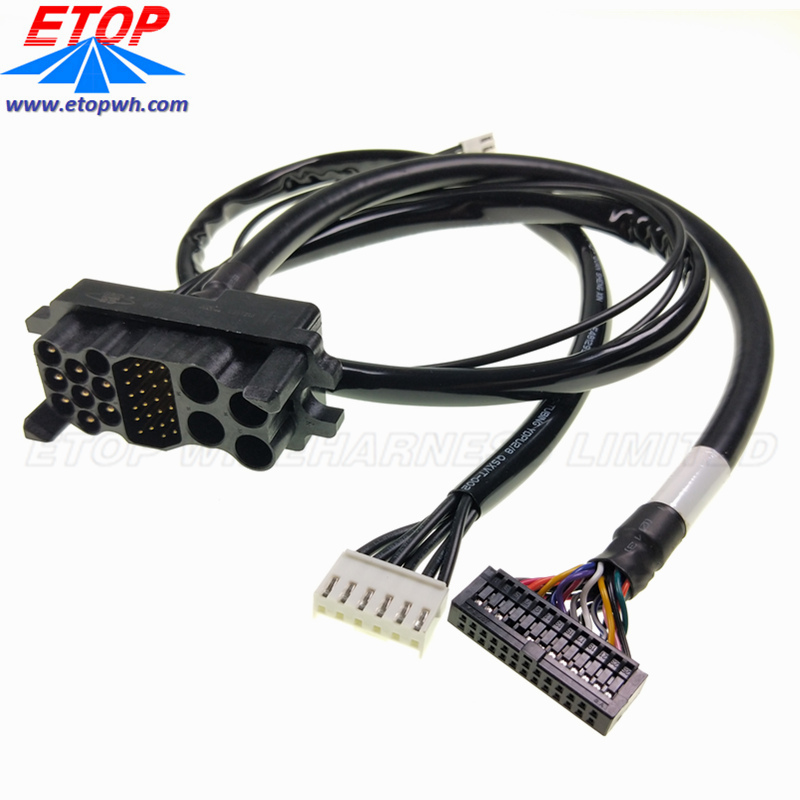

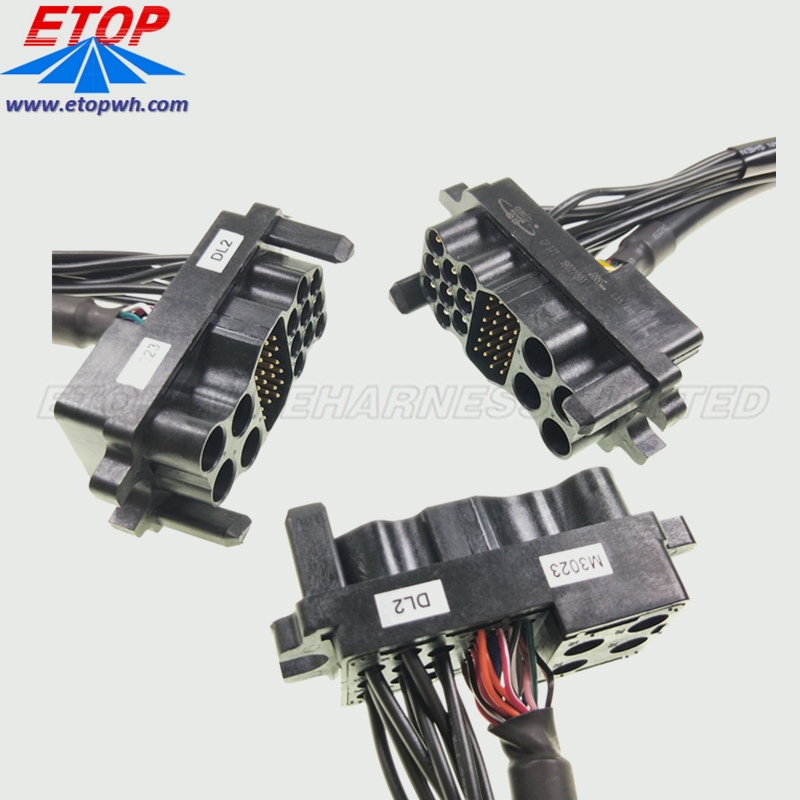

DRAWER CONNECTOR
Feature
Modular design, current 5A to 230A optional, blind import function design, automatic import connection
8pin to 52pin optional, multi pin signal plus power pin module mode input and output
Support hot plug, live connection and disconnection process can reduce the isolation to the minimum
UL / CUL certification, TUV certification applications, terminals with gold, silver plating can be optional applications, line to line, line to board, board to board connection optional
| Product Name | Customized power drawer connector cable assemblies with signal plus power pin | ||
| Keywords | power and signal cable, power connector, drawer connector cable | ||
| Application | data center, industrial, energy, and medical. | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | drawer connector | ||
| Protection | PVC tube and 3M tape | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 Power Cable Assembly Process
These compatible power connectors are available for a range of applications, including data center, industrial, energy, and medical.
Custom Configuration: Expandable and modular mold
Touch-Safe: Fully shrouded power contacts
Higher Connectivity and Lower Mating Forces: Uses the new POWER ARCH contact design
Flexible Design: Each configuration can use up to 10 modules in a 2x1 to a 2x5 layout.
Easy Handling: With existing hand tools, you can easily terminate the contact and remove it from the housing
Variety: Offered in three mating sequence levels for power and signal contacts
02 Custom cable assemblies Engineering Services & Support
12vdc SPDT sealed relay & pigtail combo pack, The unit is sealed against moisture, dirt and dust.
Resistor across the relay coil for voltage spike protection.
Rating of contacts dependent upon how the relay is wired
Normally open or normally closed contacts are rated differently.
Contacts not rated or tested above 16vdc
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
03 cable assemblies Engineering Services & Support
Custom power cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
