Customized IDC Flat Cable

这里可以自定义设置
Customized IDC Flat Cable
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-2071
MOQ:
500
Payment:
100% prepaid when placing order, balance paid before shipment
Delivery Time:
4~6wks
Start Port:
SZ, HK, GZ
Service:
OEM, ODM, customization
Packing:
customization 45*35*25cm, 40*30*23cm, 30*25*25cm
参数暂无数据
多属性暂无数据
B站不支持优惠卷
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

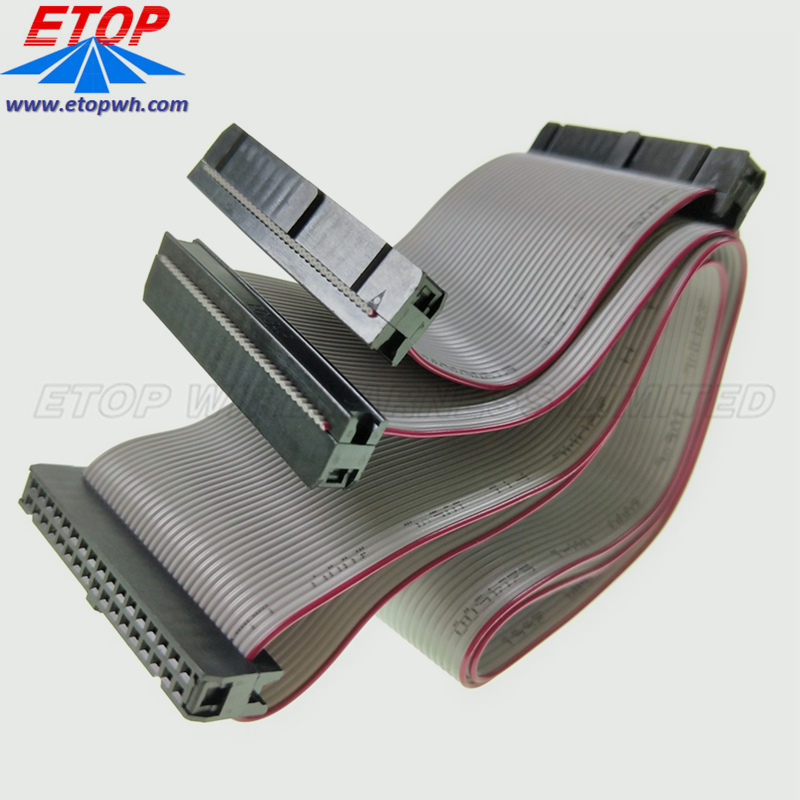

Ribbon cable is designed to be used with multi-contact IDC connectors(DR-12-2PC-FO) in such a way that many IDC connections can be made at once, saving time in applications where many connections are needed. These connectors are not designed to be reusable, but can often be re-used if care is taken when removing the cable.

Product Specifications

Product NameFlat cable assembly with JAE connector
ApplicationAutomative,Computer and etc
CablesFlat Ribbon Cables
Wire SpecsUL2651
Connector typePlug, male pins
Terminal MaterialsGold-Plated
Contact typeSignal
Connector brandJAE Connector-DR12-2P
Mounting typePanel Mount, through hole
SampleConfirm sample before production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment
这里可以自定义设置

Product Details

这里可以自定义设置

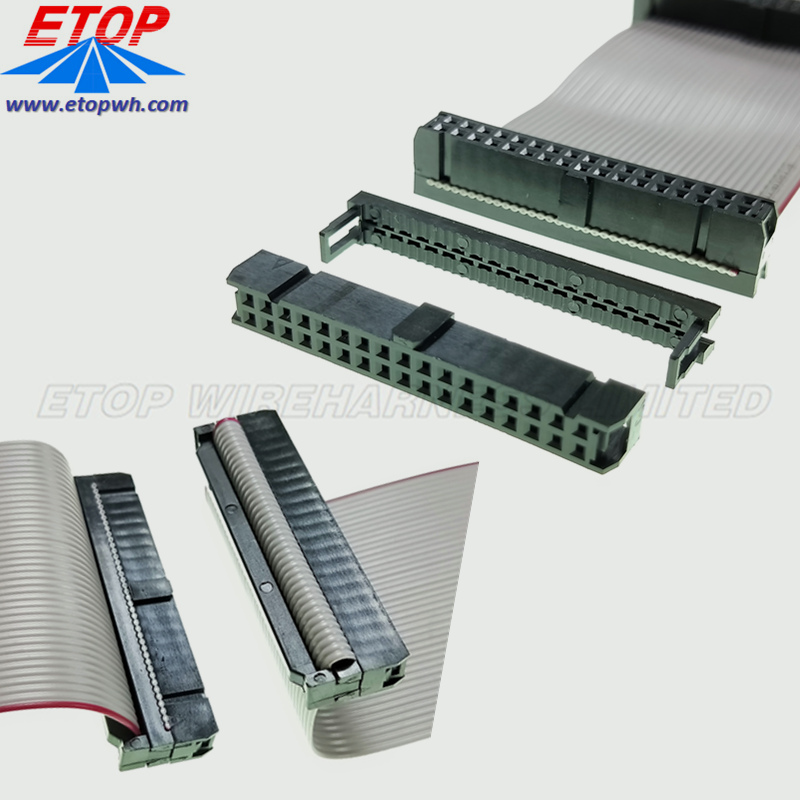

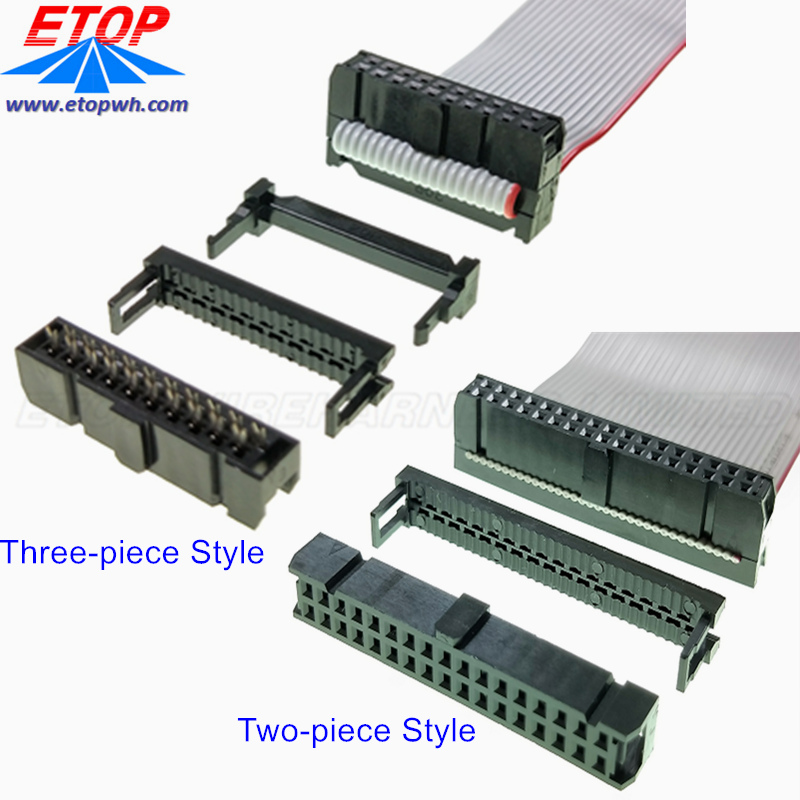

01 This product is IDC wire cable assemblies, with high reliability contacts on 1.27 mm and 2.00 mm pitch, as well as dual beam contacts on 2.54 mm pitch. Choice of socket and plug terminations, low profile and slim body designs; ejector, shrouded and elevated headers for mating, and optional locking clips and caps for more rugged applications.
* Voltage rating:250/600V AC/DC
* Current rating:5A AC/DC
* Withstanding Voltage:1000V/2000V AC/minute
* lnsulation resistance:5000MΩ Min
* Temperature range:-55ºC~+105ºC
* Contact resistance:10mΩ Max
* AWG:#20-#28. 2.0mm,1.8mm

The main point of ribbon cables is to allow mass termination to specially designed IDC connectors in which the ribbon cable is forced onto a row of sharp forked contacts. (The phrase "IDC connector" is widely used, even though it is redundant)
