Customized Cardiac Conductance Wire to Din Connector

Customized Cardiac Conductance Wire to Din Connector
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?


Product Description

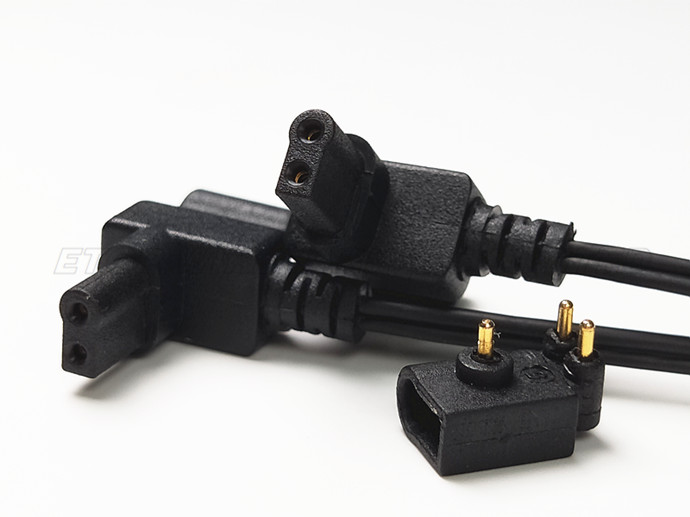

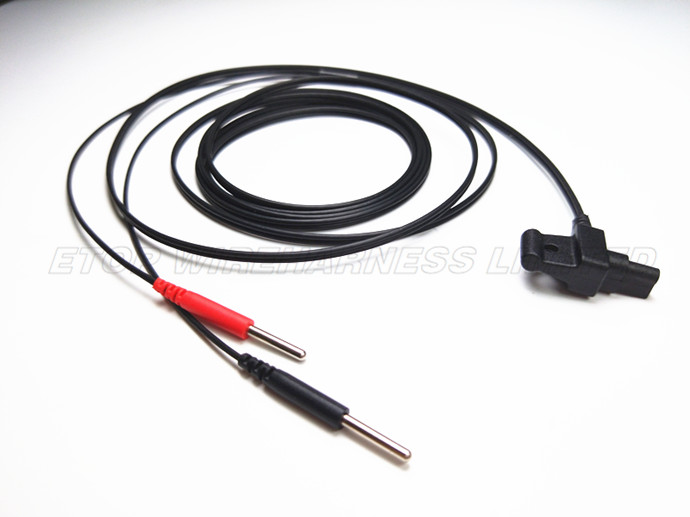

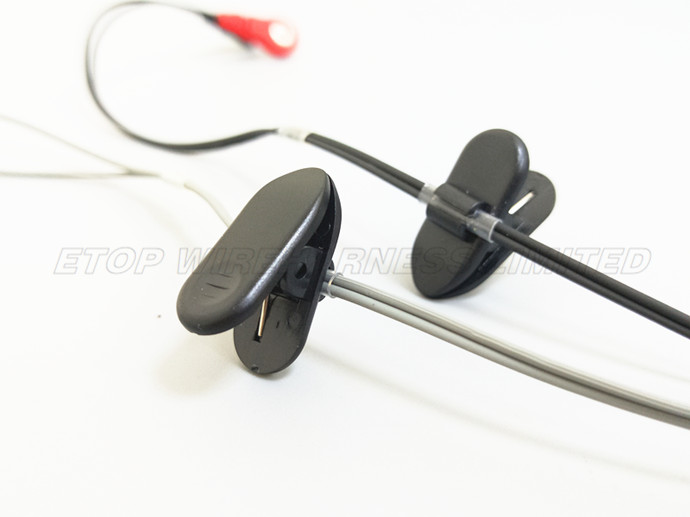

This special customized medical cable designed from 6pin DIN male connector to male banana plug and alligator clips. The alligator clip are available by different wire applied with different wire size. The clip connector can be made by any customized materials, which used for medical industry.  This medical cable assemblies designed with molded DIN connectors, all molded connectors must be 100% checked by X-RAY machine as below vedio. To inspect the inner soldering to avoid poor connection. The strict requirement applied and this cable used for medical machine. And the raw cable deisgned by corly type, for better flexibility in application.

Product Specifications

Product NameCustomized Cardiac Conductance Wire to Din Connector
ApplicationMedical Machine
TPU Cable, gold plated pin
Wire StandardUL, CUL, or customized
FeatureIEC, 4 leads
Operating Temperature+5°C~+40°C
Storage and Transport Environment-10°C~+40°C
Plastic PinCopper Nickel Plated
Insulation MaterialPVC
SampleConfirm sample before production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details


01 Our immense years of experience and knowledge have made us the leading firm of Cable for ECG Machine. Our offered cables are manufactured from the superior quality material and modern tools under the guidance of specialists in compliance with the predefined standard of industry. In addition, these cables are provided in various specifications as per the requirements of patrons.

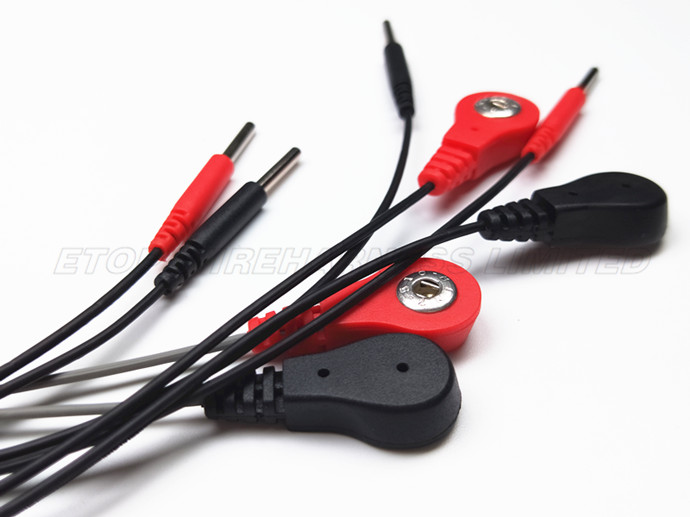

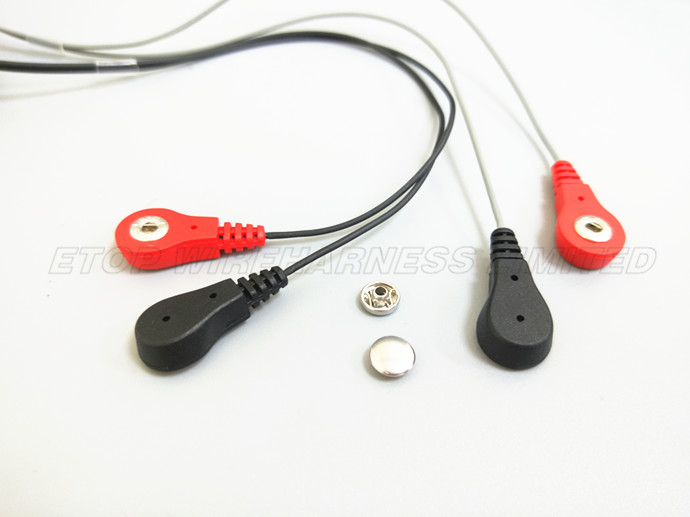

02   This medical cabels belongs ECG Cable series Lead sets as a spare parts of the Electrocardiograph,it transmits the hysiological sign from the patient's body, connecting Electrocardiograph with the electrode. M&B 6 Pin Snap AHA ECG Patient Cable For Medical Equipment , Electrode Lead Wires.

(1) Double shield structures
(2) Copper Alloy,Additional tensile
(3) Improve the anti-interference performance
(4) Assure the signal accurate
(5) Excellent compatibility


03  Easy connection. Accurate measurements.
ECG cables and leadwires help you reliably make the correct connection to medical devices. These high-quality reusable cables complement your equipment, enabling accurate measurements. GE cables and leadwires undergo strict testing to help ensure quality, reliability and safety. They have been tested and verified as compatible with devices to deliver optimum performance and a high standard of care.
Resistant jacketing extends cable life, facilitates cleaning and remains flexible to withstand bending and twisting and enhance patient comfort.
Easy to use
The leadwires and adaptors include color coding and labels on both ends to reduce the errors in setting up the leadwires and save time to the clinician to focus on patient care.Integrated cable and leadwire set has unique grouping of leadwires that will help in untangling the cables easily and quick application on patient. ECG leadwires are available in 10- and 14-lead configurations. Leadwires are electrically shielded to protect ECG signal integrity.


Product Applications

We are a professional manufacturer running our business in this field in tune with the success. We source our offered cables from the reliable vendors of the market in adherence to the set industry norms. We use superior quality basic components and innovative technology for manufacturing these cables. Owing to their features like sturdiness, longer service life and optimum performance, these cables are widely demanded in the market. We offer these cables in several stipulations at the market leading prices as per the requirement of customers.
