Custom Truck Diagnostic J1962 Obd2 Coverter Cable With Apex 2.8mm Connector...

这里可以自定义设置

Product Description

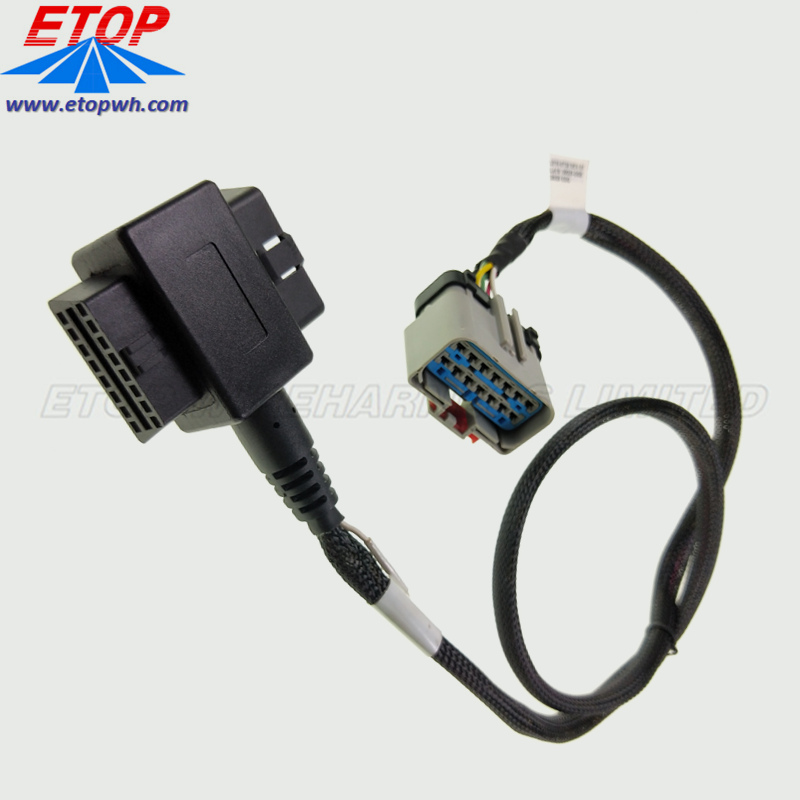

custom truck diagnostic J1962 OBD2 coverter cable with APEX 2.8MM connector

APEX connectors Wire Assembly

APEX 2.8MM 54201416 CODE B & 54201412 CODE B 14WAY CONNECTORS

Automotive 14-way APEX 2.8MM connector system, grey male, female
Fits accessory connector found on 2019 and newer heavy trucks.

APEX Connectors Series

APEX Wire Connectors are designed for harsh environments, including vibration, extreme temperatures, and moisture. These high-performance connectors are ideal for challenging applications such as automotive, construction, and agriculture. They offer a robust design and reliability. Aptiv APEX Wire Connectors are available in a wide range of pin numbers, mounting styles, contact plating, and much more.

Product Specifications

Product Name	custom truck diagnostic J1962 OBD2 coverter cable with APEX 2.8MM connector
Application	Automobile Connectors
Cable color	Per customer requirements
Cable Length	Per customer requirements
Connectors postion	14 position
Connector type	Male
Suitable Wire Gauge(Connectors)	20AWG to 12AWG
Connector series	APEX
Housing Materials	Polyamide(PA)
Materials	Ultramid A3EG7 Nylon 6/6 GF35
Rows	2 rows
Connector pitch	5.25mm
Suitable Wire Gauge(terminals)	20AWG to 18AW
Terminal materials	Copper&Tin
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:	100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

Product Details

这里可以自定义设置

01 FEATURES

Withstands high temperatures, vibration, and moisture

Robust design for reliability

Two-piece female terminal construction

Pre-loaded leaf spring for insertion-force reduction

High normal force contact for vibration and high current rating

Fixed floor contact for exceptional vibration stability

Clean body design for robustness during handling

Variety of housing designs: plastic locking fingers with TPA

key codes and colors, and CPAs offered as options

terminal backup, fully assembled with pre-staged TPA, multiple

这里可以自定义设置

02 Automotive 14-way APEX 2.8MM connector system, grey male, and female . Fits accessory connector found on 2019 and newer heavy trucks. This is the connector that plugs into the accessory connector located near fuse panel or on left side of steering column behind dash cover.

这里可以自定义设置

03 We had our own tooling to produce the local APEX 2.8mm 14ways connectors here, which is more competitive in price with short L/T compared with the original one. APTIV, APEX 2.8MM 54201416 CODE B & 54201412 CODE B 14WAY CONNECTORS. On vehicles with warning label you should only use the accessory connector to power and run your telematics, ELD or other aftermarket devices that require data from J1939, CAN or J1708. This conforms with TMC RP1226.

Female 14 way connector set with terminals. Fits accessory connector found on 2019 and newer heavy trucks. If your truck has the warning label shown in picture 6 above this is the connector that plugs into the accessory connector located near fuse panel or on left side of steering column behind dash cover. Fits all makes and models 2019 and newer.

The Apex 2.8 sold here are genuine Aptiva parts - Formerly Delphi.

The housing using FCI APEX connectors 54201416 male receptable , see the specifications.

这里可以自定义设置

04 The APEX P/N 54001801 18-20AWG terminals(MALE 2.8MM TERM 18-20 AWG TIN ) also offers best-in class stamping material utilization,optimum cost/performance material selection(spring and body), superior spring damage protection.

Product Applications

We are more than your source for world-class automotive connectors technology. Innovating together, we work side-by-side with customers in virtually every industry to create answers to the connectivity challenges of tomorrow. We provides quality electrical and electronic interconnection products for automotive, on- and off-highway, and hybrid and electric vehicles to electrically and mechanically join wires and cables, printed circuit boards, integrated circuit packages, and batteries. Our automotive connectors are built to withstand tough conditions and suit the needs of varying industries
