Product Description
Our Custom OBD Connectors are ODM products, the terminal, plastic connector all processed by ourselves. The connector outside molded shape can be customized by straight or 90degree. Experienced proposal can be offered to customers for evaluation by considering stable quality and competitive price. This information is then presented to our R&D Team for analysis. Depending on the complexity of the issue, our team will either suggest a tried-and-true solution we`ve used in the past for other satisfied clients, or draw up ideas for a unique solution.

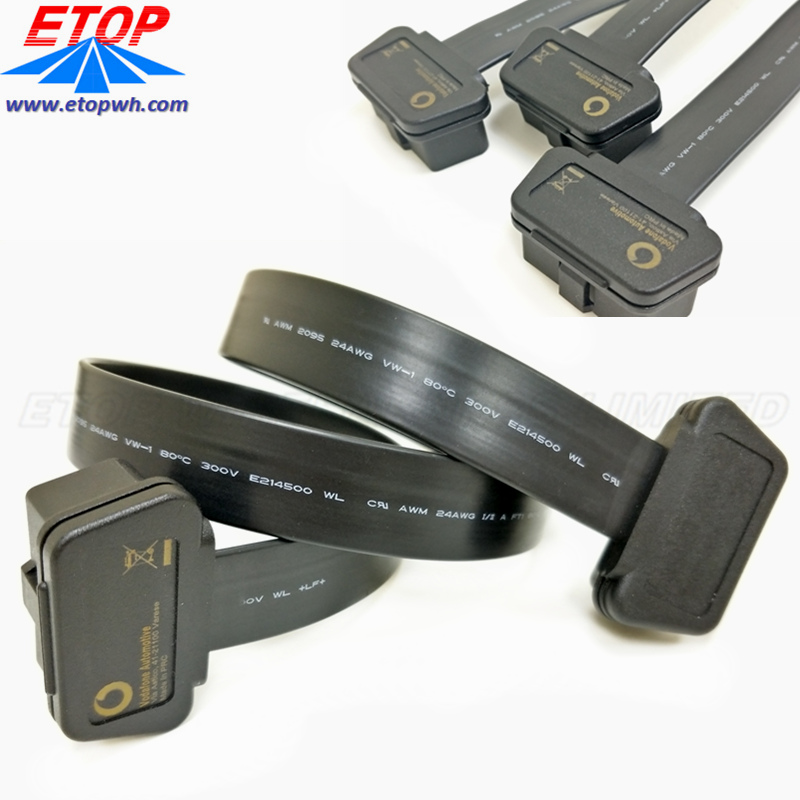

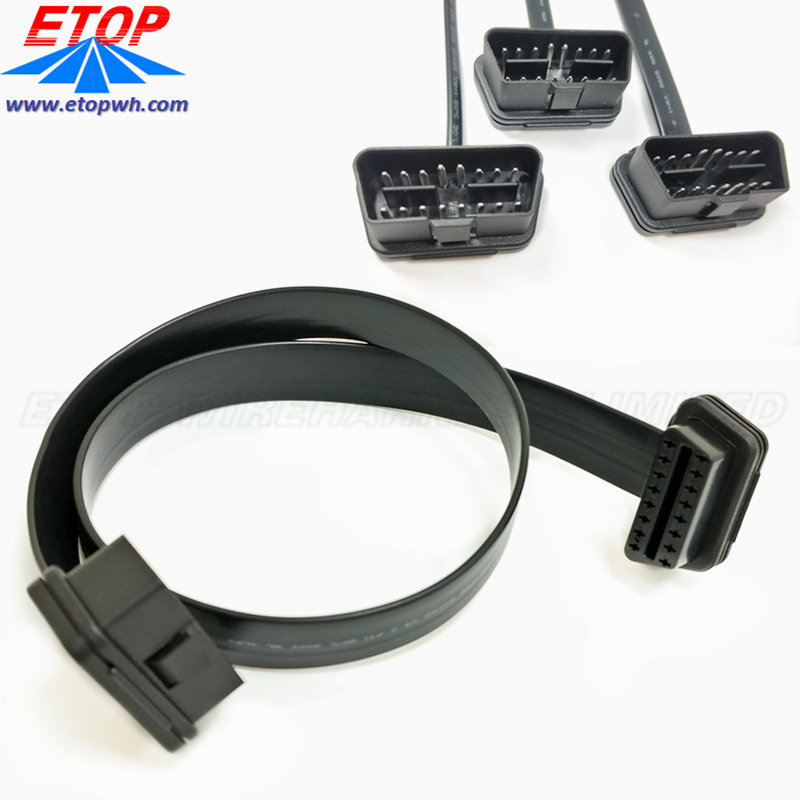

| Product Name | Custom Short OBD2 Right Angle Flat Cable | |||
| Application | Automobile | |||
| Over molded color(OBD Connector) | Black&Customized | |||
| Core Color(OBD Connector) | Black | |||
| Terminals material(OBD Connector) | Phosphor Bronze Pre-Matt Tin | |||
| Terminals Applied Cables | 26awg-18awg | |||
| Plug Test | Over 10000 times | |||
| Cable length | As per customer's requirements and do customized | |||
| Cable Jacket | PVC, PUR and customized | |||
| Cable Pin Out | Customized | |||
| Cable cross-section | AWG 26-20 available | |||
| Withstand Voltage | 300V DC | |||
| Rated Current | 1a-5a | |||
| Micro-Fit | Molex or customzied molding | |||
| Flammability | UL94-0 | |||
| Pitch | 3.0pitch | |||
| Service | OEM and ODM products are acceptable | |||
| Samples | Samples confirmed first before mass production | |||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH | |||
| Performance Test | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | |||

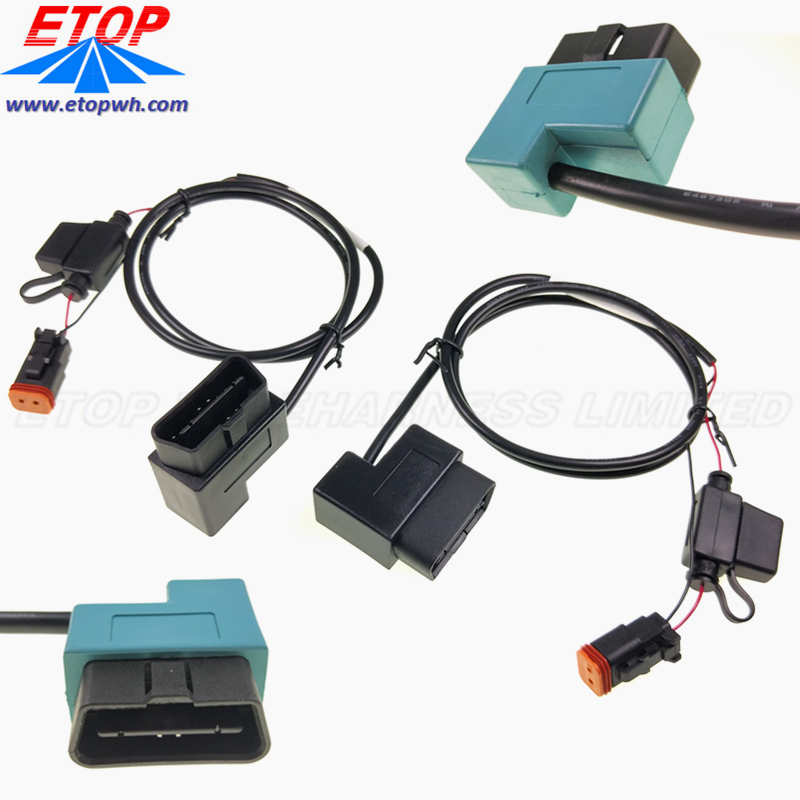

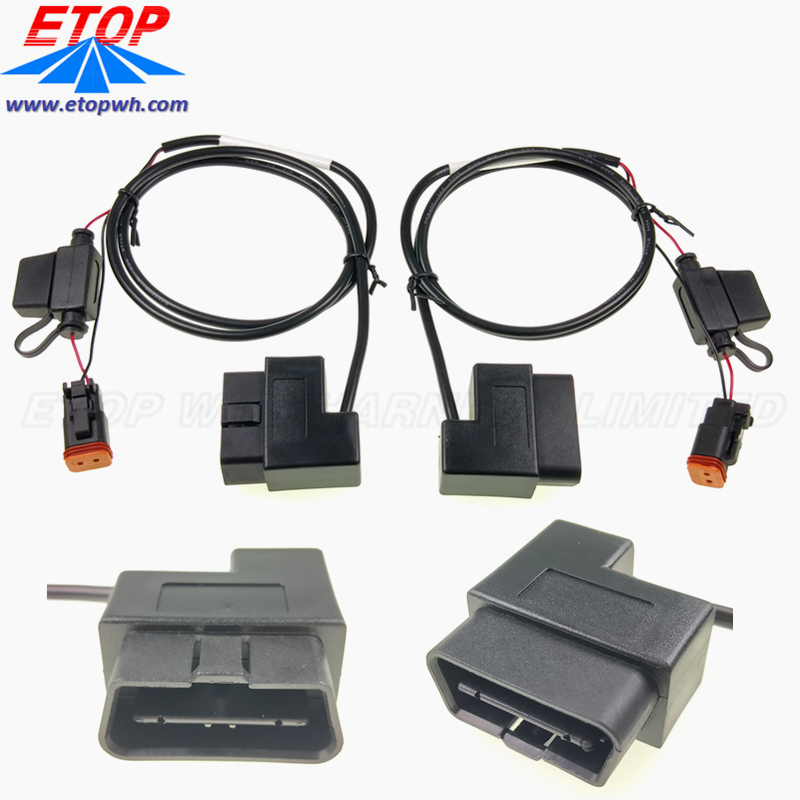

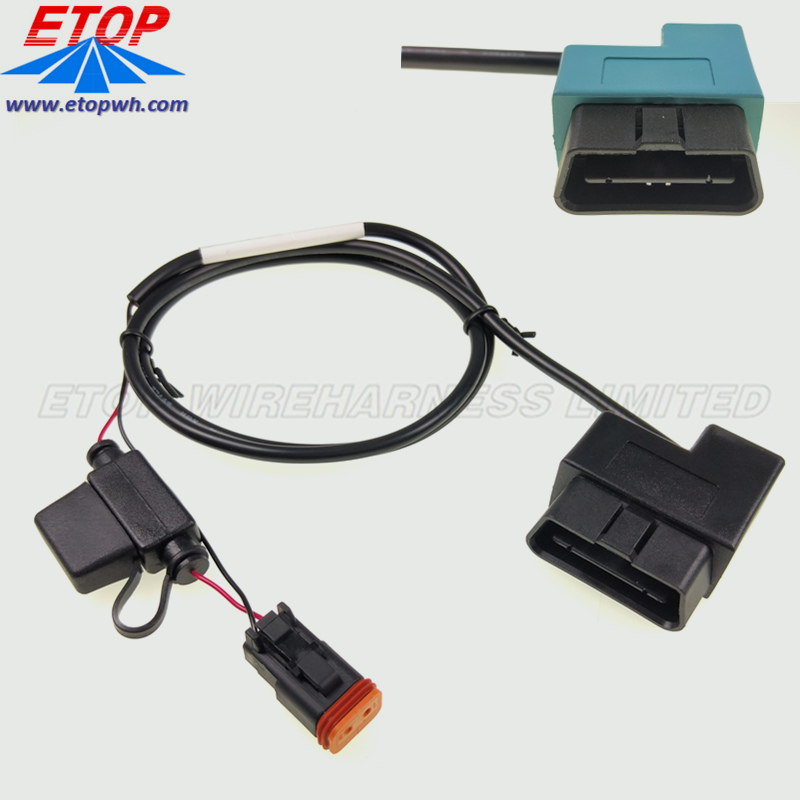

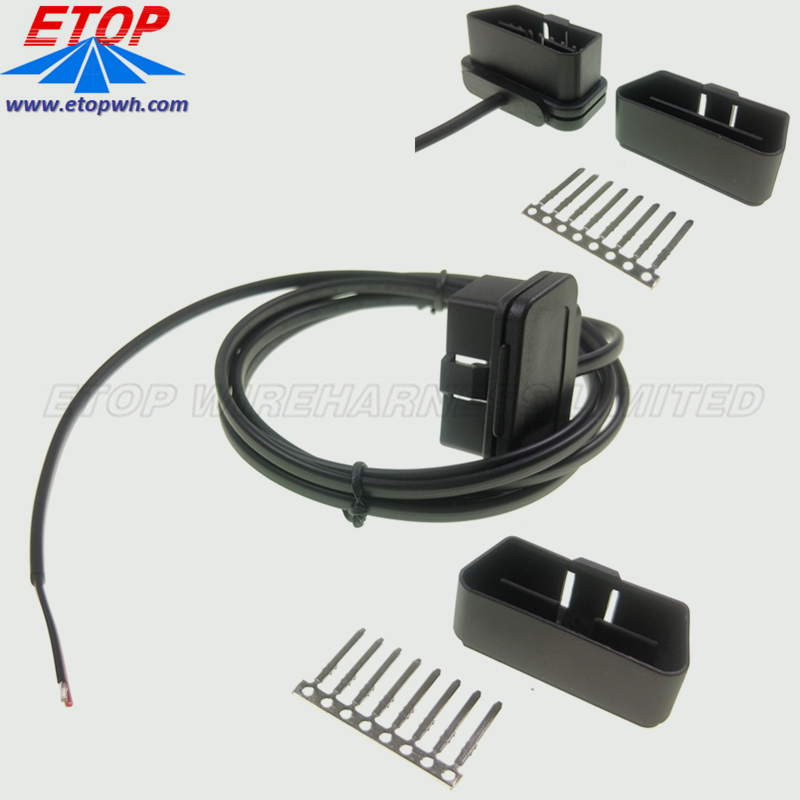

01 We make OBD connector with terminal by ourselves, soldering type and crimping type are both available. Also molded by different type, straight type or right-angle type. The OBD SEA1962 Connectors also including 24V and 12V. see attached pictures.
The OBD conenctor cables used for Audi, Honda, Toyota, BWM, etc.

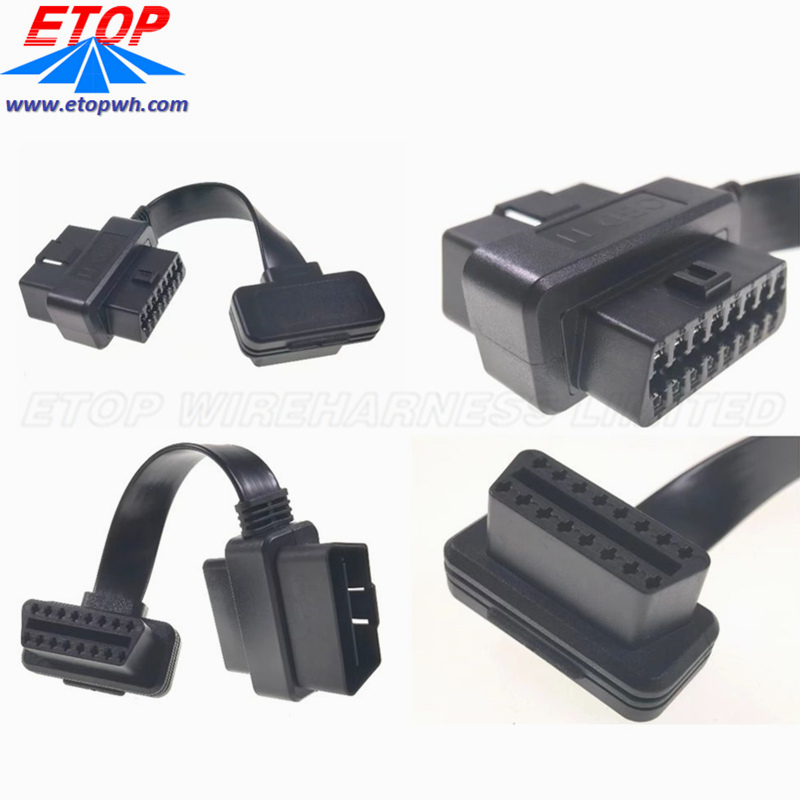

02 This is female 16 pin J1962 OBD2 socket which is suitable for EOBD universal diagnostic tester, OBD module Bluetooth, automotive diagnostic tool and some other automobile diagnostic tools.It has below features:
★ Female 16 pin J1962 OBDii connector usually work as a extension cable some apparatus.
★ There are various of 16 pin female obd2 connector in our factory, such as obdii 16 pin female connector(soldering type), J1962 obdii female connector(purple core, Assembly type), obd2 16 pin female with white rear cover(Assembly Type) , obd2 male to female converter.
★ The plug test of J1962 OBDii connector over 50000 times and the cable blending
★ Test life over 10000 times.
★ Advanced equipment and quality process technique made this 16 pin female connector flexibility and durability.
03 J1962 includes crimp terminals and TPA Locks,Multiple mounting holes to secure it in various locations.It suits for crimping Terminals on the range of 20-18 AWG wires. Below is the J1962 OBD2 Connector Pinout:
● PIN 1 - Manufacturers discretion ● PIN 2 - SAE J1850 Line (Bus +) *
● PIN 3 - Manufacturers discretion ● PIN 4 - Chassis Ground
● PIN 5 - Signal Ground ● PIN 6 - SAE J2284 (CAN High) *
● PIN 7 - K Line of ISO 9141-2 & ISO/DIS 4230-4*
● PIN 8 - Manufacturers discretion ● PIN 9 - Manufacturers discretion
● PIN 10 - SAE J1850 Line (Bus -) *● PIN 11 - Manufacturers discretion
● PIN 12 - Manufacturers discretion ● PIN 13 - Manufacturers discretion
● PIN 14 - SAE J2284 (CAN Low) * ● PIN 15 - L Line of ISO 9141-2 & ISO/DIS 4230-4*
● PIN 16 - Unswitched Vehicle Battery Positive
04 ETOP experienced in design and manufacture all kinds of special OBD connectors and cables,have accumulated rich experience in development and production for kinds of diagnostic Cables assemblies,vehicle diagnostic cables,Telematics / CAN / Heavy Vehicle Cables and its related connector and adapter. Automobile series cable: kinds of high quality Telematics GPS tracking cable,OBD2 splitter "Y "cable,OBD2 J1962 test cable, Heavy Vehicle J1939&1708 eld cable, Vehicle Diagnostic equipment cable and its related Vehicle connector,adapter,plug and socket.
J1962 16 pin OBDii female connector is used on automotive, aerospace, industrial, data communication, medical solutions...Usually Turbine engines control, data memory modules, missile actuator controllers, telematics,J1939 CAN BUS diagnostics unit, deletion error diagnoses, vehicle/garage diagnostic equipment, diagnostic (scanner) kit, play plus diagnostic kit, garage diagnostic equipment , diesel engines optimization device, VAG Diagnostic tool,…. All cars have obdii port will have to use obdii female connector.
