Product Description

S1101EUA sensor cable harness

With our broad engineering expertise, we design and build custom wire harness to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost. Also designed overmolding process to protect terminal and DC connector from moisture, air, water, etc.

Our commitment to customer satisfaction and building long-term relationships based on trust is our top priority. We are dedicated to ensuring that the quality of our products and service remain the highest in the industry. From product performance through the order process to delivery, you can expect quality in everything we do.

Our success is only defined by our customers’ success!

All products are available for sale through our trusted network of factory authorized distributors. A complete list of the distributors in each market area may be obtained from the factory. We look forward to meeting the challenges of our constantly changing world and helping you solve your toughest application problems!

Product Specifications

Product Name	custom sensor wiring assemblies for little robots
Application	little robots, auto machine, mini robots for pets
Cable color	Per customer requirements
Cable Length	Per customer requirements
Connector type	DC, HRS
Connector series	5525, 5521
Suitable Wire Gauge(terminals)	24# 26#
Protection	overmolded wrapping for terminal and DC connector
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:	100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

Product Details

这里可以自定义设置

01 The custom wiring harness assembled with continuous-Time switch, also belongs to half-effect current sensor. which offer the fastest available power-on settling time and frequency response. The magnetic switch designed with 2pcs, for auto entrance control system. Wire harnesses are compactly bundled wires and data circuits that function as the central nervous system of a vehicle. To ensure safety and basic functions (going, turning and stopping), as well as provide comfort and convenience, automobiles are equipped with various electronics which operate using control signals running on electrical power supplied from the battery. The wire harness is the conduit for the transmission of these signals and electrical power.

这里可以自定义设置

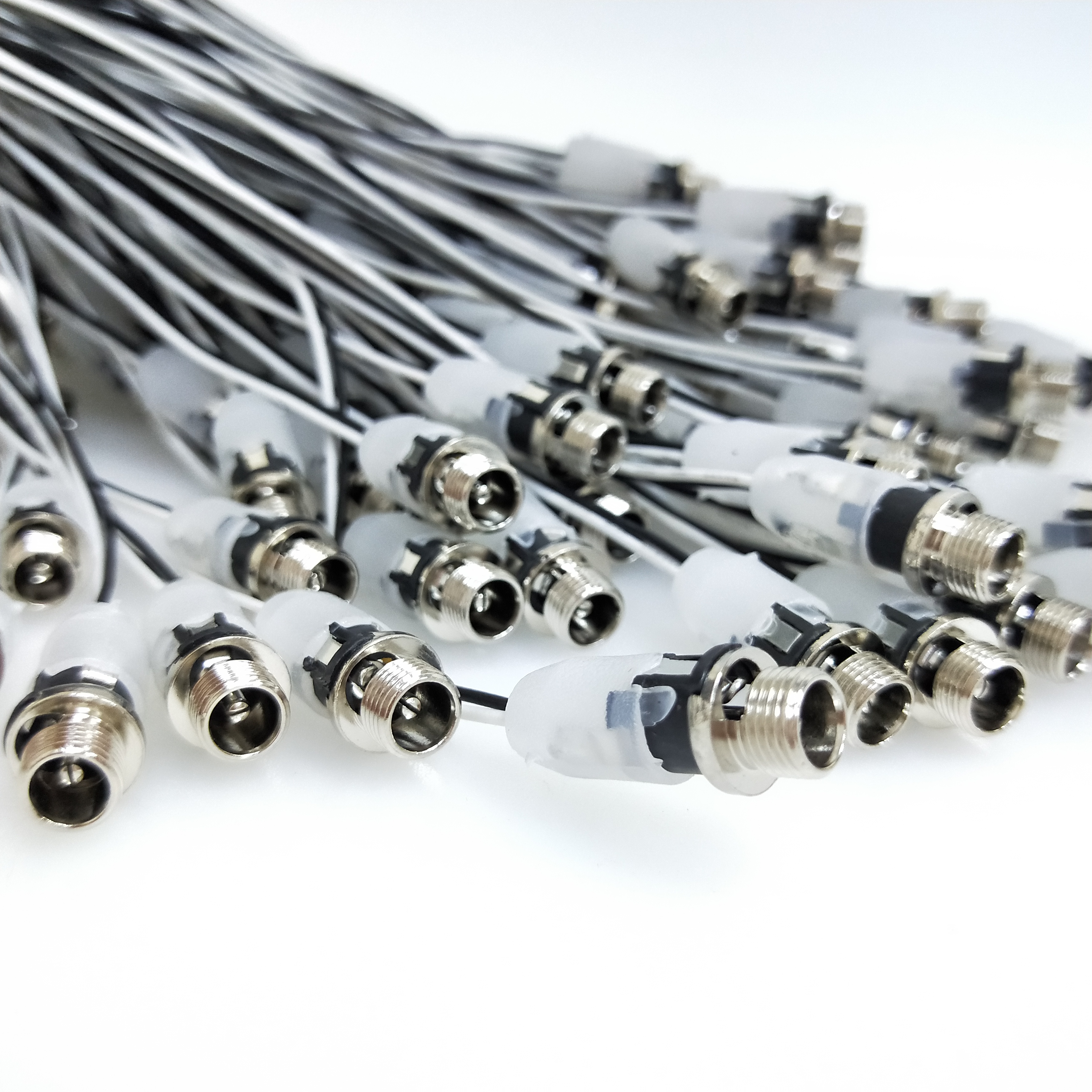

02 In order to guarantee the quality for the DC jack connector, we improved with overmolding process instead of hea-shrink tube directly to protect connector from moisture, air and liquid.

Different designs of over-moulded connectors, including customer specific solutions, allow harnesses to be fitted more easily where space is tight. This technique ensures increased protection against the ingress of water, salt, dust and corrosive chemicals. More functions can be integrated into a small harness which is 100 % tamper proof and has easy tamper detection.

Especially in situations where safety and reliability are critical. Our expertise covers the development of plug-in and screw-in connections, sensor mountings along with other metal and plastic parts used in conjunction with different cable types. Incorporating sensors, actuators, specialist cables, interconnects and other devices in an over-moulded harness assembly delivers high levels of safety and reliability.

这里可以自定义设置

03 IPC-A-620 Requirements and Acceptance for Cable and Wire Harness Assemblies, the well-recognized document for wire and cable harness acceptance.

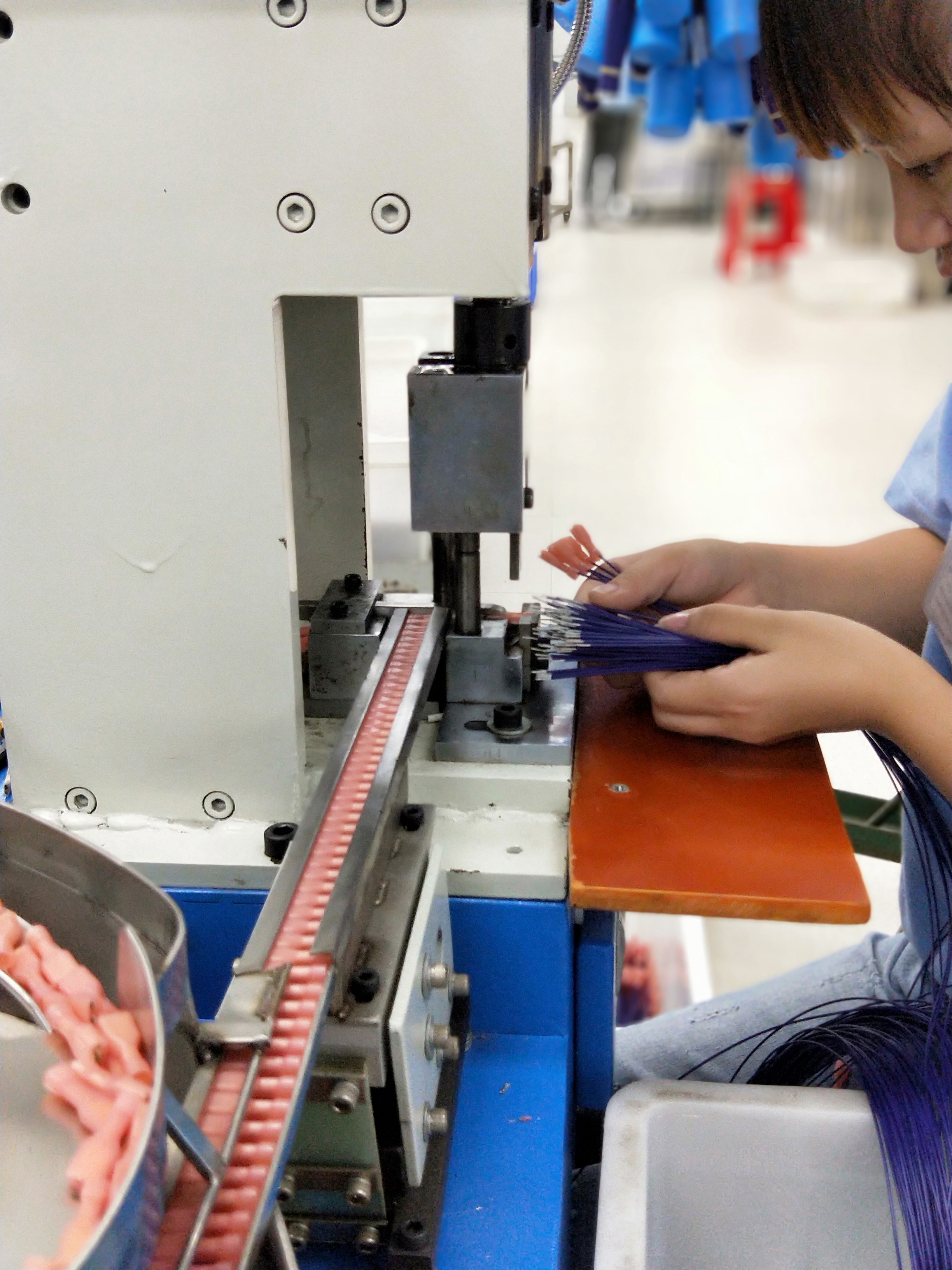

The wire harness signle terminal crimped by automatic machine, which offers high effeciency.

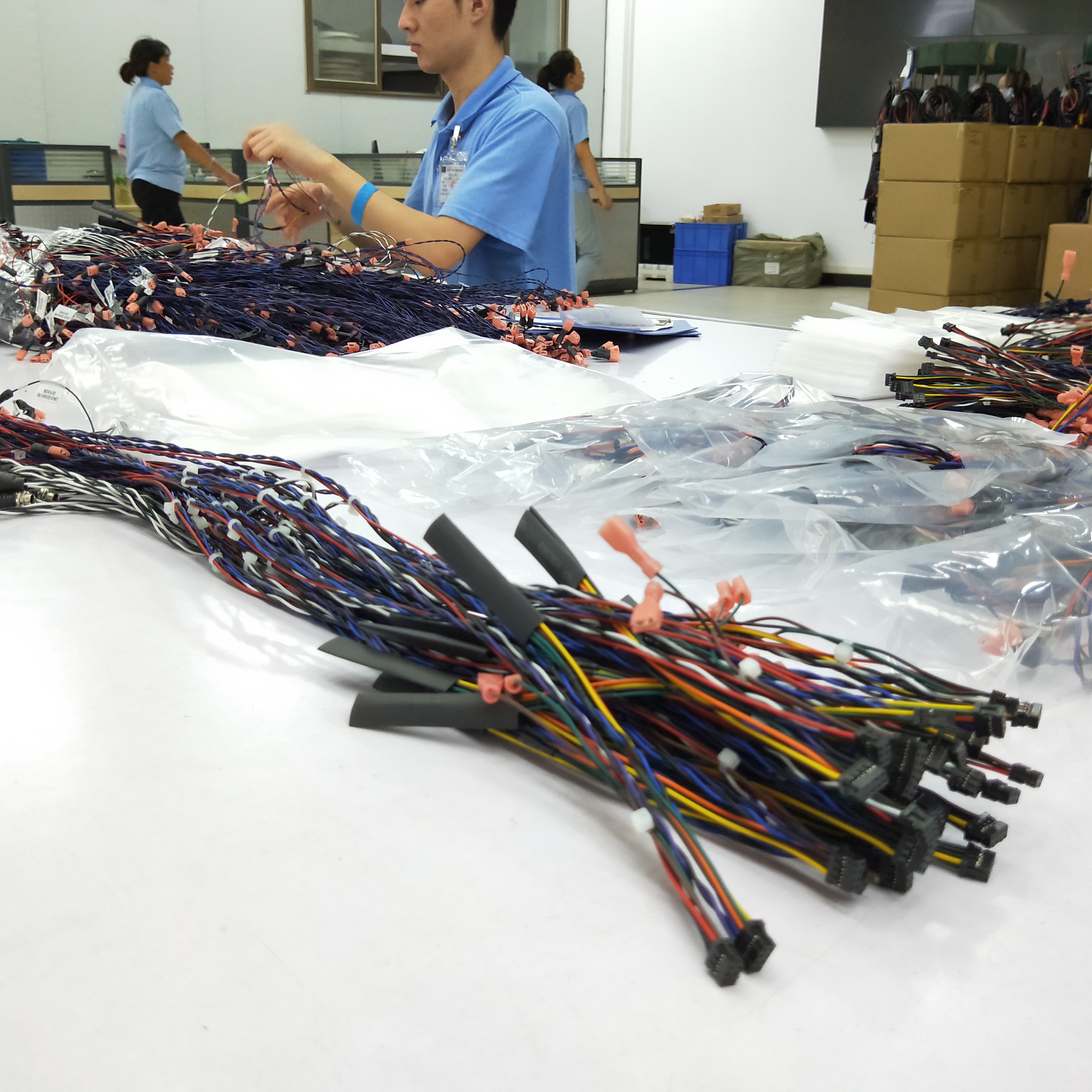

We use several types of electrical safety tests to provide you with a thoroughly vetted wire harness. We are able to find defectives or mis-wired cables during our assembly process and our testers have a graphic wiring display that helps visually pinpoint any wiring errors to produce a pass/fail test result within seconds. We are able to find opens, shorts, mis-wires, and intermittent connections. We can also check for contact isolation and resistance thresholds. Our testing process guarantees the quality of all manufactured wire harnesses to match your specific design and performance requirements.

Product Applications

Such sensor wiring harness mostly used for power system of little robots, auto machine, mini robots for pets. That's automatically to control the entrance for pets.Fresh water will always be available to your pet with the Auto-wata. The internal float stops the water flowing when the bowl is full and automatically fills it when low. Mounts to the floor or wall and easily connects to your garden hose.
