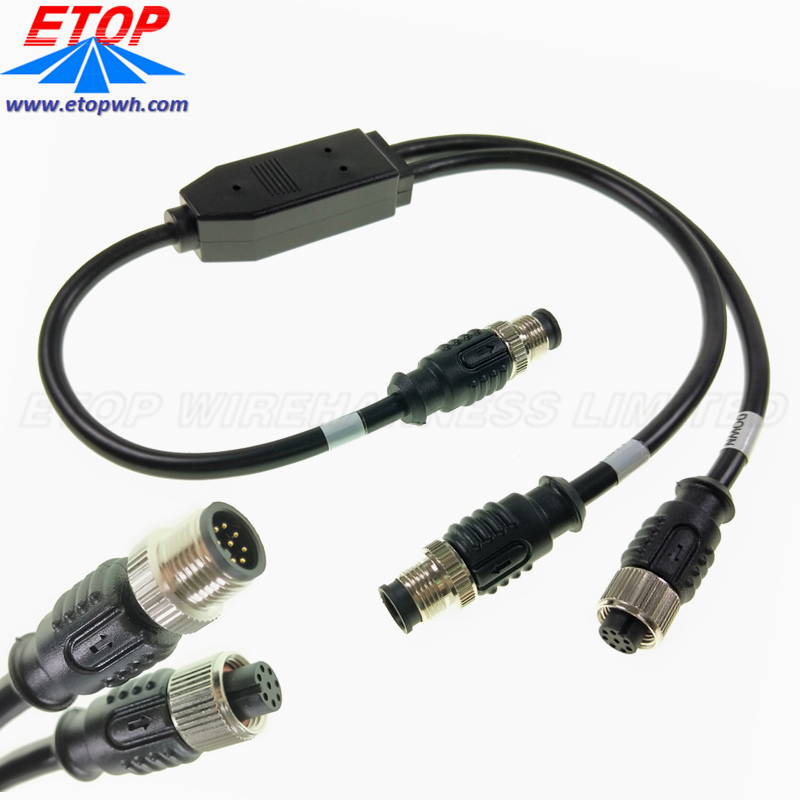

custom molded waterproofing Y type cable assembly

这里可以自定义设置
custom molded waterproofing Y type cable assembly
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-2090
MOQ:
1000
Payment:
30% prepaid when placing order, balance paid before shipment
Delivery Time:
4~6wks
Start Port:
SZ, HK, GZ
Service:
OEM, ODM, customization
Packing:
customization 45*35*25cm, 40*30*23cm, 30*25*25cm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

This M8, M10, M12 waterproof connector used for automobile, industry, signal, lighting, sensor controlling, etc appplication. The connectors plastic shell with palstic or metal nut. Even the space on connector is quite limited, We still try to show the arrow about the locak point for customer better assembling. The molded materials can be PVC or PUR. Connectors can be cutomized to mold by any shape, right angle, straight or 105 degree, etc.  Related IP67, IP68 waterproof standard for M8, M12, M16 series all available. Also the metal type connector meet 360° EMI shielding.

Product name: custom waterproofing M8 sensor cable splitter Y type
Connector type: M6,M8,M10,M12,M16
Quality Certificate ISO9001, IATF16949, ROHS, SGS,ROHS,REACH

Product Specifications

Product Name
custom molded waterproof Y type cable assembly
Applicationelectro-mechanical connecting devices
GenderMale and Female Connectors
Pins2Pins~12PIN, A code,X code, etc
Wire Core MaterialCopper
ColorBlack
Working Temperature-40℃~ + 85℃
Storage Temperature 25℃~85℃
Atmospheric pressureAtmospheric pressure
Relative humidity≤90%
Material of ContactBrass
Contact PlatingGold over nickel
Protection degreeIP68, IP67
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment
这里可以自定义设置

Product Details

这里可以自定义设置

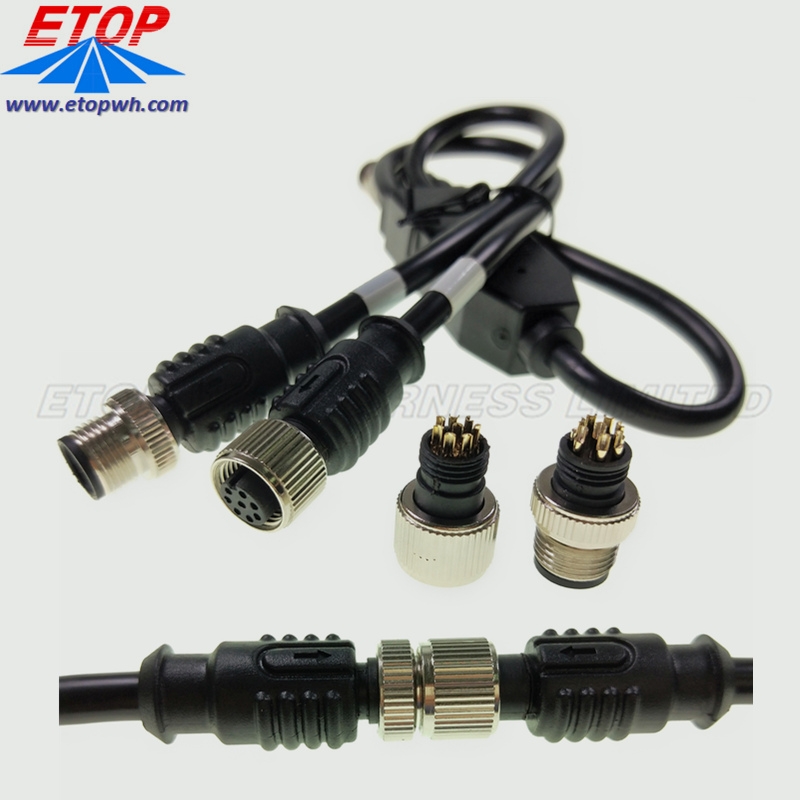

01 custom waterproofing M12 sensor cable  assemblies

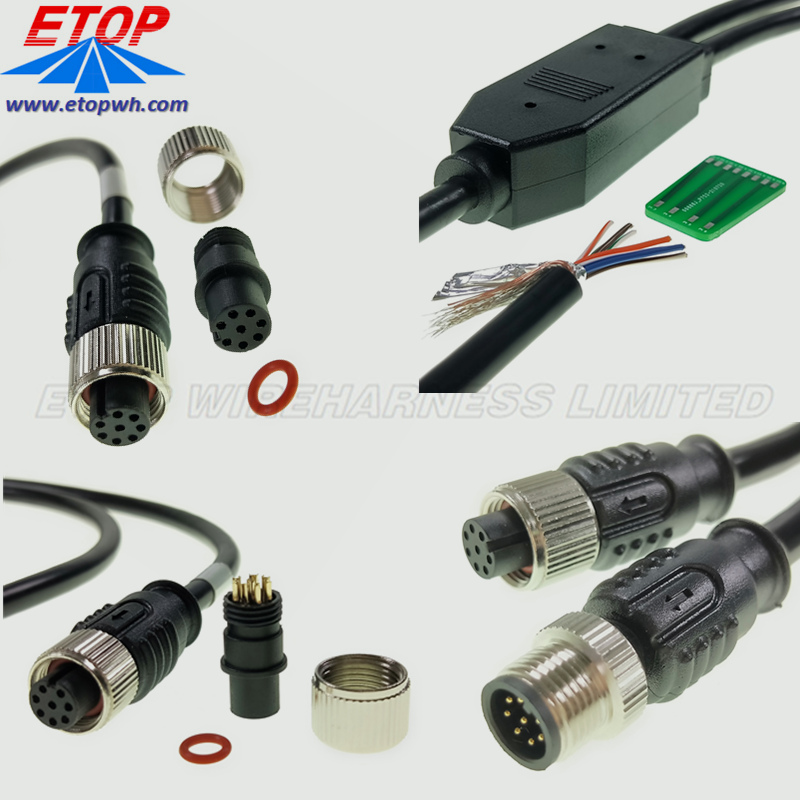

This M8, M10, M12 waterproof connector. We have various tool for original or local equivalent waterproof Connectors from AMPHENOL, TTI, Higo connectors. IP65/IP67/ IP68 waterproof standard for M8, M12, M16 series and etc. We can design the overmolding mold as by customermized service, like molded by 90 or 180 degree. Or conversion by T type. The o-ring and nut all designed perfectly to meet the waterproof standard.

Looking for ideal IP68 waterproof Molded Connector Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Molded Waterproof Connectors are quality guaranteed. We are China Origin Factory of such waterproof Connector.

这里可以自定义设置

02 Custom Electro-Mechanical Connectors

With our broad engineering expertise, we design and build custom electro-mechanical connecting devices to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost.

Due to our unique manufacturing and tooling methods, custom work is less expensive than one might imagine. Whether it’s a light-duty circuit board application or a heavy-duty hard-wiring problem, send Custom Connector your requirements and we’ll design the product to fit your need.



这里可以自定义设置

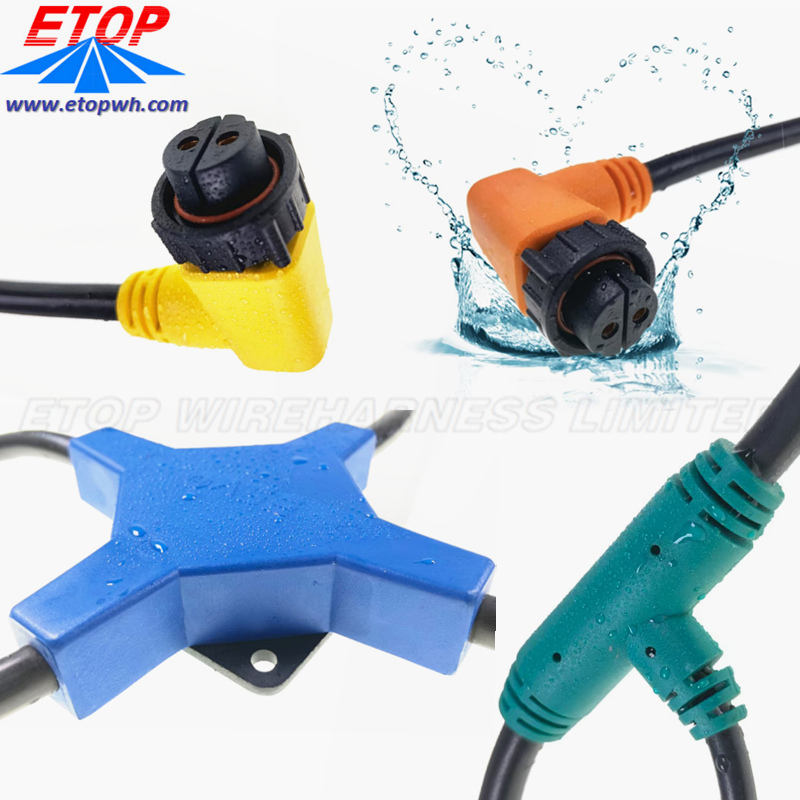

03 Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.
There are 2pin, 3pins, 4pins, 5pins, 6pins male and female waterproof connector cable for M6 series, to see the details descriptions in the photos.

Product Applications

Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.

M8 series provides a wide range of metric M-series connectors for small sensors and actuators. Shielded is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. To strengthen the waterpoofing function, we add glue potting as below, to make sure all soldering point covered with glue by 360 degree.
