Product Description

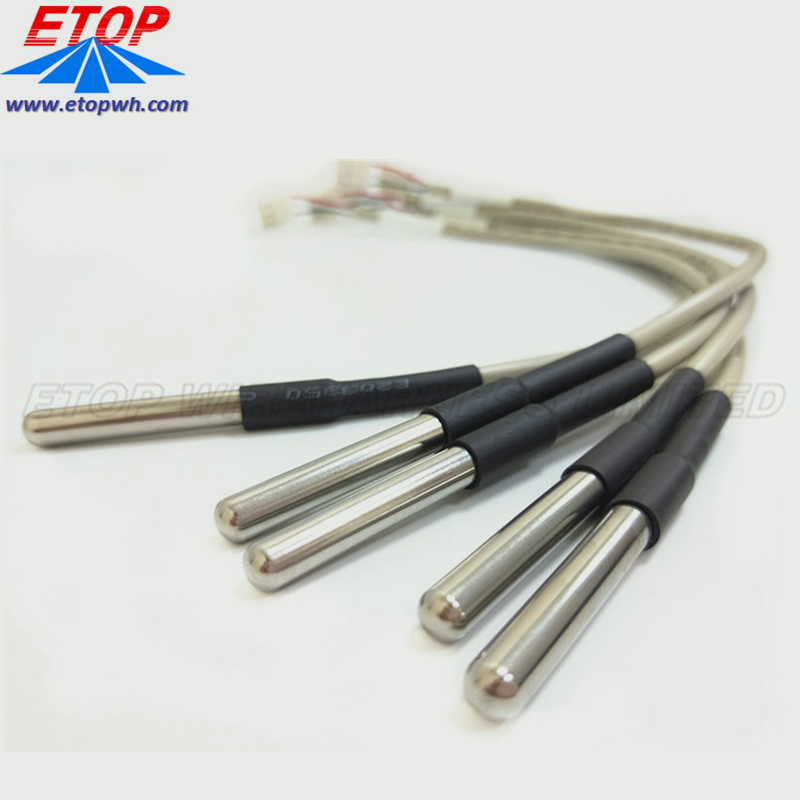

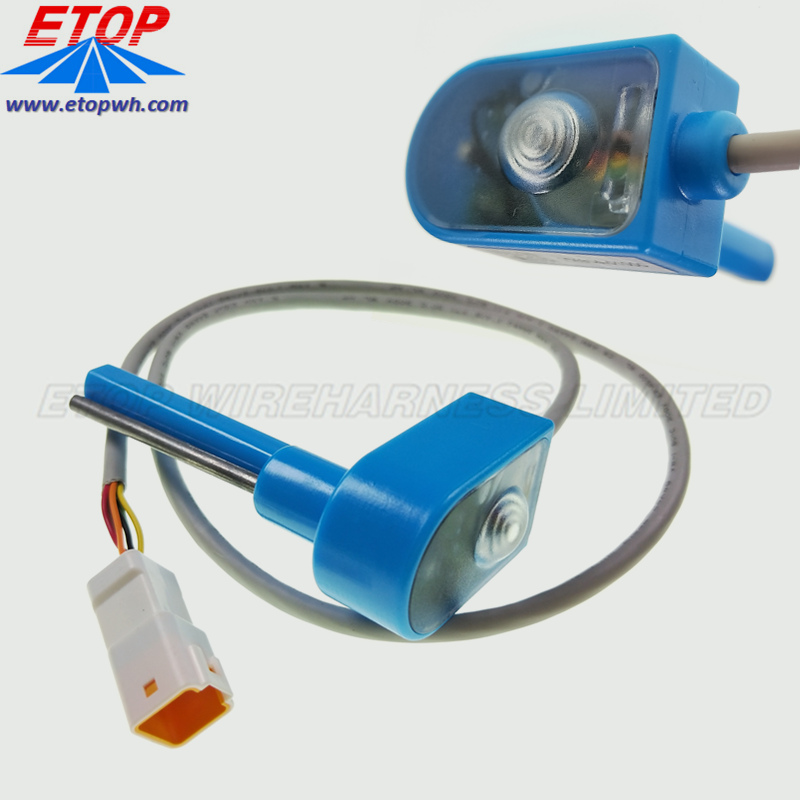

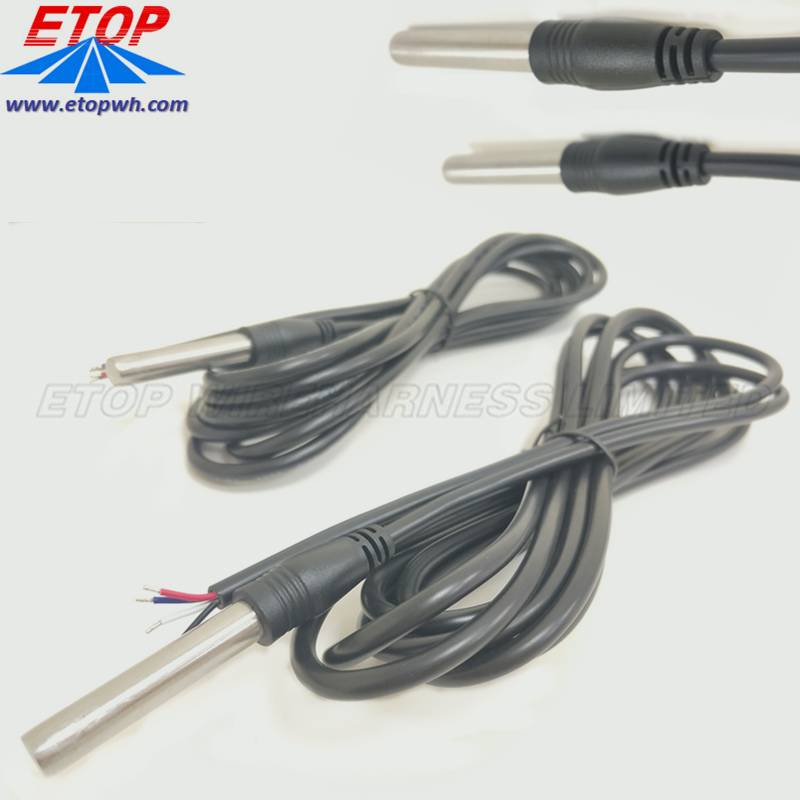

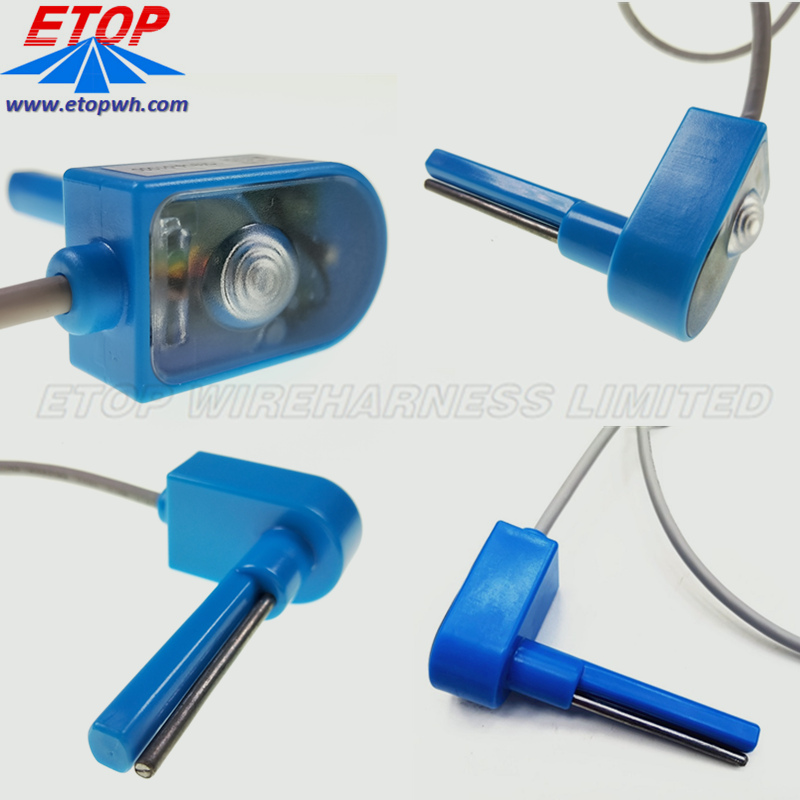

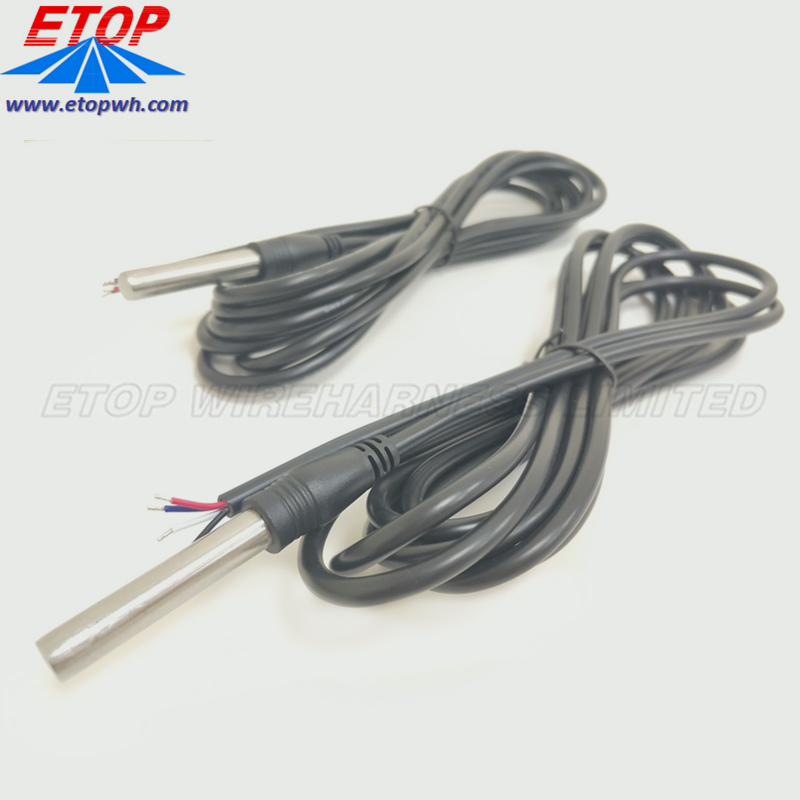

Custom potted thermo sensor cable assembly
The sensor placed in side steel tube, then potted for protection. Also add heat-shrink tube or overmolded the steel tube to strengthen the quality.
With experienced harness assembly experience, tried-and-true production methods and industry standard connections, ETOP has the knowledge and capability to be your qualified AVL and reliable manufacturing partner, to deliver what you need.
| Product Name | Custom Molded Thermo Sensor and Temperature Sensor Cables | ||
| Keywords | sensor cable, thermo sensor, temeprature sensor, car sensor cable | ||
| Application | automotive, vehicles, electronics | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | JWPF | ||
| Protection | heat shrink tube, overmolded and potted | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||

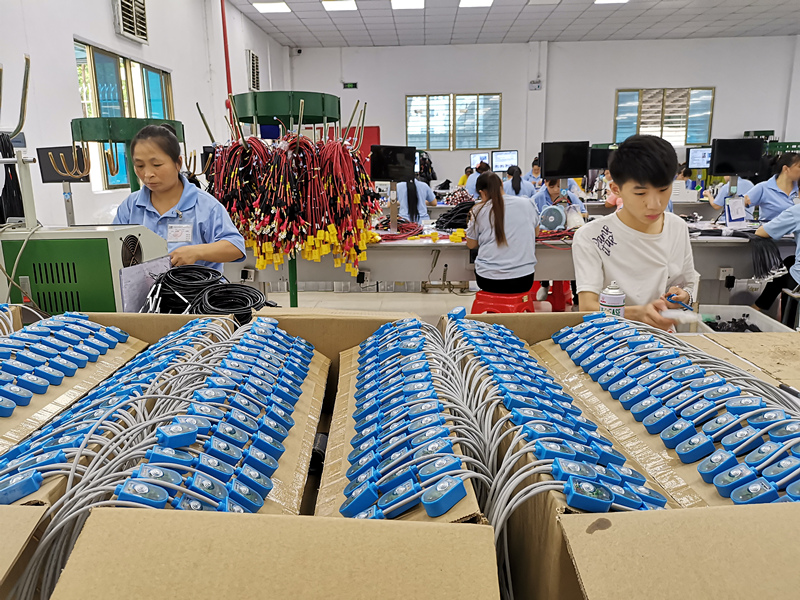

01 Wire Harness Assembly Process
These processes include but are not limited to the following:
Installing the wires and/or subassemblies on the assembly board.
Routing wires and/or subassemblies through any required sleeves.
Applying wraps, ties, or tapes, particularly on any branch-outs.
Crimping terminals onto wires, especially if more than one wire goes into one terminal.
It is difficult to automate the processes used in the building of a wire harness. Manual production remains more cost effective than automation, especially with small batch sizes. Pre-production or kitting of a harness can be somewhat automated.
02 Custom cable assemblies Engineering Services & Support
12vdc SPDT sealed relay & pigtail combo pack, The unit is sealed against moisture, dirt and dust.
Resistor across the relay coil for voltage spike protection.
Rating of contacts dependent upon how the relay is wired
Normally open or normally closed contacts are rated differently.
Contacts not rated or tested above 16vdc
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
03 cable assemblies Engineering Services & Support
Custom auto cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
