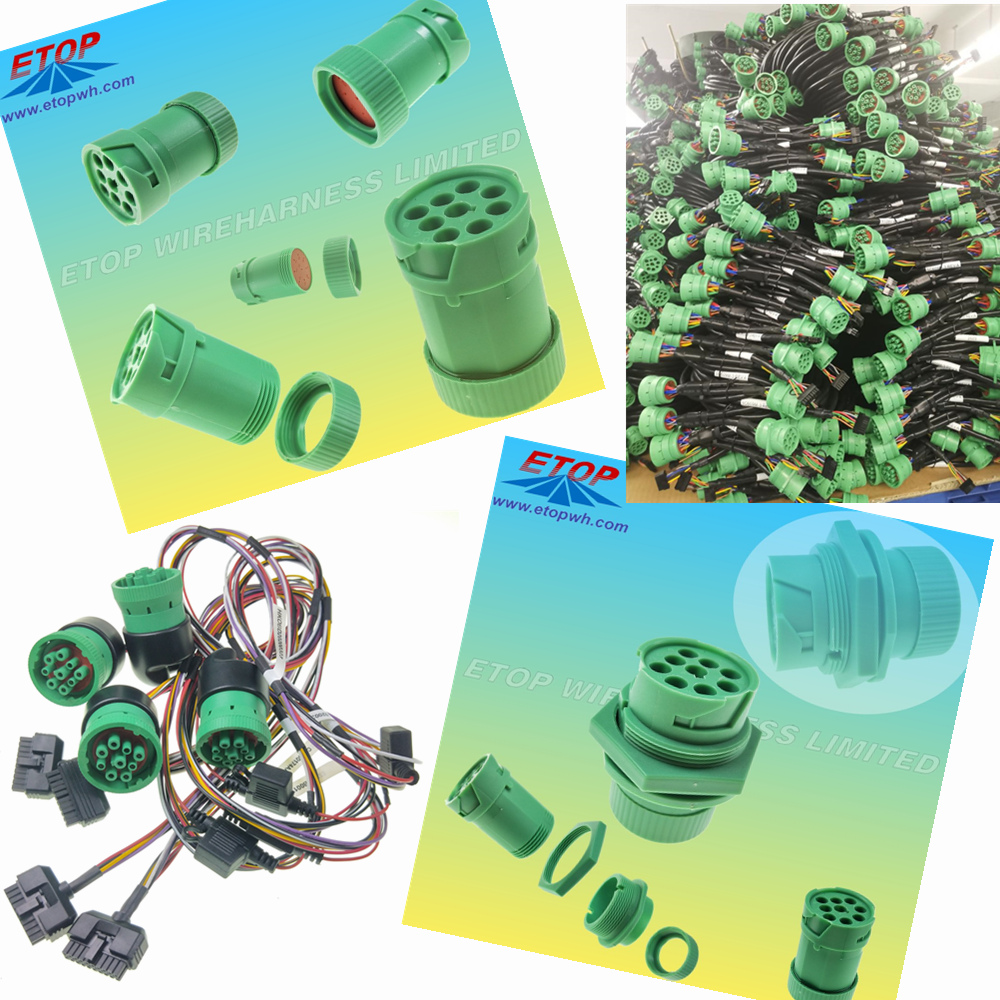

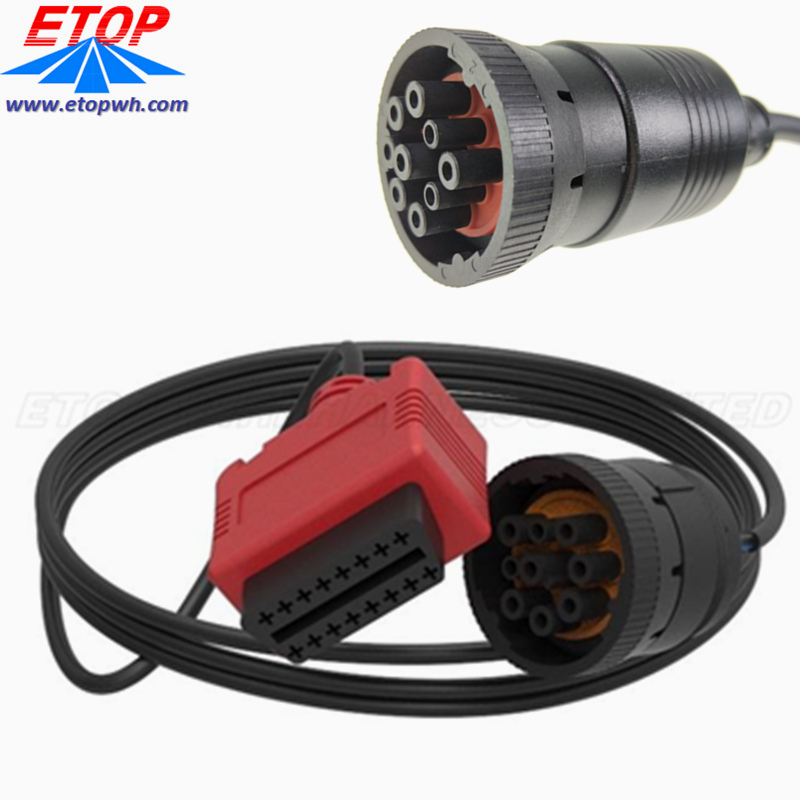

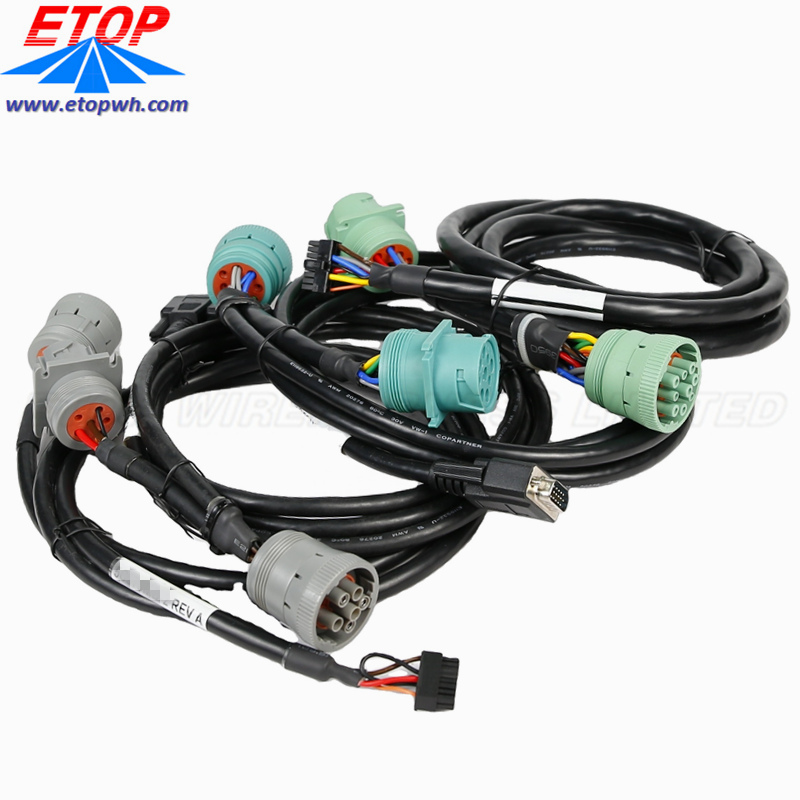

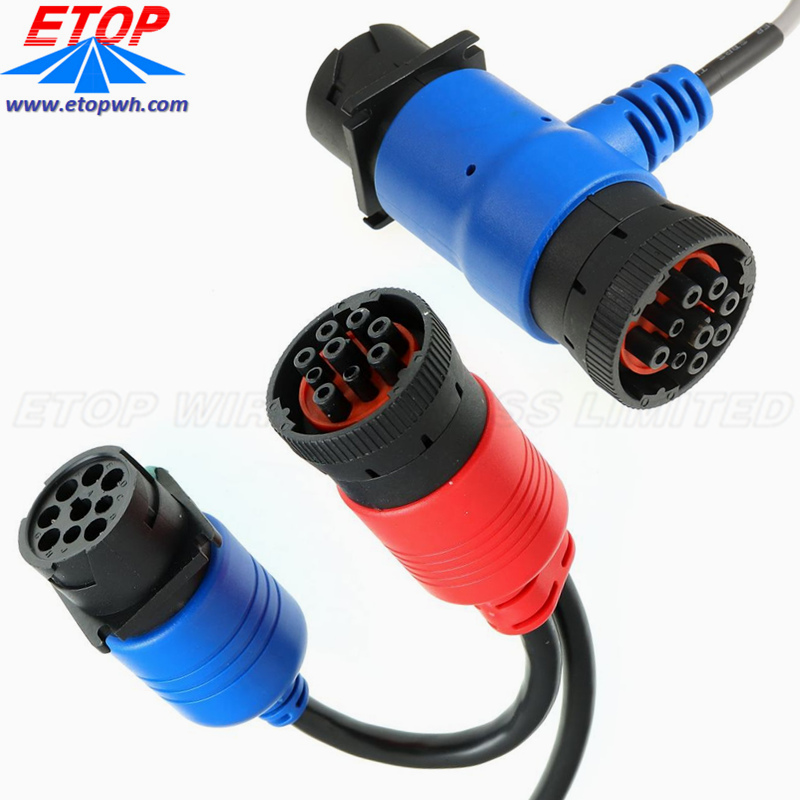

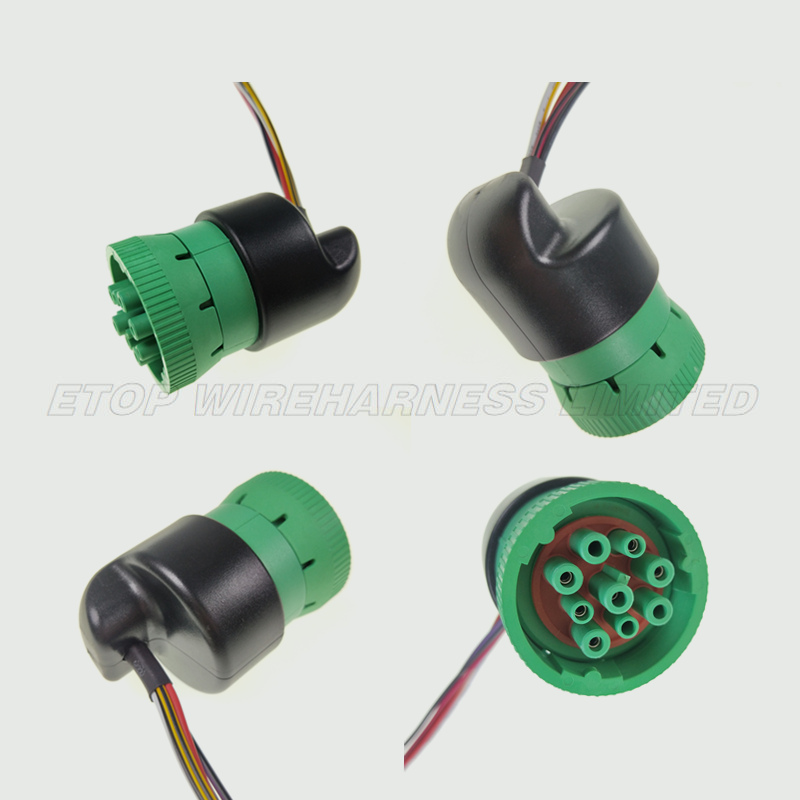

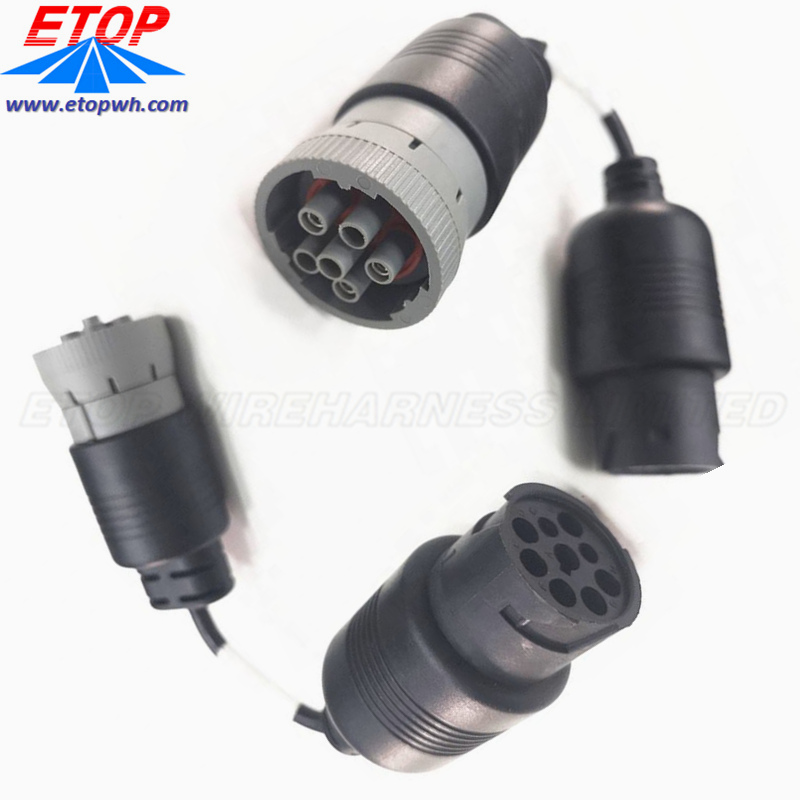

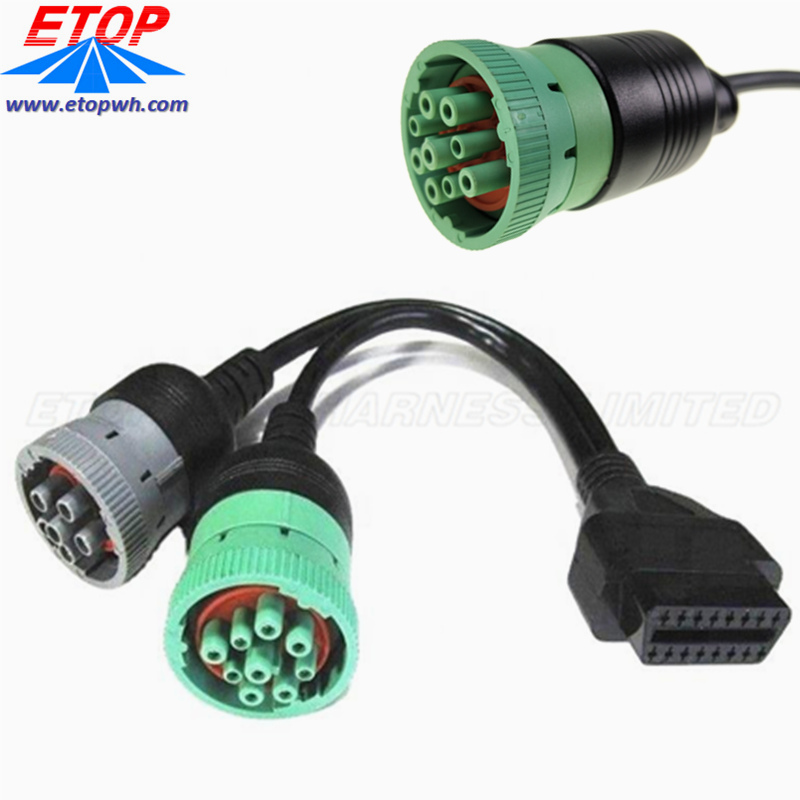

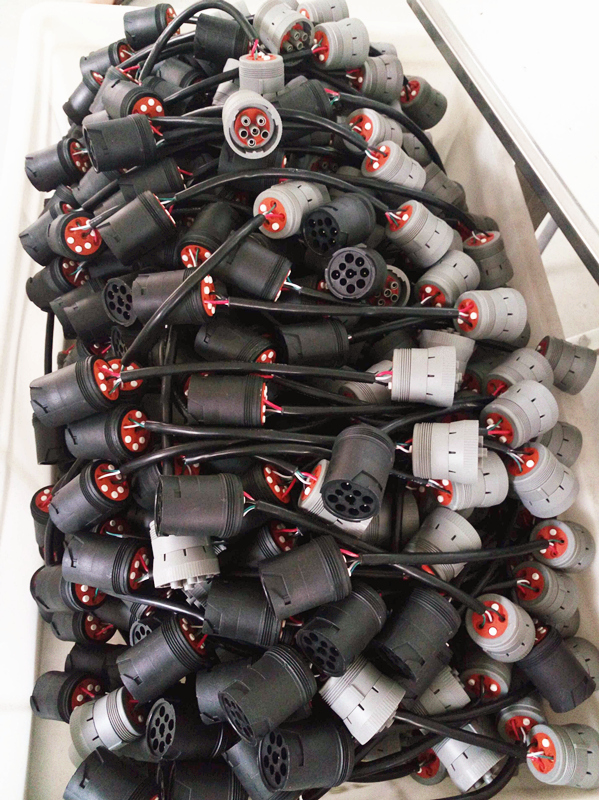

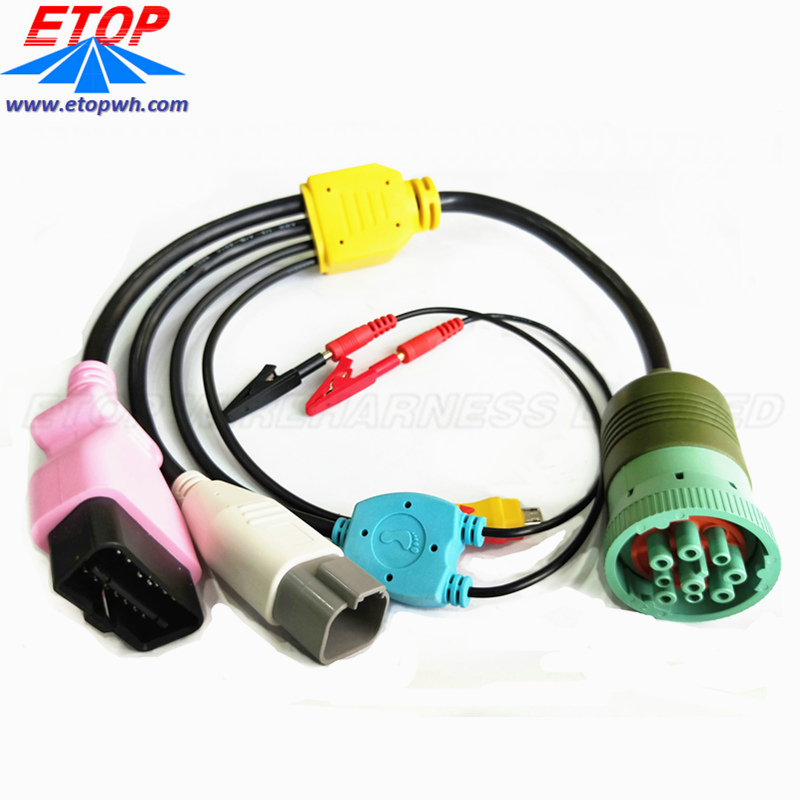

Custom Molded J1939 1962 J1708 Diagnostic Connector Cables

这里可以自定义设置
Custom Molded J1939 1962 J1708 Diagnostic Connector Cables
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-2100-3-2
MOQ:
1000
Payment:
30% prepaid when placing order, balance paid before shipment
Delivery Time:
4~6wks
Start Port:
SZ, HK, GZ
Service:
OEM, ODM, customization
Packing:
customization 45*35*25cm, 40*30*23cm, 30*25*25cm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置
Product NameCustom Molded J1939 1962 J1708 Diagnostic Connector Cables
Application

Automobile diagnostic system

diesel trucks, buses, on-road vehicles, off-road vehicles,

marine propulsion, power generation, and industrial pumping

Cable colorPer customer requirements
Cable LengthPer customer requirements
Connectors postion9pin, 20pin
Connector typeMale
Connector seriesJ1939, J1708, J1962
Suitable Wire Gauge(terminals)20AWG to 18AW
Terminal materialsCopper&Tin
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65
这里可以自定义设置
这里可以自定义设置
这里可以自定义设置

02    We at OBD Diagnostics Inc have developed a software package for use with our OBD2allinone scan tool for J1939 data logging and diagnostics. The J1939 protocol is used for heavy vehicle and industrial applications, and is based on the OBD2 Controller Area Network, CAN, protocol used in all new vehicles.
A few of the myriad uses are:

    diesel powertrain systems
    on and off road gasoline powered vehicles
    liquid natural gas LNG vehicles
    agriculture and forestry machinery ISO 11783
    intra vehicle networking for trucks and buses
    power generation and industrial pumping
    truck-trailer communication
    recreational vehicles
    marine systems NMEA2000
    military vehicles MiLCAN
    fleet management systems

The SAE J1939 standard is the replacement for the older J1708 and J1587 protocols. The J1939 standard defines a huge number of parameters which can be monitored and are referred to by Parameter Group Number or PGN. Below are some examples of our software in use collecting J1939 CAN data on the daily route of a waste collection heavy vehicle.

The real time data available for monitoring and on board diagnostics far exceeds previous standards and replaces outdated systems such as mechanical tachographs. Real time monitoring via telematics and integration with GPS and wireless communication systems allows for complete fleet management and monitoring solutions, all at a very low cost of entry.

这里可以自定义设置

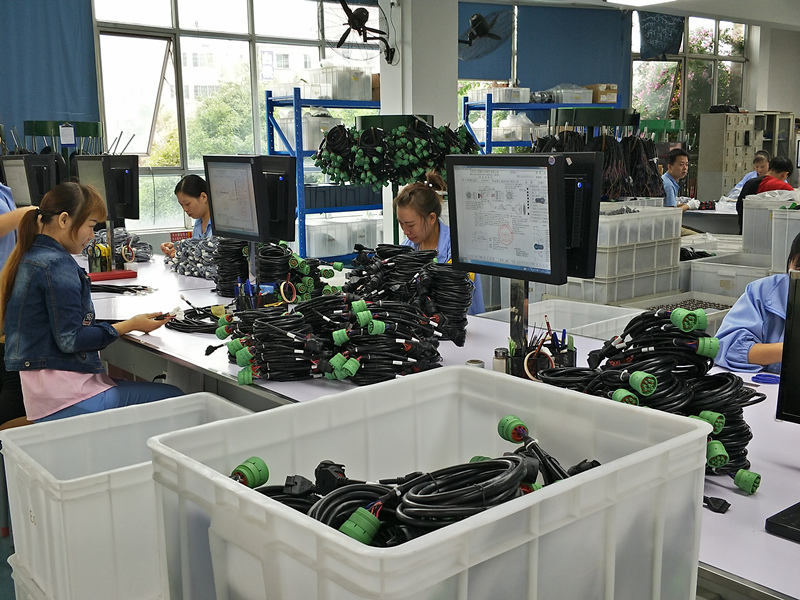

03  J1939 Cable - Manufacturing Solution
Since we manufacture our cables to meet your specific product requirements, we can supply a virtually unlimited variety of J1939 cable configurations and pin-outs. Our engineering staff is readily available to assist in designing a solution to meet your demands. Send us your engineering specifications and we will be happy to accommodate your needs. Our injection molding capability means we can supply you over-molded connectors that ensure rugged environmental performance and a professional appearance.
