Product Description

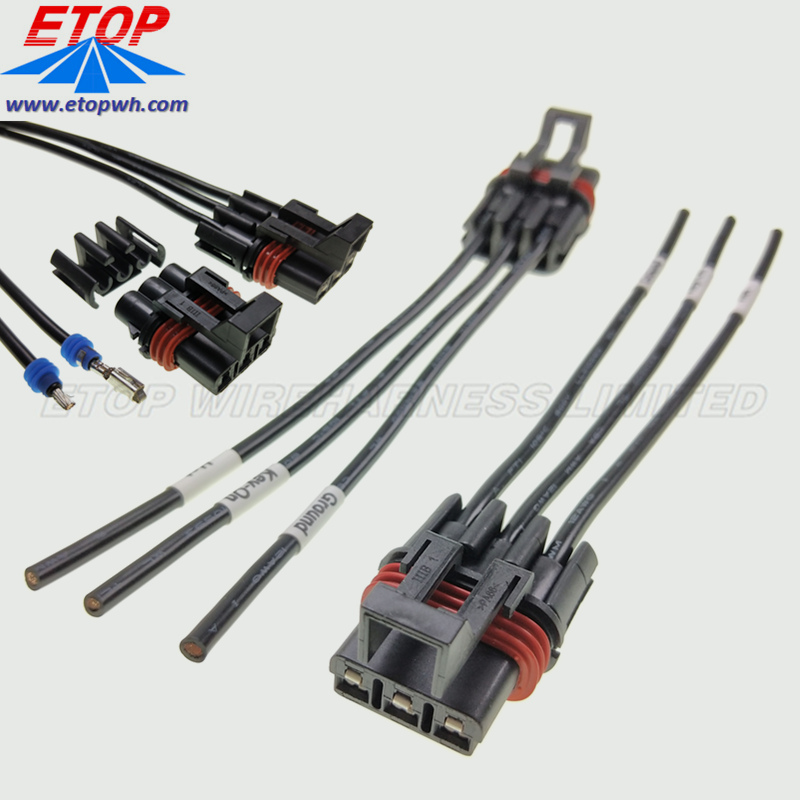

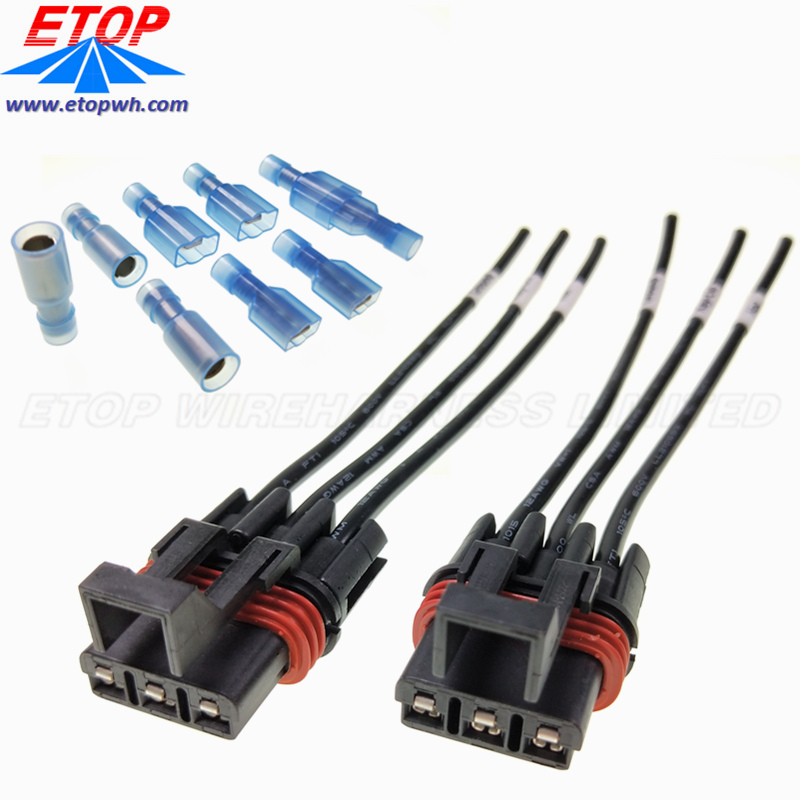

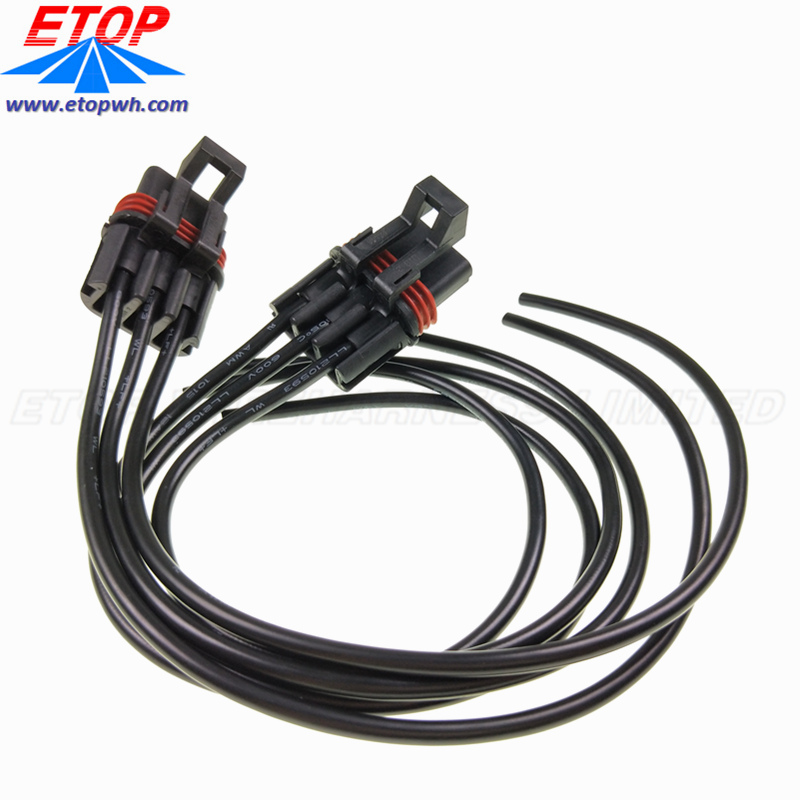

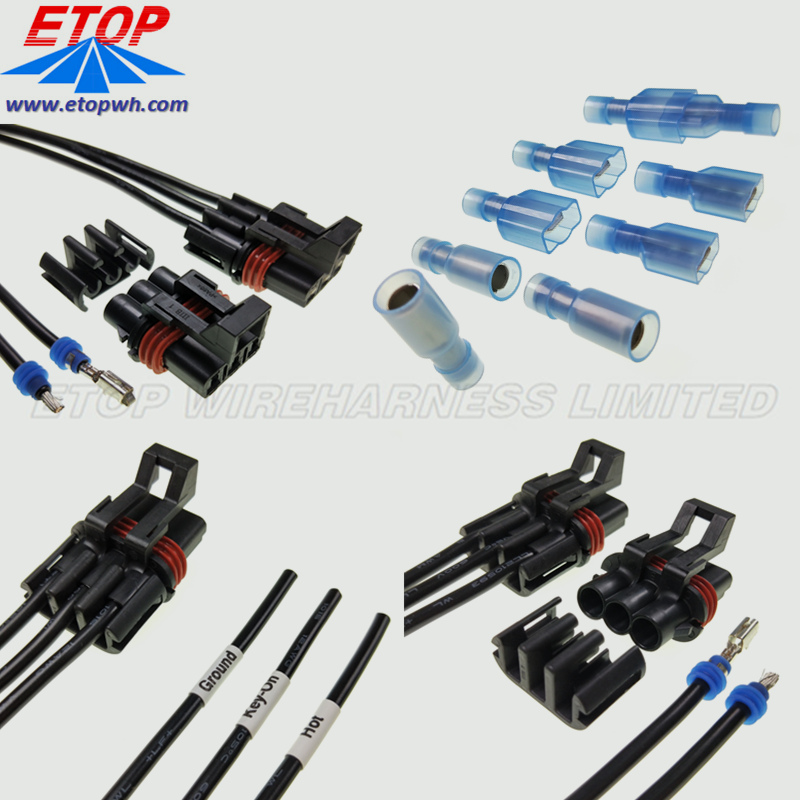

Custom Metri-Pack 280 Sealed Female Connector Assembly for control applications
Metri-Pack 280 sealed connectors Wire Assembly is applied for control system
The 280 series connectors have a 2.8mm blade width,
5mm or 7.7mm centerline spacing, and 0.35mm2 to 5mm2 cable range. They offer <10mΩ @ 20mV
resistance and an operating temperature range of -40°C to +125°C. They feature low energy
and low voltage capabilities as well as excellent resistance to temperatures, chemicals, and abrasion.
280 Connectors are designed to meet or exceed the requirements for most marine, appliance,
and industrial control applications.
| Product Name | Custom Metri-Pack 280 Sealed Female Connector Assembly for control applications | ||
| Keywords | metri-pack 280 sealed connector cable, control wire assembly | ||
| Application | for most marine, appliance, and industrial control applications. | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | Metri-Pack 280 Sealed Female Connector | ||
| Advantage | excellent resistance to temperatures, chemicals, and abrasion. | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 Control wire harness Customization
Electrical connection systems that offer design flexibility and application versatility.
FEATURES
30A continuous maximum current rating
Standard ISO 2.8mm configuration
Connector Position Assurance (CPA)
Terminal Position Assurance (TPA)
Small overall dimensions
Low energy, low voltage capabilities
Excellent resistance to temperature, chemicals, and abrasion
02 Metri-pack 280 sealed connectors Wire Harness Assembly Process
These processes include but are not limited to the following:
Installing the wires and/or subassemblies on the assembly board.
Routing wires and/or subassemblies through any required sleeves.
Applying wraps, ties, or tapes, particularly on any branch-outs.
Crimping terminals onto wires, especially if more than one wire goes into one terminal.
03 Cable assemblies Engineering Services & Support
Custom cable assemblies Engineering Services & Support
SPECIFICATIONS
0.35mm2 to 5mm2 (sealed and unsealed) cable range
0A to 30A current range
-40°C to + 125°C operating temperature range
<10mΩ @ 20mV resistance
<3mV/A voltage drop
5mm (unsealed), 7.7mm (sealed) centerline spacing
2.8mm blade width
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
