Product Description

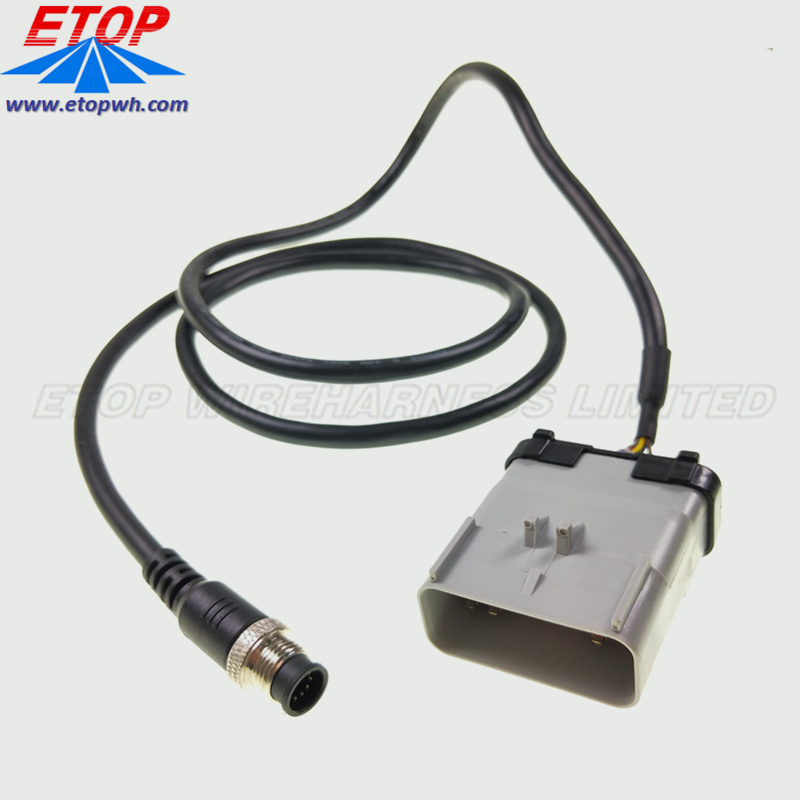

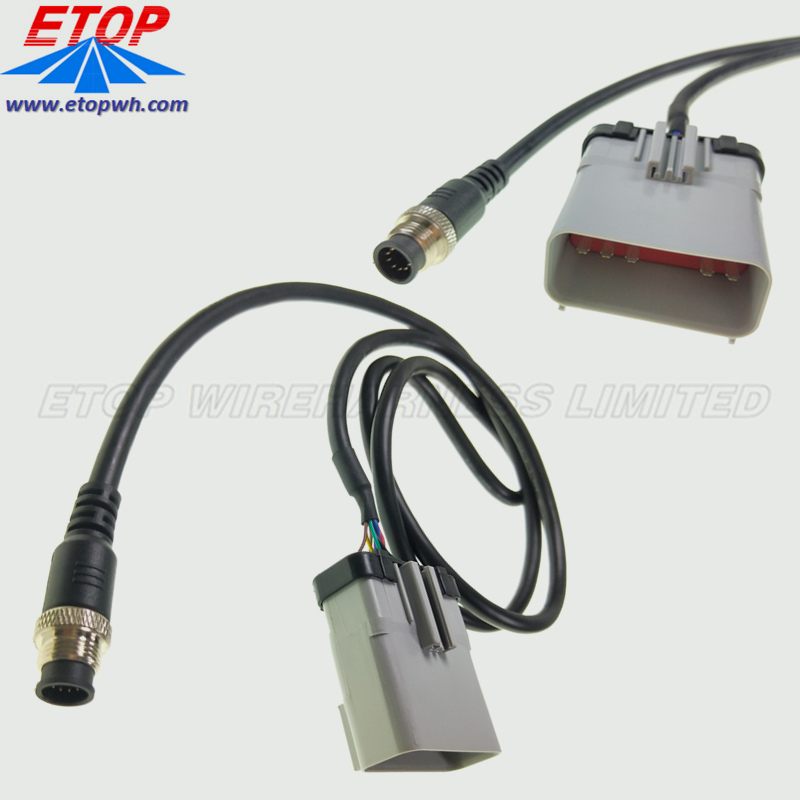

Custom M12 connector to APEX 2.8MM connector cable overmolding
APEX connectors Wire Assembly
www.wireharness-assembling.com
www.oemmoldedcables.com
www.oemwireharness.com

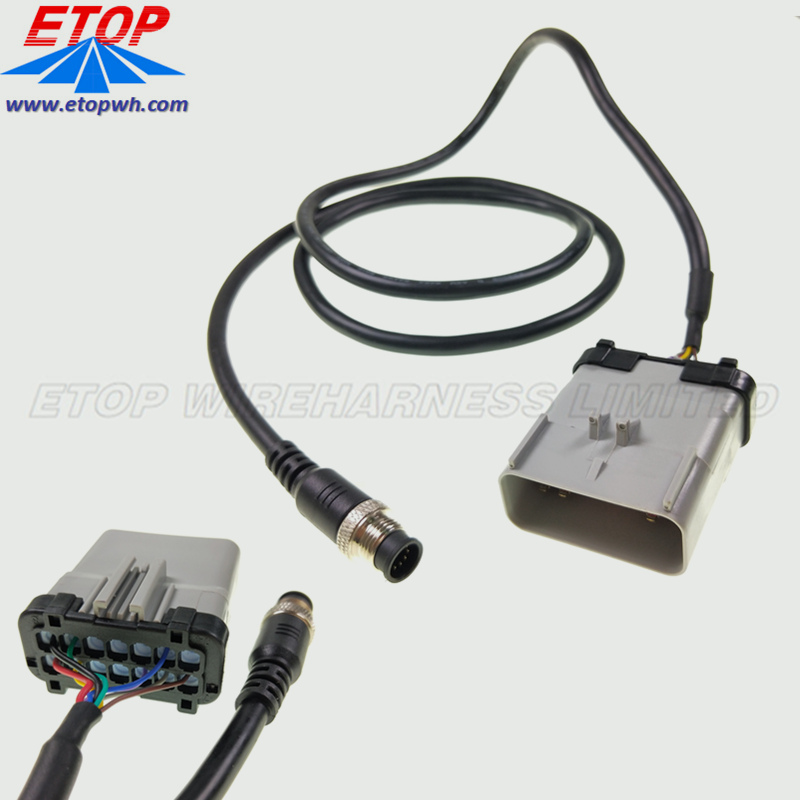

APEX 2.8MM 54201416 CODE B & 54201412 CODE B 14WAY CONNECTORS
Automotive 14-way APEX 2.8MM connector system, grey male, female
Fits accessory connector found on 2019 and newer heavy trucks.
APEX Connectors Series
APEX Wire Connectors are designed for harsh environments, including vibration, extreme temperatures, and moisture. These high-performance connectors are ideal for challenging applications such as automotive, construction, and agriculture. They offer a robust design and reliability. Aptiv APEX Wire Connectors are available in a wide range of pin numbers, mounting styles, contact plating, and much more.
| Product Name | Custom M12 connector to APEX 2.8MM connector cable overmolding | ||
| Application | Automobile Connectors | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connectors postion | 14 position， 16pin | ||
| Connector type | Male | ||
| Suitable Wire Gauge(Connectors) | 20AWG to 12AWG | ||
| Connector series | APEX | ||
| Housing Materials | Polyamide(PA) | ||
| Materials | Ultramid A3EG7 Nylon 6/6 GF35 | ||
| Rows | 2 rows | ||
| Connector pitch | 5.25mm | ||
| Suitable Wire Gauge(terminals) | 20AWG to 18AW | ||
| Terminal materials | Copper&Tin | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 FEATURES
| Withstands high temperatures, vibration, and moisture |
| Robust design for reliability |
| Two-piece female terminal construction |
| Pre-loaded leaf spring for insertion-force reduction |
| High normal force contact for vibration and high current rating |
| Fixed floor contact for exceptional vibration stability |
| Clean body design for robustness during handling |
| Variety of housing designs: plastic locking fingers with TPA |
| key codes and colors, and CPAs offered as options |
| terminal backup, fully assembled with pre-staged TPA, multiple |
02 Automotive 14-way APEX 2.8MM connector system, grey male, and female . Fits accessory connector found on 2019 and newer heavy trucks. This is the connector that plugs into the accessory connector located near fuse panel or on left side of steering column behind dash cover.
03 We had our own tooling to produce the local APEX 2.8mm 14ways connectors here, which is more competitive in price with short L/T compared with the original one. APTIV, APEX 2.8MM 54201416 CODE B & 54201412 CODE B 14WAY CONNECTORS. On vehicles with warning label you should only use the accessory connector to power and run your telematics, ELD or other aftermarket devices that require data from J1939, CAN or J1708. This conforms with TMC RP1226.

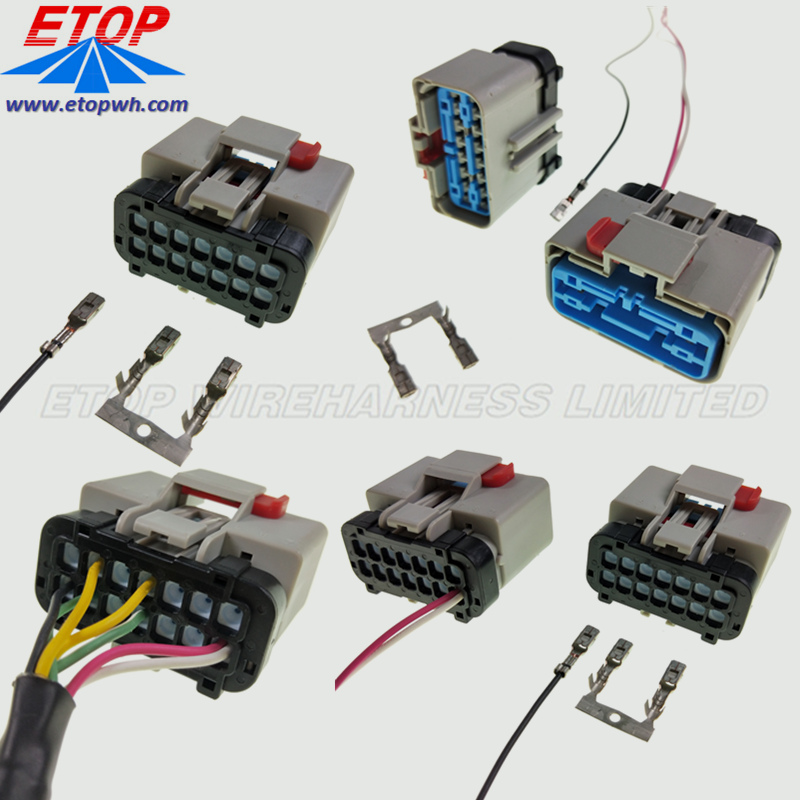

Female 14 way connector set with terminals. Fits accessory connector found on 2019 and newer heavy trucks. If your truck has the warning label shown in picture 6 above this is the connector that plugs into the accessory connector located near fuse panel or on left side of steering column behind dash cover. Fits all makes and models 2019 and newer.
The Apex 2.8 sold here are genuine Aptiva parts - Formerly Delphi.
The housing using FCI APEX connectors 54201416 male receptable , see the specifications.
04 The APEX P/N 54001801 18-20AWG terminals(MALE 2.8MM TERM 18-20 AWG TIN ) also offers best-in class stamping material utilization,optimum cost/performance material selection(spring and body), superior spring damage protection.
We are more than your source for world-class automotive connectors technology. Innovating together, we work side-by-side with customers in virtually every industry to create answers to the connectivity challenges of tomorrow. We provides quality electrical and electronic interconnection products for automotive, on- and off-highway, and hybrid and electric vehicles to electrically and mechanically join wires and cables, printed circuit boards, integrated circuit packages, and batteries. Our automotive connectors are built to withstand tough conditions and suit the needs of varying industries
