custom IP65 waterproofing electric bicycle connector cable

这里可以自定义设置
custom IP65 waterproofing electric bicycle connector cable
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-2072
MOQ:
1000
Payment:
30% prepaid when placing order, balance paid before shipment
Delivery Time:
3~6wks
Start Port:
SZ, HK, GZ
Service:
OEM, ODM, customization
Packing:
customization 45*35*25cm, 40*30*23cm, 30*25*25cm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description



custom colored waterproofing ebike connector cable

ETOP offers Customized waterproof junction box for power or signal, Outdoor weatherproof enclosure with pre-installed waterproof connectors series.

Final assembly of the enclosure will generally include assembling a PCB into an enclosure, wiring the PCB to external connectors and power, final assembly testingand packaging.



This M6, M8, M10, M12 waterproof connector for automobile cable assemblies designed based on customer drawing, plastic shell with palstic nut. Even the space on connector is quite limited, We still try to show the arrow about the locak point for customer better assembling. The molded materials can be PVC or PUR. Related IP67, IP68 waterproof standard for M8, M12, M16 series all available. Also the metal type connector meet 360° EMI shielding.

Product name: custom colored waterproofing M6 connector
Connector type: M6,M8,M10,M12,M16
Quality Certificate ISO9001, IATF16949, ROHS, SGS,ROHS,REACH

Product Specifications

Product Name
custom IP65 waterproofing electric bicycle connector cable
Applicationebikes connecting devices
GenderMale and Female Connectors
Pins2Pins~9PIN
Wire Core MaterialCopper
ColorBlack
Working Temperature-40℃~ + 85℃
Storage Temperature 25℃~85℃
Atmospheric pressureAtmospheric pressure
Relative humidity≤90%
Material of ContactBrass
Contact PlatingGold over nickel
Protection degreeIP68, IP67,IP65
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment
这里可以自定义设置

Product Details

这里可以自定义设置

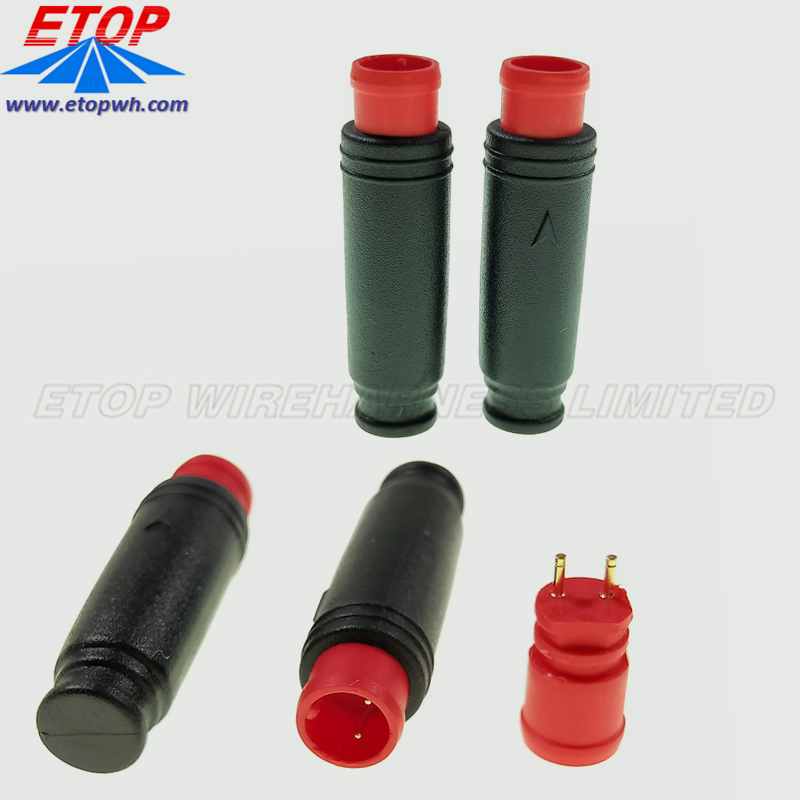

01 custom colored waterproofing M6 signal connector
This M6, M8, M10, M12 waterproof connector. We have various tool for original or local equivalent waterproof Connectors from AMPHENOL, TTI, Higo connectors. IP65/IP67/ IP68 waterproof standard for M8, M12, M16 series and etc. We can design the overmolding mold as by customermized service, like molded by 90 or 180 degree. Or conversion by T type. The o-ring and nut all designed perfectly to meet the waterproof standard.

Looking for ideal IP68 waterproof Molded Connector Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Molded Waterproof Connectors are quality guaranteed. We are China Origin Factory of such waterproof Connector.

这里可以自定义设置

02 Custom Electro-Mechanical Connectors

With our broad engineering expertise, we design and build custom electro-mechanical connecting devices to solve customer problems. After receiving your basic parameters of the application, our staff provides the best design solution at the lowest overall cost.

Due to our unique manufacturing and tooling methods, custom work is less expensive than one might imagine. Whether it’s a light-duty circuit board application or a heavy-duty hard-wiring problem, send Custom waterproof Connector your requirements and we’ll design the product to fit your need.



Technical data:

Operation temperature: -20°C~+80°C (PVC cable Jacket)

Insulation resistance: ≥ 100M Ω



Electrical Connector specification:

Insert : PA+GF

Contact:Brass with gold plating

Screw/Nut: Brass with nickel plating

Overmold:TPU



Cable specification of electrical connector:

Cable type:PVC or PUR

Cross section type:0.25mm2*XC

Wire insulation:PVC

Wire color:Brown,White,Blue,Black,etc

Cable length:Customzied



这里可以自定义设置

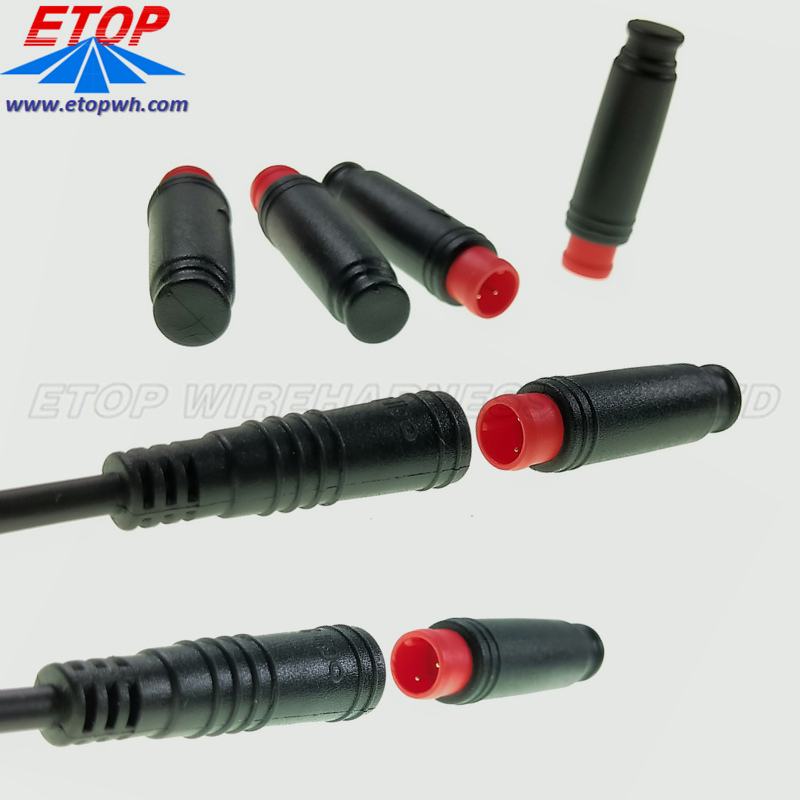

03 Waterproof ebike connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

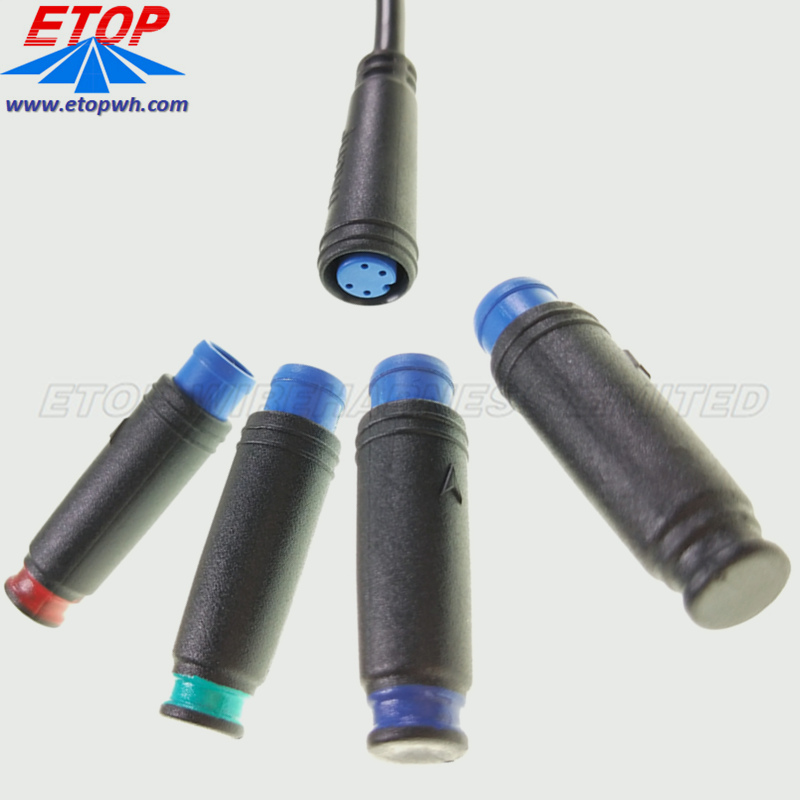

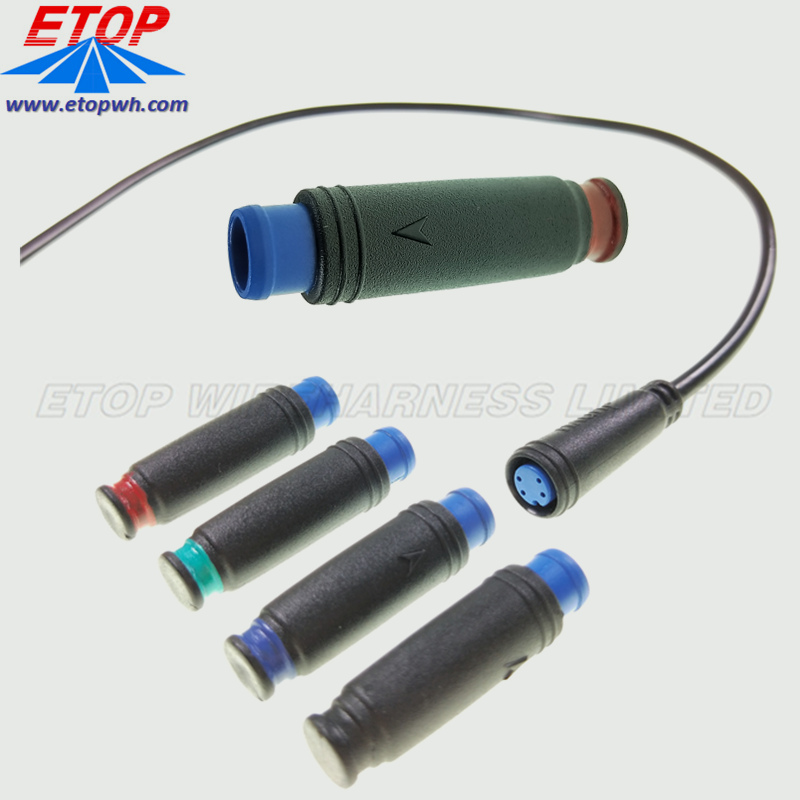

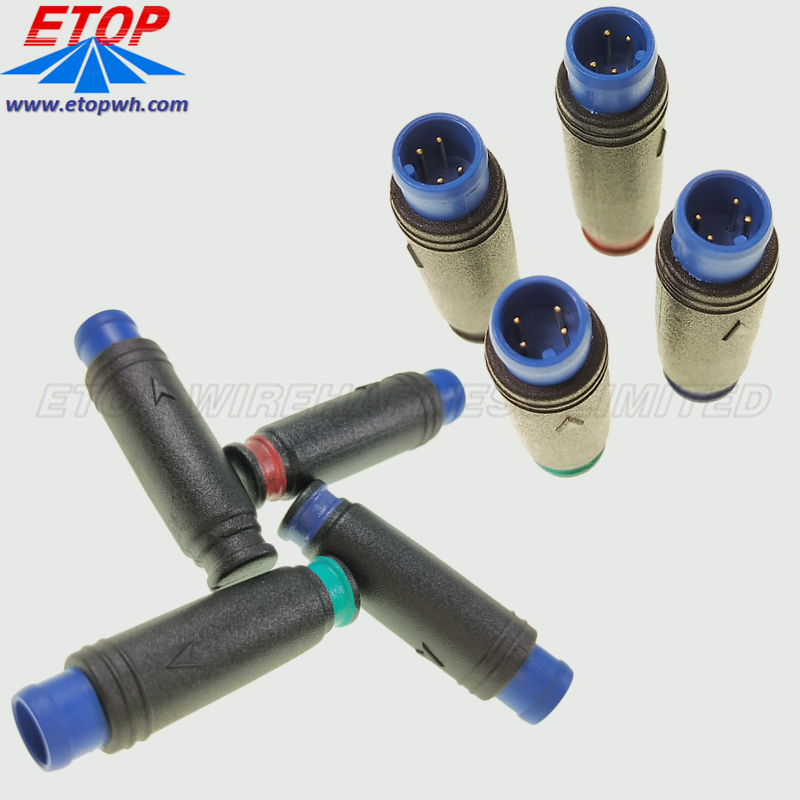

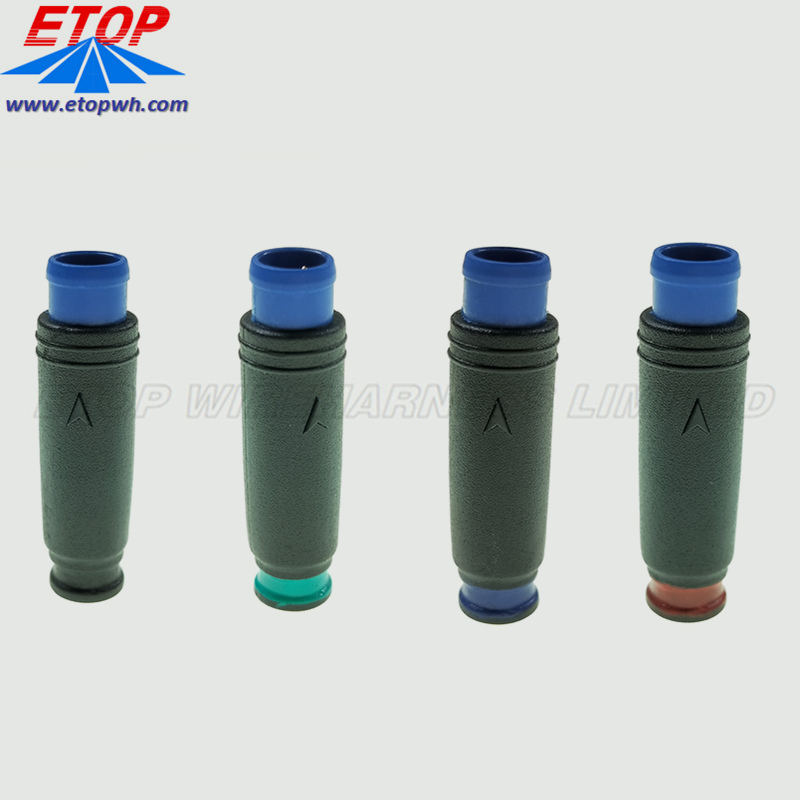

There are 2pin, 3pins, 4pins, 5pins, 6pins male and female waterproof connector cable for M6 series, to see the details descriptions in the photos.

Product Applications

Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.

M8 series provides a wide range of metric M6 connectors for small sensors and actuators. Shielded is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. To strengthen the waterpoofing function, we add glue potting as below, to make sure all soldering point covered with glue by 360 degree.
