Product Description

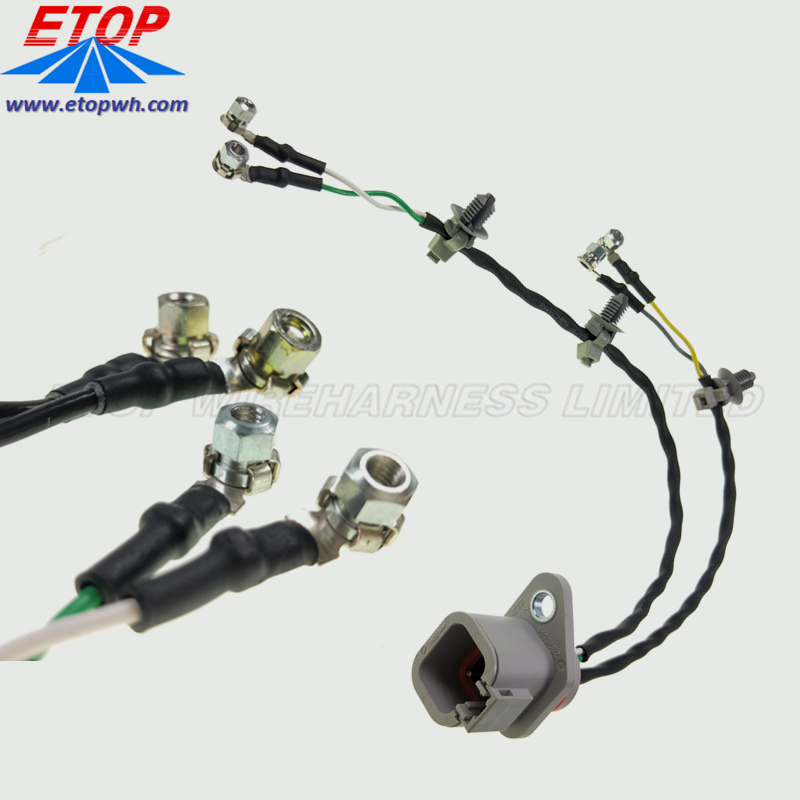

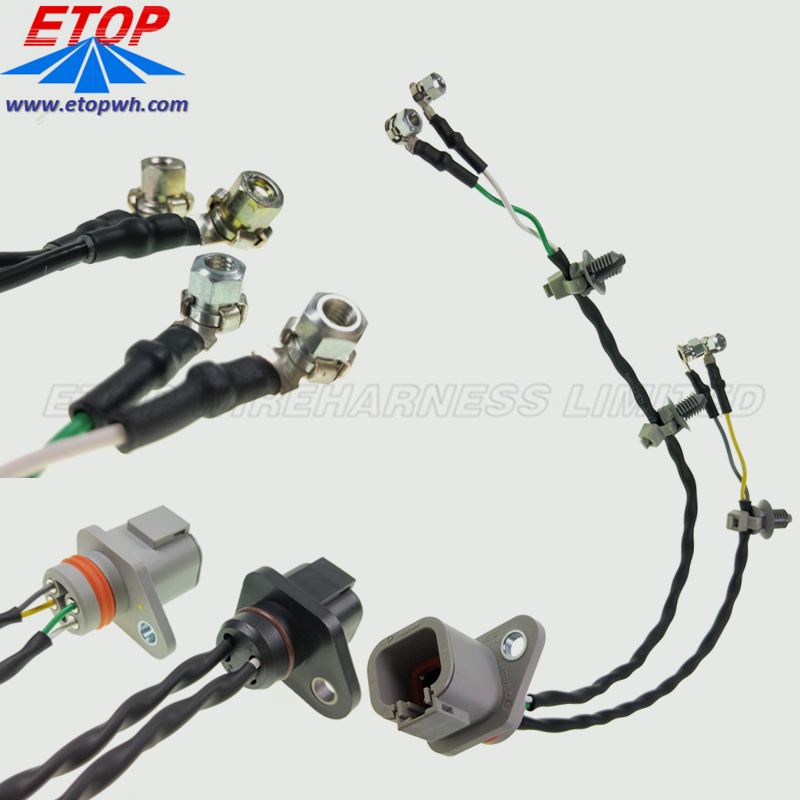

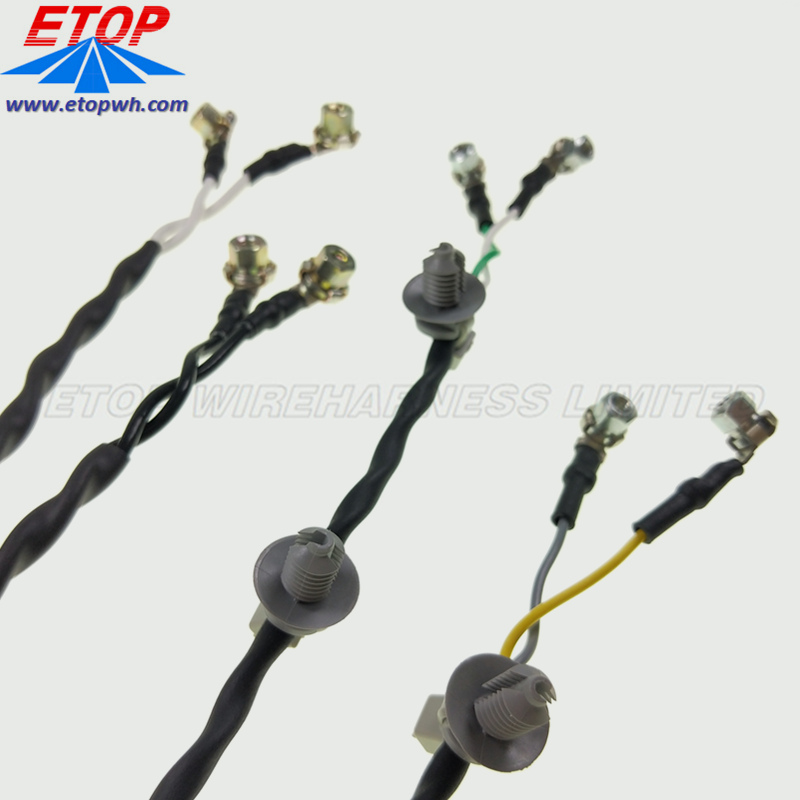

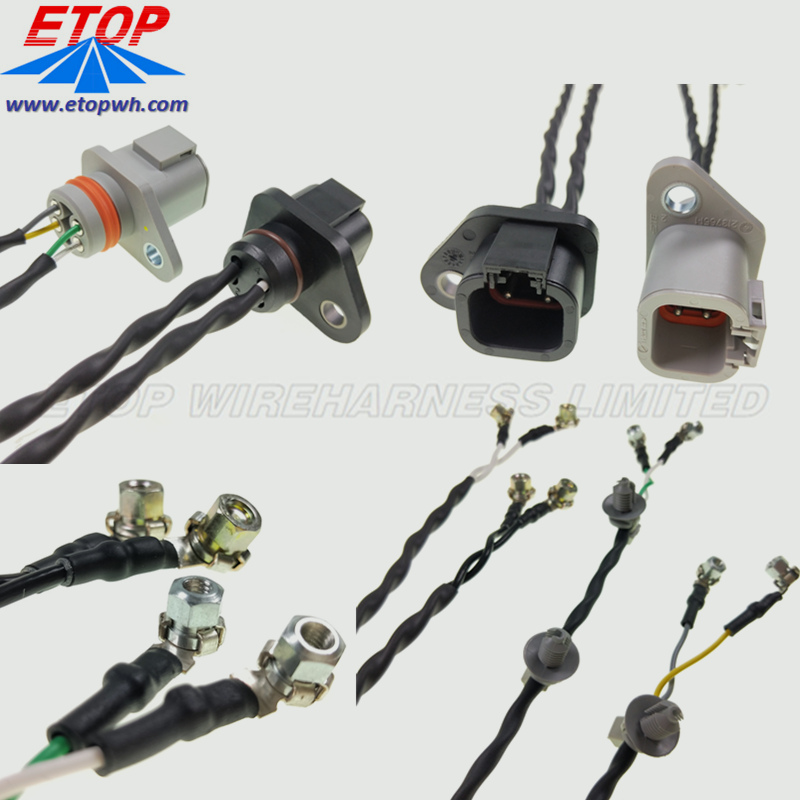

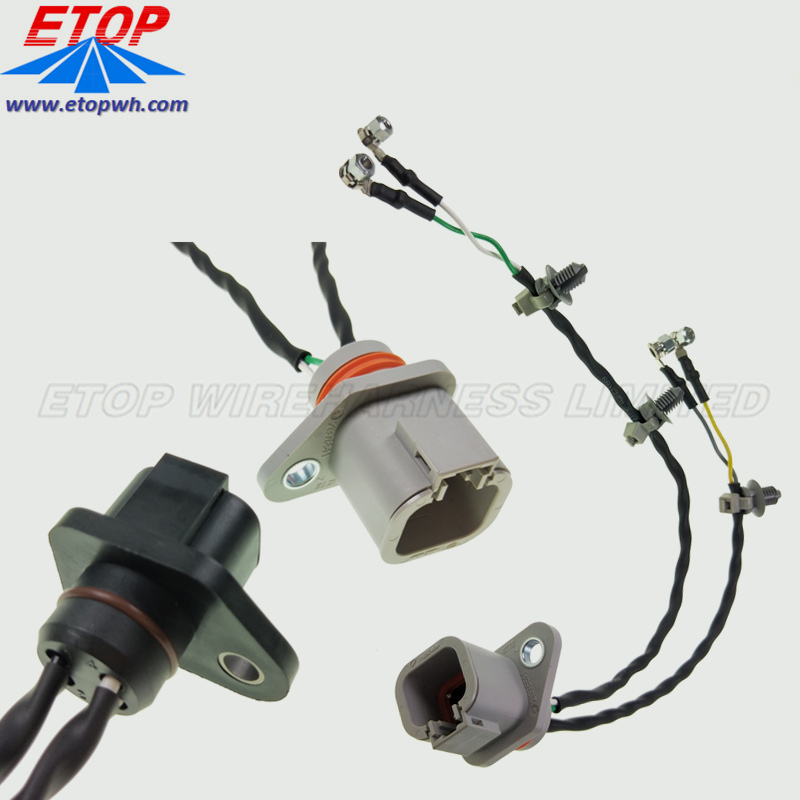

Custom Diesel Engine Fuel Injection Wire Harness with DTV02-18 Connectors
DTV connectors wire harness Customization
DTV connectors Wire Assembly is applied for Diesel Engine Fuel C9 diesel engine parts 215-3249 419-0841 injector wiring harness for caterpillar parts
DTV Connectors Series
• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.50-0.50 mm2)
• 18 cavity arrangement
• Flange mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
| Product Name | Custom DTP04 Connector Wiring Harness for trailer Heat Resistant system | ||
| Keywords | Custom DTP04 Connector Wiring Harness,trailer Heat Resistant Wiring Harness | ||
| Application | automotive, vehicles diesel engine fule injection | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connector type | DTP04 | ||
| Protection | heat-shrinking | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01 auto wire harness Customization
Custom DTP connectors can be designed to meet most applications, typical designs allow the following features to be specified:
Material Compounds (PVC, Thermoplastic Elastomers (Santoprene, Uniprene, etc.);
Material Durometer and color;
IP Rating against Dust/Dirt/Moisture;
Ergonomic and Style Factors;
Mating Force of terminals and Molded Connectors;
Keying Features to control Mating;
Temperature Requirements;
Terminals and Terminal Plating;
Amperage Rating and Allowable Gage Ranges of Wires in the Connector
02 DTP connectors Wire Harness Assembly Process
These processes include but are not limited to the following:
Installing the wires and/or subassemblies on the assembly board.
Routing wires and/or subassemblies through any required sleeves.
Applying wraps, ties, or tapes, particularly on any branch-outs.
Crimping terminals onto wires, especially if more than one wire goes into one terminal.
03 Braided cable assemblies Engineering Services & Support
Custom braided cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
