Custom Caravan Wire Assemblies

01 12 Volt Wiring system is an indispensable requirement for RV and you should have a proper arrangement to take pleasure in your outing with your RV. Any touring car system requires a trailer wiring harness to safely connect the taillights, turn signals, brake lights and other necessary electrical systems.Then it is necessary to install a 7-way, RV-style trailer connector on your vehicle with this easy-to-splice harness.It draws power directly from the battery to avoid overloading your vehicle's circuits.

03 A custom wiring harness has multiple plugs that are used to 'T' into the vehicle's taillight assembly, drawing power directly from the taillights or from a direct battery connection. While custom wiring harnesses usually require two or more connection points, splicing and soldering are still not needed.  While some vehicles may not be equipped with a standard trailer wiring connector, they may have a special socket specifically intended for installing wiring.

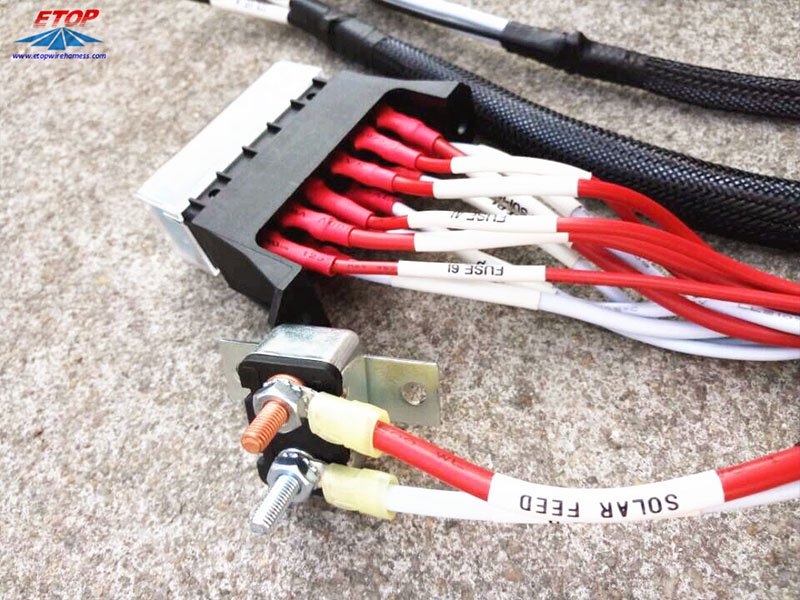

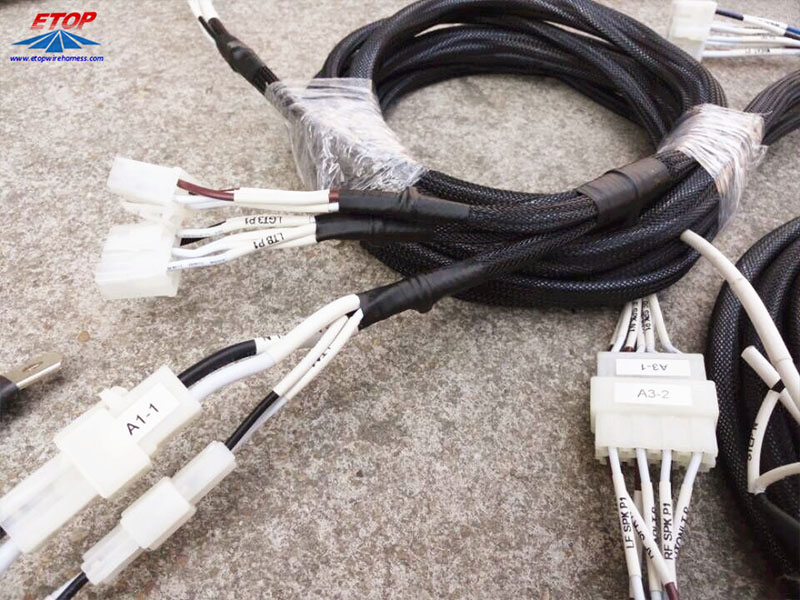

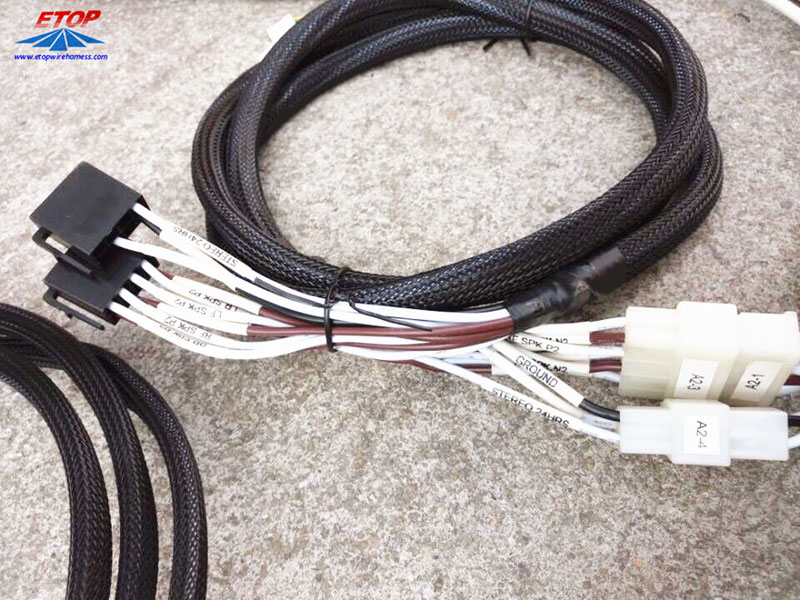

05 Etop wire harness: Every PIN-OUT marked the function of the wires by heat-shrink tube type. As below in details about the engineer drawing and products photo in details. The complete loom controlled size by 1:1 fixture tool, also made electric testing in the same fixture.
