Custom Braided Auto Ampseal Connector Cable Assembly
Product Launch: High-Performance Automotive Wire Harness – Precision Engineered for Reliability
Introducing our premium automotive wire harness, designed to meet the stringent demands of modern vehicles, including EVs, trucks, and industrial machinery. Crafted with high-quality materials and certified to IATF16949, UL, and ISO9001 standards, this harness ensures durability, safety, and optimal electrical performance in extreme conditions.
Our Automotive Wiring Harness Key Applications:
Engine systems (valve cover gaskets, diesel gaskets for FORD)
Safety & ADAS (Intelligent Anti-collision Systems, headlamps)
Interior electronics (audio, power seats, GPS, rear-view mirrors)
Electric vehicles & e-bikes (complete cable assemblies)
| No | Component | Description |
|---|---|---|
| 1 | Wire | RYVP3.0.5mm²/16C + (1.25mm²/1P+AL)*8 · Blue Nitrile PVC jacket · OD: 19.5±0.5mm |
| 2 | Terminal | 770520-1 · Tin-plated · Compatible with AWG standards |
| 3 | Housing | 776164-1 · Black · High-temperature resistant |
| 4 | Backshell | 776463-1 · Black · Robust mechanical protection |
| 5 | Sealing Plug | 770678-1 · Natural · IP-rated for moisture resistance |
| 6 | Heat Shrink Tubing | UL-certified · Black · Insulation and abrasion resistance |
VDA-authorized by Continental · Compliant with IPC620, IATF16949, UL, TÜV, and VDA.
100% tested with rigorous QMS (Quality Management System).
Fully customized solutions · R&D support and DFM/PPAP/FAIR documentation.
1,300+ toolings on hand for rapid prototyping and production.
Supports low-volume/high-mix and high-volume/low-mix orders.
13,000 m² production facility in Dongguan, China.
Proven in automotive, industrial, medical, e-bikes, and smart devices.
Double OQC inspection (AQL=0.65).
100% terminal crimping inspection and electrical testing.
Custom packaging (max. 16kg/CTN) with anti-static and moisture-proofing.
Contact us for tailored wire harness solutions that meet your exact specifications. Fast turnaround, global shipping, and dedicated after-sales support guaranteed.
"Driving Innovation with Every Connection"
Product Description

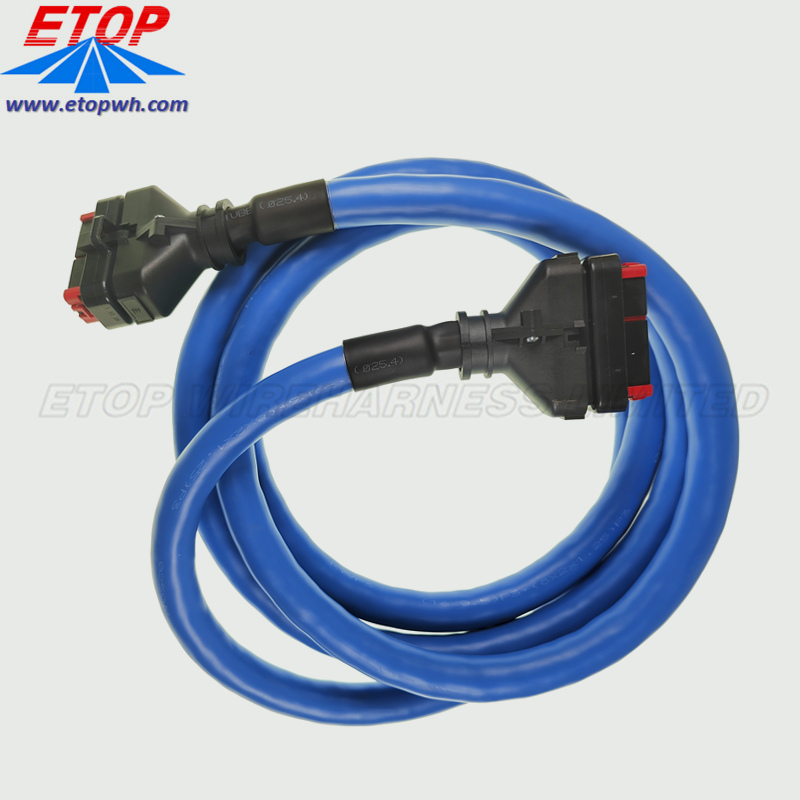

Custom Braided Auto Ampseal Connector Cable Assembly
Product Launch: High-Performance Automotive Wire Harness – Precision Engineered for Reliability
Introducing our premium automotive wire harness, designed to meet the stringent demands of modern vehicles, including EVs, trucks, and industrial machinery. Crafted with high-quality materials and certified to IATF16949, UL, and ISO9001 standards, this harness ensures durability, safety, and optimal electrical performance in extreme conditions.
Our Automotive Wiring Harness Key Applications:
Engine systems (valve cover gaskets, diesel gaskets for FORD)
Safety & ADAS (Intelligent Anti-collision Systems, headlamps)
Interior electronics (audio, power seats, GPS, rear-view mirrors)
Electric vehicles & e-bikes (complete cable assemblies)
| Product Name | Custom Braided Auto Ampseal Connector Wiring Cable | |||
| Application | Automotive System | |||
| Cable Length | Per customer requirements | |||
| Conductor | Bare Copper | |||
| Cable Jacket | PVC | |||
| Bandaging Materials | 3M taping | |||
| Cable spec | RYVP3.0.5mm²/16C + (1.25mm²/1P+AL)*8 · Blue Nitrile PVC jacket · OD: 19.5±0.5mm | |||
| Backshell | 776463-1 · Black · Robust mechanical protection | |||
| Connectors system | ampseal | |||
| Connector style | 776164-1 · Black · High-temperature resistant | |||
| Cable protection | Covered with braiding sleeve 94V-0 & 3M taping | |||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH | |||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | |||
01

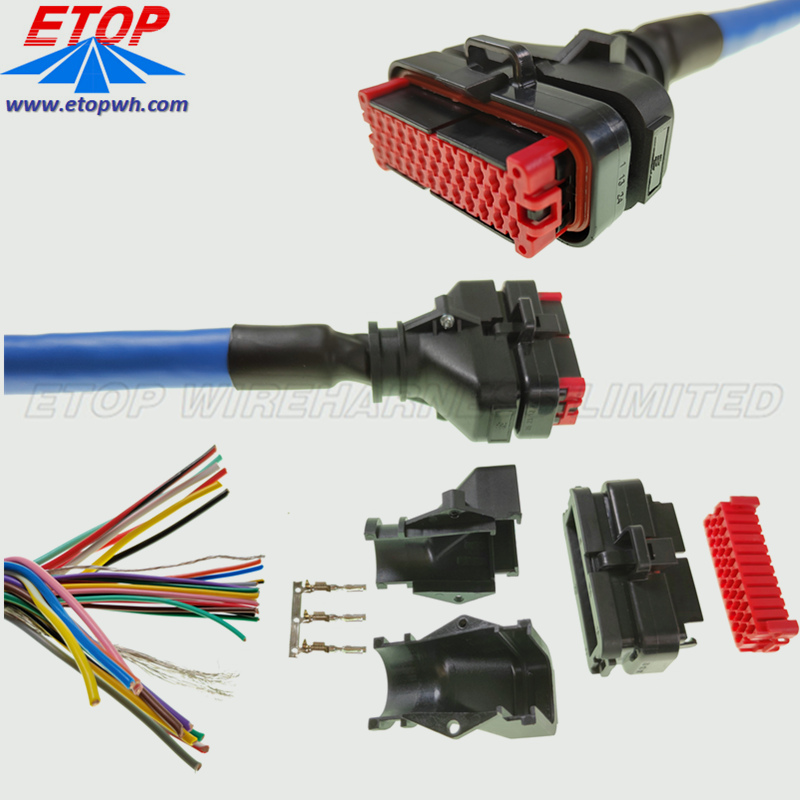

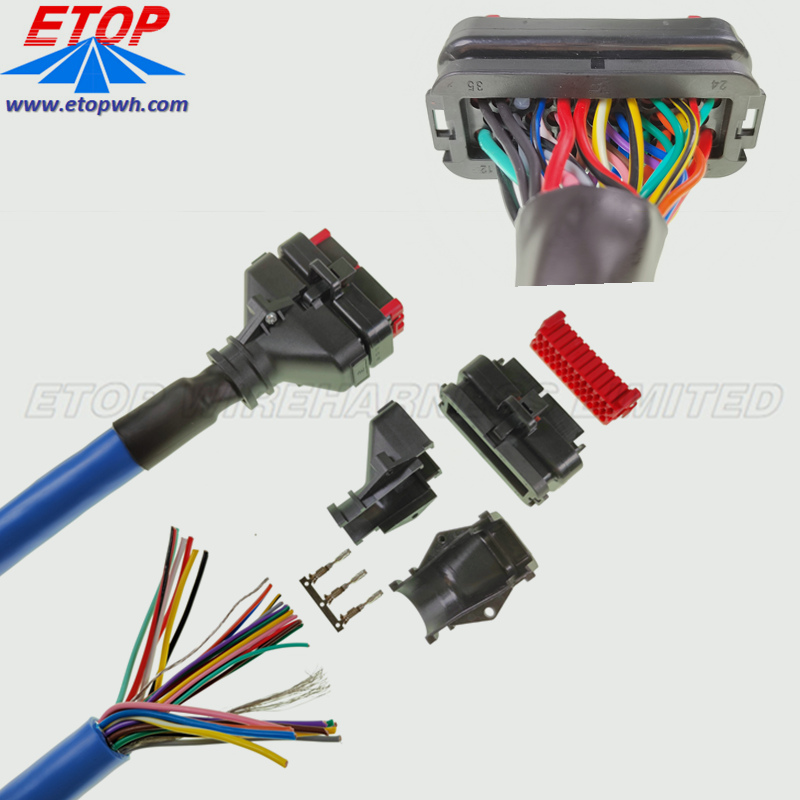

| No | Component | Description |
|---|---|---|
| 1 | Wire | RYVP3.0.5mm²/16C + (1.25mm²/1P+AL)*8 · Blue Nitrile PVC jacket · OD: 19.5±0.5mm |
| 2 | Terminal | 770520-1 · Tin-plated · Compatible with AWG standards |
| 3 | Housing | 776164-1 · Black · High-temperature resistant |
| 4 | Backshell | 776463-1 · Black · Robust mechanical protection |
| 5 | Sealing Plug | 770678-1 · Natural · IP-rated for moisture resistance |
| 6 | Heat Shrink Tubing | UL-certified · Black · Insulation and abrasion resistance |
02
VDA-authorized by Continental · Compliant with IPC620, IATF16949, UL, TÜV, and VDA.
100% tested with rigorous QMS (Quality Management System).
Fully customized solutions · R&D support and DFM/PPAP/FAIR documentation.
1,300+ toolings on hand for rapid prototyping and production.
Supports low-volume/high-mix and high-volume/low-mix orders.
13,000 m² production facility in Dongguan, China.
Proven in automotive, industrial, medical, e-bikes, and smart devices.
03
Double OQC inspection (AQL=0.65).
100% terminal crimping inspection and electrical testing.
Custom packaging (max. 16kg/CTN) with anti-static and moisture-proofing.
Contact us for tailored wire harness solutions that meet your exact specifications. Fast turnaround, global shipping, and dedicated after-sales support guaranteed.
"Driving Innovation with Every Connection"
Etop wire assemblies for various industries have been highly recognized by all the customers and widely used for automobiles, electrical and mechanical, medical industry and electrical equipemnts, etc. Products like, wire harness for car audio, power seat, rear-view mirror, POS ATM, Diesel valve Cover gasket fit, elevator, game machine, medical equipment, computer, etc.
