Custom Automobile Wiring Harness Cable Assemblies Kit

这里可以自定义设置
Custom Automobile Wiring Harness Cable Assemblies Kit
B站不支持收货地址
B站不支持库存规格
Model:
ETOP-2095
MOQ:
1000
Payment:
30% prepaid when placing order, balance paid before shipment
Delivery Time:
5~8wks
Start Port:
SZ, HK, GZ
Service:
OEM, ODM, customization
Packing:
customization 45*35*25cm, 40*30*23cm, 30*25*25cm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

High quality wire harness and cable assemblies are the backbone of electromechanical systems. ETOP provides wire assemblies for OEMs in a wide variety of industries. It is difficult to have all processes used in the building of a wire harness fully automated. With years of assembly experience and knowledge across diverse industries, ETOP has the ability to think outside the box and create tried-and-true production methods for solid manufacturing solutions, which promotes production speed with short lead time , like kitting of a harness somewhat skillful automated. At ETOP, all our products are 100% tested to ensure your product meets your expectations every time, we are confident that our assembly or harness will meet all of your industry requirements.

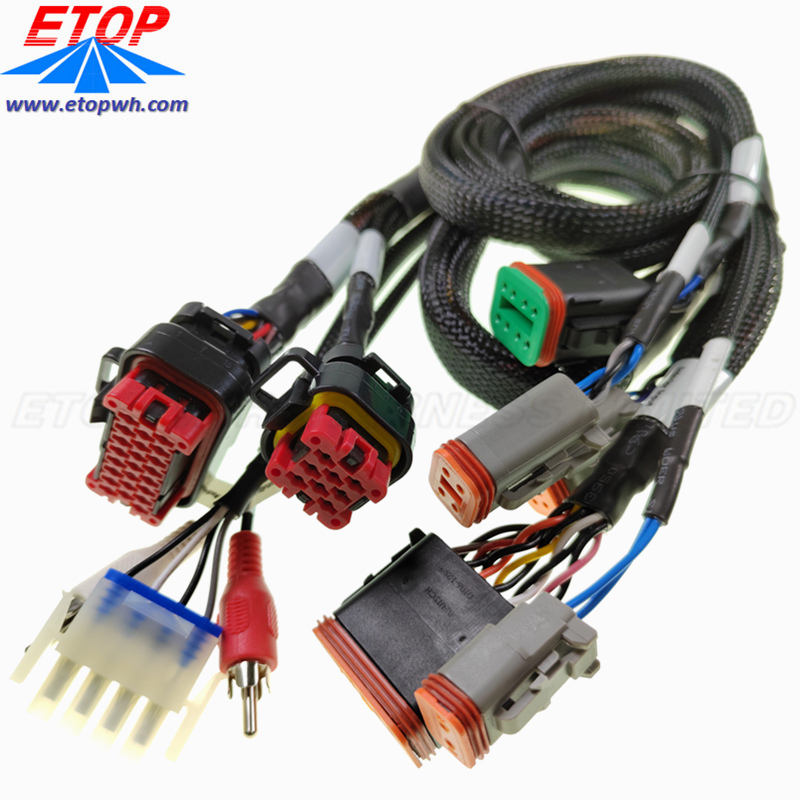

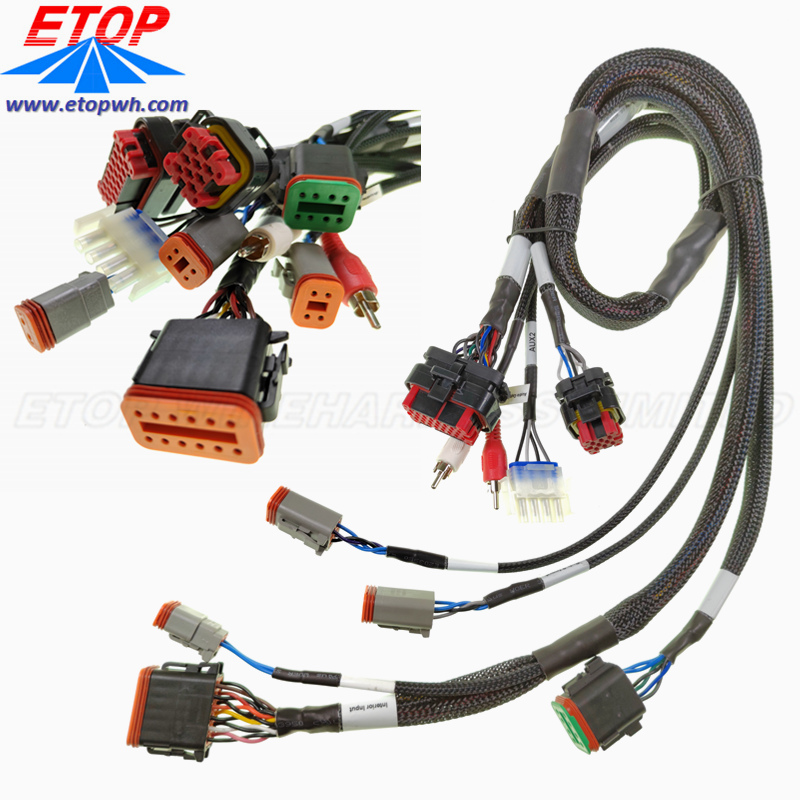

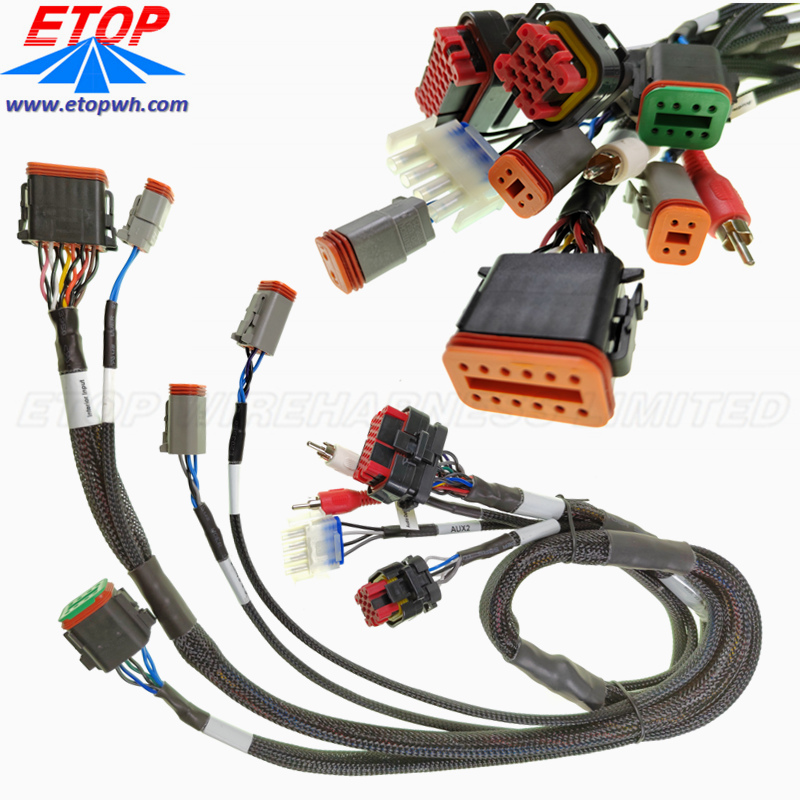

This  OEM/ODM Wire Harness Assy With ECU Sealed Connector used for automobile industry. The type connector is original one by waterproof type with seal. The whole automotive cable assembly covered by corrugated tube for protection. Also fixed by 3M tape around the branching part. Related auto wires can be choosed as customer requirement, like AVSS, AVS, FLRY, TXL, GXL, etc

Product Specifications

Product NameCustom Automobile Wiring Harness Cable Assemblies Kit
ApplicationAutomobile Dashboard
Cable colorPer customer requirements
Cable LengthPer customer requirements
ConductorCu-ETP1 bare or tinned according to DIN EN13602
Outer Insulation MaterialPVC (Polyvinyl Chloride)(thin wall)
Cable JacketPVC/TPE/Rubber/Silicone etc
Connectors typePlug housing assembly for 1.0mm receptacle contacts, single locking with multi pins available
Main Connector pitchECU 35 Position Rectangular Housing Connector Plug Natural 0.157" (4.00mm)
Pin out connectionAs per customer’s request
Inner CopperTin-plated / Bare Copper
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% electrical and electricity performance test before shipment
这里可以自定义设置

Product Details

这里可以自定义设置

01 Various connectors and terminals using on this complicated wire harness, The connectors for Dashboard are TE original Superseal series, Part Ref 4-1437290-0 with 34 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm),Design for the automotive industry, AMP Superseal series connectors meet the sealing requirements outlined in IEC 529 and DIN 40050 IP 6.7 waterproof standard.



The cap and plug connector housings incorporate preassembled secondary locks to help insure correct and complete contact insertion into the housing and helps prevent the contacts from backing out during mating. The secondary lock cannot be closed if the contacts are not correctly inserted into the connector housing.



The double spring contact design (main spring and auxiliary anti-overstress spring) insure low insertion and high contact forces.Wire-to-Board (1.0 mm, 3.00mm) and ECU applications, under hood or any location where sealing is required, suitable for automotive, truck, bus, or off-road vehicles.



The advantages for the ECU connectors are compact system minimizes packaging requirements, sealing reliability proven under harsh conditions, designed for ease of manual harness assembly, engine mounting installed flexiably under hood environments for your vehicles.

这里可以自定义设置

02 This type of Ampseal automotive plug ASSEMBLIES came original from TYCO, which used for auto Powertrain systems, Safety and Security systems, or Body and Chassis systems. AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating. The connectory by 4.00 mm Centerline available for 8pins, 14pin, 23pin and 35pin. TE Ampseal Ref P/N 770680-1 connector overmolding mating details below:

Mating Terminal 770520-1/770520-3/770854-1/770854-3
8PIN RECEPTACLE HOUSING776286-1/776286-2
8PIN wafer776276-1/776280-1/776275-1/776276-1
14PIN RECEPTACLE HOUSING776273-1/776273-2/776273-4/776273-5
14PIN WAFER776266-1/776267-1/776261-1/776262-1
23PIN RECEPTACLE HOUSING770680-1/770680-2/770680-4/770680-5
23PIN WAFER 770669-1/776087-1/776200-1/776228-1
35PIN RECEPTACLE HOUSING776164-1/776164-2/776164-4/776164-5
35PIN WAFER1-776180-1/1-776163-1/776230-1/776231-1

Product Applications

The wiring harness playing a critical role in " connecting" a variety of components on the automobile dashboard industry, with with ECU 35 Position Rectangular Housing Connector Plug Natural 0.157" (4.00mm).  An automotive wiring harness is an assembly of electrical wires, terminals and connectors or an electrical wiring system, that run throughout the entire vehicle and relay information and electric power, used to convey information and energy in automobiles.
