Custom Auto 24pin ECU Connector Wiring Assembly

Custom Auto 24pin ECU Connector Wiring Assembly
30% prepaid when placing order, balance paid before shipment
Delivery Time:
Start Port:
OEM, ODM, customization
customization 45*35*25cm, 40*30*23cm, 30*25*25cm

Add success, do you want to check your shopping cart?


Product Description

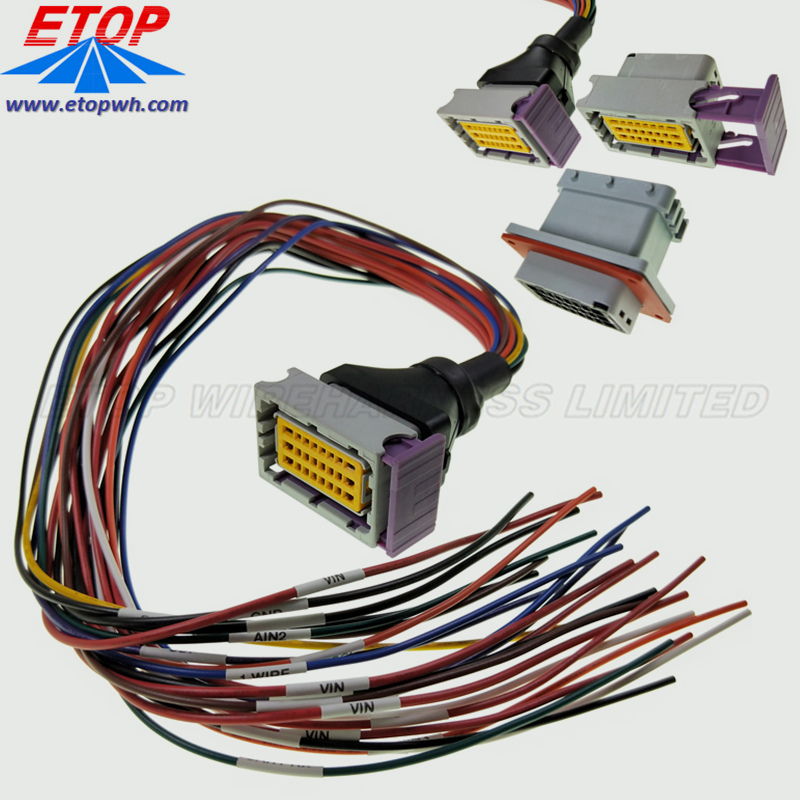

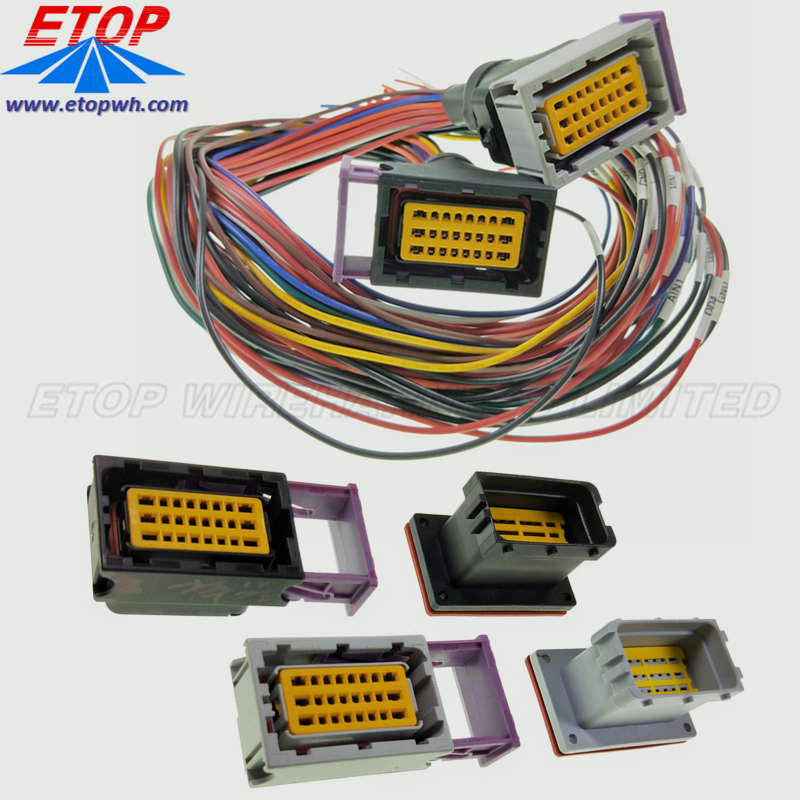

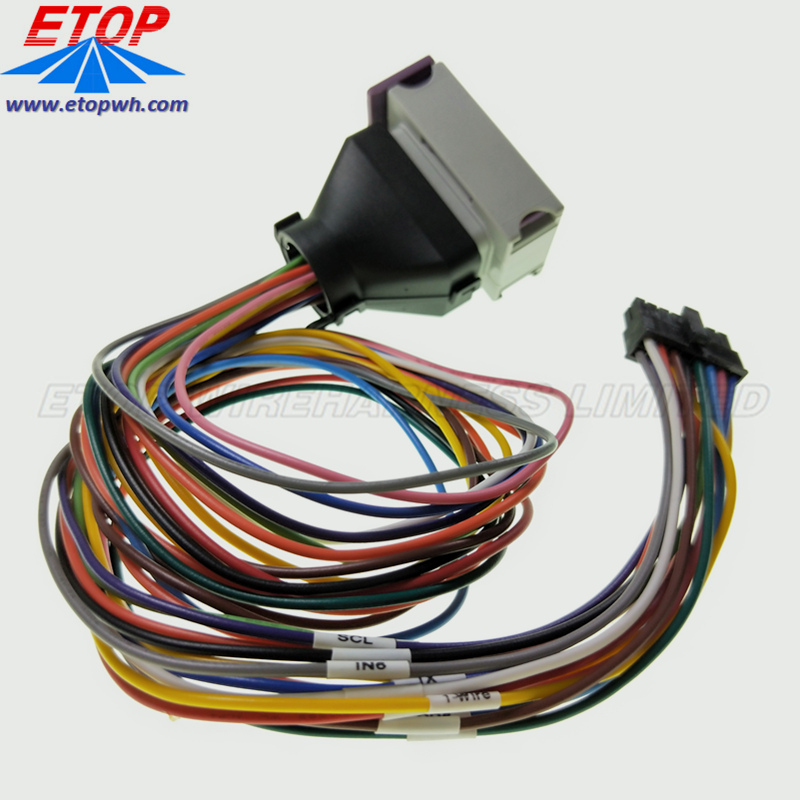

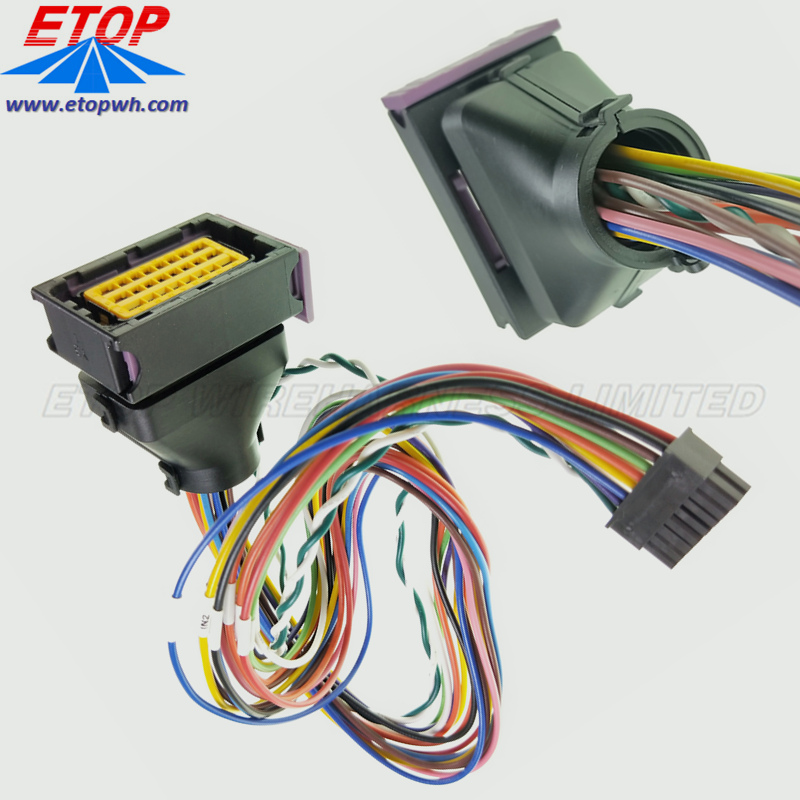

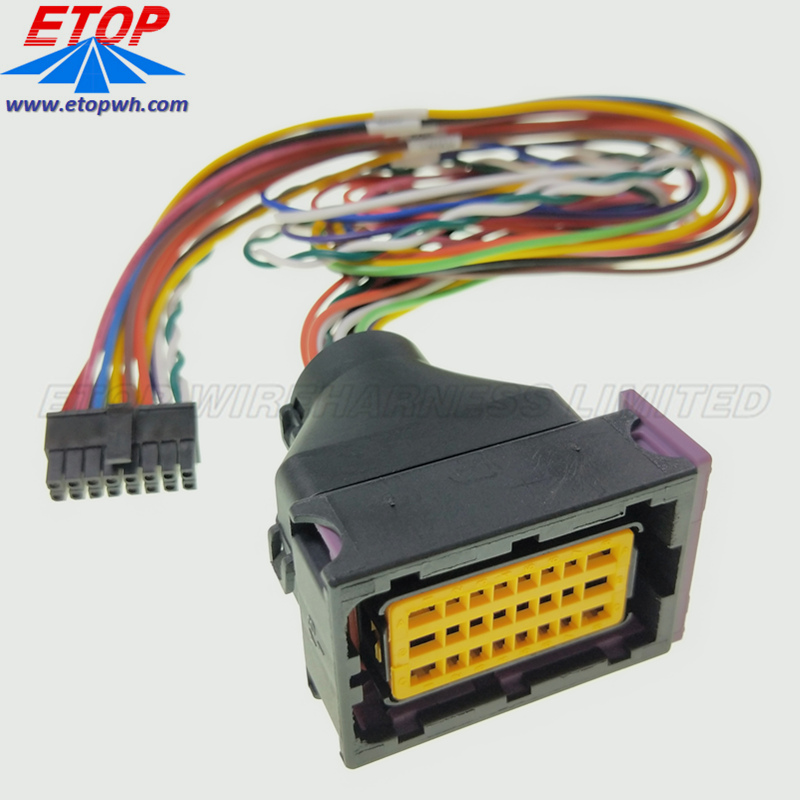

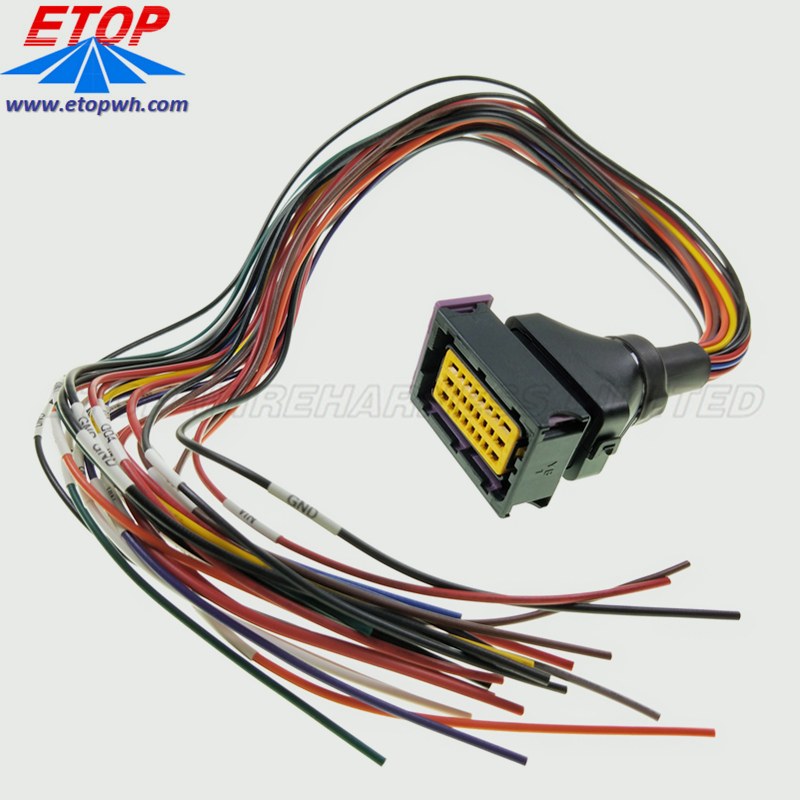

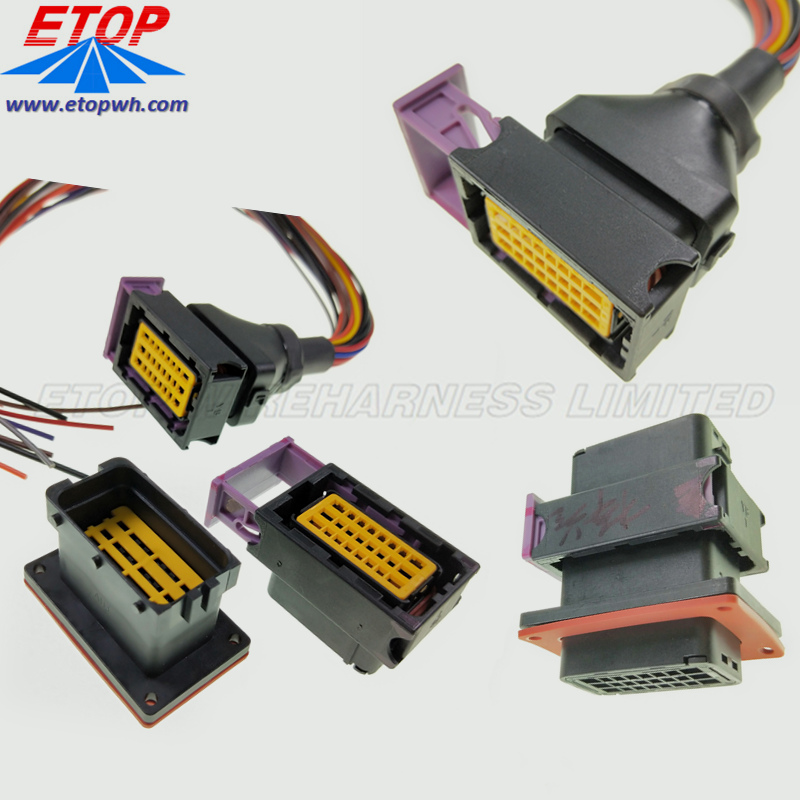

car ECU wiring harness and sealed waterproof connector cable assembly

ECU 24 pin car waterproof Oil to gas computer board socket cable assembly

Auto ECU Wire Assembly is applied for ECU system

211PC249S0005 black
211PC249S0005 grey

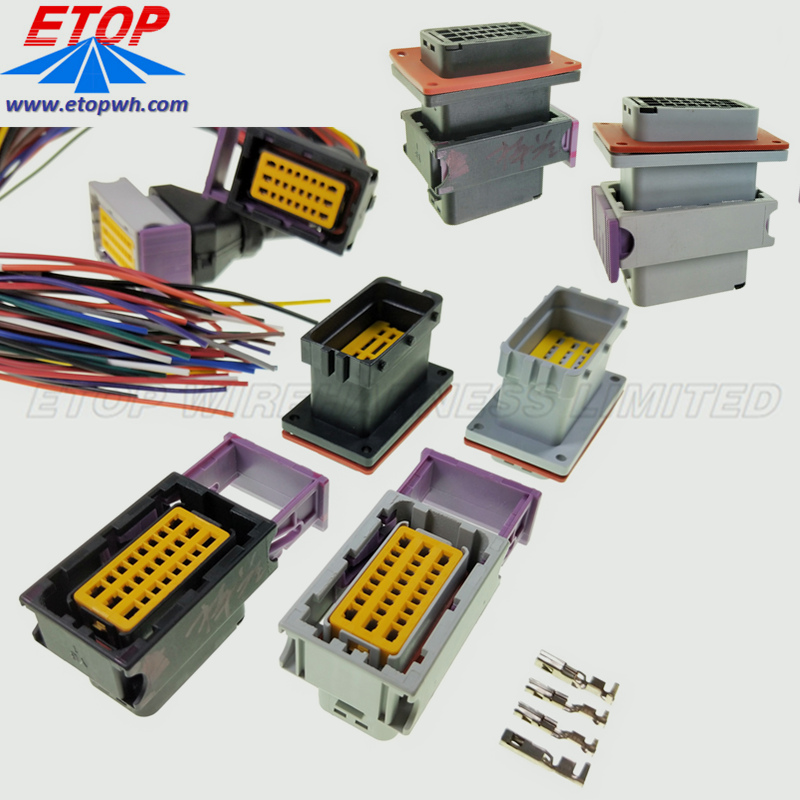

ECU 24PIN waterproof oil to gas connector
Black ECU 24 pin car waterproof Oil to gas computer board socket,
211PC249S0005 female electronic controller wiring harness plug
24 Way Female Sealed Automotive Connectors With Terminals 211PC249S0005
Car 24 hole black ECU plug-in CNG computer connector 211PC249S0005 DJ7242-1.5/2.8-21 connector
Power trains for electric vehicles use batteries and motors instead of internal combustion engines, which have also had a series of impacts on automotive HVAC (Heating, Ventilation, Air Conditioning) systems. On the one hand, traditional vehicles generally use...




Product Specifications

Product NameCustom Auto ECU 24 pin connector cable assembly

automotive wiring harnesses, ampseal connector cable assembly,auto ECU cable assemblies,ECU connector cable assembly


automotive, vehicles, ECU

Cable colorPer customer requirements
Cable LengthPer customer requirements
Connector typeautomotive connectors
Wire branchingPVC TUBE, TAPE, CLIP
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details


01  Wire Harness Assembly Process
These processes include but are not limited to the following:

    Installing the wires and/or subassemblies on the assembly board.
    Routing wires and/or subassemblies through any required sleeves.
    Applying wraps, ties, or tapes, particularly on any branch-outs.
    Crimping terminals onto wires, especially if more than one wire goes into one terminal.

It is difficult to automate the processes used in the building of a wire harness. Manual production remains more cost effective than automation, especially with small batch sizes. Pre-production or kitting of a harness can be somewhat automated.


02     Custom car ECU cable assemblies Engineering Services & Support

We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.

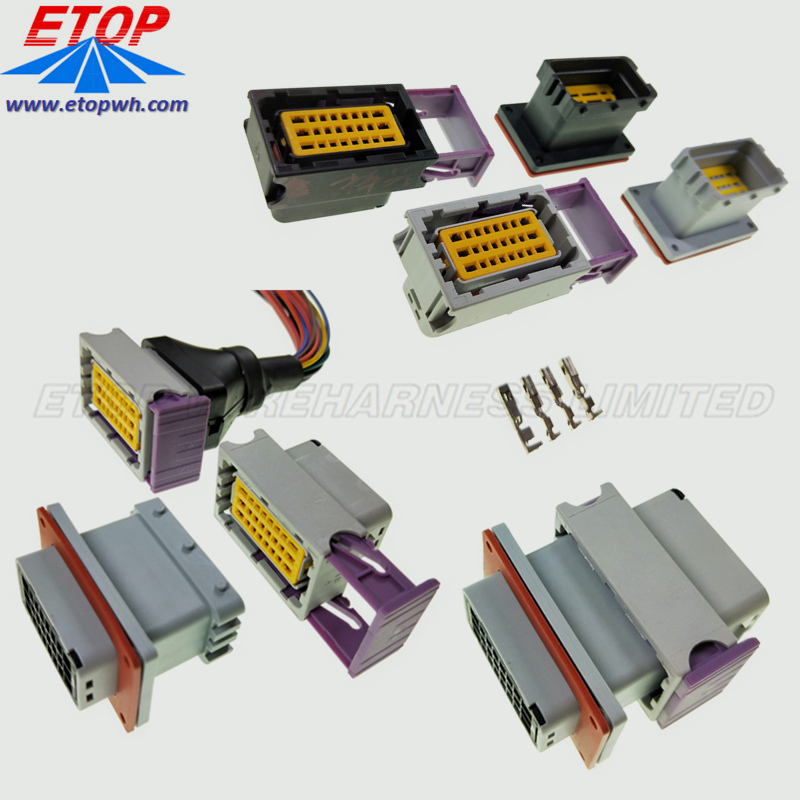

24 Way FEC ECU Sicma Sealed Connector With Terminals

Automoive Motorcycles

Other Part Number: 211PC249S0031

Length: 53.1mm
Pitch: 5mm
Depth: 33.4mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C

Terminal part number : 211CC2S4160

For Use With:SICMA Mini Sealed Connector


03   Custom auto cable assemblies

The main advantages of ETOP is to provide full-time design and technical  solutions(CAD, SOLIDWORK), rapid in-house prototyping, manufacturing engineering, tool making, accept flexible Qty, also offer production flexibility to meet customer special required hard deadlines. Customer satisfaction is always our top priority.


With experienced harness assembly experience, tried-and-true production methods and industry standard connections, ETOP has the knowledge and capability to be your qualified AVL and reliable manufacturing partner, to deliver what you need.


When wiring your car audio system, using the proper gauge wire for an amplifier is critical. To avoid problems and get the best sound, determine the fuse ratings of your amplifiers and their distance from the battery


Product Applications

ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
