Product Description
Powerpole connectors

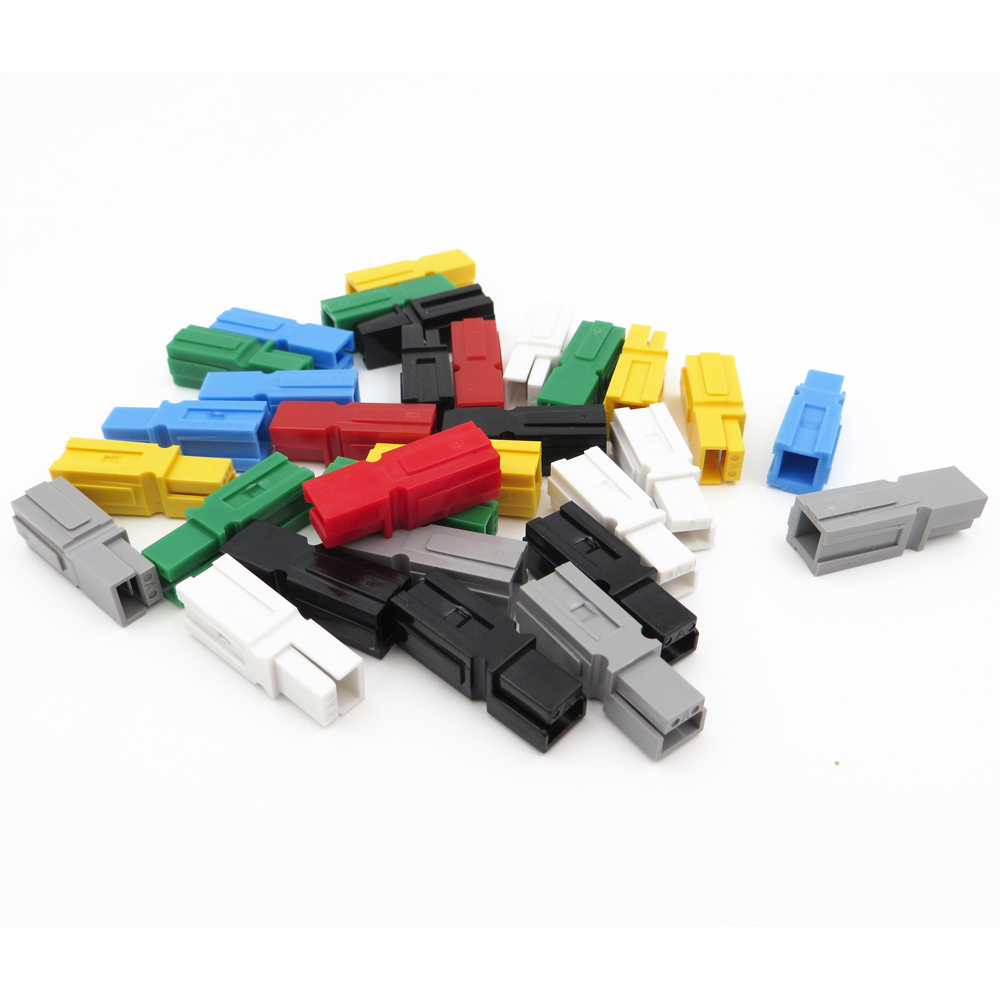

This versatile connector series meets a wide range of power connection needs. The four housing sizes in the Powerpole product family can carry a wide range of amperage and wire sizes in the most compact footprint. For currents up to 350A and from wire sizes of #20 AWG (0.75 mm²) to 3/0 (70 mm²). Powerpole can handle them all! A wide range of colored housing options can be stacked together to create a proven reliable custom connector. These housings can be used with different contacts to create wire-to-wire, wire-to board, or wire-to-busbar connections. The Powerpole connector combines high quality materials with a cost-effective and innovative design for powerful versatility.
| Product Name | color keyed powerpole connectors | ||
| Application | power charger system | ||
| Cable color | Per customer requirements | ||
| Cable Length | Per customer requirements | ||
| Connectors postion | 1pin, 2pin | ||
| Connector type | Male | ||
| Connector series | powerpole, battery charger | ||
| Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH | ||
| Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 | ||
01

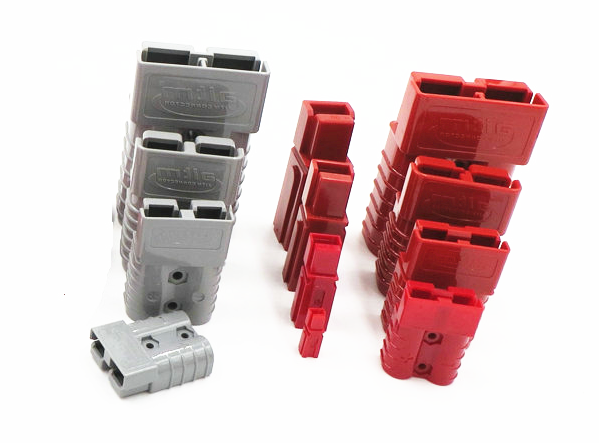

The Powerpole family spans a range of sizes covering up to 350 amps and accepting a different gauges of wire from 10 thru 4/0 AWG. Here is a size comparison diagram for the 50, 120, 175, 350 amp Powerpole Housings:
High current rating, low resistance
The size of the wire a Powerpole contact will accept is the primary limitation of their ability to carry a load. Powerpole connectors will safely handle higher loads or surges, please read the linked data sheets (PDF) for additional information.
The contacts are made of highly conductive silver-plated copper for minimal contact resistance at high currents. The average contact resistance is 500 micro-ohms.
Durable polycarbonate housing
The Powerpole insulated housings use a durable, high impact-resistant, high temperature polycarbonate plastic with a UL94 V-0 flammability rating. The connector design allows air to flow through the housing, assisting in cooling.
Additional accessories include handles, boots and dust covers
A variety of Powerpole accessories are available including weather resistant dust caps, corrosion proof safety boots, connector handle kits, strain relief cable clamps and more.
02 Specification:
Brand new
Housing Material: Polycarbonate (PC)
Contact material: Pure copper silver plating

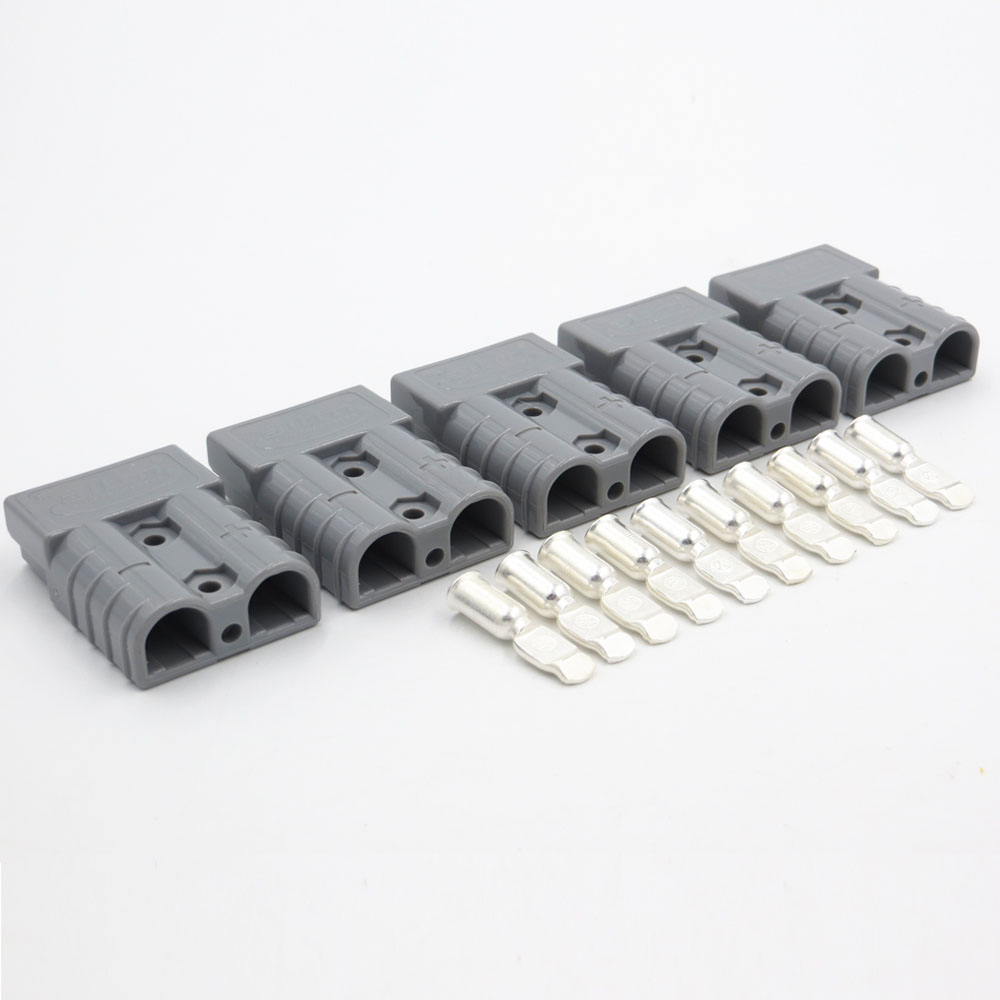

Color: Grey/Red/Black, Size: approx. 35.1*48*15.9mm

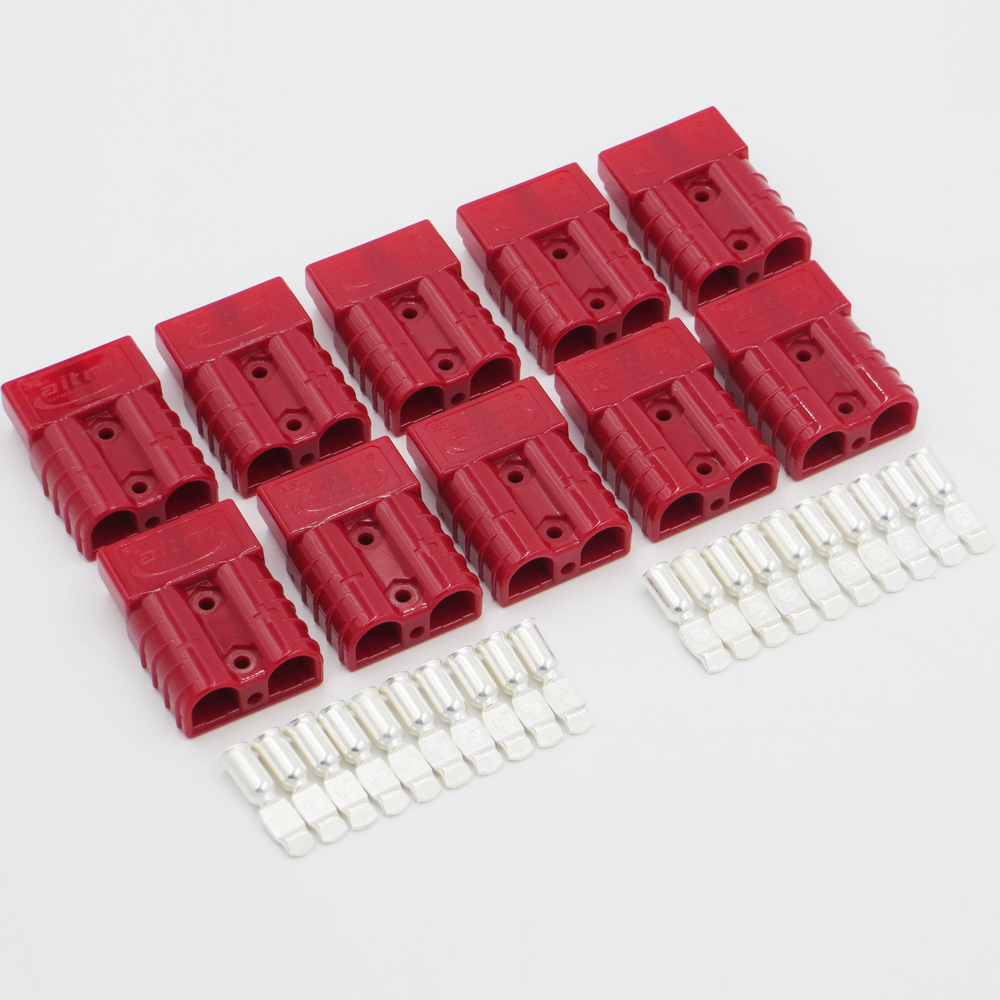

Rated current: 50A , Rated voltage: 600V
Voltage: for 12v or 24v use, Vibration resistance: excellent
Impact resistance: high, Cable size: 6B&S / 6AWG (up to 13.3 sq mm)
Average contact resistance: 0.05MΩ, Voltage proof: 2200V (DC)
Insulation resistance: 500MΩ
A. No load (Contact/Disconnect Cycles): To 10,000
B. Under load (Hot Plug 250cycless@120V): 50A
Flammability rating of housing material: UL94 V- 0
Operating temperature range: -20° to 105°
Application: Battery Connections, Forklifts, Battery Chargers, Solar Panels, Wind Generators, Tow Trucks, Snow Plows, Farm Equipment, Jumper Booster Cables, Welding Equipment, Winches, Electric Vehicles etc.
Feature:
The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.
Provide simplified assembly and minimize the number of components.
Silver plated copper contacts inside housings that strongly force the contacts together.
Contacts feature a sacrificial tip that allows high current circuit interrupt.
Prevents accidental cross mating of circuits.
For signal transmission or the added safety of a premate ground position.
Easy to use. Durable in use.
Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
03
Specification:
Brand new
Contact material: Copper/ plating silver

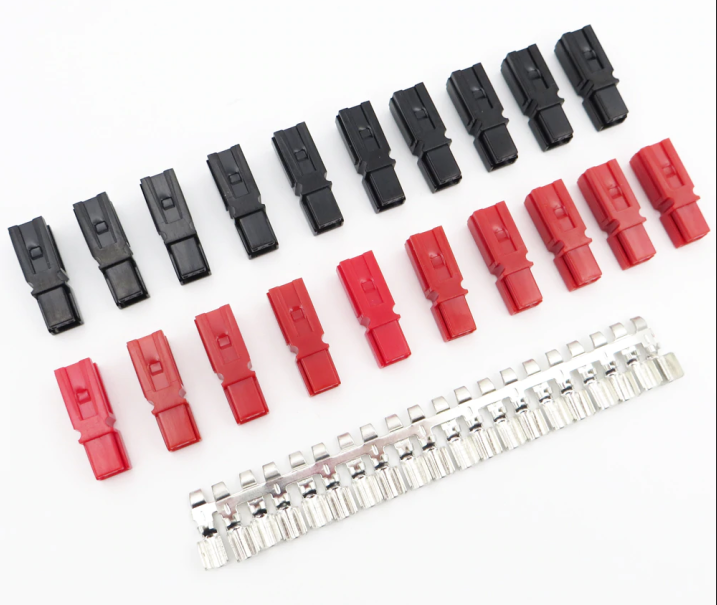

Size: approx. 25*7*7mm
Rated current: 15-45A
Rated voltage: 600V
Contact barrel wire size (AWG): 2/4/6AWG (13.3mm⊃2; – 21.1/33.6mm⊃2;)
Average contact resistance: 0.05MΩ
Voltage proof: 2200V (DC)
Insulation resistance: 500MΩ
Avg. unmating force: 5N
Flammability rating of housing material: UL94 V- 0
Operating temperature range: -20° to 125°
Feature:
Provide simplified assembly and minimize the number of components.
Silver or plated copper contacts inside housings that strongly force the contacts together.
Contacts feature a sacrificial tip that allows high current circuit interrupt.
Prevents accidental cross mating of circuits.
Stainless steel springs create a rebuts force between the contacts that holds the connector in the mated position.
For signal transmission or the added safety of a premate ground position.
Easy to use.
Durable in use.
Application: Battery Connections, Forklifts, Battery Chargers, Solar Panels, Wind Generators, Tow Trucks, Snow Plows, Farm Equipment, Jumper Booster Cables, Welding Equipment, Winches, Electric Vehicles etc.
Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
