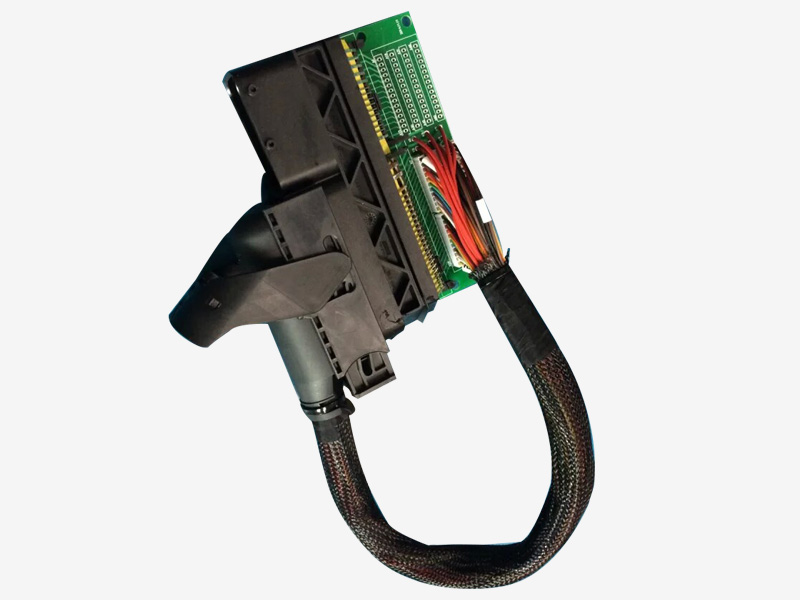

Cable Assemblies For Bosch ECU GS4 HAVAL H5H6

This auto cable harness used for auto ECU system , customized for Bosch. The electronic control unit (ECU) used in today’s cars and trucks is used to control the engine and other components' functions. An ECU is a computer with internal pre-programmed and programmable computer chips that is not much different from a home computer or laptop. The vehicle's engine computer ECU is used to operate the engine by using input sensors and output components to control all engine functions.

● Header is mateable with female connectors, TE P/N 284743-1(60POS) and 28474201(94 POS)

●Finitura superficiale contatti: (Tab contacts surface treatment:) MOS PIN 0.63*0.63: Tin plated(Pin MOS 0.63*0.63: Stagnato) Tab contact  1.5x0.63 : PRE-TIN,
●With lead-free post-tin pltg. on soldering side (contatto 1.5 x 0.63 : pre-stagnato con post-stagnatura lead-free sullato saldatura) Tab contact 2.8x0.8 : PRE-TIN,  with lead-free post-tin pltg. on soldering side)}     (contatto 2.8x0.8 : pre-stagnato con post-stagnatura lead-free sul lato saldatura)   connector is supplied with the retainer   in pre-assembled position .
●(il connettore e' fornito con il posizionatore dei contatti in posizione pre-assemblata)   measured in the middle point of  receptacle side   max deformation allowed 26.5 mm in the middle
●(misurata nel punto medio della vaschetta. massima deformazione ammessa 26.5 mm min al centro)   packing and shipping according to te specification    prevents the connector pins from damages.

●l'im ballaggio e la spedizione sono in accordo all especifiche
