Product Description

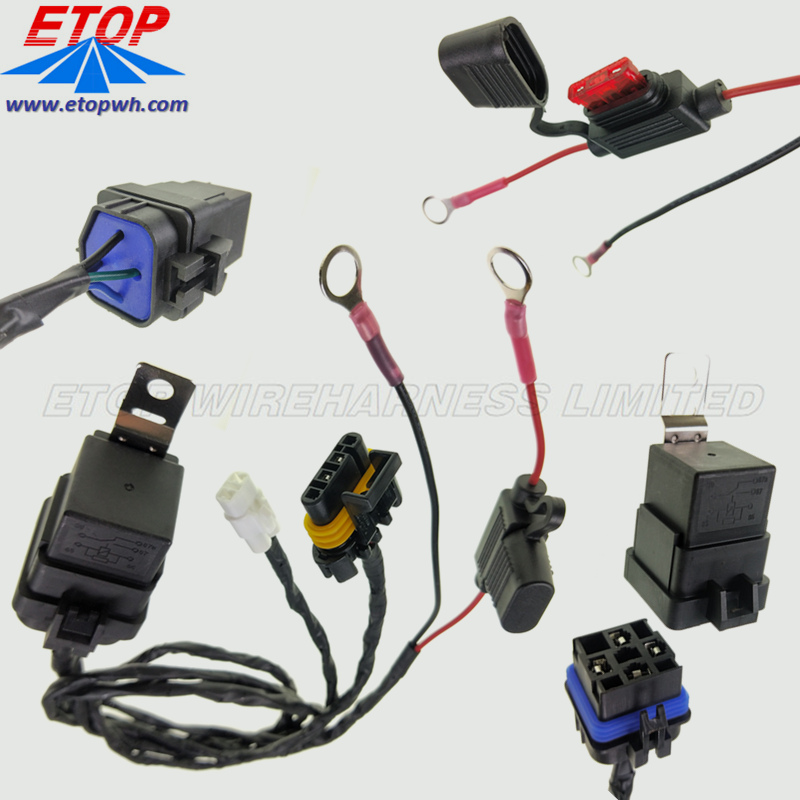

Automotive Relay Switch Weatherproof 30 amp 12V Wiring Harness
Auto Sealed Relay Wire Assembly is applied for realy and switch system
CAR RELAY WIRING HARNESS
CAR SWITCH WIRING ASSEMBLY
CAR FUSE HOLDER CABLE ASSEMBLY

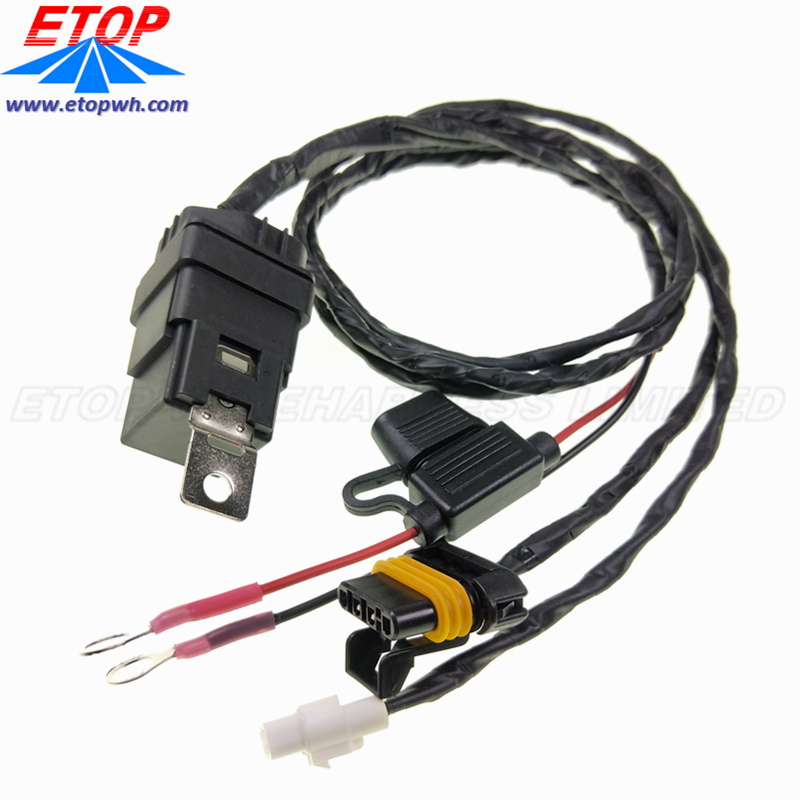

Relay Switch Weatherproof 30 amp 12V Wiring Harness

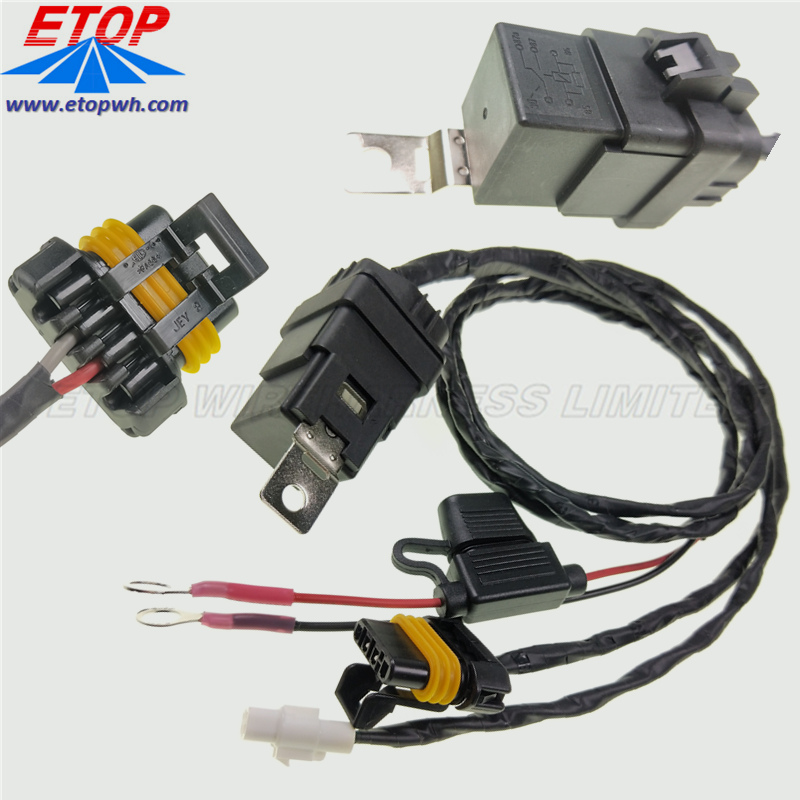

Weatherproof Relay with Harness 30amp
Rely on our large selection of low-priced, high-performance automotive wiring harnesses to tell your speedster what to do next. With circuits ranging from eight to 24, and the ability to replace parts on vehicles, we have what you need to complete your next auto project.
Product Name | Automotive Relay Switch Weatherproof 30 amp 12V Wiring Harness | ||
Keywords | Weatherproof Relay with Harness 30amp;automotive relay wiring harness;automotive relay wiring harness | ||
Application | automotive, vehicles | ||
Cable color | Per customer requirements | ||
Cable Length | Per customer requirements | ||
Connector type | automotive RELAY, fuse holder | ||
Protection | corrugeted tube and 3M tape | ||
Quality Certificate | ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620 | ||
Performance Test: | 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65 |
01 Wire Harness Assembly Process
These processes include but are not limited to the following:
Installing the wires and/or subassemblies on the assembly board.
Routing wires and/or subassemblies through any required sleeves.
Applying wraps, ties, or tapes, particularly on any branch-outs.
Crimping terminals onto wires, especially if more than one wire goes into one terminal.
It is difficult to automate the processes used in the building of a wire harness. Manual production remains more cost effective than automation, especially with small batch sizes. Pre-production or kitting of a harness can be somewhat automated.
02 Custom cable assemblies Engineering Services & Support
12vdc SPDT sealed relay & pigtail combo pack, The unit is sealed against moisture, dirt and dust.
Resistor across the relay coil for voltage spike protection.
Rating of contacts dependent upon how the relay is wired
Normally open or normally closed contacts are rated differently.
Contacts not rated or tested above 16vdc
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
03 corrugeted tube covered cable assemblies Engineering Services & Support
Custom auto cable assemblies Engineering Services & Support
We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.
ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.
