24V OBD2 to Micro-fit Connectors Overmolding

24V OBD2 to Micro-fit Connectors Overmolding
T/T 30% Prepayment, balance before delivery
Delivery Time:
Sample 3~15days, Mass Production 2~6wks
Start Port:
ShenZhen, HongKong
OEM/ODM, Customizaion
customized box, label and pallet

Add success, do you want to check your shopping cart?

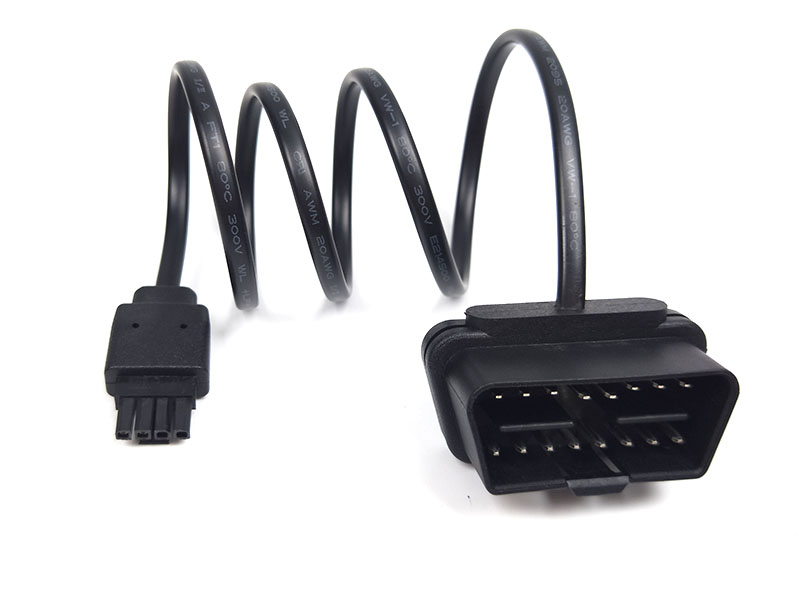

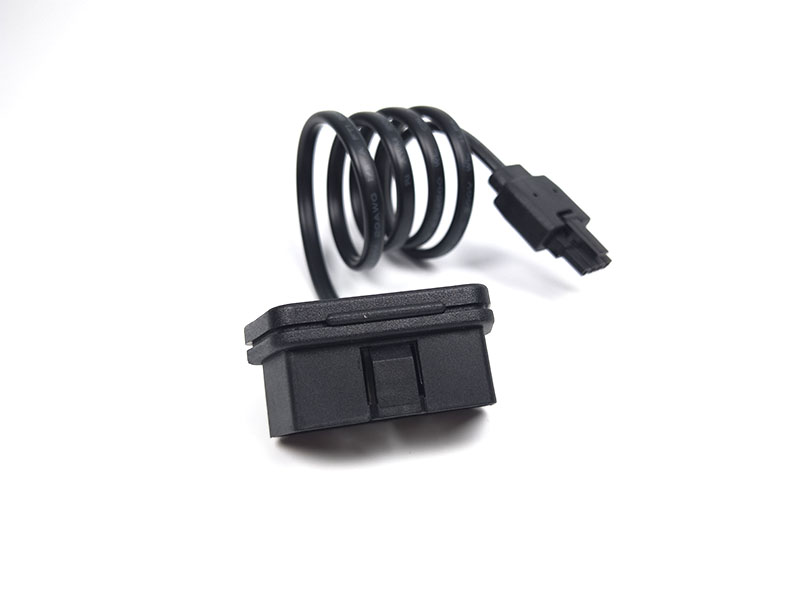

Product Name24V OBD2 to Micro-fit Connectors Overmolding
Over molded color(OBD Connector)Black&Customized
Core Color(OBD Connector)Black
Terminals material(OBD Connector)Phosphor Bronze Pre-Matt Tin
Terminals Applied Cables26awg-18awg
Plug TestOver 10000 times
Cable lengthAs per customer's requirements and do customized
Cable JacketPVC, PUR and customized
Cable Pin OutCustomized
Cable cross-sectionAWG 26-20 available
Withstand Voltage300V DC
Number of Rows1
Micro-FitMolex or customzied molding
ServiceOEM and ODM products are acceptable
SamplesSamples confirmed first before mass production
Quality CertificateISO9001, IATF16949, ROHS, UL,SGS,ROHS,REACH
Performance Test:100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

Product Details


01 ETOP is with you every step of the way. we have internal design, prototype,and manufacturing the widest range of OBD2 connectors and extension cable, which can support customer by short L/T and most competitive price.


Once the problem has been verified, we can move forward to the solutions stage. At this point our Engineering staff take-over and begin by:

1. Taking measurements and electrical readings
2. Creating 2D CAD Drawings and 3D models using industry-standard software
3. Printing 3D prototypes using our state-of-the-art 3D Printer
4. Create Tooling and over-mold samples (Toll Shop located on-site)
5. Test samples for durability, quality and, most importantly, problem solution


We`ll make sure to keep you in the loop by consulting you every step of the way. Once you receive you First Article Samples you can get started on testing. We encourage you to give us feedback especially if it`s not performing like you would like it to. Remember R&D is often time trial and error.


03 The Micro-Fit Connectors offer superior design options for flexibility and efficient assembly. The connectors offer a high-current rating of 12.5A and uses the same amount of space that smaller connectors occupy. which is designed to meet the need for a high contact density signal or power connector. The Micro-Fit 3.0 connectors are a miniature 3.00mm (.118") pitch, but retain many of the features found on larger power connectors. Micro-Fit products are available in circuit sizes 2 to 24 for single and dual row, wire-to-board and wire-to-wire applications such as automative, telecommunication/networking, medical, sustainable energy, computers, work stations, satellites,  and a host of consumer products as below details. (放产品细节图3.0pitch Micro-fit connectors)
Consumer: Washers and dryers, Freezers, Gaming machines, Printers, Refrigerators,    Scanners, Security systems, Vending machines, White goods
Telecommunications/Networking: Routers and switches, Servers, Storage

Medical: Diagnostic equipment, Patient monitors
Sustainable Energy: Solar power
Automotive: Harness manufacturers, Non-sealed applications, Inside devices, harging stations

Product Applications

J1962 24 pin OBDii female connector is used on automotive, aerospace, industrial, data communication, medical solutions...Usually Turbine engines control, data memory modules, missile actuator controllers, telematics,J1939 CAN BUS diagnostics unit, deletion error diagnoses, vehicle/garage diagnostic equipment, diagnostic (scanner) kit, play plus diagnostic kit, garage diagnostic equipment , diesel engines optimization device, VAG Diagnostic tool,…. All cars have obdii port will have to use obdii female connector.
